Detailed Description

Channel EQ

The channel EQ on SiX has its roots in SSL's classic E series EQ. It is a gentle, broad stroke two-band
design with high and low shelving filters at 3.5 kHz and 60 Hz, adjustable from +15 dB to -15 dB of gain.
Each band can be independently switched between shelving and bell curves using the BELL switch - a
feature found on many SSL EQ designs. A useful feature of the bell curves is that they change centre
frequency to operate at 5 kHz and 200 Hz giving greater versatility from the two controls.
The EQ is switched 'in' circuit or completely bypassed using the 'IN' switch. This small detail guarantees
no influence on the channel's exceptionally flat frequency response from the tolerance of the EQ control
centre detent positions.

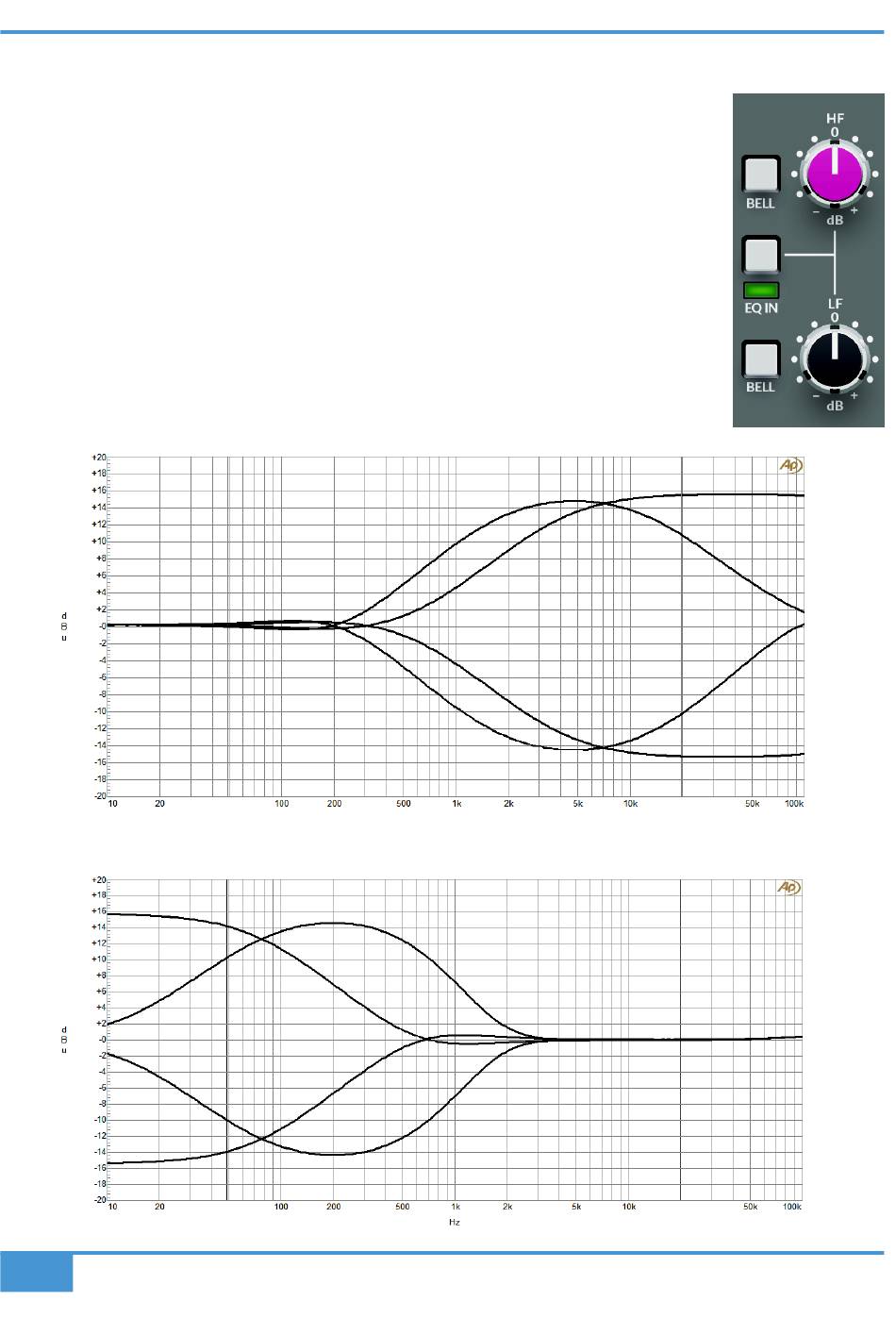

EQ HF Frequency Response
EQ LF Frequency Response
