ADS-B FDL-978 Series and
Lite Series Installation Manual
Document No. 87343 Rev G

SECTION 10 MAINTENANCE INTERFACE DIAGRAMS

Section 12.12.1 describes the various FDL-978 Lite Series configuration and setup options via
the MPI. The diagrams below provide a pictorial representation of these available options for
accessing the maintenance port of the FDL-978 Lite Series and FDL-978-XVR.

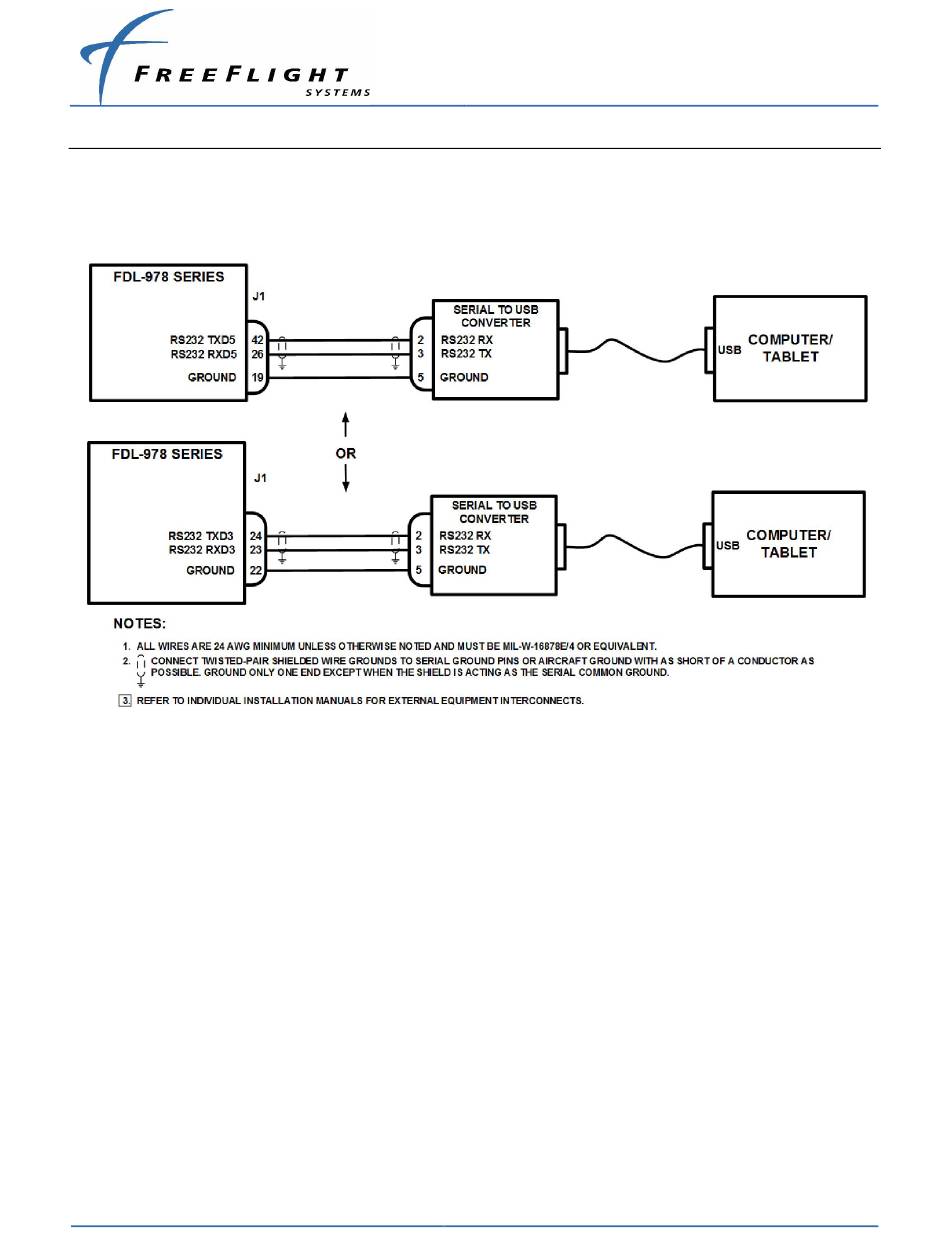

Figure 32. Off-the-Shelf RS-232 to USB Converter
FFS Copyright © 2016 All rights reserved.
10-1
