9.1.1 Garmin GNS 430W/530W Display and GPS, GTX-330 Transponder

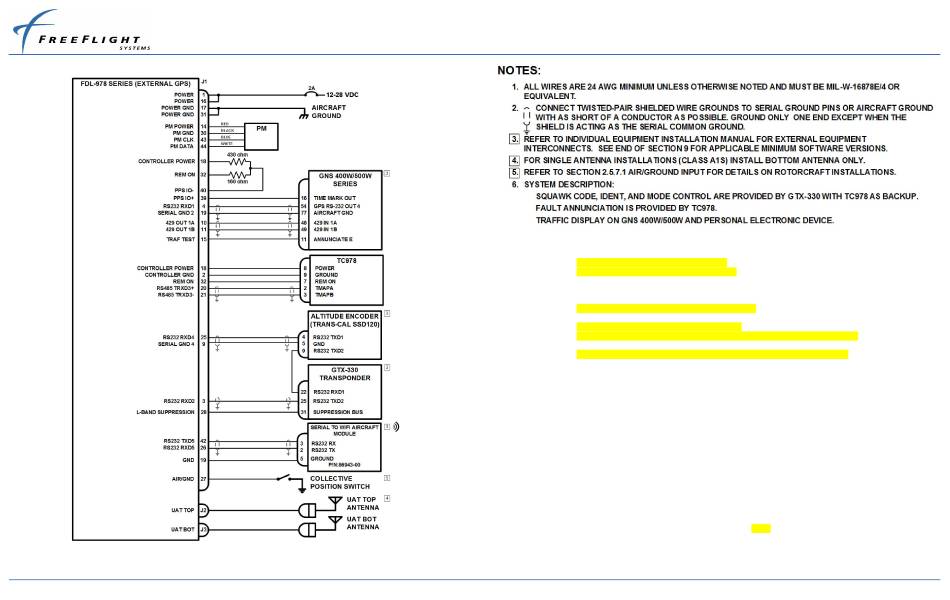

Figure 21. Garmin GNS 430W/530W Display and GPS, GTX-330 Transponder
FFS Copyright © 2016 All rights reserved.
Table 25. Garmin System Configuration Settings
ICAO Address.............. FF00
VFR Call Sign............. FXVRGA
GPS Config................ Level C
NACv Mode................. Auto (from GPS)
Receiver Capability....... no1090, 978
Emit Category............. ROTORCRAFT
Squat Mode................ low
Groundspeed Threshold..... 0 knots
Vehicle Size.............. Length=0 meters, Width=0 meters
UAT Ant................... dual, No DC Gnd Chk
GPS Ant Offset............ Long=No Data, Lateral=No Data
Mode A Rx................. disable
Disable Squawk Tx......... off
Max Targets............... max
Chelton CSA Enable........ disable
Traffic Vel Validation.... enable
Display Data Output....... traffic&fisb
Serial In
1.............. GPS-ADSBPlus, 9600
Serial In
2.............. GTX-Remote, 9600
Serial Out 2.............. UNUSED, 9600
Serial In
3.............. TMAP, 38400
Serial Out 3.............. TMAP, 38400
Serial In
4.............. Alt-Encoder, 9600
Serial In
5.............. UNUSED, 115200
Serial Out 5.............. Traffic-Alert, 115200
Serial In
6.............. UNUSED, 9600 (RS-422)
Serial Out 6.............. UNUSED, 9600 (RS-422)
ARINC In 1................ UNUSED, low
ARINC In 2................ UNUSED, low
ARINC Out 1............... Traffic, high
ADS-B FDL-978 Series and
Lite Series Installation Manual
Document No. 87343 Rev G
9-1
