- Page 1 STEP X - Name of Step QUICK START GUIDE LPH3100A INDUSTRIAL POE SWITCH 24/7 TECHNICAL SUPPORT AT 877.877.2269 OR VISIT BLACKBOX.COM...
- Page 2 STEP 1 - Package Includes WHAT’S INCLUDED • (1) LPH3100A INDUSTRIAL POE SWITCH • (2) WALLMOUNTING PLATES WITH SCREWS • (1) DIN RAIL MOUNTING BRACKET WITH SCREWS • THIS QUICK START GUIDE...

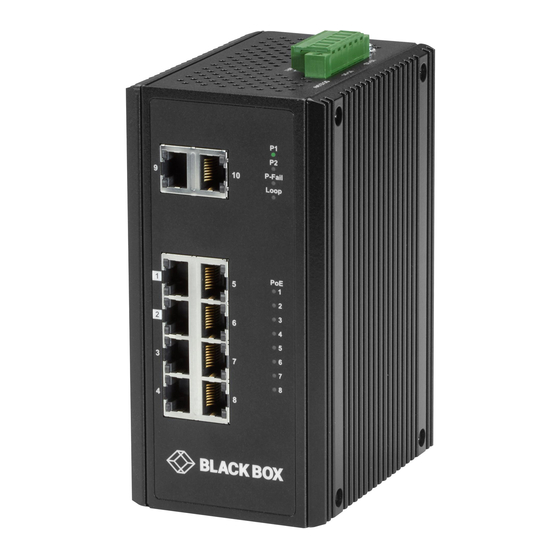

- Page 3 STEP 2 - LPH3100A Hardware Overview TABLE 1. LPH3100A COMPONENTS NUMBER DESCRIPTION (2) RJ-45 Ethernet ports 5, 6, 7, 8 (8) RJ-45 Ethernet PoE ports Link/Activity LED Speed LED Power 1 LED Power 2 LED Power Fail LED Loop LED...
- Page 4 POWER CONNECTION STEPS PWR2 1A @ 24V PWR1 The LPH3100A switch supports dual +12 to 24 VDC power inputs and changes relay status when the power fails. 1. Insert the positive and negative wires into the V+ and V- contacts on the terminal block connector.
- Page 5 STEP 3A - DIN Rail Mounting INSTALLING THE DIN RAIL KIT Attach the DIN rail bracket to the DIN rail using the included screws. See Figure A. REMOVING THE DIN RAIL KIT Remove the screws from the DIN rail. 2. Lift the switch up and off from the DIN rail. See Figure B.
- Page 6 STEP 3B - Wallmounting WALLMOUNTING STEPS Using the included screws, attach the wallmounting plates to the wall. 2. Slide the switch onto the mounting plates. CAUTION: Do not block air ventilation holes!
- Page 7 STEP 4 - System LED Indicators TABLE 2. SYSTEM LED INDICATORS ON THE LPH3100A NUMBER LED NAME LED COLOR DESCRIPTION Solid green Powered ON PWR1 LED Powered OFF or not installed Solid green Powered ON PWR 2 LED Powered OFF or not installed...
- Page 8 STEP X - Name of Step COPYRIGHT 2017 BLACK BOX CORPORATION. ALL RIGHTS RESERVED.
