Summary of Contents for Black Box LPH240A-H

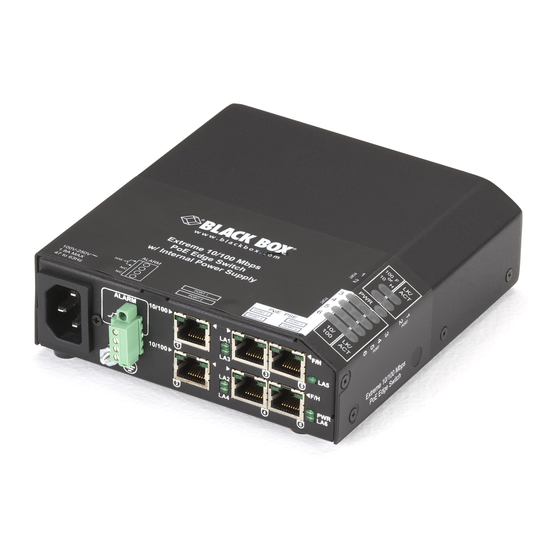

- Page 1 LPH240A-H LPH240A-P PoE Edge Switch Use this economical 6-port 10/100 switch, which has four 802.3af compliant PoE PSE ports for PoE devices. Reduces Network Costs and provides economical solution. Operation is plug-and-play.
- Page 3 Radio Interference Regulations Federal Communications Commission and Industry Canada Radio Frequency Interference Statements This equipment generates, uses, and can radiate radio-frequency energy, and if not installed and used properly, that is, in strict accordance with the manufacturer’s instructions, may cause interference to radio communication.
- Page 4 NOM Statement Instrucciones de Seguridad (Normas Oficiales Mexicanas Electrical Safety Statement) 1. Todas las instrucciones de seguridad y operación deberán ser leídas antes de que el aparato eléctrico sea operado. 2. Las instrucciones de seguridad y operación deberán ser guardadas para referencia futura.
- Page 5 NOM Statement 11. El aparato eléctrico deberá ser connectado a una fuente de poder sólo del tipo descrito en el instructivo de operación, o como se indique en el aparato. 12. Precaución debe ser tomada de tal manera que la tierra fisica y la polarización del equipo no sea eliminada.
- Page 6 Trademarks Used in this Manual Trademarks Used in this Manual Black Box and the Double Diamond logo are registered trademarks of BB Technologies, Inc. Ethernet is a trademark of Xerox Corporation NEBS is a trademark of Telcordia Technologies UL is a registered trademark of Underwriters Laboratories Any other trademarks mentioned in this manual are acknowledged to be the property of the trademark owners.
-
Page 7: Table Of Contents
Table of Contents Table of Contents 1. SPECIFICATIONS ................9 1.1 Technical Specifications ............9 1.2 Ordering Information ............14 2. INTRODUCTION ................19 2.1 Inspecting the Package and Product ........19 2.2 Product description .............. 20 2.3 Frame Buffering and Latency ..........23 2.4 ... - Page 8 Table of Contents 5. TROUBLESHOOTING ..............50 5.1 Before Calling for Assistance ..........51 5.2 When Calling for Assistance ..........52 5.3 Return Material Authorization (RMA) Procedure ....53 5.4 Shipping and Packaging Information ........54 APPENDIX A: WARRANTY INFORMATION ......... 55 Page 8 724-746-5500 | blackbox.com...
-
Page 9: Specifications
Chapter 1: Specifications SPECIFICATIONS Technical Specifications Ports Performance When a port is operating at 100Mbps: Data Rate: 100Mbps When a port is operating at 10 Mbps: Data Rate: 10 Mbps Network Standards 100Mb: Ethernet IEEE 802.3u, 100BASE-TX, 100BASE-FX 10 Mb: Ethernet IEEE 802.3, 10BASE-T PoE: IEEE 802.3af Auto-sensing for speed: IEEE 802.3u... - Page 10 -58ºF to 212ºF (-50ºC to 100ºC) Short term per IEC Type tests. Storage Temperature, All models: -40ºF to 185ºF (-40ºC to 85ºC) Cold Start: LPH240A-H to -20ºC LPH240A-P to -40ºC Ambient Relative Humidity: 5% to 95% (non-condensing) Page 10 724-746-5500 | blackbox.com...
- Page 11 Chapter 1: Specifications Altitude (All models): -200 to 5000ft. (-60 – 15,000 m) Conformal Coating (optional) for humidity protection Note: H and P models are designed for NEBS compliance, including vibration, shock and altitude. Packaging: Enclosure: Rugged sheet metal (Steel). Dimensions of the Switch unit: 3.7 in H x 3.0 in W x 1.7 in D (9.4 cm x 7.6 cm x 4.3 cm) Weight: all models: 9.5 oz.
- Page 12 Chapter 1: Specifications Direct DC POWER SUPPLY: built-in terminal block for +, -, ground -48V DC internal (range 46 to 60V DC),+ , -, ground. Total power input required: for PoE ports, 66 Watts max. OR 1.4A @48VDC Power Consumption: Typical 3.5 watts, 4 watts max.
- Page 13 Chapter 1: Specifications LED Indicators (Front) POWER: Steady ON when power applied 10/100: Steady ON for 100Mbps; OFF for 10 Mbps (copper ports only) LK/ACT: Steady ON for LINK (LK) with no traffic, BLINKING indicates port is transmitting / receiving (ACT). F/H: Steady ON for full-duplex, OFF for half-duplex (Fiber port only)
-
Page 14: Ordering Information
Edge switch, four RJ-45 (PoE) + two Multimode SC port (non-PoE), 48VDC terminal block for power input. LPH240A-H-2SSC-48 Same as above, except a Singlemode SC replaces the Multimode SC port. LPH240A-H-2ST-48 Same as above, except a Multimode ST replaces the SC port. - Page 15 Chapter 1: Specifications Ordering Information con’t MODEL DESCRIPTION LPH240A-P-48 6 port Extreme-rated PoE (802.3af) Power sourcing Edge switch, four RJ-45 (PoE) + two RJ-45 ports (non-PoE), 48VDC terminal block for power input. LPH240A-P-SC-48 6 port Extreme-rated PoE (802.3af) Power sourcing Edge switch, four RJ-45 (PoE) + one Multimode SC port (non-PoE), one RJ-45 (non- PoE), 48VDC terminal block for power input.
- Page 16 Chapter 1: Specifications Ordering Information con’t MODEL DESCRIPTION LPH240A-H 6 port Hardened-rated PoE (802.3af) Power sourcing Edge switch, four RJ-45 (PoE) + two RJ-45 ports (non-PoE), AC IEC320 connector for power input. LPH240A-H-SC 6 port Hardened-rated PoE (802.3af) Power sourcing Edge switch, four RJ-45 (PoE) + one Multimode SC port (non-PoE), one RJ45 (non- PoE), AC IEC320 connector for power input.
- Page 17 Chapter 1: Specifications Ordering Information con’t MODEL DESCRIPTION LPH240A-P 6 port Extreme-rated PoE (802.3af) Power sourcing Edge switch, four RJ-45 (PoE) + two RJ45 port (non-PoE), AC IEC320 connector for power input. LPH240A-P-SC 6 port Extreme-rated PoE (802.3af) Power sourcing Edge switch, four RJ-45 (PoE) + one Multimode SC port (non-PoE), one RJ45 (non- PoE), AC IEC320 connector for power input.
- Page 18 Chapter 1: Specifications LPH240A-H-48 (shown) LPH240A-H (shown) Page 18 724-746-5500 | blackbox.com...
-
Page 19: Introduction
Be sure to keep the shipping container in case you need to ship the unit at a later date. If items are missing or damaged, contact Black Box Technical Support at 724-746-5500 or info@blackbox.com. If you need to return the unit, use the original shipping container. -
Page 20: Product Description
Chapter 2: Introduction Product description LPH240A Industrial PoE switch is a reliable and premium-rated Industrial Ethernet product Switch. Strictly designed to be IEEE 802.3af compatible, the 4-port PoE Edge switch, not only provides PoE options on port #3, 4, 5 and 6 but is also equipped with a LLL (Link-Loss-Learn) feature on port #1 and 2 for use in self-healing redundant LAN structures. - Page 21 Chapter 2: Introduction The LPH240A switch ports follow an auto-sensing algorithm, so that they provide power only to 802.3af, PoE end devices. PoE is managed by a multi-stage handshake to protect equipment from damage and to manage power budgets. The LPH240A ports will discontinue supplying power when the PoE powered devices are disconnected (on incorrect impedance value).
- Page 22 Chapter 2: Introduction These are applications where the LPH240A can be used to provide the power and data for these PoE Powered Devices, which require 12-13 watts maximum. - Wireless LAN access points and WLAN Mobility system - VOIP phones - Remote Security Camera - SNTP Clock - Factory floor and building control monitoring...
-
Page 23: Frame Buffering And Latency
Chapter 2: Introduction The LPH240A(PoE) Switch provides edge access Ethernet ports in a convenient and compact package. For fiber connectivity of additional non-PoE ports, simply use port#1 and 2 (two RJ-45 or 100 Mb fiber ports with LLL feature) to meet the Fiber and copper 10 or 100 Mb requirements. - Page 24 Chapter 2: Introduction There is no way to filter frames with a bad CRC (the entire frame must be present in order for CRC to be calculated). Since collisions and bad packets are more likely when traffic is heavy, store-and-forward switch technology enables more bandwidth to be available for good packets when the traffic load is greatest.
- Page 25 Chapter 2: Introduction Another feature implemented in LPH240A Series Edge Switches is a collision-based flow-control mechanism (when operating at half-duplex only). When the Switch detects that its free buffer queue space is low, the Switch prevents more frames from entering by forcing a collision signal on all receiving half-duplex ports in order to stop incoming traffic.
-
Page 26: Features And Benefits
Chapter 2: Introduction Features and Benefits Full 100Mb or 10 Mb switching services for high performance Ethernet LPH240A Series PoE Switches provide Fast Ethernet switching on all ports. They perform high speed filter/forward operations on the traffic, giving each port’s segment a full 100Mb (or 10 Mb) of bandwidth. - Page 27 Chapter 2: Introduction Installation is “Plug and Play”, operation is transparent to software The LPH240A Series PoE Switches operate as hardware switches, only forwarding those packets from each domain that are needed on the other domains. Internal address tables are self-learning, enabling users to change port connections or 10/100 domains without affecting operations.
- Page 28 Chapter 2: Introduction MDIX ports to eliminate cross-over cables while cascading All the LPH240A Series Switches are featured with MDI-X (auto- cross), which easily allows cascading with other Switches, Hubs or media Edges without using the cross-over cable. DC-Power input for PoE Power Source Switch The 802.3af PoE standard power source switch requires 1.4 Amp- 48VDC to provide enough power for 13-15watts on each RJ-45 port.
-
Page 29: Installation
Chapter 3: Installation INSTALLATION This section describes the installation of the LPH240A Series PoE Edge Switches, including location, mountings, power supply options and media connections. Locating the Edge Switch Unit All the LPH240A Series Switches operate in transparent half- and full-duplex mode. The store and forward switches easily take care of network traffic and can be used as a useful, economical tool to expand an existing network. - Page 30 Chapter 3: Installation Fig. 3.1a LPH240A-x-48VDC (48V model) Page 30 724-746-5500 | blackbox.com...
- Page 31 Chapter 3: Installation Fig. 3.1b LPH240A-x (AC model) 724-746-5500 | blackbox.com Page 31...
-
Page 32: Le1505-Rack For Rack Mounting Of Lph240A
Chapter 3: Installation LE1505-RACK for Rack Mounting of LPH240A (48V models only) For 19” rack-mounting of LPH240A Series Switches, a rack- mount tray is available, the LE1505-RACK. The Switches are mounted with the DC power jack in the back, with the fiber and the RJ-45 connectors in the front. -
Page 33: Lh1505P-Rack For Rack Mounting
Chapter 3: Installation LH1505P-RACK for Rack Mounting (48V models only) The LH1505P-RACK is another option for rack mounting the LPH240A Switches together in a 19” rack-mount tray. These models come with a built-in common universal AC power supply rated at 55 watts at 50°C ambient, 9 VDC regulated output, and supporting up to 10 Switches for LH1505P-RACK. -
Page 34: Din-Rail Mounting Option
Industrial Ethernet environments, are also available for DIN-Rail mounting in an enclosure having DIN Rails. The metal DIN-Rail mounting hardware is optional and needs to be ordered as a separate item. DIN Rail bracket pn: DIN-RAIL MC2 LPH240A-H-48V LPH240A-H Page 34 724-746-5500 | blackbox.com... -
Page 35: Power Requirement For Lph240A (48V) Edge Switch
Chapter 3: Installation Power Requirement for LPH240A (48V) Edge Switch POWER INPUT: Total Power Consumption: 66 watts max. (1.5A @48VDC) (4PoE+2 non-PoE) copper Total Power Consumption: 66 watts max. (1.6A@48VDC) (4PoE copper+2 non-PoE fiber) Terminal block for -48v DC input (range of 46 to 60V dc), built in for +, - , ground. -
Page 36: Powering The Lph240A With -48Vdc Power Input
Chapter 3: Installation Powering the LPH240A with –48VDC power input Each LPH240A Switch is equipped with an internal DC power supply, and has built-in screw terminals for secure attachment of the power input leads. The three DC power input terminal block choices are for use with -48VDC power. -
Page 37: Lph240A Series, Dc-Powered, -48Vdc Installation
Chapter 3: Installation LPH240A Series, DC-powered, -48VDC Installation This section describes the proper connection of the -48VDC leads to the DC power terminal block on the LPH240A PoE Edge Switch. The DC terminal block on the LPH240A is located on the left side of the unit and is equipped with three (3) screw-down lead posts. -
Page 38: Connecting Ethernet Media
Chapter 3: Installation Connecting Ethernet Media The LPH240A-Series PoE Edge Switches can be connected to two media types i.e. fiber and copper (RJ-45) types, run at 100BASE-TX, 10BASE-T and 100BASE-FX only. CAT 5 cables should be used when making 100BASE-TX connections. When the ports are used as 10BASE- T ports, CAT 3 may be used. -
Page 39: Connecting Twisted Pair
Chapter 3: Installation 3.8.1 Connecting Twisted Pair (RJ-45, CAT 3 or CAT 5, Unshielded or Shielded) The following procedure describes how to connect a 10BASE-T or 100BASE-TX twisted pair segment to the RJ-45 port. The procedure is the same for both unshielded and shielded twisted pair cables. Using standard twisted pair media, insert either end of the cable with a RJ-45 plug into the RJ-45 connector of the port. -
Page 40: Connecting Fiber Optic St-Type, "Twist-Lock
Chapter 3: Installation 3.8.2 Connecting Fiber Optic ST-type, “twist-lock” The following procedure applies to installations using ST-type fiber connectors. This procedure applies to ports using multi-mode ST fiber connectors. Before connecting the fiber optic cable, remove the protective dust caps from the tips of the fiber connectors. Save these dust caps for future use. -
Page 41: Connecting Fiber Optic Sc-Type, "Snap-In
Chapter 3: Installation 3.8.3 Connecting Fiber Optic SC-type, "Snap-In" The following procedure applies to installations using SC- type fiber connectors, i.e., using multi-mode SC and SC single-mode. While connecting fiber media to SC connectors, simply snap on the two square male connectors into the SC female jacks of the Fiber connector until it clicks and secures. -
Page 42: Power Budget Calculations, Fiber Media
Receiver Sensitivity and Transmitter Power are the parameters necessary to compute the power budget. To calculate the power budget of different fiber media installations using Black Box Heavy Duty Edge Switches, the following equations should be used: OPB (Optical Power Budget) = P... -
Page 43: Connections To Nics
Chapter 3: Installation 3.8.6 Connections to NICs which support Auto-Negotiation, RJ-45 ports The copper ports of LPH240A Edge Switches will function properly with NICs (Network Interface Cards) which support Auto- Negotiation, and the Fast Link Pulse (FLP) coding for the 100BASE-TX signaling system. -
Page 44: Operation
Chapter 4: Operation OPERATION Dual-Speed Functionality, and Switching The LPH240A Series Edge Switches provide SIX switched ports with combination of fiber and copper or copper only. The architecture supports a dual speed switching environment, with standard auto-negotiation capability. The switched RJ-45 ports are full- or half-duplex auto-sensing for mode and speed, and auto-cross for plug polarity. - Page 45 Chapter 4: Operation Switching, Filtering and Forwarding Each time a packet arrives on one of the switched ports, the decision is taken to either filter or to forward the packet. Packets whose source and destination addresses lie on the same port segment will be filtered, constraining them to one port and relieving the rest of the network from processing them.
-
Page 46: Auto-Cross (Mdix), Auto-Negotiation And Speed-Sensing
Chapter 4: Operation Auto-cross (MDIX), Auto-negotiation and Speed-sensing The RJ-45 ports support auto-cross (MDI or MDI-X) in the auto-negotiation mode according to the IEEE 802.3u standard. No crossover cables are needed on RJ-45 port, when connecting the LPH240A Series to other unmanaged switches, legacy hubs, managed switches, media-converter etc. -
Page 47: Dual Leds, Front-Panel And Side-Panel
On all copper 10/100 ports model (e.g LPH240A-H-48), the LEDs 10 or 100 denotes for copper port only. For the model 4 copper +2 fiber or 5 copper +1fiber, (e.g LPH240A-H-2SC-48) the F or H denotes for fiber port only. -
Page 48: Hardware Operated Alarm Contact
Chapter 4: Operation Hardware operated Alarm Contact for monitoring internal power supply The two screws Alarm Contact features are standard on LPH240A Series, and provide Normally Closed (NC) contacts to which the user can attach one sets of status monitoring wires at the green terminal block. - Page 49 Chapter 4: Operation Alarm terminal locations: LPH240A (48V model) LPH240A (AC model) 724-746-5500 | blackbox.com Page 49...
-
Page 50: Troubleshooting
All Black Box Ethernet products are designed to provide reliability and consistently high performance in all network environments. The installation of Black Box LPH240A Switch is a straightforward procedure (see INSTALLATION, Section 3.0); the operation is also straight forward and is discussed in Section 4. -
Page 51: Before Calling For Assistance
If the problem continues after completing Step 3 above, contact your supplier of the LBH08x/LBH18x Industrial Switch unit or if unknown, contact Black Box Tech support (see page 4 of this guide) for assistance. 724-746-5500 | blackbox.com Page 51... -
Page 52: When Calling For Assistance
The components involved in the problem; d. Any particular application that, when used, appears to create the problem; An accurate list of Black Box product model(s) involved, with serial number(s). Include the date(s) that you purchased the products from your supplier. -
Page 53: Return Material Authorization (Rma) Procedure
Box, the unit will be returned as: No Problem found. Black Box reserves the right to charge for the testing of non- defective units under warranty. Testing and repair of product that is not under warranty will result in a customer (user) charge. -
Page 54: Shipping And Packaging Information
Chapter 5: Troubleshooting Shipping and Packaging Information Should you need to ship the unit back to Black Box, please follow these instructions: Package the unit carefully. It is recommended that you use the original container if available. Units should be wrapped in a "bubble-wrap"... -
Page 55: Appendix A: Warranty Information
Box, the product has been damaged by misuse, misapplication, or as a result of service or modification other than by Black Box. Black Box reserves the right to make a charge for handling and inspecting any product returned for warranty repair which turns out not to be faulty. - Page 56 LPH240A, rev. 1...
