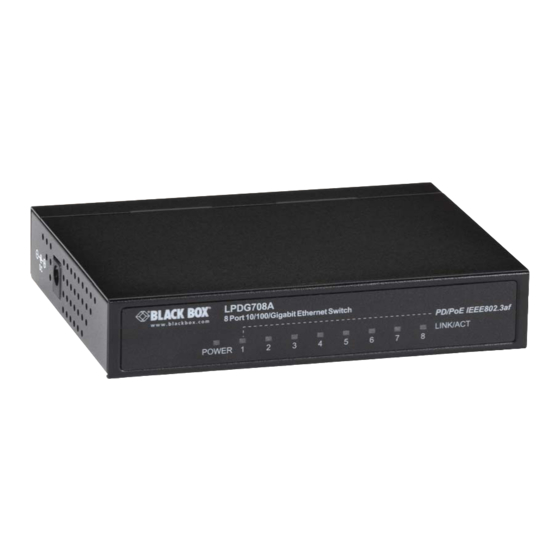

5-/8-Port 10/100/Gigabit Switch with 1 PoE PD Port
Expand the number of Gigabit Ethernet ports
on your network without the need for a power
outlet.
Includes a built-in IEEE 802.3af Power Device (PD).
Unit is palm-sized with metal case.
Auto-negotiates port speed.
Includes auto-MDI/MDI-X function for every port.
LPDG705A
LPDG705AE
LPDG708A
LPDG708AE
Advertisement
Table of Contents
Related Manuals for Black Box LPDG705A
Summary of Contents for Black Box LPDG705A

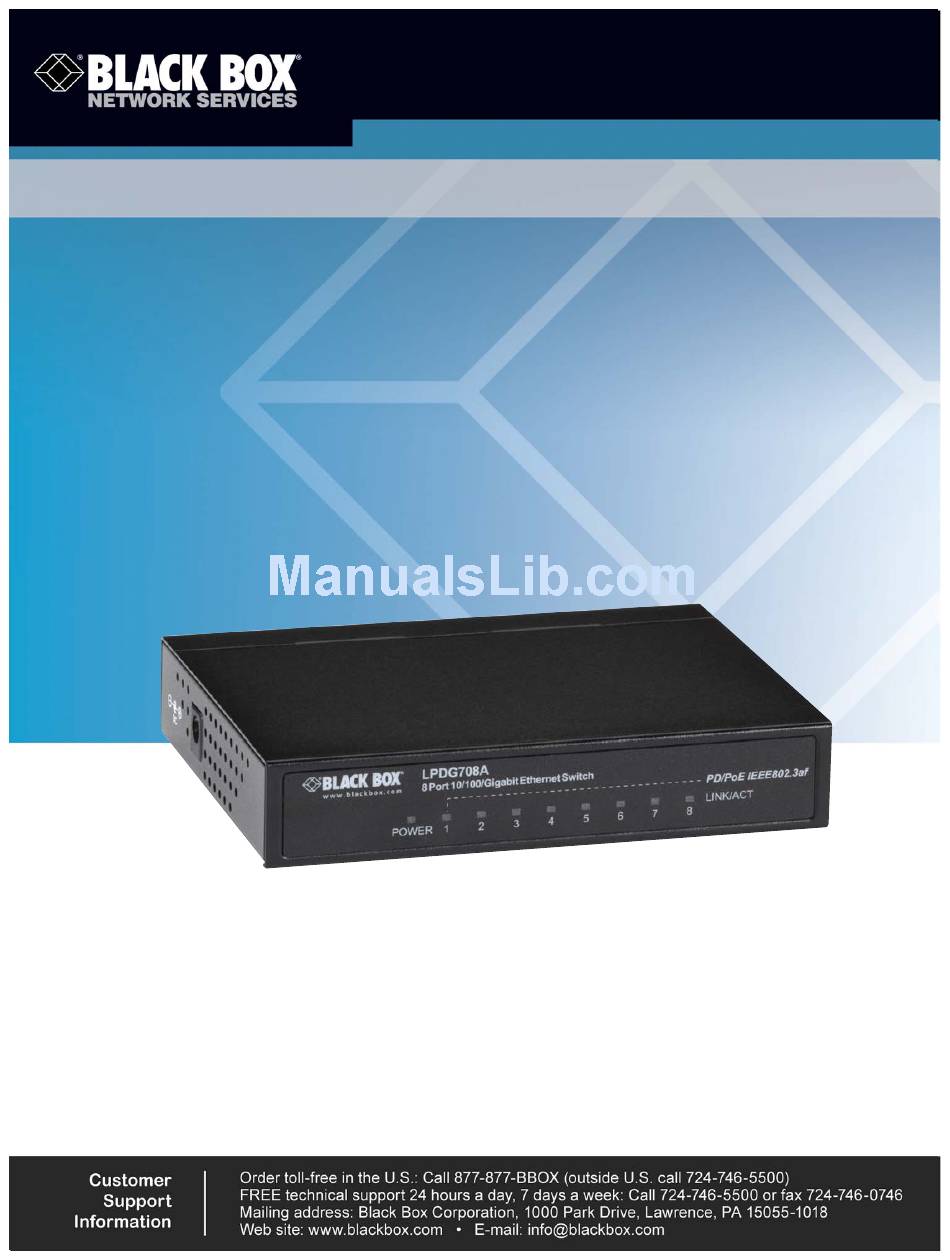

- Page 1 LPDG705A LPDG705AE LPDG708A LPDG708AE 5-/8-Port 10/100/Gigabit Switch with 1 PoE PD Port Expand the number of Gigabit Ethernet ports on your network without the need for a power outlet. Includes a built-in IEEE 802.3af Power Device (PD). Unit is palm-sized with metal case.
- Page 2 5-/8-Port 10-/100-/Gigabit Switch with 1 PoE PD port Federal Communications Commission and Industry Canada Radio Frequency Interference Statements This equipment generates, uses, and can radiate radio-frequency energy, and if not installed and used properly, that is, in strict accordance with the manufacturer’s instructions, may cause inter-ference to radio communication. It has been tested and found to comply with the limits for a Class A computing device in accordance with the specifications in Subpart B of Part 15 of FCC rules, which are designed to provide reasonable protection against such interference when the equipment is operated in a commercial environment.
- Page 3 Support at 724-746-5500 or info@blackbox.com. (1) Gigabit Ethernet Switch (1) Power Adapter: 120 VAC, 60 Hz U.S. plug for LPDG705A and LPDG708A; 100-240 VAC, 50–60 Hz, 0.4 A universal power supply with (2) power clips: (1) EU, (1) UK for LPDG705AE and LPDG708AE (1) User’s Manual...
- Page 4 Figure 4-1. Front panel of the LPDG708A. NOTE: The front panel of the LPDG705A is similar to the LPDG708A, except that is has six LEDs (1 power, 5 Link/Act) instead of eight LEDs. LED 5 on LPDG705A and LED 8 on the LPDG708A indicate the Link/Act status of the PoE port.
- Page 5 Chapter 5: Connection 5. Connection TP Port and Cable Installation: 1. The switch’s TP ports support MDI-/MDI-X auto-crossover, so you can use either straight through or cross over cables. 2. Use CAT5 or higher grade RJ-45 TP cable for 10/100 applications and CAT5e grade RJ-45 TP cable or above for gigabit Ethernet applications, to connect a TP port of the switch to an Ethernet device such as a workstation or a server.
- Page 6 1000BASE-T CAT5e, 6 UTP/STP Per Port: LINK/ACT LED Indicators Per Unit: Power LPDG705A, LPDG708A: Input: 120 VAC, 60 Hz with U.S. plug, Output: 5 VDC, 2 A, 10 W max.; LPDG705AE, LPDG708AE: Input: 100-240 VAC, 50–60 Hz, 0.4 A, Power Supply universal power supply with (2) power clips: (1) EU, (1) UK, Output: 5 VDC, 2 A, 10 W max.
- Page 7 LPDG705A, rev. 3 ______________________________________________________________________...
