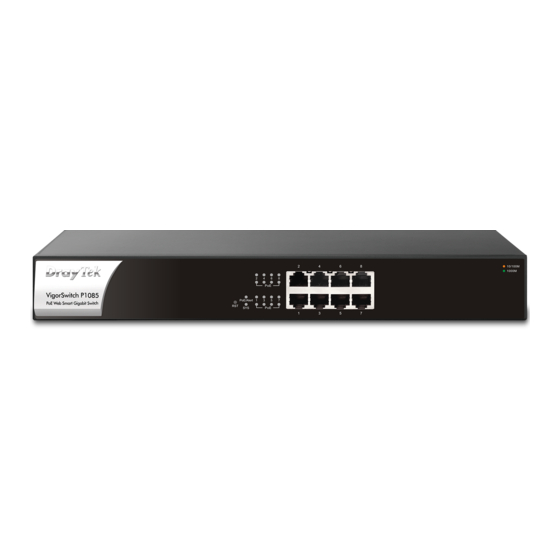

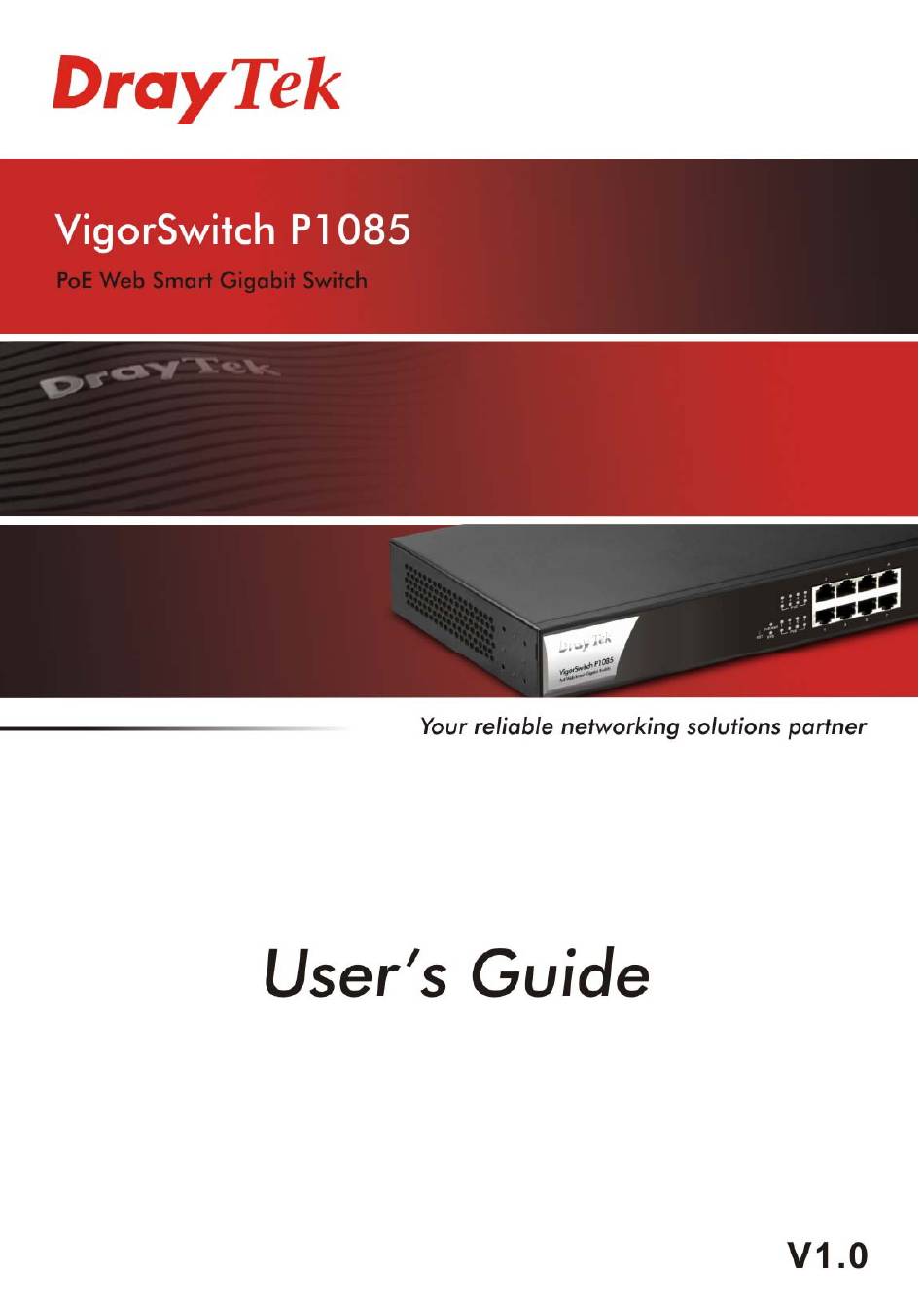

Page 2 VigorSwitch P1085 PoE Web Smart Gigabit Switch User’s Guide Version: 1.0 Firmware Version: V2.5.1 (For future update, please visit DrayTek web site) Date: December 25, 2019 VigorSwitch P1085 User’s Guide...
Page 3 Web registration is preferred. You can register your Vigor router via http://www.DrayTek.com. Firmware & Tools Updates Due to the continuous evolution of DrayTek technology, all routers will be regularly upgraded. Please consult the DrayTek web site for more information on newest firmware, tools and documents.
Page 4: Table Of Contents
I-2-1 Typical Applications......................6 I-2-2 Installing Network Cables....................8 I-2-3 Configuring the Management Agent of Switch..............8 I-2-4 Managing VigorSwitch P1085 through Ethernet Port............8 I-2-5 IP Address Assignment ....................... 9 I-3 Accessing Web Page of VigorSwitch ..................13 I-4 Dashboard........................... 14 I-5 Status ............................
Page 5 Part IV Security ........................73 IV-1 Storm Control ..........................74 IV-1-1 Properties........................74 IV-1-2 Port Setting ........................75 IV-2 DoS ............................76 IV-2-1 Properties........................76 IV-2-2 DoS Port Setting ......................78 IV-3 IP Source Guard ........................79 VigorSwitch P1085 User’s Guide...
Page 6 Part VII PoE Configuration ....................109 VII-1 Properties ..........................110 VII-2 Status............................111 VII-3 Schedule..........................112 VII-3-1 Schedule Profile ......................112 VII-3-2 Port Scheduling......................113 Part VIII System Maintenance ..................115 VIII-1 TR-069...........................116 VIII-2 OpenVPN..........................118 VIII-3 Webhook..........................119 VIII-4 LLDP............................. 120 VigorSwitch P1085 User’s Guide...
Page 7 IX-4-2-3 Remote SysLog ................. 154 IX-4-2-4 SysLog Mail ................155 Part X Mail Alert ......................157 X-1 Alert Setting ..........................158 Part XI Telnet Commands....................161 XI-1 Accessing Telnet of VigorSwitch..................... 162 XI-2 Available Commands ......................164 XI-2-1 Clear Configuration ....................... 164 VigorSwitch P1085 User’s Guide...
Page 8 XI-2-15 SSL Configuration ....................... 247 XI-2-16 Terminal Configuration....................247 XI-2-17 Traceroute Configuration .................... 248 Appendix: Reference .....................249 A-1 What’s the Ethernet ......................... 249 A-2 Media Access Control (MAC) ....................252 A-3 Flow Control..........................256 Index ..........................259 VigorSwitch P1085 User’s Guide viii...
Page 9: Part I Introduction
VigorSwitch P1085 User’s Guide...
Page 10: Introduction
VigorSwitch P1085, PoE Web Smart Gigabit, is a standard switch that meets all IEEE 802.3/u/x/z Gigabit, Fast Ethernet specifications. The switch has 8 10/100/1000Mbps TP ports. It supports telnet, http, https, SSH and SNMP interface for switch management. The network administrator can login the switch to monitor, configure and control each port’s activity.
Page 11: I-1-2 Specifications
The VigorSwitch P1085, a standalone off-the-shelf switch, provides the comprehensive features listed below for users to perform system network administration and efficiently and securely serve your network. 8 10/100/1000Mbps Auto-negotiation Gigabit Ethernet TP ports with PoE+  Jumbo frame support 9KB ...
Page 12: I-1-3 Packing List
The switch is powered on and starts system booting. The power is off or the system is not ready / malfunctioning. The device is powered on. The device is powered off. The port is supplied with PoE power. PoE 1~8 VigorSwitch P1085 User’s Guide...
Page 13 PoE for Port 1 ~ 8 Power inlet for AC input (100~240V/AC, 50/60Hz). Note: Power Output –  IEEE 802.3af Max. 15.4W Output Supported  IEEE 802.3at Max. 30W Output Supported PoE Power Budget--  140 Watts (Max) VigorSwitch P1085 User’s Guide...
Page 14: Installation
Every port can access each other. (*The switch image is sample only.) If VLAN is enabled and configured, each node in the network that can communicate each other directly is bounded in the same VLAN area. VigorSwitch P1085 User’s Guide...
Page 15 Insert the screws and fully tighten with a suitable screwdriver. Repeat the two previous steps for the other side of the unit. Insert the unit into the rack and secure with suitable screws. Reconnect all the cables. VigorSwitch P1085 User’s Guide...
Page 16: I-2-2 Installing Network Cables
Category 5e, 6 UTP/STP Users can monitor and configure the switch through the following procedures. Configuring the Management Agent of VigorSwitch P1085 through the Ethernet Port. There are several ways to configure and monitor the switch through Ethernet port, includes Web-UI and SNMP.
Page 17: I-2-5 Ip Address Assignment
IP address range between 128.0.0.0 and 191.255.255.255. Each class B network has a 16-bit network prefix followed 16-bit host address. There are 16,384 (2^14)/16 networks able to be defined with a maximum of 65534 (2^16 –2) hosts per network. VigorSwitch P1085 User’s Guide...
Page 18 They are the addresses with all zero’s and all one’s host number. For example, an IP address 128.1.2.128, what IP address reserved will be looked like? All 0s mean the network itself, and all 1s mean IP broadcast. VigorSwitch P1085 User’s Guide...
Page 19 In this case, subnet mask must be applied. For different network applications, the subnet mask may look like 255.255.255.240. This means it is a small network accommodating a maximum of 15 nodes in the network. VigorSwitch P1085 User’s Guide...
Page 20 Second, Subnet Mask: as shown above, enter “255.255.255.0”. Choose a subnet mask suitable for your network. Note: The DHCP Setting is enabled in default. Therefore, if a DHCP server presented on network connected to the switch, check before accessing your switch is essential. VigorSwitch P1085 User’s Guide...
Page 21: Accessing Web Page Of Vigorswitch
Please type “admin/admin” as the Username/Password and click Login. Now, the Main Screen will appear. Info The DHCP Setting is enabled in default. Therefore, if a DHCP server presented on network connected to VigorSwitch, checking before accessing VigorSwitch is essential. VigorSwitch P1085 User’s Guide...
Page 22: Dashboard
Click Dashboard from the main menu on the left side of the main page. A web page with default selections will be displayed on the screen. Refer to the following figure: VigorSwitch P1085 User’s Guide...
Page 23: Status
(GE1 to GE8). In which, data of interframe gap can be displayed or hidden by choose Enable / Disable for IFG. This page offers the statistics of LLDP packets (in, out and error) of each port (GE1 to GE8). VigorSwitch P1085 User’s Guide...
Page 24 This page is left blank. VigorSwitch P1085 User’s Guide...
Page 25: Part Ii Switch Lan
VigorSwitch P1085 User’s Guide...
Page 26: General Setup
IP. Available settings are explained as follows: Item Description IPv4 Mode Select the mode of network connection.  Static- Use static IPv4 address.  DHCP – Use DHCP provisioned IP address and Gateway if feasible. VigorSwitch P1085 User’s Guide...
Page 27: Ii-1-1 Management Ip/Vlan
IPv6 Address, instead of using Router Advertisement. Management VLAN Management VLAN Select the VLAN ID as management VLAN. You can create additional VLAN profiles by Switch LAN>>VLAN management>> Create VLAN. Apply Apply the settings to the switch. VigorSwitch P1085 User’s Guide...
Page 28: Port Setting
When the switch’s auto-negotiation is turned off, a port uses the pre-configured VigorSwitch P1085 User’s Guide...
Page 29 Enable – Click it to enable such function.  Disable – Click it to disable such function.  Apply Apply the settings to the switch. Modify It is used to manually enter the description, state, speed, duplex, flow control for the port. VigorSwitch P1085 User’s Guide...
Page 30: Ii-2-2 Protected Ports
Protected – Click Enable to activate the protected port  function. Apply - The modification made above can be applied on  to the selected GE port immediately. Protected Port Status Display current status for each GE port. VigorSwitch P1085 User’s Guide...
Page 31: Mirror
Sniff Ports (RX) / (TX) Select the port(s) which you wish to mirror the traffic, Rx for mirror the packets into the port, Tx for mirror the packets going out from the port. Apply Apply the settings to the switch. VigorSwitch P1085 User’s Guide...
Page 32: Link Aggregation
IP/Mac Address - Aggregated group will balance the  traffic based on MAC addresses and IP addresses. Therefore, the packets from same MAC addresses but different IP addresses will be sent to different links. Apply Apply the settings to the switch. VigorSwitch P1085 User’s Guide...
Page 33: Ii-4-2 Lag Management
 Static- The static aggregated port sends packets over active member without detecting or negotiating with remote aggregated port.  LACP- The LACP aggregated ports place member into active only after negotiated with remote aggregated port VigorSwitch P1085 User’s Guide...
Page 34: Ii-4-3 Lag Port Setting
When the switch’s auto-negotiation is turned off, a port uses the pre-configured speed and duplex mode when making a connection, thus requiring you to make sure that the settings of the peer port VigorSwitch P1085 User’s Guide...
Page 35: Ii-4-4 Lacp Setting
This page allows the network administrator to enable or disable the LACP function. Available settings are explained as follows: Item Description LACP Enable – Click it to enable such function.  Disable – Click it to disable the function.  VigorSwitch P1085 User’s Guide...
Page 36: Ii-4-5 Lacp Port Setting
Short - LACP PDU will be sent per second. If port member  is not seen over 3 seconds, it will cause port member timeout. Apply Apply the settings to the switch. Modify It is used to edit settings (priority and timeout) for LACP port. VigorSwitch P1085 User’s Guide...
Page 37: Vlan Management
VLAN Name Enter the prefix you wish to add followed by VLAN ID as VLAN name. Leave it empty for using default "VLAN". After clicking Apply, you will see: Apply Apply the settings to the switch. VigorSwitch P1085 User’s Guide...
Page 38: Ii-5-2 Interface Settings
Select LAN ports to configure VLAN Settings. Interface VLAN Mode Select the VLAN mode of the interface. Hybrid – Support all functions as defined in IEEE 802.1Q  specification.  Access – Accept only untagged frames and join an untagged VLAN. VigorSwitch P1085 User’s Guide...
Page 39 Specify the VLAN profile untagged in the VLAN. Forbidden VLAN Specify the VLAN profile forbidden in the VLAN. Apply Apply the settings to the switch. Modify - It is used to edit settings for the selected port. VigorSwitch P1085 User’s Guide...
Page 40: Ii-5-3 Voice Vlan
Aging Time Select value of aging time (30~65536 min). Default is 1440 minutes. A voice VLAN entry will be age out after this time if without any packet pass through. Apply Apply the settings to the switch. VigorSwitch P1085 User’s Guide...
Page 41: Ii-5-3-2 Telephony Oui Setting
Enter a description of the specified MAC address to the voice VLAN OUI table. Click it to create a new voice OUI based on the settings configured above. Edit - Modify OUI setting for voice VLAN. - Click it to remove the selected OUI entry. VigorSwitch P1085 User’s Guide...
Page 42: Ii-5-3-3 Port Setting
OUI, remark CoS/802.1p shall tag for only the matched ingress frame with pre-configured OUI. Apply Apply the settings to the switch. Edit Click the icon under Edit for one entry to modify port settings (State, Cos Mode) for voice VLAN. VigorSwitch P1085 User’s Guide...
Page 43: Ii-5-4 Mac Vlan
For example, configure mask in 10. It means a host with beginning of the 10-digit of MAC address will be checked, and classified into this group if matched. Click it to create a new MAC group profile based on the settings configured above. VigorSwitch P1085 User’s Guide...
Page 44: I-5-4-3 Group Binding
Enter the VLAN ID that you wish to be bound with. Click it to create a new MAC group binding profile based on the settings configured above. Edit Click the icon under Edit for one entry to modify settings for selected port profile. VigorSwitch P1085 User’s Guide...
Page 45: Ii-5-5 Surveillance Vlan
Select value of aging time (30~65536 seconds). Default is 1440 seconds. VLAN entry will be aged out after this time if no packet passes through. Apply Apply the settings to the switch. Edit - Click it to modify port setting status. VigorSwitch P1085 User’s Guide...
Page 46 OUI in the source MAC address. All: QoS attributes are applied to packets that are  classified to the Surveillance VLAN.  OK - Apply the settings to the switch.  Cancel - Abandon the changes and return to previous page. VigorSwitch P1085 User’s Guide...
Page 47: Ii-5-6-1 Surveillance Oui
Enter a description of the specified MAC address to the surveillance VLAN OUI table. Click it to create a new voice OUI based on the settings configured above. Edit - Modify OUI setting for surveillance VLAN. - Click it to remove the selected OUI entry. VigorSwitch P1085 User’s Guide...
Page 48: Eee
Enable Enable –Click it to enable the EEE function.  Disable - Click it to disable the EEE function.  Apply Apply the settings to the switch. Modify - Click it to modify port setting status. VigorSwitch P1085 User’s Guide...
Page 49: Multicast
Set the IPv4 multicast forward method.  Dst. MAC & VID: Forward using destination multicast MAC address and VLAN IDs. Dst. IP & VID: Forward using destination multicast IP  address and VLAN ID. Apply Apply the settings to the switch. VigorSwitch P1085 User’s Guide...
Page 50: Ii-7-2 Igmp Snooping
This page allows the network administrator to enable/disable IGMP function, select snooping version, and enable/disable snooping report suppression. Available settings are explained as follows: Item Description IGMP Snooping State Enable – Click it to set enabling IGMP function.  VigorSwitch P1085 User’s Guide...
Page 51 IGMP router port learning. Choose Enable to learn router port by IGMP query. Query Robustness – Set a number which allows tuning for  the expected packet loss on a subnet. Query Interval – Set the interval of querier send general  VigorSwitch P1085 User’s Guide...
Page 52: Ii-7-2-2 Igmp Querier Setting
 v3 - Querier version 3.  Note: For maximum compatibility, it is suggested to use querier version lower than IGMP snooping version, for there is possibile network mixed with IGMP v2/v3 client and v2 query VigorSwitch P1085 User’s Guide...
Page 53: Ii-7-2-3 Igmp Static Group
Specify the IPv4 multicast address you wish to assign for the static group (defined in VLAN ID). Member Ports Specify the port(s) that static group with given IPv4 multicast address shall include. Apply Apply the settings to the switch. Modify - Click it to modify settings. VigorSwitch P1085 User’s Guide...
Page 54: Ii-7-2-4 Igmp Group Table
Display the port(s) where subscribing member of this multicast group belongs to. Type Display if it is dynamically learned or statically assigned. Life(sec.) Display the life time of this multicast member left if no membership report sent again. VigorSwitch P1085 User’s Guide...
Page 55: Ii-7-2-5 Igmp Router Table
Use the drop down list to specify a VLAN profile (created in Switch LAN>>VLAN Management>>Create Vlan) that the MLD querier belongs to. Port Display the static port member specified in Member Ports. Expire Time (sec.) Display the time before querier is considered no longer existed. VigorSwitch P1085 User’s Guide...
Page 56: Jumbo Frame
This page allows a user to configure switch port jumbo frame settings. Available settings are explained as follows: Item Description Jumbo Frame (Bytes) Enter Jumbo frame size. The valid range is 1526 bytes – 10000 bytes. Apply Apply the settings to the switch. VigorSwitch P1085 User’s Guide...
Page 57: Stp
RSTP - Enable the Rapid Spanning Tree (RSTP) operation.  BPDU Handling Specify the BPDU forward method when the STP is disabled. Filtering - Filter the BPDU when STP is disabled.  Flooding - Flood the BPDU when STP is disabled.  VigorSwitch P1085 User’s Guide...
Page 58: Ii-9-2 Port Setting
No – Disable the function.  P2P Option Auto – VigorSwitch determines the STP of link type for  this port automatically. Yes – It means the STP of link type on this port is  VigorSwitch P1085 User’s Guide...
Page 59 Migrate. Migrate Click it to force the port(s) specified above to send one RSTP BPDU (Rapid Spanning Tree Protocol Bridge Protocol Data Unit). Edit Click it to modify the settings for the selected GE port. VigorSwitch P1085 User’s Guide...
Page 60: Ii-9-3 Bridge Setting
Hello Time Specify the STP hello time in second to broadcast its hello message to other bridge by Designated Ports. Its valid range is from 1 to 10 seconds. Apply Apply the settings to the switch. VigorSwitch P1085 User’s Guide...
Page 61: Ii-9-4 Port Advanced Setting
Port State Display current port state on the specified port. The possible values will be: “Disabled”, “Discarding”, “Learning”, and “Forwarding”. Edit Click it to modify the priority setting for the selected GE port / LAG port. VigorSwitch P1085 User’s Guide...
Page 62: Ii-9-5 Statistics
Display the counts of the received CONFIG BPDU. TCN BPDUs Rx. Display the counts of the received TCN BPDU. Configure BPDUs Tx. Display the counts of the transmitted CONFIG BPDU. TCN BPDUs Rx Display the counts of the transmitted TCN BPDU. VigorSwitch P1085 User’s Guide...
Page 63: Mac Address Table
Select the port where received frame of matched destination MAC address will be forwarded to. Click it to add any port into the static MAC table. Delete Click it to remove the selected port from the static MAC table. VigorSwitch P1085 User’s Guide...
Page 64: Ii-10-2 Dynamic Address Setting
Enter the Dynamic MAC address aging out value (5-32767 seconds). Apply Apply the settings to the switch. This page displays the MAC address and port number automatically learned by VigorSwitch. Available settings are explained as follows: VigorSwitch P1085 User’s Guide...
Page 65 Switch) or Static Unicast (manually entered in the Static MAC Forwarding screen). Port Display the port to which this MAC address belongs. Add to Static Click this button to add any port into the static MAC table. VigorSwitch P1085 User’s Guide...
Page 66: Blocked Port Recover
Enable – Recover the port being blocked by DHCP rate limit after the time set in Recovery Interval. ARP Rate Limit Enable – Recover the port being blocked by ARP rate limit after the time set in Recovery Interval. Apply Apply the settings to the switch. VigorSwitch P1085 User’s Guide...
Page 67: Part Iii Onvif Surveillance
VigorSwitch P1085 User’s Guide...
Page 68: Topology
In the entire ONVIF Surveillance menu, VigorSwitch will input this value in advanced and retrieve data. System administrator can access the IP device in which the username and password are as same as the default values. However, you can also input another username/password VigorSwitch P1085 User’s Guide...
Page 69 A group can contain one (IP camera or NVR, as group leader) to several devices (IP cameras as group devices). Click the button to create a new group for managing multiple devices. Step (1) - The first page allows you to configure general settings for a new group. VigorSwitch P1085 User’s Guide...
Page 70 Next - Click it to access into next page.  Step (2) - The second page allows you to configure throughput threshold for the group port. It is helpful for the system administrator to make the corresponding process if encountered abnormal situation. VigorSwitch P1085 User’s Guide...
Page 71 OK - Save the configuration and exit the box.  Cancel - Exit the box without saving the configuration.  Device Information Modify Click it to modify the settings of the selected IP device. VigorSwitch P1085 User’s Guide...
Page 72 VigorSwitch P1085 User’s Guide...
Page 73: Iii-2-2 Throughput Threshold
Egress Rate (Kbps)- Enter a value as the threshold of engress packets. Apply Save the settings or changes to the switch. Modify Click it to modify the settings for the selected GE port / LAG port. VigorSwitch P1085 User’s Guide...
Page 74 VigorSwitch P1085 User’s Guide...
Page 75: Video
IP camera instead. Login - Click it to authenticate the username and password for the specified IP camera. Live Streaming - Display the streaming URI of the IP camera. VigorSwitch P1085 User’s Guide...
Page 76: Device Maintenance
Login - Click it to authenticate the username and password. Later, current network settings related to this device will be shown on the screen. Device Information Display the information related to the selected device. - Click it to modify the device name. VigorSwitch P1085 User’s Guide...
Page 77 Enable - When the device is offline, Vigor system will send an alert mail to notify the receiptant. Mail with Snapshot - If enabled, the switch will try to get  snapshot from the device per half hour. Before using this VigorSwitch P1085 User’s Guide...
Page 78: Iii-3-2 Network
DNS Server1/2 - Enter the IP address for primary /  secondary DNS server. DHCP - When it is selected, the IP device will be assigned with the settings by the network's DHCP server automatically to VigorSwitch P1085 User’s Guide...
Page 79 Zero Configuration Enable - The network settings for the IP device will be configured automatically. Disable - The network settings for the IP devcie must be configured manually. Apply Save the settings or changes to the switch. VigorSwitch P1085 User’s Guide...
Page 80: Iii-3-3 Security
Current RTSP port number of the IP device is shown in this field. Enable - Click it to enable the RTSP port configuration and enter a port value if required. Disable - Disable the RTSP port configuration. Apply Save the settings or changes to the switch. VigorSwitch P1085 User’s Guide...
Page 81: Part Iv Security
VigorSwitch P1085 User’s Guide...
Page 82: Storm Control
Excluded – Exclude preamble & IFG (20 bytes) when count ingress storm control rate. Included - Include preamble & IFG (20 bytes) when count  ingress storm control rate. Apply Apply the settings to the switch. VigorSwitch P1085 User’s Guide...
Page 83: Iv-1-2 Port Setting
1000000. Action Select the state of setting. Drop – Packets exceed storm control rate will be  dropped. Shutdown - Port exceeds storm control rate will be  shutdown. Apply Apply the settings to the switch. VigorSwitch P1085 User’s Guide...
Page 84: Dos
Disabled – Disable the item function.  Enabled - Enable the item function.  TCP Blat Drop the packages if the TCP source port is equal to the TCP destination port. Disabled – Disable the item function.  VigorSwitch P1085 User’s Guide...
Page 85 Drop the packets with SYN and FIN bits set.  Disabled – Disable the item function. Enabled - Enable the item function.-  TCP SYN-RST Attack Drop the packets with SYN and RST bits set. Disabled – Disable the item function.  VigorSwitch P1085 User’s Guide...
Page 86: Iv-2-2 Dos Port Setting
DoS Protection  Disabled – Disable the function of DoS Protection. Enabled - Enable the function of DoS Protection.  Apply Apply the settings to the switch. Modify - Click it to modify the port settings. VigorSwitch P1085 User’s Guide...
Page 87: Ip Source Guard
IP-MAC – Only the packet with specified IP address and MAC address will be verified. Max Entry Define the number (0~50) for the port. The default is 0 (no limit). Apply Apply the settings to the switch. VigorSwitch P1085 User’s Guide...
Page 88: Iv-3-2 Impv Binding
Enter the IP address with mask address of the device connecting to the port interface selected above. Click it to create a new binding profile. Edit - Click it to modify the settings for the selected entry. VigorSwitch P1085 User’s Guide...
Page 89: Ip Conflict Prevention
This page allows you to prevent IP conflict by binding the port with the specified IP address. Available settings are explained as follows: Item Description IP Prevention Enable - Click it to activate the function of IP prevention. Disable - Click it to deactivate the function of IP prevention. VigorSwitch P1085 User’s Guide...
Page 90 IP Conflict Prevention Quick Start Wizard - The system will guide to bind server port Setup Wizard with an IP address step by step. Step 1 Step 2 Step 3 VigorSwitch P1085 User’s Guide...
Page 91 Apply Apply the settings to the switch. Clear Remove all settings of IP source guard DHCP snooping and dynamic ARP inspection. Modify - Click it to modify the settings for the selected entry. VigorSwitch P1085 User’s Guide...
Page 92 Port Type - There are four selections - DHCP Client, Static Binding, Multiple Hosts and DHCP Server. Each type will bring out different IP address(es) settings. OK - Click it to save the settings. - Click it to remove the selected entry. VigorSwitch P1085 User’s Guide...
Page 93: Loop Protection
Shutdown Port and Log - The switch will shut down the  port and record the event as a log. The system administrator will view the content from system log. Apply Apply the settings to the switch. VigorSwitch P1085 User’s Guide...
Page 94 This page is left blank. VigorSwitch P1085 User’s Guide...
Page 95: Part V Acl Configuration
VigorSwitch P1085 User’s Guide...
Page 96: Create Acl
The function is used to show the Access Control List (ACL) based on Layer 2 to Layer 4 filtering, the IPv4. The ACL is composed by many Access Control Element (ACE) rules. You may create a new ACL here; then add multiple ACEs. VigorSwitch P1085 User’s Guide...
Page 97: V-1-3 Ipv6
The function is used to show the Access Control List (ACL) based on Layer 2 to Layer 4 filtering, the IPv6. The ACL is composed by many Access Control Element (ACE) rules. You may create a new ACL here; then add multiple ACEs. Available settings are explained as follows: VigorSwitch P1085 User’s Guide...
Page 98 Item Description ACL Profile Name Enter a name for creating a new ACL profile. Add a new ACL entry using given ACL name. Action - click it to remove the selected entry. VigorSwitch P1085 User’s Guide...
Page 99: Create Ace
Permit or deny the packets into switch core, or shutdown the port for stopping further transmission. Permit  Deny  Shutdown  Source MAC / Destination Specify the source and the destination MAC address for filtering. Any – All packets will be filtered. VigorSwitch P1085 User’s Guide...
Page 100: V-2-2 Ipv4
Available settings are explained as follows: Item Description ACL Profile Name Use the drop down list to selected one of the user defined ACL profiles. Sequence Assign a sequence number to this ACE. The sequence is used to VigorSwitch P1085 User’s Guide...
Page 101 ICMP Type as “3”, then the available codes for Type 3 will be 0-15. Any – All packets will be filtered. Or, enter 0 to 255 based on the ICMP type specifed. Click it to create a new binding profile. VigorSwitch P1085 User’s Guide...
Page 102: V-2-3 Ipv6
EGP…) from the drop down list. Packets passing through the selected protocol will be filtered. Define – Specify a type number (0 – 255) for ICMP code.  For example, 0 means “Echo Reply”; 254 means “RFC3692-style Experiment 2”. VigorSwitch P1085 User’s Guide...
Page 103 Or, enter 0 to 255 based on the ICMP type specifed. Click it to create a new binding profile. Modify - Click it to modify the settings for the selected profile. - Click it to remove the selected entry. VigorSwitch P1085 User’s Guide...
Page 104: Acl Binding
MAC ACL / IPv4 ACL / Select ACLs (MAC, IPv4, and/or IPv6) to be bound on this IPv6 ACL interface (port), so Switch may filter packets by using it. Apply Apply the settings to the switch. VigorSwitch P1085 User’s Guide...
Page 105: Part Vi Qos Configuration
VigorSwitch P1085 User’s Guide...
Page 106: General
IP Precedence - All IP traffic is mapped to queues based  on the DSCP field in the IP header. If traffic is not IP but has VLAN tag, mapped to queues based on the CoS value in the VLAN tag. VigorSwitch P1085 User’s Guide...
Page 107: Vi-1-1-2 Trust Ports
Click Enable to make traffic follow the trust mode in general setting.  Enable - Traffic will follow trust mode in general setting.  Disable – No QoS service for this port. Apply Apply the settings to the switch. VigorSwitch P1085 User’s Guide...
Page 108: Vi-1-2 Port Settings
IP Precedence - Egress traffic will be marked with IP  Precedence value according to the Queue to IP Precedence mapping table. Apply Apply the settings to the switch. Modify - Click it to modify the settings for the selected port profile. VigorSwitch P1085 User’s Guide...
Page 109: Vi-1-3 Queue Settings
Display the percentage of traffic which can be sent by current queue compared to total WRR queues. Apply Apply the settings to the switch. Strict Priority Queue Display the number of queues using Strict Priority method. Number VigorSwitch P1085 User’s Guide...
Page 110: Vi-1-4 Cos Mapping
Queue to CoS Mapping (for Egress Remarking) – Settings for outgoing packets. Queue Display the queue ID (level 1 to 8) for different class of service values. Class of Service Define the class of service value (0 to 7). Apply Apply the settings to the switch. VigorSwitch P1085 User’s Guide...
Page 111: Vi-1-5 Dscp Mapping
Queue to DSCP Mapping (for Egress Remarking) - Settings for outgoing packets. Queue Display the queue ID (level 1 to 8) for different DSCP values. DSCP Define the DSCP value (0 to 7). Apply Apply the settings to the switch. VigorSwitch P1085 User’s Guide...
Page 112: Vi-1-6 Ip Precedence Mapping
Queue to IP Precedence Mapping (for Egress Remarking) - Settings for outgoing packets. Queue Display the queue ID (level 1 to 8) for different IP Precedence values. IP Precedence Define the IP Precedence value (0 to 7). Apply Apply the settings to the switch. VigorSwitch P1085 User’s Guide...
Page 113: Bandwidth
Disable – Disable ingress bandwidth control.  Enable - Enable ingress bandwidth control.  Rate (Kbps) Enter the rate value,<16-1000000>,unit:16 Kbps. Apply Apply the settings to the switch. Modify - Click it to modify the settings for the selected port profile. VigorSwitch P1085 User’s Guide...
Page 114: Vi-2-2 Egress Shaping Rate
Disable – Disable egress bandwidth control.   Enable - Enable egress bandwidth control. CIR (Kbps) Enter the rate value,<16-1000000>,unit:16 Kbps. Apply Apply the settings to the switch. Modify - Click it to modify the settings for the selected port profile. VigorSwitch P1085 User’s Guide...
Page 115: Vi-2-3 Egress Shaping Per Queue
Use the drop down list to select queue number (1 to 8) for the selected GE port. State  Disable – Disable egress bandwidth control.  Enable - Enable egress bandwidth control. CIR (Kbps) Enter the rate value,<16-1000000>,unit:16 Kbps. Apply Apply the settings to the switch. VigorSwitch P1085 User’s Guide...
Page 116 This page is left blank. VigorSwitch P1085 User’s Guide...
Page 117: Part Vii Poe Configuration
VigorSwitch P1085 User’s Guide...
Page 118: Properties
Critical - Set PoE device to highest priority connection.  Power Limit This setting is available when Manual is selected as PoE Mode. Enter the value as the maximum limit of power given to each physical port. Apply Apply the settings to the switch. VigorSwitch P1085 User’s Guide...
Page 119: Status
Display remaining power that can be supplied to additional devices over PoE. Power Cycle Apply – If PoE device connects to VigorSwitch, such button will be avaible for you to manually perform the cold boot for the PoE device by cycling the power supply. VigorSwitch P1085 User’s Guide...
Page 120: Schedule
Once – The schedule will be applied just once.  Weekdays – Specify which days in one week should  perform the schedule.  Monthly, on date – Specify the day in a month as the VigorSwitch P1085 User’s Guide...
Page 121: Vii-3-2 Port Scheduling
Schedule Index Use the drop down list to choose the schedule profile (from 1 to 15). After clicking Apply, the selected port(s) will be applied with the specified schedule. Apply Apply the settings to the switch. VigorSwitch P1085 User’s Guide...
Page 122 This page is left blank. VigorSwitch P1085 User’s Guide...
Page 123: Part Viii System Maintenance
VigorSwitch P1085 User’s Guide...
Page 124: Viii-1 Tr-069
TLS Minimum Protocol Version - Due to security consideration, the built-in HTTPS VPN server of the router had upgraded to TLS1.x protocol. Select one of the versions. Periodic Inform Settings Periodic Inform Settings - Click Enable to configure the interval time. VigorSwitch P1085 User’s Guide...
Page 125 Link Speed Change - Select LAN port(s) to do the health check of speed change. PoE Port Warning - Select LAN port(s) to do the health check of PoE power. Apply Apply the settings to the switch. Clear Discard current settings. VigorSwitch P1085 User’s Guide...
Page 126: Viii-2 Openvpn
As a VPN client, please import the OpenVPN config file coming from OpenVPN server. Apply Save and apply the settings to the switch. Status Display current OpenVPN status (Disabled, Connecting or Success) and configuration file used. VigorSwitch P1085 User’s Guide...
Page 127: Viii-3 Webhook
Keep my settings while rest default - Check the box to keep the webhook configuration when resetting VigorSwitch with default settings. Apply Apply the settings to the switch. Test Report Vigor system will send a test report to the remote address. VigorSwitch P1085 User’s Guide...
Page 128: Viii-4 Lldp
Select the delay before a re-initialization (range 1–10 seconds, default = 2). Transmit Delay Select the delay after an LLDP frame is sent (range 1–8192 seconds, default = 3). Apply Apply the settings to the switch. VigorSwitch P1085 User’s Guide...
Page 129: Viii-4-2 Lldp Port Setting
Address and 802.1 PVID. VLAN Select the VLAN ID number to be performed (multiple selections are allowed). Apply Apply the settings to the switch. Modify - Click it to modify the settings for the selected port profile. VigorSwitch P1085 User’s Guide...
Page 130 VigorSwitch P1085 User’s Guide...
Page 131: Viii-4-3 Lldp Local Device
Detail - Click the button under it to review the detailed information contained in TLVs sent out from each interface, containing MAC/PHY, 802.3, 802.3 Link Aggregation, 802.1 VLAN and Protocol for each LAN port (GE1 to GE8). VigorSwitch P1085 User’s Guide...
Page 132: Viii-4-4 Lldp Remote Device
Display the time interval in seconds after which the information for remote device will be deleted. Details Display detailed information contained in TLVs sent out from neighboring devices. Delete Click it to remove information of the selected port. VigorSwitch P1085 User’s Guide...
Page 133: Viii-4-7 Lldp Overloading
Display how many bytes used by mandatory TLVs. 802.3 TLVs Display how many bytes used by 802.3 TLVs. Optional TLVs Displays how many bytes used by optional TLVs. 802.1 TLVs Displays how many bytes used by 802.1 TLVs. VigorSwitch P1085 User’s Guide...
Page 134: Viii-5 Snmp
A network management station (NMS) executes applications that monitor and control managed devices. NMSs provide the bulk of the processing and memory resources required for network management. One or more NMSs may exist on any managed network. VigorSwitch P1085 User’s Guide...
Page 135: Viii-5-1 View
Enter a name of the MIB view. OID Subtree Enter an OID string to be included or excluded from the MIB view. Type Determine to include or exclude the selected MIBs. Apply Apply the settings to the switch. VigorSwitch P1085 User’s Guide...
Page 136: Viii-5-2 Group
“all”, which means the group user have the right to send notification for all MIB views. Click it to create a new group profile. Edit - Click it to modify the settings for the selected group. - click it to remove the selected group. VigorSwitch P1085 User’s Guide...
Page 137: Viii-5-3 Community
Read & Write - It allows bidirectional access to node-specific information. Group Specify the SNMP group configured by user (SNMP>>Group) to define the object available to the community. Click it to add a new community. Delete Click the icon to remove the selectd community strings. VigorSwitch P1085 User’s Guide...
Page 138: Viii-5-4 User
Password - Enter a string as the password for authentication. Click it to add a new user profile. Edit - click it to modify the settings for the selected profile. - click it to remove the selected entry. VigorSwitch P1085 User’s Guide...
Page 139 However, if there is no SNMPv3 group ready for use, the following pages will appear instead. Refer to VIII-5-2 Group to create a SNMPv3 group first. VigorSwitch P1085 User’s Guide...
Page 140: Viii-5-5 Engine Id
User Defined - If it is checked, the local engine ID will be configured manually. If not, the default Engine ID which is made up of MAC and Enterprise ID will be used instead. Apply Apply the settings to the switch. VigorSwitch P1085 User’s Guide...
Page 141: Viii-5-5-2 Remote Engine Id
2. Click it to create a new profile. Edit - click it to modify the settings for the selected server profile. - click it to remove the selected entry. VigorSwitch P1085 User’s Guide...
Page 142: Viii-5-6 Trap Event
Enable – VigorSwtich will reboot while encountering port link up or down trap. Cold Start Enable – VigorSwtich will reboot while encountering user trap. Warm Start Enable – VigorSwtich will reboot while encountering power down trap. Apply Apply the settings to the switch. VigorSwitch P1085 User’s Guide...
Page 143: Viii-5-7 Notification
Use Default – If it is checked, the default number (162) will be used automaticallty. Timeout Specify the SNMP informs timeout. It is available when Inform is selected as Type. Use Default - If it is checked, the default number (15) will be used automaticallty. VigorSwitch P1085 User’s Guide...
Page 144 Use Default - If it is checked, the default number (3) will be used automaticallty. Click it to create a new notification profile. Edit - Click it to modify the settings for the selected server profile. - Click it to remove the selected entry. VigorSwitch P1085 User’s Guide...
Page 145: Viii-6 Access Manager
Disabled – Click it for not accessing telnet service. Enabled – Click it to access telnet service. SSH Service Enabled – Enable SSH service. Apply Apply the settings to the switch. VigorSwitch P1085 User’s Guide...
Page 146: Viii-7 Time And Date
Time. From - Specify the starting time of recurring daylight saving time. To - Specify the ending time of recurring daylight saving time. Non-recurring From / To It is available when Non-Recurring is selected as Daylight VigorSwitch P1085 User’s Guide...
Page 147: Viii-7-2 Time
SNTP/NTP Server Enter the web site of the time server or the IP address of the Address server. Server Port Enter the port number use by the time server. Apply Apply the settings to the switch. VigorSwitch P1085 User’s Guide...
Page 148: Viii-8 Backup Manager
It is available when TFTP is selected as Backup Method. Enter the IPv4/IPv6 address for the TFTP server. Backup Type Configuration – Make a backup copy for the configurations for VigorSwitch. Apply Apply the settings to the switch. VigorSwitch P1085 User’s Guide...
Page 149: Viii-9 Upgrade Manager
Choose the firmware file located in your computer. Upgrade Type Image – Click it to upgrade the firmware image. Configuration – Click ito to upgrade the configurations for VigorSwitch. Apply Apply the settings to the switch. VigorSwitch P1085 User’s Guide...
Page 150: Viii-10 Account Manager
User - See switch settings only. Not allow to change it. Apply Apply the settings to the switch. Delete Remove the selected account. Edit - Click it to modify the settings for the selected user profile. - Click it to remove the selected entry. VigorSwitch P1085 User’s Guide...
Page 151 VigorSwitch P1085 User’s Guide...
Page 152: Viii-11 Factory Default
Click Apply to return to factory default settings for VigorSwitch. If Keep my current IPv4 address settings is checked, after clicking Apply, the original configuration for IP address will be kept. VigorSwitch P1085 User’s Guide...
Page 153: Viii-12 Reboot Switch
Click Apply to reboot VigorSwitch with current settings. VigorSwitch P1085 User’s Guide...
Page 154 This page is left blank. VigorSwitch P1085 User’s Guide...
Page 155: Part Ix Diagnostics
VigorSwitch P1085 User’s Guide...
Page 156: Device Check
Nothing – Log this event only, no action is taken on PoE device. Mail Alert Enable - Click it to enable the mail alert function. Disable - Click it to disable the mail alert funciton. Apply Save the settings or changes to the switch. VigorSwitch P1085 User’s Guide...
Page 157: Cable Diagnostics
After finished copper test, the results will be shown on the lower side of this web page. Available settings are explained as follows: Item Description Port Use the drop down list to select the port (GE1 to GE8) or ports for performing cable diagnostics. Start Perform the copper test action. VigorSwitch P1085 User’s Guide...
Page 158: Ping Test
Enter a number between 1 and 5 as the count and the default configuration is 4. Interval(sec) Define the interval to perform ping action. For example, “1” means the ping action will be performed per second. Start Perform ping action. Stop Terminate ping action. VigorSwitch P1085 User’s Guide...
Page 159: Syslog
System, Surveillance VLAN, Trunk, UDLD and VLAN. View Click it to display logs based on the settings configured above. Refresh Click it to refresh the log. Clear All Clear it to remove all logs displayed in this page. VigorSwitch P1085 User’s Guide...
Page 160: Ix-4-2 Syslog Settings
Available settings are explained as follows: Item Description SysLog Service Enable – Click it to activate function of syslog.  Disable – Click it to inactivate the function.  Apply Apply the settings to the switch. VigorSwitch P1085 User’s Guide...
Page 161: Ix-4-2-2 Local Syslog
Severity Select severity (emerg, alert, crit, error, warning, notice, info and debug) of log messages which will be stored. Apply Apply the settings to the switch. Delete Remove all logs displayed in this page. VigorSwitch P1085 User’s Guide...
Page 162: Ix-4-2-3 Remote Syslog
ID, local0 to local7) of remote Syslog server. For each facility ID contains different syslog server configuration, please choose a facility ID for such Syslog server. Apply Apply the settings to the switch. Delete Remove specific remote syslog entry. VigorSwitch P1085 User’s Guide...
Page 163: Ix-4-2-4 Syslog Mail
Username - Enter a user name for authentication.  Password - Enter a password for authentication.  Encryption After enabling Authentication, choose one of the encryption servers for data encryption. StartTLS - The mail will be encrypted with StartTLS.  VigorSwitch P1085 User’s Guide...
Page 164 Email Address Enter the email address which will receive the syslog mail. Apply Apply the settings to the switch. Send test mail After clicking this button, VigorSwitch system will send a test mail to the recipient. VigorSwitch P1085 User’s Guide...
Page 165: Part X Mail Alert
VigorSwitch P1085 User’s Guide...
Page 166: Alert Setting
Set a time interval for VigorSwitch system to send an alert out from the specified sender. Alert Type Specify the condition(s) for VigorSwitch system to send an alert out. Port Link Status   Port Link Speed  System Restarted  PoE Warning Status VigorSwitch P1085 User’s Guide...
Page 167 IP Conflict  Device Check  ONVIF Throughput Threshold  Apply Apply the settings to the switch. Send test mail After clicking this button, VigorSwitch system will send a test mail to the recipient. VigorSwitch P1085 User’s Guide...
Page 168 This page is left blank. VigorSwitch P1085 User’s Guide...
Page 169: Part Xi Telnet Commands
VigorSwitch P1085 User’s Guide...
Page 170: Accessing Telnet Of Vigorswitch
In the following window, type Telnet 192.168.1.224 as below and press Enter. Note that the IP address in the example is the default address of the router. If you have changed the default, enter the current IP address of the router. Next, enter admin/admin for Account/Password. VigorSwitch P1085 User’s Guide...
Page 171 For users using previous Windows system (e.g., XP), simply click Start >> Run and type Telnet 192.168.1.224 in the Open box. Next, enter admin/admin for Account/Password. VigorSwitch P1085 User’s Guide...
Page 172: Available Commands
Use this command to clear entries in the ARP cache. clear arp Syntax Items Description clear arp <A.B.C.D> - Enter the IP address of the device (e.g., 192.168.1.224). Related Syntax: # clear arp   # clear arp <A.B.C.D> VigorSwitch P1085 User’s Guide...
Page 173 - Clear dynamic snooping groups of IGMP server. snooping groups static - Clear static snooping groups of IGMP server. snooping statistics - Clear snooping statistics for IGMP server. Related Syntax: VigorSwitch P1085 User’s Guide...
Page 174 <1-8> <1-8> - Enter the number (1 to 8) of LAG interface (IEEE 802.3 Link Aggregation Interface). Related Syntax: # clear lacp <1-8> counters  clear lacp counters Clear LACP configuration for all LAG interfaces. VigorSwitch P1085 User’s Guide...
Page 175 Specify a LAN / LAG interface for clearing LLDP information. <1-8> - Enter the number (1 to 8) of LAN port. <1-8> - Enter the number (1 to 8) of LAG interface (IEEE 802.3 Link VigorSwitch P1085 User’s Guide...
Page 176 <1-8> - Enter the number (1 to 50) of LAN port. <1-8>- Enter the number (1 to 8) of LAG interface (IEEE 802.3 Link Aggregation Interface). <1-4094> - Specify a VLAN ID by entering its number. VigorSwitch P1085 User’s Guide...
Page 177 # clear spanning-tree interfaces GigabitEthernet <1-8>  statistics # clear spanning-tree interfaces LAG <1-8> statistics  P1085# clear spanning-tree interfaces GigabitEthernet <1-8> GigabitEthernet device number P1085# clear spanning-tree interfaces gigabitethernet 3 statistics P1085# clear spanning-tree interfaces LAG 1 statistics P1085# VigorSwitch P1085 User’s Guide...
Page 178 <dec> - December <1-31> - Date 1 to 31. <2000-2035> - Year of 2000 to 2035. Related Syntax:  # clock set HH:MM:SS jan/feb/mar/apr/may/jun/jul/aug/sep/oct/nov/dec <1-31> <2000-2035> P1085# clock set 12:10:30 jan 1 2019 2019-01-01 12:10:30 UTC+8 VigorSwitch P1085 User’s Guide...
Page 179 If unspecified, the time zone acronym will be used in default. (1-4 chars) <jan/feb/mar/apr/may/jun/jul/aug/sep/oct/nov/dec> - Indicate January, February, March, April, May, June, July, August, September, October, November, December. <1-31> means date 1 to 31. VigorSwitch P1085 User’s Guide...
Page 180 <-12-13> – Specify the hour offset (from -12 to +13) of time zone. minutes <0-59> – Specify the minute difference from UTC. Related Syntax:  <config># clock timezone ACRONYM <-12-13> minutes <0-59> P1085# configure P1085(config)# clock source sntp P1085(config)# exit VigorSwitch P1085 User’s Guide...
Page 181 Begins at 1 1 1 10:10 Ends at 1 0 2 10:10 Offset is 1000 minutes. Use this command to enable the module settings. custom enable Syntax Items Description custom enable Enable the module settings. Related Syntax: <config># custom enable  VigorSwitch P1085 User’s Guide...
Page 182 Related Syntax:  <config># dos icmpv4-ping-max-check dos icmpv6-ping-max-check Check ICMPv6 ping maximum packets size and drop the packets larger than the maximum packet size defined by the command, icmp-ping-max-length. Related Syntax: VigorSwitch P1085 User’s Guide...
Page 183 Check the minimum TCP header and drop the TCP packets with the header smaller than the minimum size defined. Related Syntax: <config># dos tcphdr-min-check  dos tcphdr-min-length Set the minimum size of TCP header. <0-65535> - Specify a packet number. Related Syntax: <config># dos tcphdr-min-length <0-65535>  VigorSwitch P1085 User’s Guide...
Page 184 WORD <36-36> - Enter the UUID string of the IP camera or IP-based device. Related Syntax: <config># dray_surveillence set device uuid WORD <36-36>   <config># dray_surveillence set group uuid WORD <36-36> P1085# configure P1085(config)# P1085(config)# dray_surveillence P1085(config)# P1085(config)# dray_surveillence add device uuid 53d7762a-c52b-4bb9-8000-305501e0f35f VigorSwitch P1085 User’s Guide...
Page 185 <1-15> - Enter a number for specifying a privilege level. Default value is 15. Related Syntax:  <config># enable password <1-15> enable secret <PASSWORD> - Enter a new string as the encrypted password. Related Syntax: VigorSwitch P1085 User’s Guide...
Page 186 <config># enable secret encrypted PASSWORD P1085# configure P1085(config)# enable secret encrypted testtest P1085(config)# exit P1085# show running-config DRAYTEK SYSTEM CONFIG FILE ::= BEGIN ! System Description: Draytek P1085 VigorSwitch ! System Version: v2.5.1_RC5 ! System Name: P1085 sntp host pool.ntp.org port 123 clock timezone "acronym"...
Page 187 P1085(config)# exit P1085# Use this command to modify the network name of VigorSwitch. hostname Syntax Items Description hostname <word> - Enter a string as the network name for VigorSwitch. Related Syntax:  <config># hostname <word> P1085# configure VigorSwitch P1085 User’s Guide...
Page 188 P1085(config)# interface LAG 1 P1085(config-if)# Under (config-if)#, available sub-commands for LAN or LAG will be different. Below shows the items under Ethernet LAN: <config-if># back-pressure <config-if># custom <config-if># description <config-if># device-check <config-if># dos <config-if># do <config-if># dray_surveillence VigorSwitch P1085 User’s Guide...
Page 189 <1/3/5> - Enter the retry time during a checking period. Failure-action <nothing/powercycle/poweroff> – Set the power cycle. Related Syntax:  <config-if># device-check ip-address <A.D.C.D> interval <120/15/30/60> retry <1/3/5> failure-action <nothing/powercycle/poweroff> Apply DoS to the specified interface (Ethernet port/LAG port). Run execution commands in current mode. VigorSwitch P1085 User’s Guide...
Page 190 – Use it to enable IP source guard function. Related Syntax:  <config-if># ip acl <NAME>  <config-if># ip conflict prevention bind-ip <A.B.C.D>  <config-if># ip conflict prevention port-type DHCP-Client  <config-if># ip conflict prevention port-type DHCP-Client VigorSwitch P1085 User’s Guide...
Page 191 <disable/enable> - Enable or disable the TX optional-TLV 802.1 PVID. vlan-name <add/remove> <2-4094> - Add/remove a selected VLAN. Enter the VLAN ID number. <rx> - Enable LLDP reception on interface. <tx> - Enable LLDP transmission on interface. Related Syntax:  <config-if># lldp tlv-select <TLV/pvid/vlan-name> VigorSwitch P1085 User’s Guide...
Page 192 “basic” mode. There are four trust types for a device to judge the appropriate queue of the packets. <cos> - Enable cos remarking. <dscp> - Enable DSCP remarking. <cos-dscp> - Enable cos and DSCP remarking. <precedence> - Enable IP precedence remarking. VigorSwitch P1085 User’s Guide...
Page 193 <config-if># spanning-tree <bpdu-filter /bpdu-guard/ edge>  <config-if># spanning-tree cost <0-200000000>  <config-if># spanning-tree link-type <point-to-point/shared>  <config-if>#spanning-tree mcheck  <config-if># spanning-tree port-priority <0-240> speed Configure speed operation. <10/100/1000> - Force 10/100/1000 Mbps operation. <auto> - Enable Auto speed configuration. VigorSwitch P1085 User’s Guide...
Page 194 – Use it to allow a VALN on the interface. trunk native – Use it to set a native VLAN on the interface. <1-4094> - Specify a VLAN ID. <add/remove> - Add or remove the allowed VLAN list. VigorSwitch P1085 User’s Guide...
Page 195 <manual> - The administrator manually makes voice member port join voice VLAN. Related Syntax:  <config-if># voice-vlan cos <all/src>  <config-if># voice-vlan mode <auto/manual> P1085# configure P1085(config)# interface LAG 1 P1085(config-if)# speed 100 P1085(config-if)# backpressure P1085(config-if)# vlan mac-vlan group 35 vlan 1000 P1085(config-if)# VigorSwitch P1085 User’s Guide...
Page 196 <A.B.C.D>/<A.B.C.D> dscp <0-63>  <config-ip-acl >#deny <0-255> <A.B.C.D>/<A.B.C.D> <A.B.C.D>/<A.B.C.D> dscp <0-63> shutdown  <config-ip-acl >#deny <0-255> <A.B.C.D>/<A.B.C.D> <A.B.C.D>/<A.B.C.D> precedence <0-7>  <config-ip-acl >#deny <0-255> <A.B.C.D>/<A.B.C.D> <A.B.C.D>/<A.B.C.D> precedence <0-7> shutdown  <config-ip-acl >#deny <0-255> any <A.B.C.D>/<A.B.C.D> dscp <0-63> VigorSwitch P1085 User’s Guide...
Page 197 <config-ip-acl >#permit <0-255> <A.B.C.D>/<A.B.C.D> <A.B.C.D>/<A.B.C.D> precedence <0-7> shutdown  <config-ip-acl >#permit <0-255> any <A.B.C.D>/<A.B.C.D> dscp <0-63>  <config-ip-acl >#permit <0-255> any <A.B.C.D>/<A.B.C.D> dscp <0-63> shutdown  <config-ip-acl >#permit <0-255> any <A.B.C.D>/<A.B.C.D> precedence <0-7>  <config-ip-acl >#permit <0-255> any <A.B.C.D>/<A.B.C.D> VigorSwitch P1085 User’s Guide...
Page 198 <X:X:XX:X:X> - Specify the MAC address as primary DNS server. <X:X:XX:X:X><X:X::X:X> - Specify two MAC addresses as primary and secondary DNS server. lookup – Enable the IP domain naming system lookup. Related Syntax:  <config>#ip dns <A.B.C.D> VigorSwitch P1085 User’s Guide...
Page 199 <A:B:C:D:E:F> - Enter the MAC address for the binding entry. vlan <1-4094> - Specify the VLAN ID number. <A.B.C.D><A.B.C.D> - Specify the source and destination IPv4 addresses. <1-8> - Specify a physical port. <1-8> - Specify a LAG port. VigorSwitch P1085 User’s Guide...
Page 200 <NAME> - Set the name of the access list (ACL) based on IPv6. To configure detailed settings, enter the name of ACL to access into next level. <config>#ipv6 acl <NAME> Then, available sub-command includes: <config-ipv6-acl>#deny <config-ipv6-acl>#do <config-ipv6-acl>#end <config-ipv6-acl>#exit <config-ipv6-acl>#no <config-ipv6-acl>#permit VigorSwitch P1085 User’s Guide...
Page 201  <config-ipv6-acl >deny icmp <X:X::X:X>/<0-128> <X:X::X:X>/<0-128> <0-255 / any / destination-unreachable / echo-reply / echo-request / nd-na / nd-ns / packet-too-big/ parameter-problem/ router-advertisement / router-solicitation / time-exceeded> <0-255/any> dscp <0-63>  <config-ipv6-acl >#deny icmp <X:X::X:X>/<0-128> VigorSwitch P1085 User’s Guide...
Page 202 <config-ipv6-acl >#deny ipv6 <X:X::X:X>/<0-128> <X:X::X:X>/<0-128> precedence <0-7> shutdown  <config-ipv6-acl >#deny ipv6 <X:X::X:X>/<0-128> <X:X::X:X>/<0-128> shutdown  <config-ipv6-acl >#deny ipv6 <X:X::X:X>/<0-128> any dscp <0-63>  <config-ipv6-acl >#deny ipv6 <X:X::X:X>/<0-128> any dscp <0-63> shutdown  <config-ipv6-acl >#deny ipv6 <X:X::X:X>/<0-128> any VigorSwitch P1085 User’s Guide...
Page 203 / domain / drip / echo / ftp / ftp-data / hostname / klogin / kshell / pop2 / pop3 / smtp / sunrpc / syslog / talk / telnet / time / whois / www> match-all <TCP_FLAG> dscp <0-63> shutdown  <config-ipv6-acl >#deny tcp <X:X::X:X>/<0-128> <0-65535 / VigorSwitch P1085 User’s Guide...
Page 204 / echo / nameserver / netbios-ns / ntp / rip / snmp / snmptrap / sunrpc / syslog / talk / tftp / time / who> dscp <0-63>  <config-ipv6-acl >#deny udp <X:X::X:X>/<0-128> <0-65535/ PORT_RANGE / any / bootpc / bootps / discard / domain / echo VigorSwitch P1085 User’s Guide...
Page 205 / domain / drip / echo / ftp / ftp-data / hostname / klogin / kshell / pop2 / pop3 / smtp / sunrpc / syslog / talk / telnet / time / whois / www> - Set TCP port. VigorSwitch P1085 User’s Guide...
Page 206  <config-ipv6-acl ># permit icmp <X:X::X:X>/<0-128> <X:X::X:X>/<0-128><0-255 / any / destination-unreachable / echo-reply / echo-request / nd-na / nd-ns / packet-too-big/ parameter-problem/ router-advertisement / router-solicitation / time-exceeded> <0-255/any> shutdown  <config-ipv6-acl ># permit icmp <X:X::X:X>/<0-128> any VigorSwitch P1085 User’s Guide...
Page 207 <0-7> shutdown  <config-ipv6-acl ># permit ipv6 any <X:X::X:X>/<0-128> shutdown  <config-ipv6-acl ># permit ipv6 any any  <config-ipv6-acl ># permit ipv6 any any dscp <0-63>  <config-ipv6-acl ># permit ipv6 any any dscp <0-63> shutdown VigorSwitch P1085 User’s Guide...
Page 208 / kshell / pop2 / pop3 / smtp / sunrpc / syslog / talk / telnet / time / whois / www> match-all <TCP_FLAG> precedence <0-7> shutdown  <config-ipv6-acl ># permit tcp <X:X::X:X>/<0-128> <0-65535 / PORT_RANGE / any / daytime / discard / domain / drip / echo VigorSwitch P1085 User’s Guide...
Page 209 / nameserver / netbios-ns / ntp / rip / snmp / snmptrap / sunrpc / syslog / talk / tftp / time / who> <X:X::X:X>/<0-128> <0-65535/ PORT_RANGE / any / bootpc / bootps / discard / VigorSwitch P1085 User’s Guide...
Page 210 Specify the last member query interval. Default is 1. query-interval <30-18000> - Use it to set interval between each query. Specify the query interval. Default is 125. response-time <5-20> - Use it to set response time. Specify a time VigorSwitch P1085 User’s Guide...
Page 211 <config>#ipv6 mld snooping vlan <1-4094> last-member-query-interval <1-25>  <config>#ipv6 mld snooping vlan <1-4094> query-interval <30-18000>  <config>#ipv6 mld snooping vlan <1-4094> response-time <5-20>  <config>#ipv6 mld snooping vlan <1-4094> robustness-variable <1-7>  <config>#ipv6 mld snooping vlan <1-4094> router learn VigorSwitch P1085 User’s Guide...
Page 212 <1518-10000> - The default value is 1522. Related Syntax: <config># jumbo-frame  <config># jumbo-frame <1518-10000>  P1085# configure P1085(config)# P1085(config)# jumbo-frame 8000 P1085(config)# Use this command to set the system priority of the switch. lacp lacp system-priority VigorSwitch P1085 User’s Guide...
Page 213 IP address. Related Syntax:  <config># lag load-balance src-dst-mac  <config># lag load-balance src-dst-mac-ip P1085# configure P1085(config)# lag load-balance src-dst-mac Use this command to select line configuration mode. line console line ssh line telent Syntax Items Description VigorSwitch P1085 User’s Guide...
Page 214 Use the “history” command to specify the index number of history. <1-256> - Enter a number. Related Syntax: <config-line>#history <1-256> Use the “no” command to negate line command. Related Syntax:  <config-line>#no enable  <config-line>#no history  <config-line>#no login VigorSwitch P1085 User’s Guide...
Page 215 LLDP is disabled. Related Syntax: <config># lldp lldpdu bridging  <config># lldp lldpdu filtering  <config># lldp lldpdu flooding  lldp rinit-delay Set the LLDP re-initial delay to avoid LLDP generating too many PDU. VigorSwitch P1085 User’s Guide...
Page 216 <config># lldp tx-delay <1-8191>  lldp tx-interval Set the LLDP TX interval. <5-32767> - Enter the interval in unit of second. Related Syntax: <config># lldp tx-interval <5-32767>  P1085# configure P1085(config)# P1085(config)# lldp tx-interval 500 P1085(config)# VigorSwitch P1085 User’s Guide...
Page 217 <config>#logging host <HOSTNAME> facility <local0-local7>  <config>#logging host <HOSTNAME> port <1-65535>  <config>#logging host <HOSTNAME> port <1-65535> facility <local0-local7>  <config>#logging host <HOSTNAME> port <1-65535> severity <0-7> facility <local0-local7>  <config>#logging host <HOSTNAME> severity <0-7> facility VigorSwitch P1085 User’s Guide...
Page 218 IGMP_SNOOPING, IPSG, L2, LLDP, Mac-based, Mirror, MLD_SNOOPING, Platform, PM, POE, Port, PORT_SECURITY, QoS, Rate, SNMP, STP, Security, System, Surveillance, Trunk, VLAN, CLEAR> logmail encry <disable/ssltls/starttls> - Specify the encryption type for mail alert. Related Syntax: <config># logmail encry <disable/ ssltls/starttls>  VigorSwitch P1085 User’s Guide...
Page 219 Send the loop protection packets to the network hosts. periodicTime <1-3> - Enter the number of the packet. Related Syntax: <config># Related Syntax: <config># loop-protection periodicTime <1-3>  loop-protection state <enable/disable> - Enable or disable the function of loop protection. VigorSwitch P1085 User’s Guide...
Page 220 ><A:B:C:D:E:F>/<A:B:C:D:E:F> cos <0-7><0-7> ethtype <0x0600-0xFFFF>  <config-mac-acl >#deny <A:B:C:D:E:F>/<A:B:C:D:E:F ><A:B:C:D:E:F>/<A:B:C:D:E:F> cos <0-7><0-7> ethtype <0x0600-0xFFFF> shutdown  <config-mac-acl >#deny <A:B:C:D:E:F>/<A:B:C:D:E:F ><A:B:C:D:E:F>/<A:B:C:D:E:F> cos <0-7><0-7> shutdown  <config-mac-acl >#deny <A:B:C:D:E:F>/<A:B:C:D:E:F ><A:B:C:D:E:F>/<A:B:C:D:E:F> ethtype <0x0600-0xFFFF>  <config-mac-acl ># deny <A:B:C:D:E:F>/<A:B:C:D:E:F ><A:B:C:D:E:F>/<A:B:C:D:E:F> ethtype <0x0600-0xFFFF> VigorSwitch P1085 User’s Guide...
Page 221 <A:B:C:D:E:F>/<A:B:C:D:E:F >- Specify the source and destination MAC addresses and subnet masks. cos <0-7><0-7> - Set the cos value and the cos mask for a packet. <0x0600-0xFFFF> - Set the EtherType of the packet. VigorSwitch P1085 User’s Guide...
Page 222 <0-7><0-7> ethtype <0x0600-0xFFFF>  <config-mac-acl >#sequence <1-2147483647>deny <A:B:C:D:E:F>/<A:B:C:D:E:F ><A:B:C:D:E:F>/<A:B:C:D:E:F> cos <0-7><0-7> ethtype <0x0600-0xFFFF> shutdown  <config-mac-acl >#sequence <1-2147483647>deny <A:B:C:D:E:F>/<A:B:C:D:E:F ><A:B:C:D:E:F>/<A:B:C:D:E:F> cos <0-7><0-7> shutdown  <config-mac-acl >#sequence <1-2147483647>deny <A:B:C:D:E:F>/<A:B:C:D:E:F ><A:B:C:D:E:F>/<A:B:C:D:E:F> ethtype <0x0600-0xFFFF>  <config-mac-acl >#sequence <1-2147483647>deny <A:B:C:D:E:F>/<A:B:C:D:E:F ><A:B:C:D:E:F>/<A:B:C:D:E:F> VigorSwitch P1085 User’s Guide...
Page 223 <config-mac-acl >#sequence <1-2147483647>permit <A:B:C:D:E:F>/<A:B:C:D:E:F> <A:B:C:D:E:F>/<A:B:C:D:E:F> ethtype <0x0600-0xFFFF>  <config-mac-acl >#sequence <1-2147483647>permit <A:B:C:D:E:F>/<A:B:C:D:E:F> <A:B:C:D:E:F>/<A:B:C:D:E:F> vlan <1-4094>  <config-mac-acl >#sequence <1-2147483647>permit <A:B:C:D:E:F>/<A:B:C:D:E:F> <A:B:C:D:E:F>/<A:B:C:D:E:F> vlan <1-4094> cos <0-7><0-7>  <config-mac-acl >#sequence <1-2147483647>permit <A:B:C:D:E:F>/<A:B:C:D:E:F> <A:B:C:D:E:F>/<A:B:C:D:E:F> vlan <1-4094> cos <0-7><0-7> ethtype <0x0600-0xFFFF> VigorSwitch P1085 User’s Guide...
Page 224 <1-4094> interfaces LAG <1-8> P1085# configure P1085(config)# mac acl test_CA P1085(config-mac-acl)# deny 00:50:00:7f:12:11/00:00:00:00:10:20 00:50:00:aa:bb:cc/00:00:00:00:12:00 cos 3 2 ethtype 0x0600 P1085(config-mac-acl)# deny any 00:50:00:7f:12:11/00:00:00:00:10:20 cos 5 6 ethtype 0x0600 P1085(config-mac-acl)# deny any P1085(config)# mac address-table static 00:50:07:12:ff:aa vlan 300 drop VigorSwitch P1085 User’s Guide...
Page 225 <1-60> - Unit is second. Related Syntax: <config># mailalert interval <1-60>  mailalert ipconflict <disable/enable> - Enable or disable the function of sending a mail alert if encountering the IP conflict. Related Syntax:  <config># mailalert ipconflict <disable/enable> VigorSwitch P1085 User’s Guide...
Page 226 <config># mailalert throughputcheck <disable/enable> mailalert username <NAEM> - Enter the username authenticated by STMP server. Related Syntax:  <config># mailalert username <NAME> P1085# configure P1085(config)# P1085(config)# mailalert receiver carrie_ni@draytek.com Use this command to set VLAN ID for management VLAN. VigorSwitch P1085 User’s Guide...
Page 227 GigabitEthernet <1-8> <both/rx/tx> <config># mirror session <1-4> source interface LAG <1-8>  <both/rx/tx> P1085# configure P1085(config)# P1085(config)# mirror session 3 destination interface GigabitEthernet 3 allow P1085(config)# P1085(config)# mirror session 3 source interfaces LAG 3 both P1085(config)# VigorSwitch P1085 User’s Guide...
Page 228 Use this command configure settings for PoE device. poe mode poe schedule Syntax Items Description poe mode auto - VigorSwitch determines the power watts for PoE device based on actual demand. manual - VigorSwitch will supply actual power demand for the PoE VigorSwitch P1085 User’s Guide...
Page 229 <0-7> - Enter the cos value to which the queue ID shall correspond. <0-7> - Enter the DSCP value to which the queue ID shall correspond. <0-7> - Enter the IP precedence value to which the queue ID shall correspond. Related Syntax: VigorSwitch P1085 User’s Guide...
Page 230 <apr / aug / dec / feb /jan / jul / jun /jul / mar / may / nov / oct / sep > - Represent month of April, August, December, February, January, July, June, March, May, November, October, and September. <sun /mon /tue /wed / thu / fri / sat> - Represent Sunday, Monday, VigorSwitch P1085 User’s Guide...
Page 231 Available parameters for SNMP community: <NAME> after community - Enter a string (maximum length: 20 characters) as community name. <NAME> after group - Enter a string (maximum length: 30 characters) as access group. VigorSwitch P1085 User’s Guide...
Page 232 <1-300> - Set the timeout of V2c informs. retries <1-255> - Enter the retry counter of V2c informs. Related Syntax: Set a host to receive SNMP notifications.  <config># snmp host <A.B.C.D> <NAME> retries <1-255> VigorSwitch P1085 User’s Guide...
Page 233 <1/2c/3><NAME> udp-port <1-65535> retries <1-255>  <config># snmp host <A.B.C.D> traps version <1/2c/3><NAME> udp-port <1-65535> timeout <1-300>  <config># snmp host <A.B.C.D> traps version <1/2c/3><NAME> udp-port <1-65535> timeout <1-300> retries <1-255>  <config># snmp host <A.B.C.D> version <1/2c/3><NAME> retries <1-255> VigorSwitch P1085 User’s Guide...
Page 234 <config># snmp host HOSTNAME traps version <1/2c/3> <NAME> retries <1-255>  <config># snmp host HOSTNAME traps version <1/2c/3> <NAME> timeout <1-300>  <config># snmp host HOSTNAME traps version <1/2c/3> <NAME> timeout <1-300> retries <1-255>  <config># snmp host HOSTNAME traps version <1/2c/3> VigorSwitch P1085 User’s Guide...
Page 235 <config># snmp host <X:X::X:X> traps <NAME> timeout <1-300> retries <1-255>  <config># snmp host <X:X::X:X> traps <NAME> udp-port <1-65535>  <config># snmp host <X:X::X:X> traps <NAME> udp-port <1-65535> retries <1-255>  <config># snmp host <X:X::X:X> traps <NAME> udp-port VigorSwitch P1085 User’s Guide...
Page 236 <exluded/included> - Let the selected MIBs include or exclude in the SNMP view. Related Syntax:  <config># snmp view <NAME> subtree <OID> oid-mask <mask> viewtype <excluded/included> P1085# configure P1085(config)# P1085(config)# snmp engineid remote 192.168.2.38 00036D001188 VigorSwitch P1085 User’s Guide...
Page 237 <config># sntp host <HOSTNAME>> port <1-65535>  P1085# configure P1085(config)# P1085(config)# sntp host KEY1245 port 3000 P1085(config)# Use this command to configure settings for spanning-tree. spanning-tree spanning-tree bpdu spanning-tree forward-delay spanning-tree hello-time spanning-tree maximum-age spanning-tree mode spanning-tree pathcost VigorSwitch P1085 User’s Guide...
Page 238 <config># spanning-tree priority <0-61440>  spanning-tree tx-hold-count Set the maximum number of packets transmission per second. <1-10> - Valid range is from 1 to 10. Related Syntax: <config># spanning-tree tx-hold-count <1-10>  P1085# configure P1085(config)# P1085(config)# spanning-tree forward-delay 20 VigorSwitch P1085 User’s Guide...
Page 239 – Calculate the storm control rate by octet-based. Related Syntax:  <config># storm-control unit bps storm-control unit pps Change the unit of calculating method for storm-control. pps – Calculate the storm control rate by packet-based. VigorSwitch P1085 User’s Guide...
Page 240 <DESCRIPTION> - Enter a string to briefly explain the surveillance VLAN. Related Syntax: <config># surveillance-vlan oui-table <A:B:C> <DESCRIPTION>  surveillance-vlan vlan Specify a VLAN profile as surveillance VLAN. <2-4094> - Specify the surveillance VLAN ID. Related Syntax:  <config># surveillance-vlan vlan <2-4094> P1085# configure VigorSwitch P1085 User’s Guide...
Page 241 P1085(config)# system contact callMIS P1085(config)# P1085(config)# system location DrayTek P1085(config)# system name UPDATEFRIM UPDATEFRIM(config)# Use this command to configure parameter settings of TR-069. tr069 acsPwd tr069 acsUsername tr069 acsurl tr069 cpeEnable tr069 cpePwd tr069 cpeUsername tr069 cpeport tr069 healthlinkstatus VigorSwitch P1085 User’s Guide...
Page 242 <PORTLIST> - Specify the interface, such as GE1, GE3-GE5 and so Related Syntax:  <config># tr069 healthlinkstatus <PORTLIST> tr069 healthpoewarning Perform the health check for PoE port warning status. <PORTLIST> - Specify the interface, such as GE1, GE3-GE5 and so VigorSwitch P1085 User’s Guide...
Page 243 <0-65535> - Set the port number for STUN server. Related Syntax: <config># tr069 stunport <0-65535>  tr069 tls <tlsl.2/tls1.3> - Set the TLS version (2 or 3) for VigorSwitch. Related Syntax: <config># tr069 tls version <tlsl.2/tls1.3>  P1085# configure VigorSwitch P1085 User’s Guide...
Page 244 P1085(config)# Use this command to configure detailed settings for VLAN profile. Before configuring, you have to access into next phase. See the following example: P1085# configure P1085(config)# P1085(config)# vlan 3 P2280x(config-vlan)# vlan vlan-list vlan mac-vlan group VigorSwitch P1085 User’s Guide...
Page 245  mask <9-48> P1085# configure P1085(config)# vlan 3 P1085(config-vlan)# P1085(config-vlan)# name vlan_friends P1085(config-vlan)# … P1085(config)# vlan mac-vlan group 33 00:50:17:22:12:ff mask 10 P1085(config)# Use this command to enable voice VLAN and configure settings for voice VLAN. VigorSwitch P1085 User’s Guide...
Page 246 Voice VLAN 1p Remark: disabled OUI table OUI MAC Description --------------+----------------- 00:E0:BB | 3COM 00:03:6B | Cisco 00:E0:75 | Veritel 00:D0:1E | Pingtel 00:01:E3 | Siemens 00:60:B9 | NEC/Philips 00:0F:E2 | H3C 00:09:6E | Avaya 22:30:FF | test_01 VigorSwitch P1085 User’s Guide...
Page 247 <http/https> - Specify the protocol (http or https) of the destination. url <domain name> - Enter the domain name (e.g., draytek.com) of the destination. Note that it is not necessary to enter this information if IP address has been set first.
Page 248 P1085# configure P1085(config)# webhook host service https P1085(config)# webhook host url www.demo.com P1085(config)# webhook host path Draytek/demo P1085(config)# webhook host port 443 P1085(config)# webhook interval 2 VigorSwitch P1085 User’s Guide...
Page 249 Related Syntax: # copy tftp:// flash://  # copy tftp:// running-config   # copy tftp:// startup-config  # copy tftp:// tftp:// P1085# copy running-config tftp://172.16.3.8/test_carrie.cfg Uploading file. Please wait... Save configuration done. P1085# copy startup-config tftp://172.16.3.8/test_da.cfg VigorSwitch P1085 User’s Guide...
Page 250 Default privilege level is 15 if no privilege level is specified on enable command. Default privilege level is 1 if no privilege level is specified on disable command. disable Syntax Items Description disable <1-14> - Enter a number to specify the privilege level. Related Syntax: VigorSwitch P1085 User’s Guide...
Page 251 P1085# Use this command to end current mode. P1085(config)# interface GigabitEthernet 3 P1085(config-if)# end P1085# Use this command to close current CLI session or return to previous mode. exit P1085(config)# interface GigabitEthernet 3 P1085(config-if)# exit P1085(config)# VigorSwitch P1085 User’s Guide...
Page 252 64 bytes from 192.168.1.11: icmp_seq=1 ttl=64 time=0.0 ms 64 bytes from 192.168.1.11: icmp_seq=2 ttl=64 time=0.0 ms --- 192.168.1.11 ping statistics --- 3 packets transmitted, 3 packets received, 0% packet loss round-trip min/avg/max = 0.0/0.0/0.0 ms P1085# VigorSwitch P1085 User’s Guide...
Page 253 P1085# restore-default System: restore factory defaults. Do you want to reboot now? (y/n)y Use this command to save configuration and activate the settings. Note that this command has the same effect as "copy running-config startup-config". save VigorSwitch P1085 User’s Guide...
Page 254 | Cisco 00:E0:75 | Veritel 00:D0:1E | Pingtel 00:01:E3 | Siemens 00:60:B9 | NEC/Philips 00:0F:E2 | H3C 00:09:6E | Avaya Port | State | Port Mode | Cos Mode -------+----------+-------------+----------- | Disabled | Auto | Src P1085# VigorSwitch P1085 User’s Guide...
Page 255 Locality Name (eg, city) []:hschu Organization Name (eg, company) [Internet Widgits Pty Ltd]:draytek Organizational Unit Name (eg, section) []:marketing Common Name (e.g. server FQDN or YOUR name) []:draytek Email Address []:carrie_ni@draytek.com P1085# Use this command to set the maximum line number that the terminal is able to print.
Page 256 <HOSTNAME>- Enter the IP address or the hostname of the device for VigorSwitch to perform traceroute diagnostic. Related Syntax: # traceroute <HOSTNAME>  P1085# traceroute 192.168.1.224 traceroute to 192.168.1.224 (192.168.1.224), 30 hops max, 40 byte packets 1 192.168.1.224 (192.168.1.224) 0 ms 0 ms 0 ms P1085# VigorSwitch P1085 User’s Guide...
Page 257 The first two comprises Data link layer, which performs splitting data into frame for transmitting, receiving acknowledge frame, error checking and re-transmitting when not received correctly as well as provides an error-free channel upward to network layer. VigorSwitch P1085 User’s Guide...
Page 258 I/G bit indicates it is individual or group address. If all bit of DSAP is 1s, it’s a global address. The SSAP address field identifies the specific services indicated by C/R bit (command or response). The DSAP and SSAP pair with some reserved values indicates some well-known services listed in the table below. VigorSwitch P1085 User’s Guide...
Page 259 LLC type 1 connectionless service, LLC type 2 connection-oriented service and LLC type 3 acknowledge connectionless service are three types of LLC frame for all classes of service. In Fig 3-2, it shows the format of Service Access Point (SAP). Please refer to IEEE802.2 for more details. VigorSwitch P1085 User’s Guide...
Page 260 Preamble (PRE) - The PRE is 7-byte long with alternating pattern of ones and zeros used to tell the receiving node that a frame is coming, and to synchronize the physical receiver with the incoming bit stream. The preamble pattern is: 10101010 10101010 10101010 10101010 10101010 10101010 10101010 VigorSwitch P1085 User’s Guide...
Page 261 As Ethernet adopted Carrier Sense Multiple Access with Collision Detect (CSMA/CD), it detects if there is any carrier signal from another network device running over the physical medium when a frame is ready for transmission. This is referred to as sensing carrier, also “Listen”. If VigorSwitch P1085 User’s Guide...
Page 262 Actually, the practice Gigabit Ethernet chips do not feature this so far. They all have their chips supported full-duplex mode only, as well as all network vendors’ devices. So this criterion should not exist at the present time and in the future. The switch’s Gigabit module supports only full-duplex mode. VigorSwitch P1085 User’s Guide...
Page 263 What will it be if receiving device is busy and a frame is coming at the same time? Can it use “backpressure” to tell the source device? A function flow control is introduced in the full-duplex operation. VigorSwitch P1085 User’s Guide...
Page 264 The receiving node always “listens” if there is traffic running over the medium when it is not receiving a frame. When a frame destined for the target device comes, VigorSwitch P1085 User’s Guide...
Page 265 1: RIF field is present in the tag header 0: No RIF field is present Bits 11-0 VID (VLAN Identifier) 0x000: Null VID. No VID is present and only user priority is present. 0x001: Default VID 0xFFF: Reserved VigorSwitch P1085 User’s Guide...
Page 266 The maximum length of the extension is equal to the quantity (slotTime - minFrameSize). The MAC continues to monitor the medium for collisions while it is transmitting extension bits, and it will treat any collision that occurs after the threshold (slotTime) as a late collision. VigorSwitch P1085 User’s Guide...
Page 267 Factory Default, 144 System Configuration, 17 Ｇ System Maintenance, 115 Ｕ General, 88, 91, 96, 98 General Setup, 18 Upgrade Manager, 141 ＩＷ Ingress Rate Limit, 105 Weight, 101 Installation for VigorAPM, 6 WRR Bandwidth, 101 VigorSwitch P1085 User’s Guide...
