- Page 2 VigorSwitch P1092 PoE Smart Lite Giga Switch Quick Start Guide Version: 1.0 Firmware Version: V1.01.03 (For future update, please visit DrayTek web site) Date: December 26, 2017...
- Page 3 Intellectual Property Rights (IPR) Information © All rights reserved. This publication contains information that is protected Copyrights by copyright. No part may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language without written permission from the copyright holders. The following trademarks are used in this document: Trademarks ...
-
Page 4: Eu Declaration Of Conformity
EU Declaration of Conformity We DrayTek Corp. , office at No.26, Fu Shing Road, HuKou County, Hsin-Chu Industry Park, Hsinchu 300, Taiwan , R.O.C., declare under our sole responsibility that the product Product name: PoE Smart Lite Giga Switch ... -
Page 5: Regulatory Information
(2) This device may accept any interference received, including interference that may cause undesired operation. Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. More update, please visit www.draytek.com. - Page 6 Web registration is preferred. You can register your Vigor router via http://www.draytek.com. Firmware & Tools Updates Due to the continuous evolution of DrayTek technology, all routers will be regularly upgraded. Please consult the DrayTek web site for more information on newest firmware, tools and...

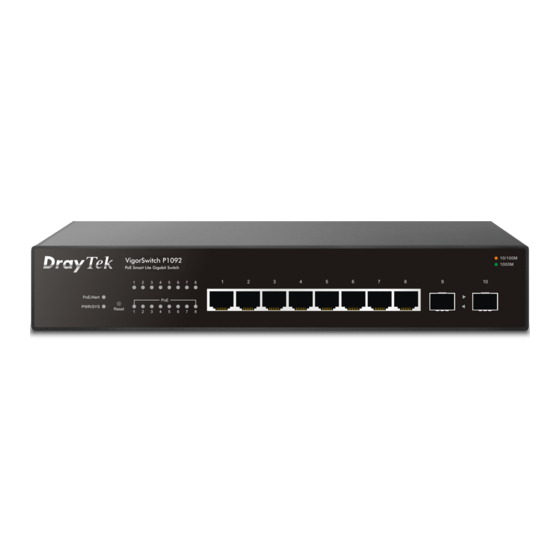

- Page 7 The 8 ports, PoE Smart Lite Giga Switch is a standard switch that meets both IEEE 802.3u/ab Fast Ethernet and Gigabit Ethernet specifications. The network administrator can logon the switch to monitor, configure and control each port’s activity. In addition, the switch implements the QoS (Quality of Service) and VLAN.
- Page 8 RJ45 LNK/ACT Port 1 to Port 8 / PoE for Port 1 to Port 8 SFP LNK/ACT Status Explanation On (Green) Connected over the PoE maximum power PoE/Alert budget. Connected within the PoE maximum power budget. PWR/SYS On (Green) The switch is powered on and runs normally. The switch is not ready or is failed.
- Page 9 Interface Description Port 1 to Port 8 can be used for Ethernet RJ 45 LNK/ACT Port 1 ~ 8 connection and PoE connection, depending on PoE for Port 1 ~ 8 the device connected Used for fiber connection. SFP Port 9 ~ 10 Power inlet for AC input (100~240V/AC, 50/60Hz).
- Page 10 This section will guide you to install the router through hardware connection and configure the router’s settings through web browser. Before starting to configure the router, you have to connect your devices correctly. Note Power the device to this switch and get 48V power source through Cat.
- Page 11 The switch can be installed easily by using rack mount kit. Attach the brackets to the chassis of a 19- or a 23-inch rack. The second bracket attaches the other side of the chassis as above procedure. After the bracket installation, the VigorSwitch’s chassis can be installed in a rack by using four screws for each side of the rack.
- Page 12 Before using the switch, perform the following steps: 1. Set up a physical path between the configured the switch and a PC by a qualified UTP Cat. 5e cable with RJ-45 connector. If a PC directly connects to the switch, you have to setup the same subnet mask for Default values of the managed switch are listed as follows: PC and the switch.
- Page 13 This DrayTek product uses software partially or completely licensed under the terms of the GNU GENERAL PUBLIC LICENSE. The author of the software does not provide any warranty. A Limited Warranty is offered on DrayTek products. This Limited Warranty does not cover any software applications or programs.
