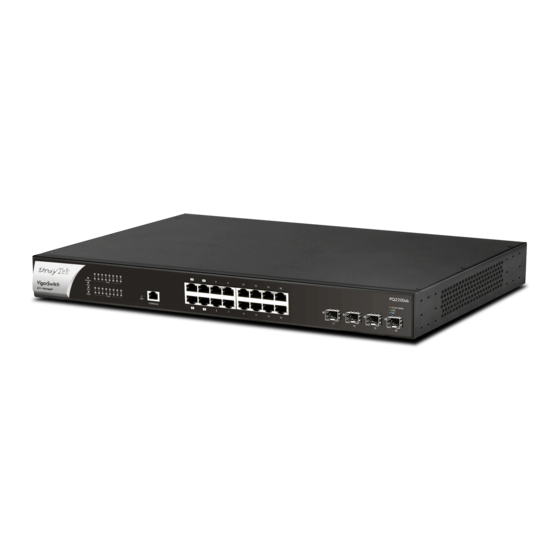

- Page 1 VigorSwitch PQ2200xb L2+ Managed Switch Quick Start Guide Version: 1.0 Firmware Version: V2.7.1 (For future update, please visit DrayTek web site) Date: July 6, 2022...
- Page 2 Intellectual Property Rights (IPR) Information © All rights reserved. This publication contains information that is protected Copyrights by copyright. No part may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language without written permission from the copyright holders. The following trademarks are used in this document: Trademarks ...
- Page 3 EU Declaration of Conformity We DrayTek Corp. , office at No.26, Fushing Rd., Hukou, Hsinchu Industrial Park, Hsinchu 303, Taiwan , R.O.C., declare under our sole responsibility that the product Product name: PoE 16-port 2.5G with 4-port 10G SFP+ up-link Switch ...
-
Page 4: Regulatory Information
Web registration is preferred. You can register your Vigor switch via https://myvigor.draytek.com. Firmware & Tools Updates Due to the continuous evolution of DrayTek technology, all switches will be regularly upgraded. Please consult the DrayTek web site for more information on newest firmware, tools and documents. https://www.draytek.com... - Page 5 VigorSwitch PQ2200xb (with PoE) Quick Start Guide Rack Mount Kit (brackets) Console Cable The type of the power cord depends on the country that the switch will be installed. UK-type Power Cord EU-type Power Cord USA/Taiwan-type Power Cord AU/NZ-type Power Cord If any of these items is found missing or damaged, please contact your local supplier for replacement.
- Page 6 Port 1 to 16 (2.5GbE PoE) Port 17 to 20 Port 1 to 16 (SFP+) (2.5GbE RJ45) Status Explanation An alert for system failure due to overheating On (Red) or wrong voltage. Monitor The device is in normal condition and running normally.
- Page 7 Interface Description Used for Ethernet connection (10/100/1000/2500Mbps) For VigorSwitch PQ2200xb, PoE supports: Port 1 ~ 16 (2.5GbE RJ45) Port 1 ~ 4 : 802.3af/at/bt, up to 90W. Port 5 ~ 16: 802.3af/at, up to 30W. See the following note for detail.
- Page 8 This section will guide you to install the switch through hardware connection and configure the switch’s settings through web browser. Before starting to configure the switch, you have to connect your devices correctly. Use a Cat. 5e twisted-pair cable to connect a PoE device to the port (1~16) of this switch.
- Page 9 The switch can be installed easily by using rack mount kit. Fasten the rack mount kit on both sides of the VigorSwitch using specific screws. Then, install the VigorSwitch (with rack mount kit) on the 19-inch chassis by using other four screws.
- Page 10 Before using the switch, perform the following steps: 1. Set up a physical path between the configured the switch and a PC by a qualified UTP Cat. 5e cable with RJ-45 connector. If a PC directly connects to the switch, you have to setup the same subnet mask for Default values of the managed switch are listed as follows: PC and the switch.
- Page 11 The home page of VigorSwitch will be shown as below:...
- Page 12 This DrayTek product uses software partially or completely licensed under the terms of the GNU GENERAL PUBLIC LICENSE. The author of the software does not provide any warranty. A Limited Warranty is offered on DrayTek products. This Limited Warranty does not cover any software applications or programs.
