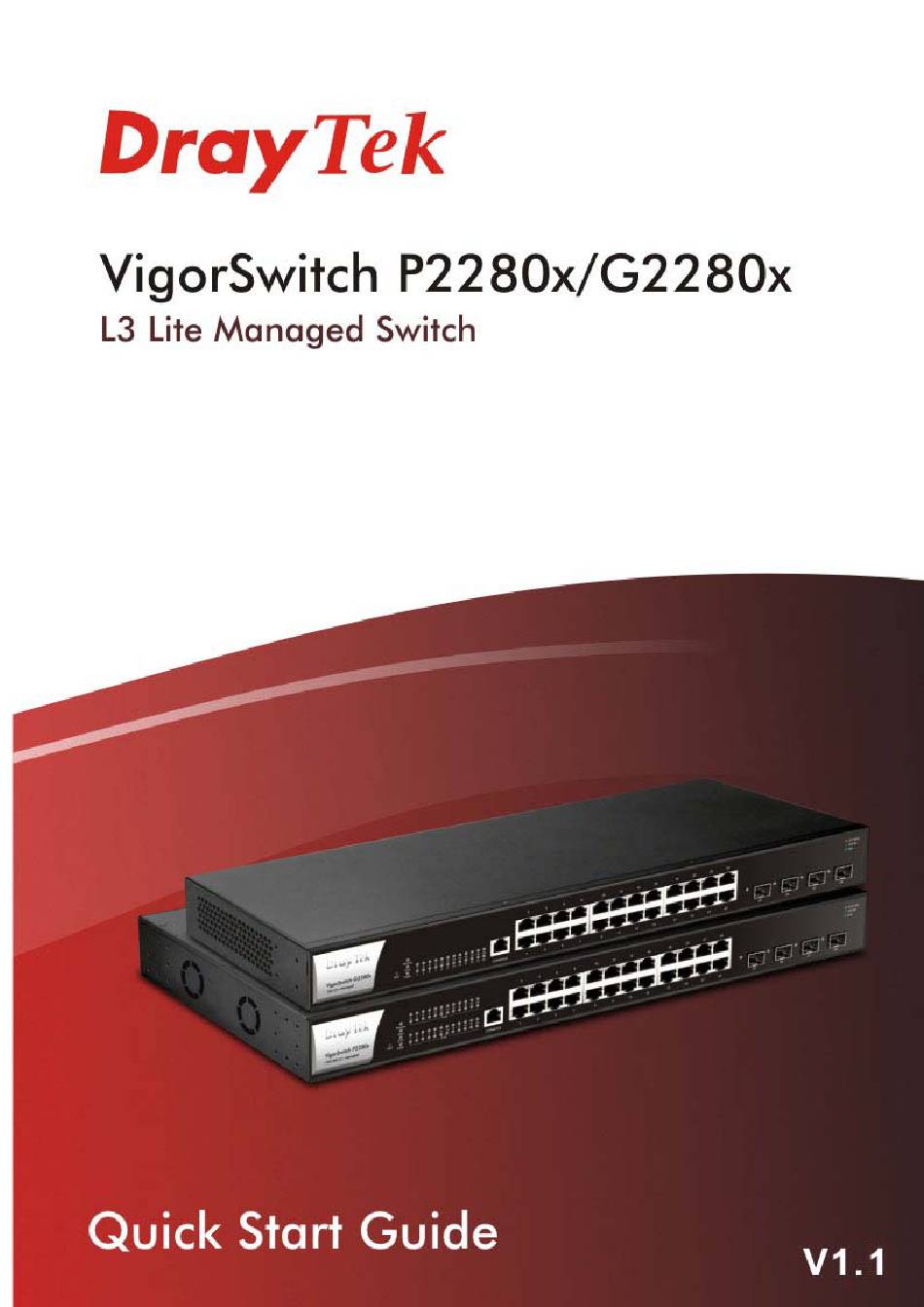

- Page 2 VigorSwitch P2280x / G2280x L2+ Managed Switch Quick Start Guide Version: 1.1 Firmware Version: V2.6.6 (For future update, please visit DrayTek web site) Date: July 12, 2021...

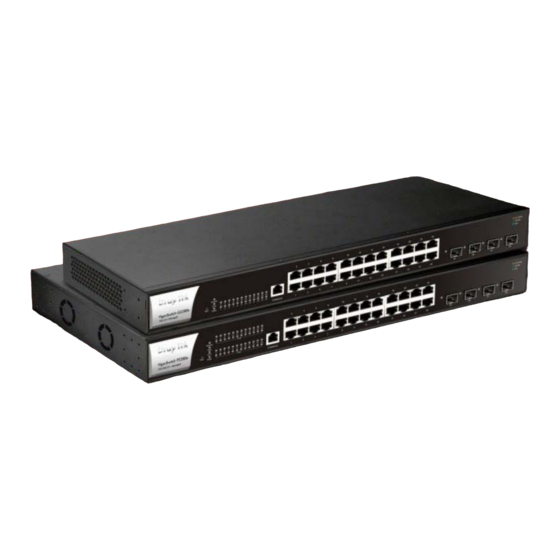

- Page 3 VigorSwitch P2280x (with PoE) VigorSwitch G2280x (without PoE) Rack Mount Kit (brackets) & Console Cable Quick Start Guide The type of the power cord depends on the country that the switch will be installed. UK-type Power Cord EU-type Power Cord...
- Page 4 Port 1 to 24 (PoE) Port 25 to 28 Port 1 to 24 (GbE RJ45) (SFP+) Status Explanation An alert for system failure due to overheating On (Red) or wrong voltage. Monitor The device is in normal condition and running normally.
- Page 5 Used to perform telnet command control. Console Power inlet for AC input (100~240V/AC, 50/60Hz). Note The following limitation is suitable for VigorSwitch P2280x Power Output -- IEEE 802.3af Max. 15.4W Output Supported IEEE 802.3at Max. 30W Output Supported PoE Power Budget –- 400 Watts (Max) ...
- Page 6 The switch will supply power to PoE Device over the twisted-pair cable. Please note that Power Device must comply with IEEE 802.3af/at. Other PCs, servers and network devices can be connected to the switch using a standard ‘straight through’ twisted pair cable. (Take VigorSwitch P2280x as an example)
- Page 7 The switch can be installed easily by using rack mount kit. Fasten the rack mount kit on both sides of the VigorSwitch using specific screws. Then, install the VigorSwitch (with rack mount kit) on the 19-inch chassis by using other four screws.
- Page 8 In this section, we take VigorSwitch G2280x as an example: Before using the switch, perform the following steps: 1. Set up a physical path between the configured the switch and a PC by a qualified UTP Cat. 5e cable with RJ-45 connector. If a PC directly connects to the switch, you have to setup the same subnet mask for Default values of the managed switch are listed as follows: PC and the switch.
-
Page 9: Gnu General Public License
Web registration is preferred. You can register your Vigor router via https://myvigor.draytek.com. & & Due to the continuous evolution of DrayTek technology, all switches will be regularly upgraded. Please consult the DrayTek web site for more information on newest firmware, tools and documents. https://www.draytek.com... - Page 10 EU Declaration of Conformity We DrayTek Corp. , office at No.26, Fushing Rd, Hukou, Hsinchu Industrial Park, Hsinchu 303, Taiwan, declare under our sole responsibility that the product Product name: PoE 24+4 port 10G up-link Switch Model number:...
- Page 11 EU Declaration of Conformity We DrayTek Corp. , office at No.26, Fushing Rd, Hukou, Hsinchu Industrial Park, Hsinchu 303, Taiwan, declare under our sole responsibility that the product Product name: 24+4 port 10G up-link Switch Model number: VigorSwitch G2280x ...
- Page 12 (2) This device may accept any interference received, including interference that may cause undesired operation. Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. More update, please visit www.draytek.com.
