EU Declaration of Conformity Hereby, DrayTek Corporation declares that the equipment type VigorSwitch is in compliance with EU EMC Directive 2014/30/EU, Low Voltage Directive 2014/35/EU and RoHS 2011/65/EU. The full text of the EU Declaration of Conformity is available at the following internet address: https://fw.draytek.com.tw/VigorSwitch%20G2282x/Document/CE/...
Web registration is preferred. You can register your Vigor switch via https://myvigor.draytek.com. Firmware & Tools Updates Due to the continuous evolution of DrayTek technology, all switches will be regularly upgraded. Please consult the DrayTek web site for more information on newest firmware, tools and documents. https://www.draytek.com...
Page 5

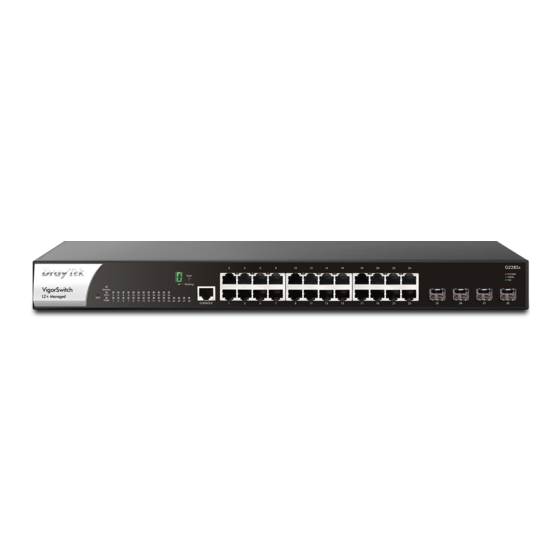

VigorSwitch P2282x (with PoE) VigorSwitch G2282X (without PoE) Rack Mount Kit (brackets) & Quick Start Console Cable Guide The type of the power cord depends on the country that the switch will be installed. UK-type Power Cord EU-type Power Cord...
Page 6
PoE for Port 1 to Port 24 RJ45 (LNK/ACT) SFP (LNK/ACT) Port 1 to Port 24 Status Explanation An alert for system failure due to overheating or wrong On (Red) voltage. Monitor The device is in normal condition and running normally. Blinking The power is over (>) 80% watts PoE power budget.
Page 7
The switch is in the master mode of stacking. The switch is in slave mode or provided the highest priority. It serves more than 2 stacking members as the "Secondary Master". 2 to F The switch is in the slave mode of stacking. The switch does not join the stacking members or joins but over the number of members.
Page 8
DC power in for power failover P2282x: +54VDC/7.41A(Vin2) (PoE power) Note The following limitation is suitable for VigorSwitch P2282x Power Output -- IEEE 802.3af Max. 15.4W Output Supported IEEE 802.3at Max. 30W Output Supported PoE Power Budget –- 400 Watts (Max) ...
Page 9
Before starting to configure the switch, you have to connect your devices correctly. Here, we take VigorSwitch P2282x as an example. Use a Cat. 5e twisted-pair cable to connect a PoE device to the port (1~24) of this switch.
Page 10
The switch can be installed easily by using rack mount kit. Fasten the rack mount kit on both sides of the VigorSwitch using specific screws. Fasten the rack mount kit on both sides of the VigorSwitch using specific screws. Here, we take VigorSwitch P2282x as an example.
Page 11
In this section, we take VigorSwitch P2282x as an example. Before using the switch, perform the following steps: 1. Set up a physical path between the configured the switch and a PC by a qualified UTP Cat. 5e cable with RJ-45 connector.
Page 12
This DrayTek product uses software partially or completely licensed under the terms of the GNU GENERAL PUBLIC LICENSE. The author of the software does not provide any warranty. A Limited Warranty is offered on DrayTek products. This Limited Warranty does not cover any software applications or programs.
