Owner's Manual

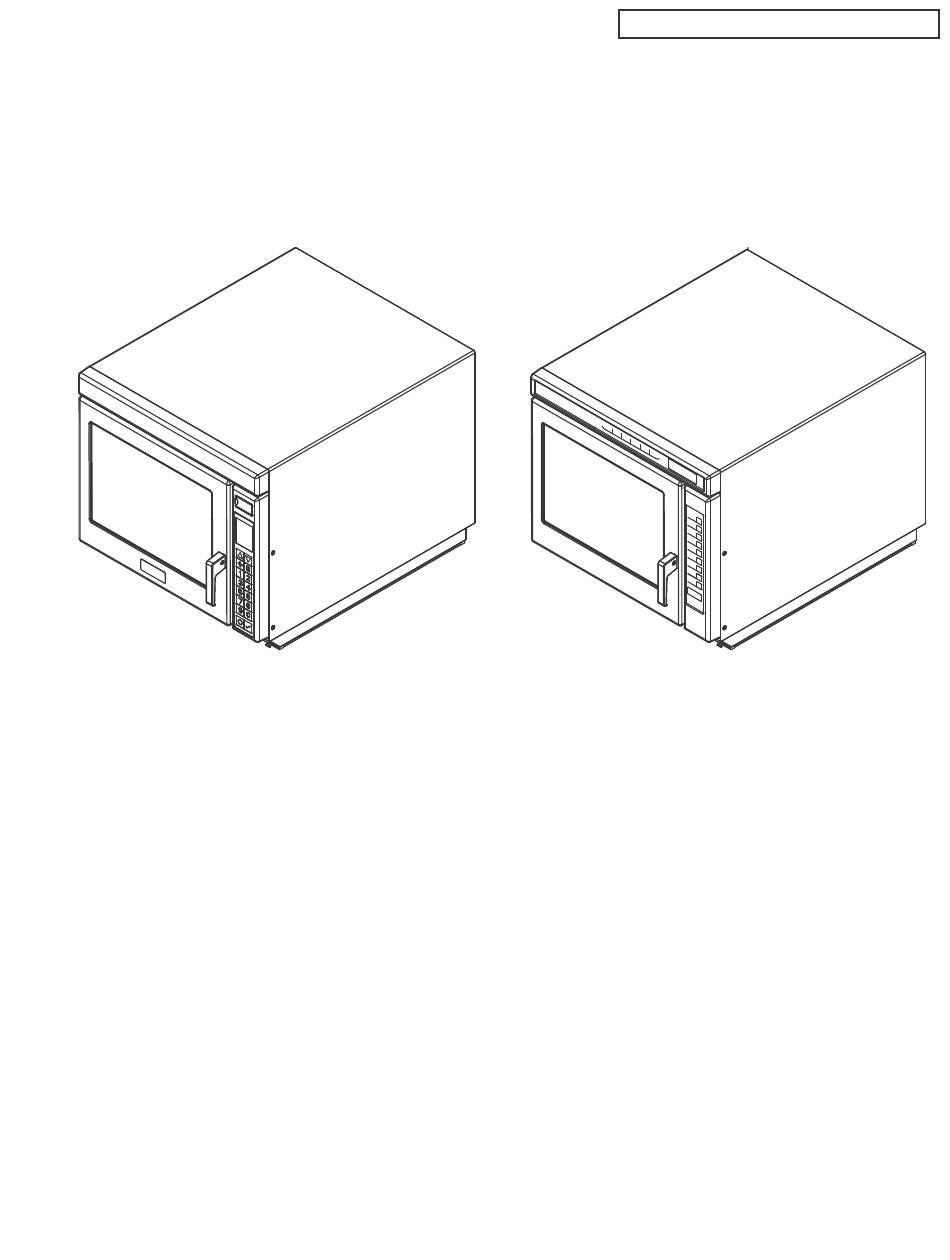

HEAVY DUTY COMMERCIAL MICROWAVE OVEN
STYLE 1
Keep these instructions for future
reference. If the equipment changes
ownership, be sure this manual
accompanies equipment. Please refer to
the SAFETY INSTRUCTIONS for important
safety information prior to using this oven
[1.0 Cubic Foot (28 Liter)]
This document covers RC*and MRC* models
STYLE 2
TABLE OF CONTENTS
Model Identification ..................................................................2
Online Oven Resources ...........................................................2
Important Safety Instructions ..................................................3
Grounding & Installation ..........................................................5
Style 1
Oven & Control Panel Features ................................................6
Cooking & Programming Features ...........................................7
General Oven Operation ..........................................................8
Operating Preset Recipe Keypads ...........................................9
Manual Cook Mode ................................................................10
Edit Recipe Screens ............................................................... 11
Edit Recipe Mode ...................................................................12
Edit Recipe Mode: Folders .....................................................13
USB Flash Drive .....................................................................14
User Options ...........................................................................15
Style 2
Oven & Control Panel Features ..............................................16
Cooking & Programming Features .........................................17
Displays ..................................................................................18
Basic Operation & Cooking ....................................................19
Programming ..........................................................................20
User Options ...........................................................................21
Cooking Instructions ..............................................................22
Care & Cleaning ......................................................................23
Before Calling for Service......................................................24
Advertisement
Table of Contents
Related Manuals for ACP RC Series
Summary of Contents for ACP RC Series
-
Page 1: Table Of Contents
This document covers RC*and MRC* models Owner’s Manual HEAVY DUTY COMMERCIAL MICROWAVE OVEN [1.0 Cubic Foot (28 Liter)] STYLE 1 STYLE 2 TABLE OF CONTENTS Model Identification ..............2 Online Oven Resources ............2 Important Safety Instructions ..........3 Grounding & Installation ............5 Style 1 Oven &... -
Page 2: Model Identification
ACP PROGRAMMING APPLICATION Note: ACP Programming Application is compatible with 'Style 1' models. Download and install the ACP Programming Application to create, edit, and customize menu and settings for your oven, using a desktop computer or tablet. To download the latest and greatest version of the ACP Programming Application please visit acpsolutions.com/oven-programming/... -
Page 3: Important Safety Instructions
2. hinges and latches (broken or loosened) 3. door seals and sealing surfaces. The oven should not be adjusted or repaired by anyone except properly qualified service personnel. SAVE THESE INSTRUCTIONS ©2020 ACP, Inc. Part No. 20072103 Cedar Rapids, IA 52404 Original Instructions... - Page 4 DO NOT use metal utensils in oven. DO NOT use aluminum foil in oven SAVE THESE INSTRUCTIONS ©2020 ACP, Inc. Part No. 20072103 Cedar Rapids, IA 52404 Original Instructions Page 4 of 24...
-
Page 5: Grounding & Installation
Allow at least 1” (2.54 cm) of clearance around sides of oven. (91.5 cm) above floor. Install oven so oven bottom is at least 3 feet STACKING OVENS (1700-2200 watt models only) ©2020 ACP, Inc. Part No. 20072103 Cedar Rapids, IA 52404 Original Instructions Page 5 of 24... -
Page 6: Oven & Control Panel Features
Interrupts operation, and/or exits modes and menus. START/OK KEYPAD Begins cooking in Manual Time Entry Mode. Restarts an interrupted cooking cycle. Used to save settings and entries. ©2020 ACP, Inc. Part No. 20072103 Cedar Rapids, IA 52404 Original Instructions Page 6 of 24... -
Page 7: Cooking & Programming Features
When the message displays, ACP PRESET RECIPE KEYPADS recommends cleaning the air filter thoroughly. Oven can store between 10 to 100 recipes in memory. -
Page 8: General Oven Operation
(6) AM/PM/24 Press UP/DOWN (▲▼) keypads to scroll to correct setting per field. To save and exit: Press START/OK keypad. To discard changes: Press STOP/RESET keypad. ©2020 ACP, Inc. Part No. 20072103 Cedar Rapids, IA 52404 Original Instructions Page 8 of 24... -
Page 9: Operating Preset Recipe Keypads
Enter desired quantity using keypad 1-9. • Display shows the recipe name and counts down cooking time. • Quantity is displayed before the recipe name. (X1, X2, X3, etc.) ©2020 ACP, Inc. Part No. 20072103 Cedar Rapids, IA 52404 Original Instructions... -
Page 10: Manual Cook Mode
Press START/OK keypad to begin cooking. • Oven operates and display counts down cooking time. At the end of the cooking cycle, the oven beeps. Carefully remove food from oven. ©2020 ACP, Inc. Part No. 20072103 Cedar Rapids, IA 52404... -
Page 11: Edit Recipe Screens
Make Folder and Folder Name are only available when User Options>Digit Entry>Folders is enabled and location is in top level (0-9) of Edit Recipe List. See page 13 for details. ©2020 ACP, Inc. Part No. 20072103 Cedar Rapids, IA 52404... -
Page 12: Edit Recipe Mode
The factory default cook factor is 80%. cycle" for the desired menu item. To adjust the cook factor for a recipe: Open the menu file in the ACP See page 14 to export/import menu, Programming Application;... -
Page 13: Edit Recipe Mode: Folders
• DELETE FOLDER screen is displayed. To delete folder: Press START/OK keypad. Press START/OK keypad again to exit EDIT RECIPE NAME screen. To save changes and exit: Press START/OK keypad. ©2020 ACP, Inc. Part No. 20072103 Cedar Rapids, IA 52404 Original Instructions... -
Page 14: Usb Flash Drive
OPEN MENU IN ACP PROGRAMMING APPLICATION keypad for 3 seconds to initiate firmware update. Note: For more details, please see ACP Programming Application User Guide online Insert flash drive into USB port on computer. TROUBLESHOOTING: If firmware fails to load: Press and hold Open ACP Programming Application. -
Page 15: User Options
Prompts the user for portion quantity multiplier (1-9) upon selecting a preset recipe. Allows user to cook individual portions, and/or use X2 Quantity multiplier feature. ** Available on select models only. (Only displayed in User Options menu if factory option is enabled) ©2020 ACP, Inc. Part No. 20072103 Cedar Rapids, IA 52404... -
Page 16: Oven & Control Panel Features
Use to access, create, edit, and save settings for preset cooking programs and user options. (F) DISPLAY LED-backlit LCD. (G) HIDDEN KEYPAD Use to access user options. ©2020 ACP, Inc. Part No. 20072103 Cedar Rapids, IA 52404 Original Instructions Page 16 of 24... -
Page 17: Cooking & Programming Features
Allows operator to heat without changing the preset program keypads MANUAL PROGRAMMING MODE Allows operator to use keypads to edit preset programs and/or create new programs for customized cooking ©2020 ACP, Inc. Part No. 20072103 Cedar Rapids, IA 52404 Original Instructions... -
Page 18: Displays
PROGRAM PAUSED displays until the oven door is opened and closed again. Item-O5 Stage:1 To continue the cooking cycle, press START/OK keypad. O1:23 MW:5O% PREPROGRAMMED ITEM ©2020 ACP, Inc. Part No. 20072103 Cedar Rapids, IA 52404 Original Instructions Page 18 of 24... -
Page 19: Basic Operation & Cooking
Press START/OK keypad to begin cooking. • Oven operates and display counts down cooking time. At the end of the cooking cycle, the oven beeps. Carefully remove food from oven. ©2020 ACP, Inc. Part No. 20072103 Cedar Rapids, IA 52404... -
Page 20: Programming
• Default of CF:80 displays. • Press number keypads to enter desired cook factor ("0"=0%,“1”=10%, “2”=20%,etc.) To save the cooking program: Press PROGRAM SAVE keypad. ©2020 ACP, Inc. Part No. 20072103 Cedar Rapids, IA 52404 Original Instructions Page 20 of 24... -
Page 21: User Options
Oven will display “Clean Filter Message” every ninety (90) days. Quarterly ** Available on select models only. (Only displayed in User Options menu if factory option is enabled) ©2020 ACP, Inc. Part No. 20072103 Cedar Rapids, IA 52404 Original Instructions... -
Page 22: Cooking Instructions
As the mass of food increases, so will the necessary cook time. Refer to and comply with all USDA/FDA Food Code guidelines when cooking or heating food items. ©2020 ACP, Inc. Part No. 20072103 Cedar Rapids, IA 52404 Original Instructions... -
Page 23: Care & Cleaning
DISCHARGE AIR VENTS Check monthly for a buildup of cooking vapors along discharge louvers on back of oven. 11. Clean air vent with damp cloth to ensure proper airflow. Dry thoroughly. ©2020 ACP, Inc. Part No. 20072103 Cedar Rapids, IA 52404... -
Page 24: Before Calling For Service
If the error persists, please call for service. Do not use oven until contacting ComServ or (example) ACP Authorized Servicer. "CALL SERVICE" shows in display Oven may not be operating at full power. Contact ComServ or ACP Authorized Servicer. (flashing after cook cycle). Amana® Commercial RC Menumaster® MRC...
