Summary of Contents for ACP RCS511DSE

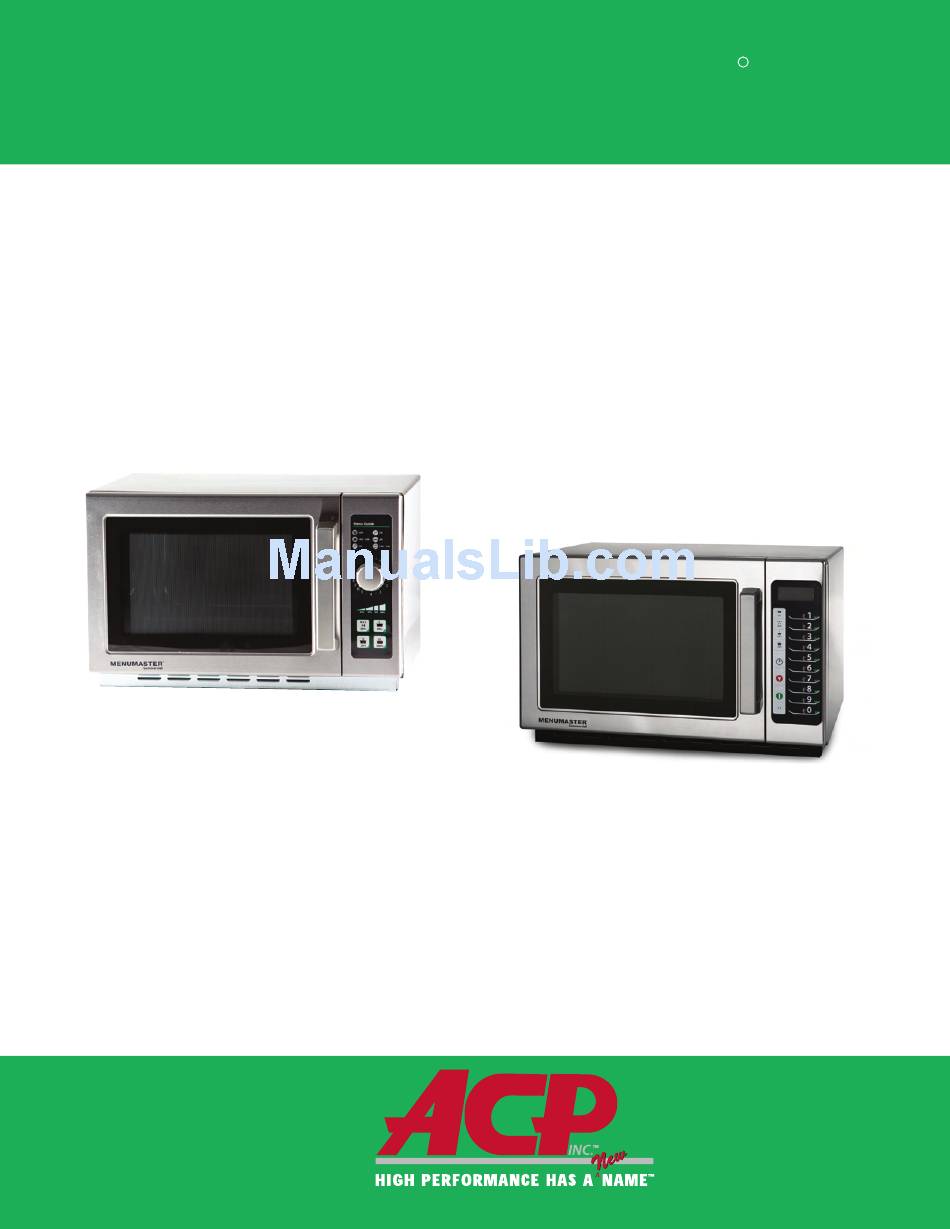

  • Page 1 Service Training Manual RCS Models RCS - 50 Hz September 2012 16400021...
  • Page 2: Table Of Contents

    Table of Contents Important Safety Information..................3-6 Installation........................7 6SHFL¿FDWLRQV Quick Start Reference Guide (Electronic Mechanical Dial)..........9 Quick Start Reference Guide (Electronic Control)............10-11 Components Location....................12-16 Performance Testing Procedures..................17 &RPSRQHQW 7HVWLQJ 3URFHGXUHV  Troubleshooting.......................20-21 Schematic / Wiring Diagrams..................22...
  • Page 3: Important Information

    Important Notices for Servicers and Consumers ACP will not be responsible for personal injury or property damage from improper service procedures. Pride and workmanship go into every product to provide our customers with quality products. It is possible, however, that during its lifetime a product may require service.
  • Page 4: Important Safety Information

    Do not operate on a two-wire extension cord. at any time; nor will it be condoned by ACP. 9. IMPORTANT: Before returning a unit to a 2. Before servicing the unit (if unit is operable) perform customer, be sure to check for proper switch the microwave leakage test.
  • Page 5: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death. WARNING When using electrical equipment, basic safety precautions should be followed to reduce the risk of burns, HOHFWULFDO VKRFN ¿UH RU LQMXU\ WR SHUVRQV LQFOXGLQJ WKH IROORZLQJ 1.
  • Page 6 IMPORTANT SAFETY INSTRUCTIONS WARNING WARNING 7R DYRLG ULVN RI ¿UH LQ WKH RYHQ FDYLW\ Liquids such as water, coffee, or tea are able to be overheated beyond the boiling point without a. DO NOT overcook food. Carefully attend oven appearing to be boiling due to surface tension of the when paper, plastic, or other combustible liquid.
  • Page 7: Installation

    Installation WARNING Unpacking Oven ‡ ,QVSHFW RYHQ IRU GDPDJH VXFK DV GHQWV LQ GRRU RU Excessive Weight Hazard dents inside oven cavity. Use two or more people to move and install oven. ‡ 5HSRUW DQ\ GHQWV RU EUHDNDJH WR VRXUFH RI SXUFKDVH immediately.
  • Page 8: 6Shfl¿Fdwlrqv

    6SHFL¿FDWLRQV Models RCS511DSE, RCS511TS Power Source Voltage AC 230V Amperage 15 A Frequency 50 Hz Single Phase, 3 wire grounded 3OXJ &RQ¿JXUDWLRQ  &RUG CEE 7/7 Schuko Power Output Nominal microwave energy 1000 W (IEC705) Minimum temperature rise 5°C / 10°F...
  • Page 9: Quick Start Reference Guide (Electronic Mechanical Dial)

    Quick Start Reference Guide (Electronic / Mechanical Dial) Oven Wall Clearances A—For North American (UL/CSA) models, allow at least 2” (5.1 cm) of clearance around top Menu Guide of oven. For International (50 Hz) models, allow at least 12” (30 cm) of clearance 2:00 oven cools electrical components.
  • Page 10: Quick Start Reference Guide (Electronic Control)

    Quick Start Reference Guide (Electronic Control) Oven Wall Clearances A—For North American (UL/CSA) models, allow at least 2” (5.1 cm) of clearance around top of oven. For International (50 Hz) models, allow at least 12” (30 cm) of clearance around top of oven. Proper air ÀRZ DURXQG RYHQ FRROV HOHFWULFDO FRPSRQHQWV :LWK UHVWULFWHG DLU ÀRZ RYHQ PD\ QRW RSHUDWH SURSHUO\ DQG life of electrical parts is reduced.
  • Page 11 Quick Start Reference Guide (Electronic Control) Can I change an option? Options such as single or double pad programming, beep volume, and maximum cooking time can be changed to suit individual preferences. To change options: 1. Open oven door. ‡ ,I GRRU LV FORVHG RU 67235(6(7 pad is pressed before programming is DO NOT power spray complete, changes are discarded and microwave exits programming mode.
  • Page 12: Components Location

    Components Location (Oven Cavity) Reference Part Number Description Quantity 12002625 KIT, COVER / STIRRER BLADE/ RIVETS 1 54127062 SCREW 54127037 THERMAL CUTOUT, CAVITY 54127062 SCREW 54126033 MOTOR, ANTENNA B5667304 CLIP -WIRE 56002014 MAGNETRON 54127038 THERMAL CUTOUT, MAG 54116025 SCREW 54127064 SCREW 54127061 SCREW...
  • Page 13 Components Location (Blower / Interlock) Reference Part Number Description Quantity 54116017 SCREW 54127039 DUCT, MAG 56002007 LAMP / SOCKET ASSY 54116017 SCREW 54116017 SCREW 54127052 INTERLOCK SWITCH ASSY 54116017 SCREW 54127050 POWER CORD 54116017 SCREW 54127040 BRKT, INLET AIR 54127036 FUSE BLOCK / FILTER ASSY 20034001 FUSE...
  • Page 14 Components Location (Dial Control) Reference Part Number Description Quantity 54127053 KNOB 54127004 ESC / TOUCH PANEL ASSY 54127054 BOARD, LED 54127067 SCREW 54127034 BOARD, HV / LV 54127067 SCREW 54127032 HARNESS, PCB...
  • Page 15 Components Location (Electronic Control) Reference Part Number Description Quantity 54127005 ESC / TOUCH PANEL ASSY 54127035 BOARD, HV / LV 54127067 SCREW...
  • Page 16 Components Location (Door) Reference Part Number Description Quantity 54127026 DOOR ASSY 14124068 KIT, SPRING/LATCH/CHOKE COVER 14124069 KIT, DOOR HANDLE 54127027 WINDOW, INNER 54127028 HINGE, UPPER 54127061 SCREW 54127064 SCREW 54127063 SCREW...
  • Page 17: Performance Testing Procedures

    Performance Testing Procedures WARNING To avoid risk of electrical shock, personal injury or death, disconnect power to oven and discharge capacitor before servicing, unless testing requires it. All Amana and Menumaster microwave oven power outputs are rated using the IEC705 standards. Using the IEC705 test method requires precision measurements and equipment that is not practical to be performed in the field.
  • Page 18: Component Testing Procedures

    Component Testing Procedures Component Testing Procedures WARNING To avoid risk of electrical shock, personal injury or death; disconnect power to oven and discharge capacitor before servicing, unless testing requires power. l l I s t l Thermal cutout Disconnect all wires from TCO. Measure resistance across terminals.
  • Page 19 Component Testing Procedures WARNING To avoid risk of electrical shock, personal injury or death; disconnect power to oven and discharge capacitor before servicing, unless testing requires power. l l I s t l Fuse block / Filter Power In terminals ............230 VAC assembly Power Out terminals ............
  • Page 20: Troubleshooting

    Troubleshooting Service Diagnostics Control does not power up...
  • Page 21 Troubleshooting Service Diagnostics < ,s >s...
  • Page 22: Schematic / Wiring Diagrams

    Schematic / Wiring Diagram RCS511*...
  • Page 23 Notes:...
  • Page 24 ¤ 2012 ACP Inc. Part No. 16400021 www.acpsolutions.com Cedar Rapids, Iowa 52404 Printed in U.S.A. 09/12...
