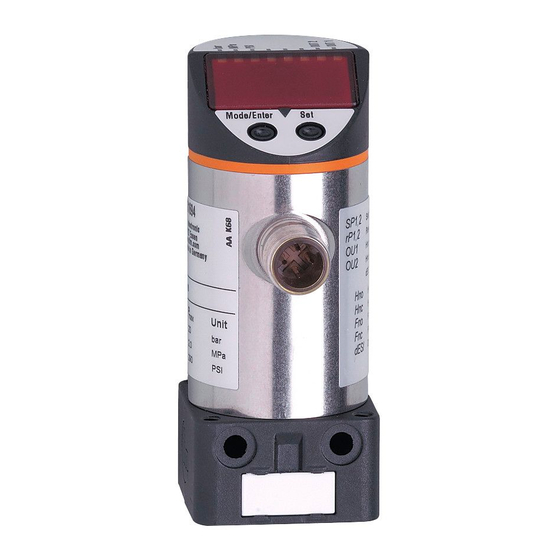

IFM PN78 Series Operating Instructions Manual

IFM PN78 Series Operating Instructions Manual

Pressure sensor

Advertisement

Quick Links

Operating instructions
Pressure sensor
UK
PN78xx
PY7809

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PN78 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for IFM PN78 Series

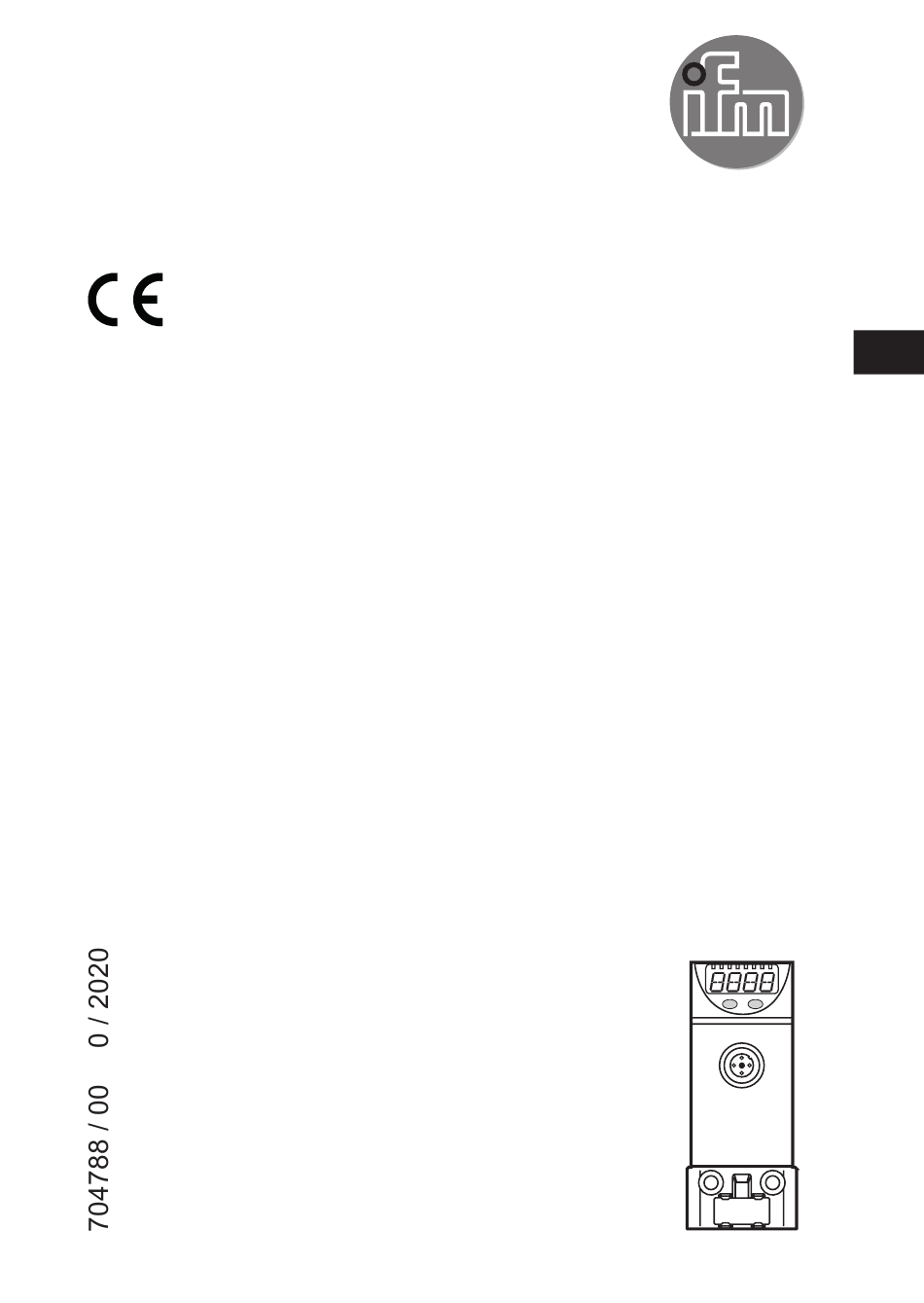

  • Page 1 Operating instructions Pressure sensor PN78xx PY7809...
  • Page 2: Table Of Contents

    Contents 1 Preliminary note ���������������������������������������������������������������������������������������������������3 1�1 Symbols used ������������������������������������������������������������������������������������������������3 2 Safety instructions �����������������������������������������������������������������������������������������������4 3 Functions and features ����������������������������������������������������������������������������������������5 4 Function ���������������������������������������������������������������������������������������������������������������6 4�1 Processing of the measured signals ��������������������������������������������������������������6 4�2 Switching function ������������������������������������������������������������������������������������������6 4�3 Diagnostic function ����������������������������������������������������������������������������������������7 4�4 Differential pressure measurement ����������������������������������������������������������������7 5 Mounting ��������������������������������������������������������������������������������������������������������������8 5�1 Mounting accessories ������������������������������������������������������������������������������������8 5�2 Pressure connections for differential pressure...
  • Page 3: Preliminary Note

    9�3�3 Setting of the damping for the switching outputs ��������������������������������20 9�3�4 Configuration of the display ����������������������������������������������������������������20 9�3�5 Zero point calibration ��������������������������������������������������������������������������21 9�4 Service functions �����������������������������������������������������������������������������������������22 9�4�1 Reading of the min/max values for system pressure ��������������������������22 9�4�2 Reset of all parameters to factory setting �������������������������������������������22 10 Operation ���������������������������������������������������������������������������������������������������������22 10�1 Reading of the set parameters ������������������������������������������������������������������22 10�2 Fault indication ������������������������������������������������������������������������������������������22...
  • Page 4: Safety Instructions

    2 Safety instructions • The device described is a subcomponent for integration into a system� - The manufacturer is responsible for the safety of the system� - The system manufacturer undertakes to perform a risk assessment and to create documentation in accordance with legal and normative requirements to be provided to the operator and user of the system�...
  • Page 5: Functions And Features

    Even if the bursting pressure is exceeded only for a short time, the unit may be destroyed� NOTE: Risk of injury! If pressures might occur which are higher than the permissible overpressure, you should use other units of the PN70xx series� If you have any questions, please contact ifm electronic's sales specialists�...
  • Page 6: Function

    4 Function 4.1 Processing of the measured signals • The unit displays the current system pressure� • It generates 2 output signals according to the parameter setting� OUT1 • Switching signal for system pressure limit value� 2 options OUT2 • Switching signal for system pressure limit value� •...
  • Page 7: 4�3 Diagnostic Function

    4.3 Diagnostic function Output 2 is used as diagnostic output based on the DESINA specification if [OU2] = [dESI]� • If there is no fault, the output is switched and carries UB+ (if P-n = PnP) or UB- (if P-n = nPn)� •...
  • Page 8: Mounting

    5 Mounting Before installing and removing the unit: make sure that no pressure is applied to the system� ► Screw the pressure connection or adapter G⅛ to the main pressure connection (1) and tighten� Maximum tightening torque: 8 Nm� Further possibilities: → the following sections. 5.1 Mounting accessories The following components are available as accessories: Order no�...
  • Page 9: 5�3 Din Rail Mounting

    5.3 DIN rail mounting DIN rail TH 35-7�5 to EN 60715 ► Fix the mounting clip (1) with the screws M4 x 40 (2) to the flange� Maximum tightening torque: 2�5 Nm� ► Hook the unit into the DIN rail and clip it into place� Removal: ►...
  • Page 10: 5�5 Mounting On A Pressure-Carrying Rear Panel

    5.5 Mounting on a pressure-carrying rear panel 1: main pressure connection 2: gland for pressure connection 2 mm 3: adapter plug (not included) 4: O-ring (not included) 5: fixing screws (not included) ► Cover the main pressure connection with an adapter plug G⅛ . Maximum tightening torque: 8 Nm�...
  • Page 11: 5�6 Floor Mounting

    5.6 Floor mounting 4 x M3 4 x M4 28,5 1: main pressure connection 2: fixing holes (4 threaded holes M3 or 4 bore holes with 4�5 mm diameter for fixing screws 3: bore hole for G⅛ adapter 4: bore hole for ventilation connection 5: fixing screws M3 (not included) 6: fixing screws M4 (not included) ►...
  • Page 12: 5�7 Mounting On A Maintenance Unit

    5.7 Mounting on a maintenance unit The unit can be integrated in maintenance units by means of an adapter R⅛ to R⅛ (order no. E37350) or by means of the T pipe mounting set (order no. E37360)� When using the indicated accessories the pressure sensor can be aligned�...
  • Page 13: Electrical Connection

    • binary switching output if [OU2] = [Hno], [Hnc], [Fno] or [Fnc] Pin 2 (OUT2) • diagnostic output if [OU2] = [dESI] Core colours of ifm sockets: 1 = BN (brown), 2 = WH (white), 3 = BU (blue), 4 = BK (black)
  • Page 14: Operating And Display Elements

    7 Operating and display elements 3 4 5 6 Mode/Enter 1 to 8: Indicator LEDs - LED 1 to LED 3 = system pressure in the unit of measurement which is indicated on the label� - LEDs 4 to 6: not used, - LED 7, LED 8 = switching state of the corresponding output�...
  • Page 15: Menu

    8 Menu 8.1 Menu structure...
  • Page 16: 8�2 Explanation Of The Menu

    8.2 Explanation of the menu SP1/rP1 Upper / lower limit value for system pressure at which OUT1 switches� SP2/rP2 Upper / lower limit value for system pressure at which OUT2 switches� Output function for OUT1: • Switching signal for the pressure limit values: hysteresis function [H ��] or window function [F ��], either normally open [�...
  • Page 17: Parameter Setting

    9 Parameter setting During parameter setting the unit remains in the operating mode� It continues its monitoring function with the existing parameters until the parameter setting has been completed� 9.1 General parameter setting 3 steps must be taken for each parameter setting: Parameter selection ►...
  • Page 18 Mode/Enter Set ► Press [Set] and keep it pressed until the valid code no� is displayed� ► Press [Mode/Enter] briefly� On delivery by ifm electronic: no access restriction� ► Press [Set] briefly� > The first parameter of the sub-menu Mode/Enter Set is displayed (here: [Uni])�...
  • Page 19: 9�2 Setting Of The Output Signals

    9.2 Setting of the output signals 9.2.1 Setting of the unit of measurement for system pressure ► Select [Uni] and set the unit of measurement: [bAr], [mbar], [MPa], [kPa], [PSI]� 9.2.2 Setting of the output function ► Select [OU1] and set the function: - [Hno] = hysteresis function / normally open - [Hnc] = hysteresis function / normally closed, - [Fno] = window function / normally open,...
  • Page 20: 9�3�2 Setting Of The Output Logic For The Switching Outputs

    9.3.2 Setting of the output logic for the switching outputs ► Select [P-n] and set [PnP] or [nPn]� 9.3.3 Setting of the damping for the switching outputs ► Select [dAP] and set a value� dAP value = response time between pressure change and change of the switching status in milliseconds�...
  • Page 21: 9�3�5 Zero Point Calibration

    9.3.5 Zero point calibration Setting of an offset value for accuracy optimisation for differential pressure measurement� ► Select [COF] and set a value between -10 % and 10 % of the measuring span� The internal measured value "0" is shifted by this value� ►...
  • Page 22: 9�4 Service Functions

    9.4 Service functions 9.4.1 Reading of the min/max values for system pressure ► Select [HI] or [LO], briefly press [Set]� [HI] = maximum value, [LO] = minimum value� Delete memory: ► Select [HI] or [LO]� ► Press [Set] and keep it pressed until [----] is displayed� ►...
  • Page 23 10.3 Setting ranges SP1 / SP2 rP1 / rP2 ΔP -0�90 10�00 -0�95 9�95 0�05 -0�090 1�000 -0�095 0�995 0�005 mbar -975 1000 -980 -14�1 14�5 -14�2 14�4 0�1 -97�5 100�0 -98�0 99�5 0�5 ΔP = step increment...
  • Page 24: Factory Setting

    11 Factory setting Factory setting User setting 25% VMR * 23% VMR * 75% VMR * 73% VMR * * = the indicated percentage of the final value of the measuring range (VMR) of the corresponding sensor in bar is set...
  • Page 25 More information at www�ifm�com...
