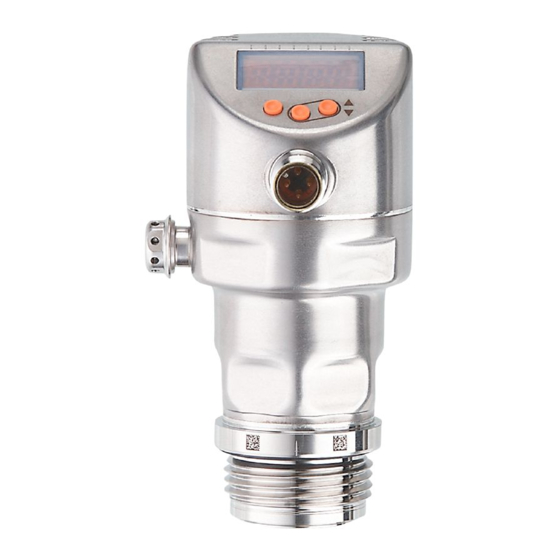

IFM PI17 Series Operating Instructions Manual

Electronic pressure sensor
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Operating instructions
GB
Electronic pressure sensor
PI17xx

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PI17 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for IFM PI17 Series

Summary of Contents for IFM PI17 Series

  • Page 1 Operating instructions Electronic pressure sensor PI17xx...

  • Page 2: Table Of Contents

    PI17xx Electronic pressure sensor Contents Preliminary note ............. Symbols used .
  • Page 3 Electronic pressure sensor PI17xx Simulation function ............28 9.6.1 Open menu level 3 (simulation).

  • Page 4: Preliminary Note

    PI17xx Electronic pressure sensor 1 Preliminary note You will find instructions, technical data, approvals and further information using the QR code on the unit / packaging or at www.ifm.com. 1.1 Symbols used Requirement Instructions Reaction, result [...] Designation of keys, buttons or indications...

  • Page 5: Safety Instructions

    Electronic pressure sensor PI17xx 2 Safety instructions • The unit described is a subcomponent for integration into a system. – The system architect is responsible for the safety of the system. – The system architect undertakes to perform a risk assessment and to create documentation in accordance with legal and normative requirements to be provided to the operator and user of the system.

  • Page 6: Intended Use

    PI17xx Electronic pressure sensor 3 Intended use The device measures and monitors the system pressure or the hydrostatic level and the temperature in systems. 3.1 Application area Type of pressure: relative pressure Information on pressure rating and bursting pressure Ò Data sheet Avoid static and dynamic overpressure exceeding the indicated pressure rating by taking appropriate measures.

  • Page 7: Function

    Detection of connected units. • Freely definable parameters to identify the units in the plant. Information and documentation on the IO-Link interface at: www.io-link.ifm 4.2 IO-Link properties of the sensor 4.2.1 Description IO-Link interface A description of the IO-Link interface can be found at...

  • Page 8: Internal Unit Temperature

    PI17xx Electronic pressure sensor The sensor provides the internal unit temperature as a readable parameter for diagnostic purposes. 4.2.2 Internal unit temperature The internal temperature of the sensor can be read via the IO-Link channel. Measuring range: -25...155°C (-13...311°F), resolution 1°C (1.8°F), precision +/- 5°C (9°F). Information on measuring range and accuracy Ò...

  • Page 9: Defined State In Case Of A Fault

    Electronic pressure sensor PI17xx 4.3 Defined state in case of a fault If a fault is detected, the analogue output passes into a defined state ( = 21.5 mA). In case of a fault indication ( = 21.5 mA) u Read parameters via IO-Link or contact the manufacturer. 4.4 Operating modes The operating mode is defined by the wiring (Ò...

  • Page 10: Analogue Output

    PI17xx Electronic pressure sensor System pressure HY = Hysteresis FE = Window 4.6 Analogue output The device provides an analogue signal proportional to the pressure. Within the measuring range the analogue signal is between 4...20 mA. The measuring range is scalable: •...
  • Page 11 Electronic pressure sensor PI17xx u Carry out calibration factor [CGA] in the range -5%..+5% of final value of the measuring range (VMR). The previous zero point calibration remains. Example: Change zero point [coF] Output signal Pressure 105 % MEW MEW: Final value of the measuring range 100 % MEW Curve of measured values at factory setting Changed curve of measured values...

  • Page 12: Installation Aseptoflex-Vario

    Note dangers related to machine / medium temperatures. Information about available adapters at: www.ifm.com u Observe the instructions of the adapter. u Use a lubricating paste which is suitable and approved for the application.

  • Page 13: Use In Hygienic Areas According To 3-A

    Electronic pressure sensor PI17xx u The sealing area on the flange/socket must be flush with the tapped hole and have a surface characteristic of at least Rz = 6.3 (observe DIN EN ISO 1179-1). 5.1 Use in hygienic areas according to 3-A The following applies to units with 3-A certification: u Only use adapters with A-3 certification for the process connection.

  • Page 14: Ventilation Diaphragm

    PI17xx Electronic pressure sensor 5.3 Ventilation diaphragm 5.3.1 Function ventilation diaphragm The ventilation diaphragm enables the relative pressure measurement since barometric and temperature-dependent pressure fluctuations between the measuring cell and the environment are compensated for. The ventilation diaphragm is protected against damage by a screwed filter cover with circumferential ports.
  • Page 15 Electronic pressure sensor PI17xx u Avoid soiling and moisture during the exchange. u Clean the thread carefully and without residues. u Do not damage the adhesive surface for the diaphragm on the sensor. u Observe the orientation of the filter cover (Ò Installation instructions E30139 / E30467). When using the closed filter cover, there is no more pressure compensation of the measuring cell.

  • Page 16: Electrical Connection

    PI17xx Electronic pressure sensor 6 Electrical connection The unit must be connected by a qualified electrician. The national and international regulations for the installation of electrical equipment must be adhered to. The circuit of the unit is isolated from touchable parts by functional insulation. Supply voltage SELV, PELV according to the technical data sheet.

  • Page 17: Operating And Display Elements

    Electronic pressure sensor PI17xx 7 Operating and display elements 1 to 8: Indicator LEDs LED 1 - 6 Unit of measurement of the process value pressure (assignment is device-specific). LED 7 Switching status OUT2 (on if output 2 is switched). LED 8 Switching status OUT1 (on if output 1 is switched).

  • Page 18: Menu

    PI17xx Electronic pressure sensor 8 Menu 8.1 Menu structure: Main menu 9.05 1000 1000 1000 1000 ASP2 AEP2 1000 ..tcoF tASP ..tAEP 1: Change to menu level 2 (extended functions). Menu items highlighted in grey are active depending on the configuration of the output. 8.2 Explanation of the main menu SPx / rPx* Hysteresis function: upper / lower limit value for system pressure at which OUTx switches.

  • Page 19: Menu Structure: Level 2 (Extended Functions)

    Electronic pressure sensor PI17xx 8.3 Menu structure: Level 2 (extended functions) APPL Hi.P 0.00 Lo.P FOU1 FOU2 0.06 0.03 0.00 uni.P 1: Change to the main menu, 2: Change to menu level 3 (simulation). Menu items highlighted in grey are not active in 2-wire operation. 8.4 Explanation of menu level 2 Restore the factory settings.

  • Page 20: Menu Structure: Level 3 (Simulation)

    PI17xx Electronic pressure sensor Adjustment of final value of the measuring range between: -5%...+5% of VMR. Update rate and orientation of the display Open the submenu SIM (simulation) * menu items not active in 2-wire operation ** Time constant tau 8.5 Menu structure: level 3 (simulation) ---- S.PRS...

  • Page 21: Parameter Setting

    Electronic pressure sensor PI17xx 9 Parameter setting During parameter setting the unit remains in the operating mode. It continues its monitoring functions with the existing parameters until the parameter setting has been completed. 9.1 Parameter setting in general 3 steps must be taken for each parameter setting: 1: Select Parameter u Press [Enter] to get to the menu.
  • Page 22 PI17xx Electronic pressure sensor u Briefly press [Enter]. w The parameter is displayed again. The new setting value is saved. Setting of other parameters: u Press [▲] or [▼] until the required parameter is displayed. Finishing the parameter setting: u Press [▲] or [▼] several times until the current measured value is displayed or wait for 30 s. w The sensor returns to the process value display.
  • Page 23 Electronic pressure sensor PI17xx u Press [Enter]. w The first parameter of the submenu is displayed (here: [rES]). w Continue with [▼]. Lock / unlock The unit can be locked electronically to prevent unintentional settings. Locking: 10 s u Make sure that the unit is in normal operating mode. u Press [▲] + [▼] simultaneously for 10 s.

  • Page 24: Configure Display (Optional)

    PI17xx Electronic pressure sensor Exit parameter without applying the settings: u Press [▲] + [▼] simultaneously. w Return to the menu level. To exit the menu level: u Press [▲] + [▼] simultaneously. w Menu level 2 changes to level 1 level 1 changes to the display.

  • Page 25: Set Output Signals

    Electronic pressure sensor PI17xx u Select [diS] and set the update rate and orientation of the display: [diS] • [d1]: update of the measured values every 50 ms. • [d2]: update of the measured values every 200 ms. • [d3]: update of the measured values every 600 ms. •...

  • Page 26: User Settings (Optional)

    PI17xx Electronic pressure sensor u Approach the desired maximum system pressure in the installation and keep it constant. [tAEP] u Select [tAEP] with [Enter]. u Press [▲] or [▼] until [----] is displayed. u Confirm [----] with [Enter]. w The current system pressure is defined as end value for the analogue signal. ASP / AEP can only be set within defined limits (Ò...

  • Page 27: Set Damping For The Switching Signal

    Electronic pressure sensor PI17xx 9.4.5 Set damping for the switching signal u Select [dAP] and set a value between 0.00...99.99 s; (at 0.00 [dAP] is not active). [dAP] dAP value = response time between pressure change and change of the switching status in seconds. [dAP] influences the switching frequency: f = 1 ÷...

  • Page 28: Simulation Function

    PI17xx Electronic pressure sensor After the reset, the sensor suspends communication and measurement operation until the voltage is interrupted. The IO-Link data storage is not triggered. 9.6 Simulation function 9.6.1 Open menu level 3 (simulation) u Select the parameter [SIM] in menu level 2 (extended functions) with [▲] or [▼]. [SIM] u Press [Enter] (= open menu level 3).

  • Page 29: Read Overload Processes

    Electronic pressure sensor PI17xx 9.7.4 Read overload processes • HIPC: Number of overload processes. [HIPC] HIPC counts how often the limit HIPS has been exceeded. [HIPS] The limit must be exceeded for at least 0.5 ms. • HIPS: Setting of the threshold for the overload counter. The parameters HIPC and HIPS are only available via IO-Link communication.

  • Page 30: Operation

    PI17xx Electronic pressure sensor 10 Operation After power-on and expiry of the power-on delay time of approx. 0.5 s the unit is in the RUN mode (= normal operating mode). It carries out its measurement and evaluation functions and generates output signals according to the set parameters.

  • Page 31: Troubleshooting

    Electronic pressure sensor PI17xx 11 Troubleshooting 11.1 Troubleshooting The unit has many self-diagnostic options. • It monitors itself automatically during operation. • It indicates warnings and faults via IO-Link and via display (even if the display is deactivated). • If a fault is found, the outputs are set according to the setting of the parameters FOU1 and FOU2. Display Warning Error...

  • Page 32: Disposal, Repair And Return

    PI17xx Electronic pressure sensor 12 Disposal, repair and return u After use dispose of the unit in an environmentally friendly way in accordance with the applicable national regulations. u In case of return shipment, ensure that the unit is free from soiling, especially from dangerous and toxic substances.

  • Page 33: Factory Setting

    Electronic pressure sensor PI17xx 13 Factory setting Factory setting User settings 25% VMR * 23% VMR * 75% VMR * 73% VMR * coF / tcoF ASP / tASP 0% VMR * PI1x09: -1 bar AEP / tAEP 100% VMR * bAr / mbAr FOU1 FOU2...
