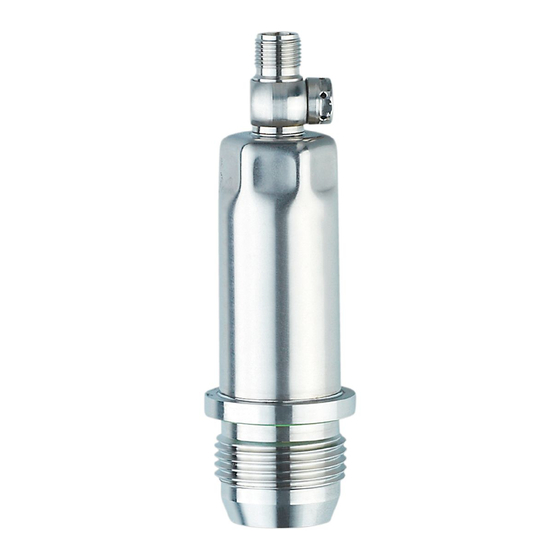

IFM PM16 Series Operating Instructions Manual

IFM PM16 Series Operating Instructions Manual

Electronic pressure sensor

Advertisement

Quick Links

Operating instructions
Electronic pressure sensor
UK
PM16xx
PM17xx

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PM16 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for IFM PM16 Series

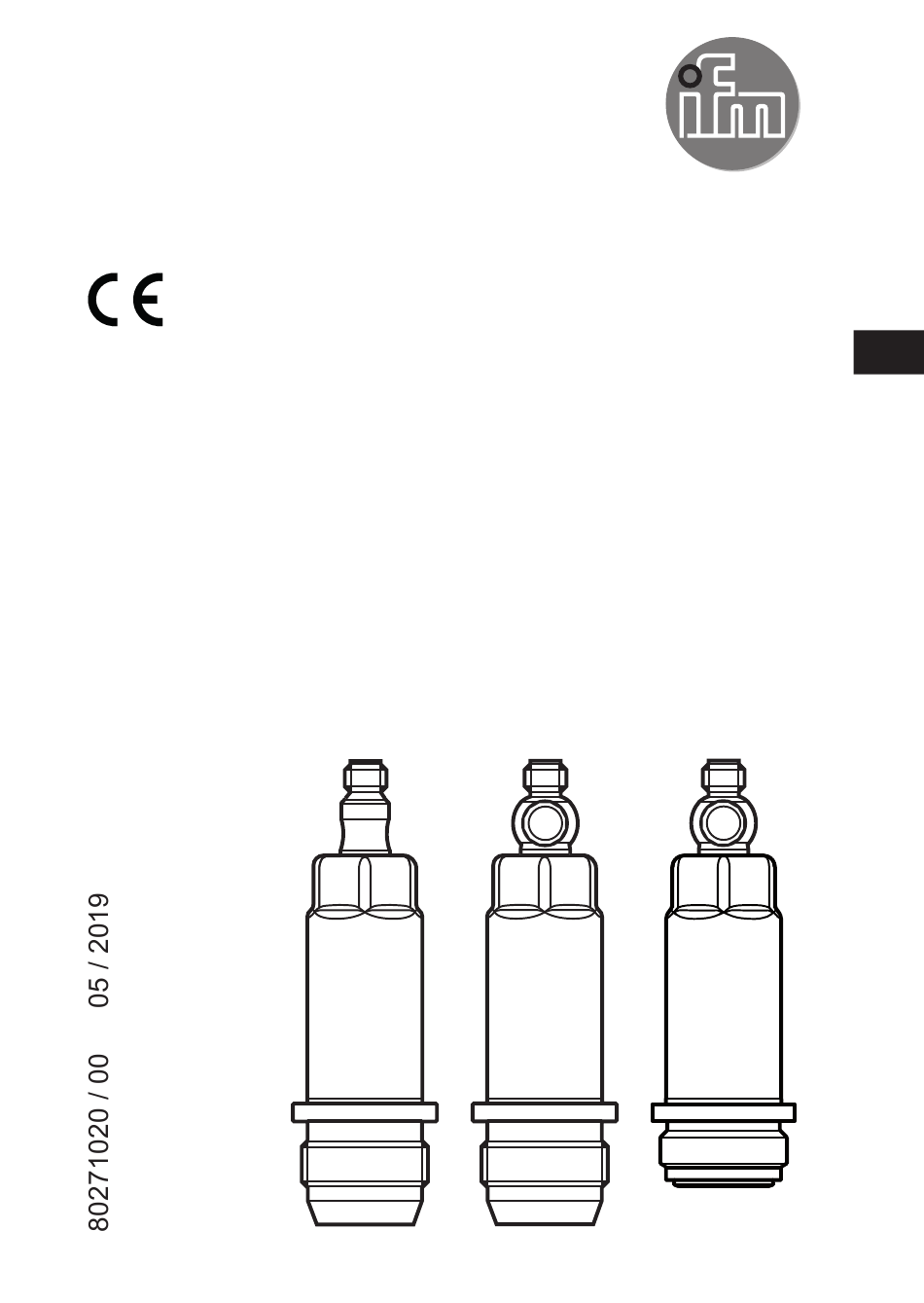

  • Page 1 Operating instructions Electronic pressure sensor PM16xx PM17xx...
  • Page 2: Table Of Contents

    Contents 1 Preliminary note ���������������������������������������������������������������������������������������������������3 1�1 Symbols used ������������������������������������������������������������������������������������������������3 2 Safety instructions �����������������������������������������������������������������������������������������������4 3 Functions and features ����������������������������������������������������������������������������������������4 3�1 Detection zone �����������������������������������������������������������������������������������������������5 4 Function ���������������������������������������������������������������������������������������������������������������6 4�1 IO-Link �����������������������������������������������������������������������������������������������������������7 4�1�1 General information ������������������������������������������������������������������������������7 4�1�2 Functions only available via IO-Link communication ����������������������������7 4�1�3 Set-up via IO-Link ���������������������������������������������������������������������������������7 4�1�4 Process data via IO-Link ����������������������������������������������������������������������7 4�2 Defined state in case of a fault ����������������������������������������������������������������������8...
  • Page 3: Preliminary Note

    7�4�1 Set damping for the analogue output �������������������������������������������������21 7�4�2 Set damping for the switching signal ��������������������������������������������������21 7�4�3 Zero-point calibration ��������������������������������������������������������������������������21 7�4�4 List of the parameters �������������������������������������������������������������������������22 7�5 Diagnostic functions ������������������������������������������������������������������������������������22 7�5�1 Read min/max values for the system pressure ����������������������������������22 8 Operation �����������������������������������������������������������������������������������������������������������23 9 Error correction ��������������������������������������������������������������������������������������������������23 10 Technical data and scale drawing ��������������������������������������������������������������������24 11 Maintenance, repair, disposal ��������������������������������������������������������������������������24...
  • Page 4: Safety Instructions

    2 Safety instructions • The device described is a subcomponent for integration into a system� - The manufacturer is responsible for the safety of the system� - The system manufacturer undertakes to perform a risk assessment and to create a documentation in accordance with legal and normative requirements to be provided to the operator and user of the system�...
  • Page 5: 3�1 Detection Zone

    3.1 Detection zone Type of pressure: relative pressure Order Pressure rating Bursting Measuring range number (max. permissible pressure) * pressure Pressure sensors with G1 Aseptoflex Vario are certified in accordance with the hygienic regulations 3-A and EHEDG PM1703 -1���25 -14�6…362�6 1450 5075 PM1714...
  • Page 6: Function

    Order Pressure rating Bursting Measuring range number (max. permissible pressure) * pressure PM1609 -1000���1000 -14�5���14�5 10000 PM1607 -50���1000 -0�73���14�5 10000 PM1608 -12�5���250 -0�182���3�626 6000 PM1689 -5���100 -0�073���1�450 4000 With static overload pressure� MPa = (measured value in bar) ÷ 10 kPa = (measured value in bar) x 100 Not suitable for systems that have to meet the criteria of E1�2 / 63-03 of the 3-A standard 63-03�...
  • Page 7: 4�1 Io-Link

    IO-Link hardware and software can be found at www�ifm�com� 4.1.2 Functions only available via IO-Link communication • Device temperature: The internal temperature of the sensor can be read via the A-cyclic IO-Link channel�...
  • Page 8: 4�2 Defined State In Case Of A Fault

    4.2 Defined state in case of a fault • If a fault is detected, the analogue output passes into a defined state (= 21�5 mA)� In case of a fault indication (= 21�5 mA): ► Read parameters via IO-Link or contact the manufacturer 4.3 Operating modes The operating mode is defined by the wiring (→...
  • Page 9 [mA] 21,5 20,5 [% MEW] -1,25 100 103,13 Fig� 1: Output characteristics of the analogue output to Namur Analogue signal Measured value Measuring range Scaled measuring range Signalling fault 21�5 mA (→ 9 Error correction) Pressure MAW: Initial value of the measuring range for non-scaled measuring range MEW: Final value of the measuring range with non-scaled measuring range ASP: Analogue start point with scaled measuring range AEP Analogue end point with scaled measuring range...
  • Page 10: Installation

    5 Installation ► Before installing and removing the unit make sure that no pressure is applied to the system and there is no medium in the pipe� ► Note dangers related to extreme machine / medium temperatures� ► In case of a recessed sensor installation, please use an open ring spanner or a hexagon socket with the corresponding inside contour�...
  • Page 11: 5�1 G1A Aseptoflex Vario Adaptation (Pm17Xx)

    ► Insert the unit with process adapter into the process connection and tighten using a spanner� Information about available adapters at www�ifm�com� ► Observe the instructions of the adapter� ► Use a lubricating paste which is suitable and approved for the application�...
  • Page 12: 5�2 Use In Hygienic Areas

    Installation using a process adapter with metal-to-metal seal Order no� E337xx / E338xx A long-term stable and maintenance-free fitting without bug traps in the metal-to-metal seal is only valid for once-only mounting� ► If the sealing has to be installed several times, use a new adapter� Installation to G 1 flange / G 1 bush The sensor is sealed with the sealing ring at the back of the process connection�...
  • Page 13: 5�3 Use In Hygienic Areas To Ehedg

    5.3 Use in hygienic areas to EHEDG The sensor is suited for CIP (cleaning in process) when installed correctly� ► Observe the application limits (temperature and material resistance) according to the data sheet� ► Make sure that the sensor is integrated into the system according to EHEDG: ►...
  • Page 14: 5�4 G1A Sealing Cone Connection (Pm16Xx)

    5.4 G1A sealing cone connection (PM16xx) Information about available adapters at www�ifm�com� ► Observe the instructions of the adapter� A guarantee for a long-term stable and maintenance-free fitting, with no bug traps in the sealing of the metal seal is only valid for once-only mounting�...
  • Page 15: 5�5 Protective Cover

    Installation using an adapter G 1 to G ½ Order no� E30116 Information about available adapters at www�ifm�com� ► Observe the instructions of the adapter� ► Use a lubricating paste which is suitable and approved for the application� ► Recommended tightening torque 20 Nm�...
  • Page 16: 5�6 Filter Cover

    To ensure an optimum function of the pressure compensation element, align the filter cover as shown in Fig� 1� ► Ideal orientation (1): Filter cover in horizontal position� The ventilation diaphragm (2) in the filter cover is in a vertical position�...
  • Page 17 When using the closed cover cap, there is no pressure compensation of the measuring cell any more� This results in measurement deviations caused by: • fluctuations of the atmospheric pressure • pressure fluctuations inside the unit in case of temperature changes (Δ...
  • Page 18: Electrical Connection

    6 Electrical connection The unit must be connected by a qualified electrician� The national and international regulations for the installation of electrical equipment must be adhered to� Voltage supply according to EN 50178, SELV, PELV� ► Disconnect power� ► Connect the unit as follows: Core colours 2-wire operation (2w) brown...
  • Page 19: Parameter Setting

    7.1 Parameter setting via PC For parameter setting, an IO-Link-capable software is necessary (e�g� LR DEVICE)� IO-Link interfaces from ifm are available for the connection of the unit via the USB interface of a computer → www.ifm.com. ► Prepare computer, software and interface�...
  • Page 20: 7�3 Teach Offset With The Teach Button

    ► Put the unit into operation� Adjustable parameters (→ 7.4.4)� You can find more information about the memory plug in the corresponding technical documentation → www.ifm.com. 7.3 Teach offset with the teach button An external teach button (E30425) allows for a zero-point calibration (calibration offset)�...
  • Page 21: 7�3�1 Scale Analogue Value

    7.3.1 Scale analogue value ► Select [ASP2] and set the value at which 4 mA is provided� [ASP2] ► Select [AEP2] and set the value at which 20 mA is provided� Minimum distance between ASP2 and AEP2 = 20 % of the measuring [AEP2] span (scaling factor 5)�...
  • Page 22: 7�4�4 List Of The Parameters

    7.4.4 List of the parameters Parameter Function Analogue start point ASP2 Measured value at which 4 mA is provided� Analogue end point AEP2 Measured value at which 20 mA is provided� Minimum distance between ASP and AEP = 20 % of the measuring span Standard unit of measurement for system pressure (display): [bAr] / [mbar] / [MPA] / [kPA] / [PSI] / [mWS] / [inH2O] The selectable units of measurement depend on the respective unit�...
  • Page 23: Operation

    Warnings and faults are signalled via IO-Link� If a process value fails, the other process values are still available� Additional diagnostic functions are available via IO-Link. → IODD interface description at www�ifm�com� IO-Link error codes are contained in the IODD Output...
  • Page 24: Technical Data And Scale Drawing

    10 Technical data and scale drawing Technical data and scale drawing at www�ifm�com� 11 Maintenance, repair, disposal ► It is not possible to repair the unit� ► After use dispose of the unit in an environmentally friendly way in accordance with the applicable national regulations�...
  • Page 25 More information at www�ifm�com...
