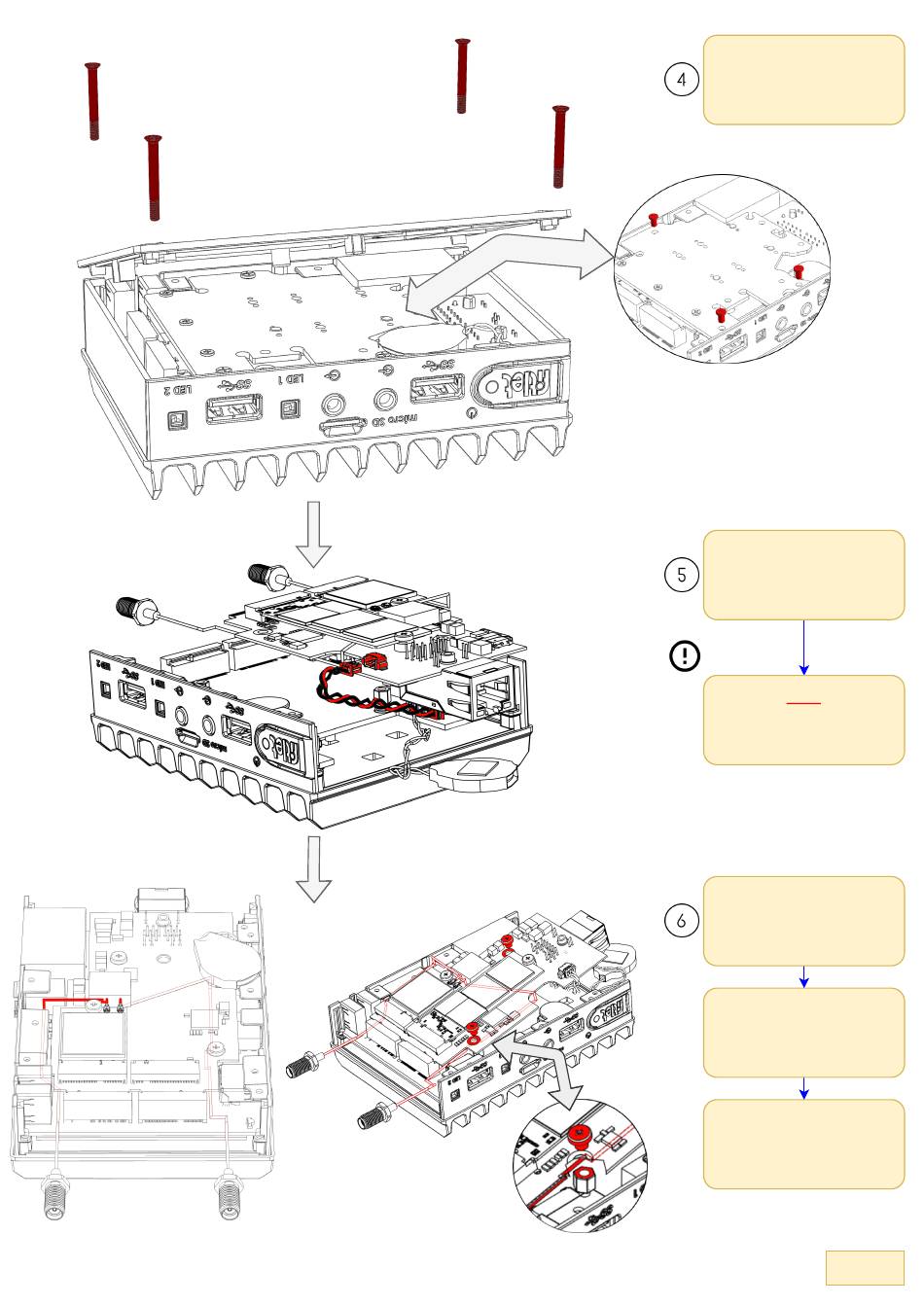

Remove the bottom cover by
unscrewing the 4x Phillips
chassis screws and pull out the
cooling plate gently after
removing the 3x Phillips screws.
Connect the short 3pin power
cable between the FC-POED to
the J11 Molex port on the fitlet2's
SBC
Note:
For easy assembly, connect
while the FACET is not
assembled to the fitlet2
When connecting the FC-POE to
the M.2 slots, attention to the
SMA cables routing is required.
The longer SMA cable should be
routed around the standoff
adjacent to the M.2 connector.
Before pushing down the FACET
for final assembly, the cables
should be free and loose. Make
sure the FACET doesn't pinch
them when pushed down.
