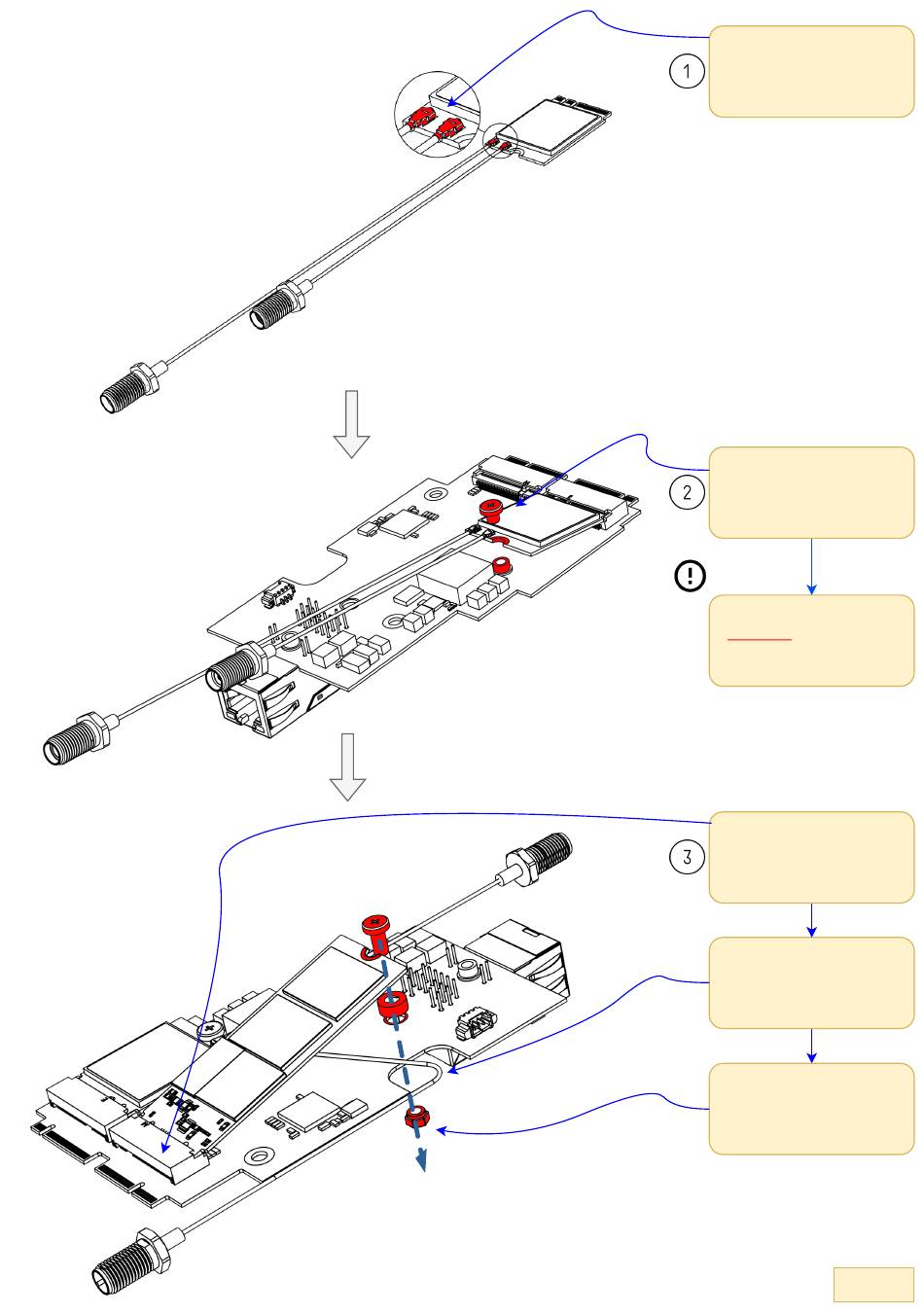

Plug the IPX connectors to the
Wifi module as follows:
Long cable to port #1
Short cable to port #2
Fasten the WiFi module to the
FACET with the Phillips screw
Attention:
Use the 3mm Phillips screw
Connect the storage module to
the M.2 SATA slot on the FACET
Route the long SMA antenna
cable beneath the storage
module
Assemble the 6mm Phillips
screw along with the retaining
washer and screw-nut which
goes below the PCB to hold the
storage in-place
