KY 196A, KY 197A and KY 196B
VHF Communications Transceivers
KY 196A, KY 197A and KY 196B Operation
Power Up
When you turn the
ON/OFF/Volume knob clockwise to
the "ON" position, your unit will
display the frequencies last used in
the "USE" and "STBY" (standby)
windows.
To override the automatic
squelch, pull the ON/OFF/Volume
KY 196A, KY 197A and KY 196B

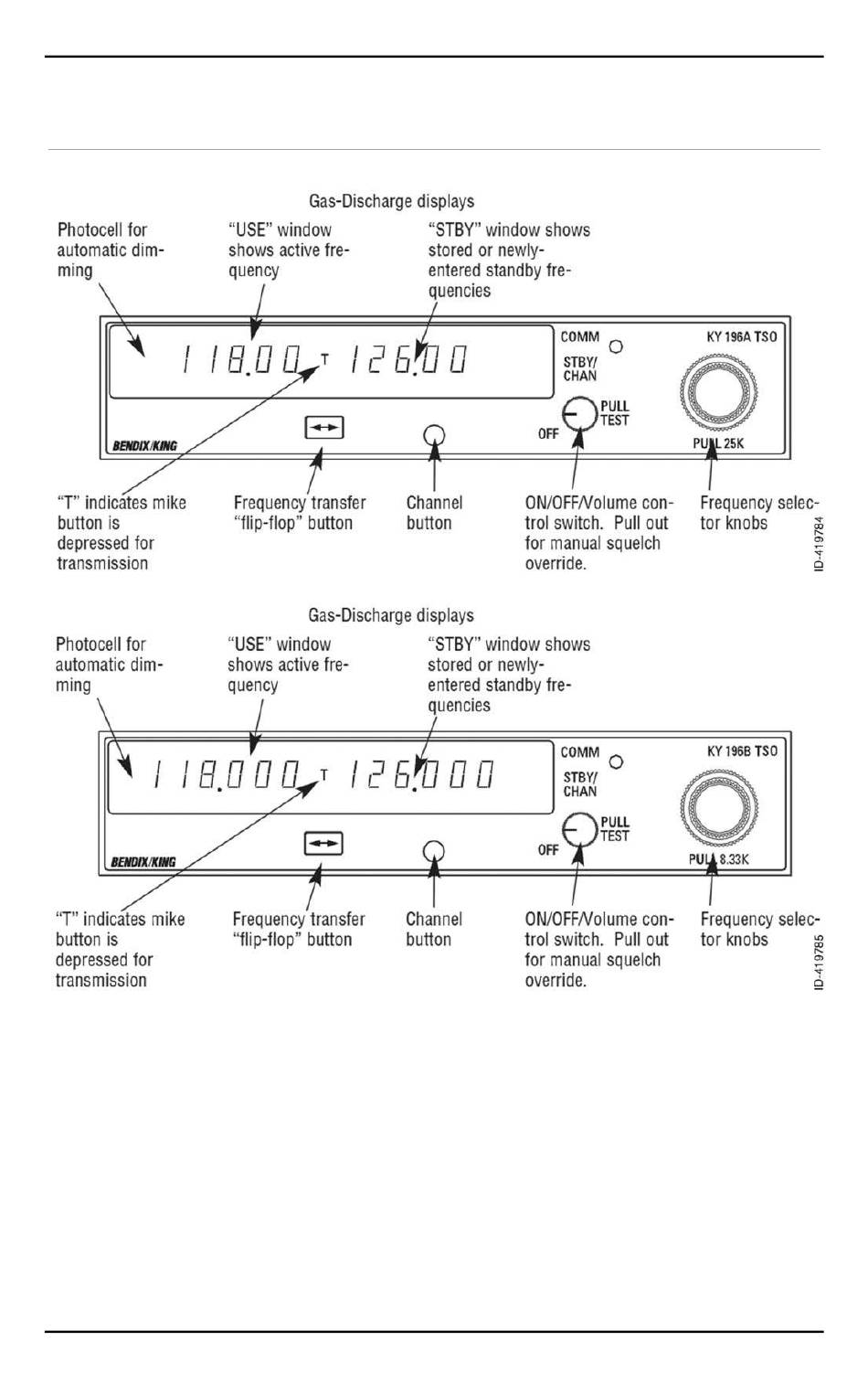

KY 196A/197A
KY 196B
knob out and, judging by static noise,
rotate it to the desired volume level.
Push the knob back in to activate the
automatic squelch.
NOTE: As with all avionics, the KY
196A, KY 197A and KY 196B should
be turned on only after engine startup.
This simple precaution will help
protect the solid-state circuitry and
23
