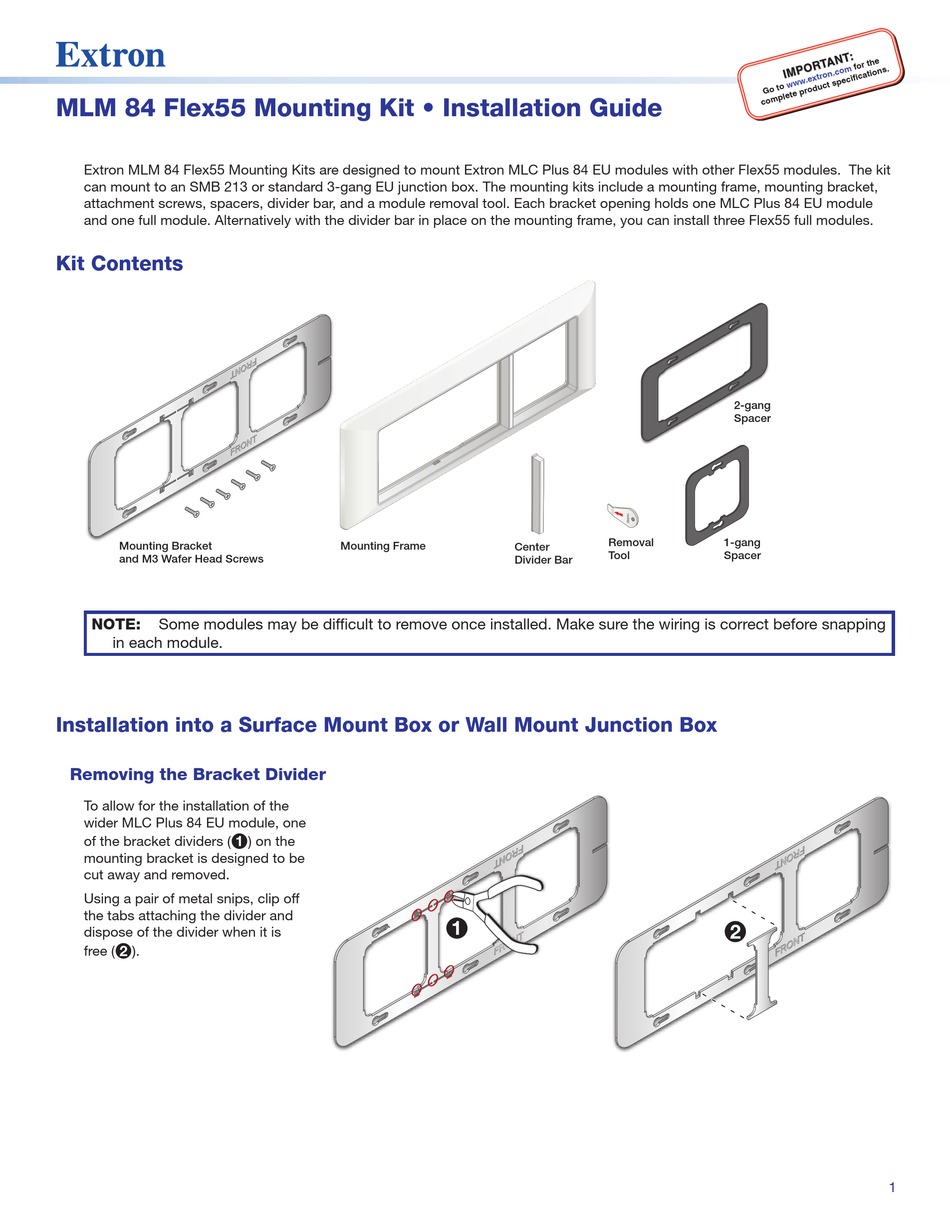

MLM 84 Flex55 Mounting Kit • Installation Guide
Extron MLM 84 Flex55 Mounting Kits are designed to mount Extron MLC Plus 84 EU modules with other Flex55 modules. The kit
can mount to an SMB 213 or standard 3-gang EU junction box. The mounting kits include a mounting frame, mounting bracket,
attachment screws, spacers, divider bar, and a module removal tool. Each bracket opening holds one MLC Plus 84 EU module
and one full module. Alternatively with the divider bar in place on the mounting frame, you can install three Flex55 full modules.
Kit Contents
Mounting Bracket
and M3 Wafer Head Screws
NOTE: Some modules may be difficult to remove once installed. Make sure the wiring is correct before snapping
in each module.
Installation into a Surface Mount Box or Wall Mount Junction Box
Removing the Bracket Divider
To allow for the installation of the
wider MLC Plus 84 EU module, one
of the bracket dividers (
1
mounting bracket is designed to be
cut away and removed.
Using a pair of metal snips, clip off
the tabs attaching the divider and
dispose of the divider when it is
free ( ).
2
Mounting Frame
) on the
Removal
Center
Tool
Divider Bar
1 1 1
2-gang 2-gang
Spacer Spacer
1-gang
Spacer
2 2 2
1
