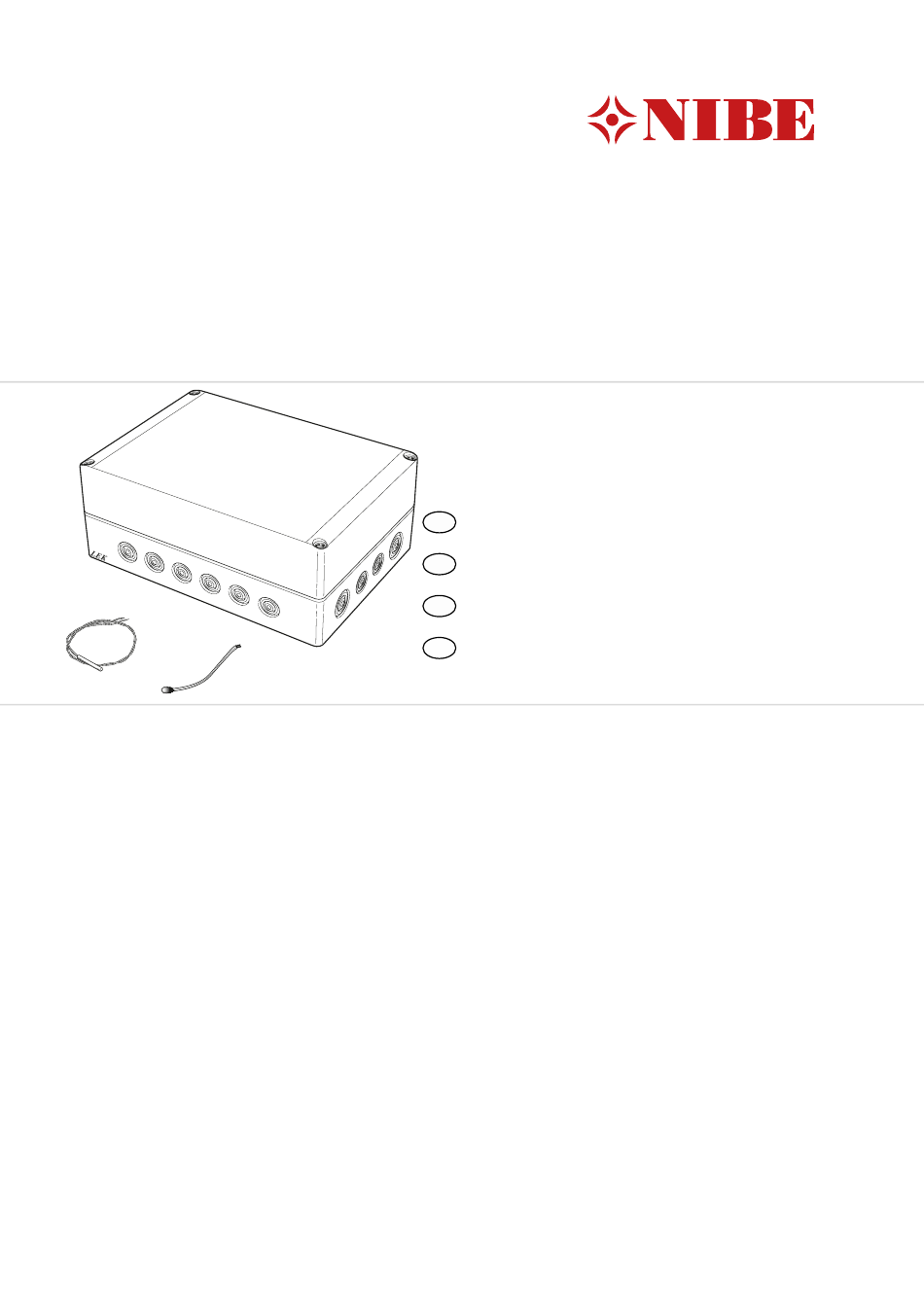

- Page 1 SOLAR 42 Installatörshandbok SOLAR 42 för NIBE F1145/F1155/F1345/SMO40 Installer manual SOLAR 42 for NIBE F1145/F1155/F1345/SMO40 Installateurhandbuch SOLAR 42 für NIBE F1145/F1155/F1345/SMO40 Asentajan käsikirja SOLAR 42 NIBE F1145/F1155/F1345/SMO40 IHB 1427-3 031887...
- Page 3 English, Installer manual - SOLAR 42 Component positions General With SOLAR 42, F1145/F1155/F1345/SMO40 together with: VPAS can be connected to solar heating for hot water charging. VPBS (only F1145/F1155/SMO40) is connected to solar heating for hot water charging. VPB/heater for hot water charging via heat ex- AA5-S2 changer.
-
Page 4: Pipe Connections
Suitable flows/solar panel area Pipe connections Recommended flow is 50 l/h per m solar panel area. Charge pump Place the charge pump (GP4) on the return line to the solar panel according to the outline diagram. Temperature sensor Sensor, solar panel (BT53) is placed in the solar pan- el's submerged tube by the outlet from the solar panel. -
Page 5: Outline Diagram
External electrical additional heat FL10 Safety valve, heating medium side QM42–43 Shut-off valve, heating medium side RN11 Trim valve EP30 Solar heating installation/SOLAR 42 Solar panel GP30 Pump station Expansion vessel, closed Safety valve, solar Circulation pump, solar QM43–45 Shut-off valve RM3–4... - Page 6 -EB100 -QM34 -HQ1 -CP10 -QM32 -EB100 -EP30-BT53 -EP8 -EB100-BT6 -EP30 -BT54 -EP12 -EP30 -CM5 -GP30 -AA5 F1145 -RM4 -RM3 -FL4 -GP4 -QM44 -QM45 -QM43 Outline diagram SMO40 with air water heat pump, additional heat after QN10, VPBS and SOLAR 42...
- Page 7 Outline diagram F1345 with VPAS and SOLAR 42 -EB1 -FL10 -CM5 -EB1 -CP20 -EB100-BT25 -GP10 -GP18 -QM42 -EB100-BT71 -QM43 -RN11 -RM21 -EB100-BT1 -EP30-AA5 -QZ1-AA5 -QZ1 -GP11 -BP6 -QM21 -FL3 -RM23 -RN21 -BT70 -RN20 -CM3 -EB100 -RM24 -QM33 -FQ1 -CP10 -EB100...
-
Page 8: Electrical Connection
Electrical installation and wiring must be car- ried out in accordance with the stipulations in force. The heat pump must not be powered when installing SOLAR 42. The electrical circuit diagram is at the end of this In- staller handbook. Connecting communication... -
Page 9: Connecting The Supply
Connecting the supply Air/water heat pumps Connect the power supply to terminal block X1 as illus- Control module trated. This accessory contains an accessory board (AA5) that is connected to (AA5-X4) on control module. 230V 50Hz If several accessories are to be connected or are already installed, the following instructions must be followed. -
Page 10: Program Settings
Connection of the circulation pump (GP4) Program settings Connect the circulation pump (GP4) to AA5-X9:2 (230 Program setting of SOLAR 42 can be performed via the V), AA5-X9:1 (N) and X1:3 (PE). start guide or directly in the menu system. - Page 11 Elschema/Wiring diagram/Elektrischer schaltplan/ Sähkökytkentäkaavio...
- Page 12 NIBE AB Sweden Hannabadsvägen 5 Box 14 SE-285 21 Markaryd info@nibe.se www.nibe.eu 031887...
