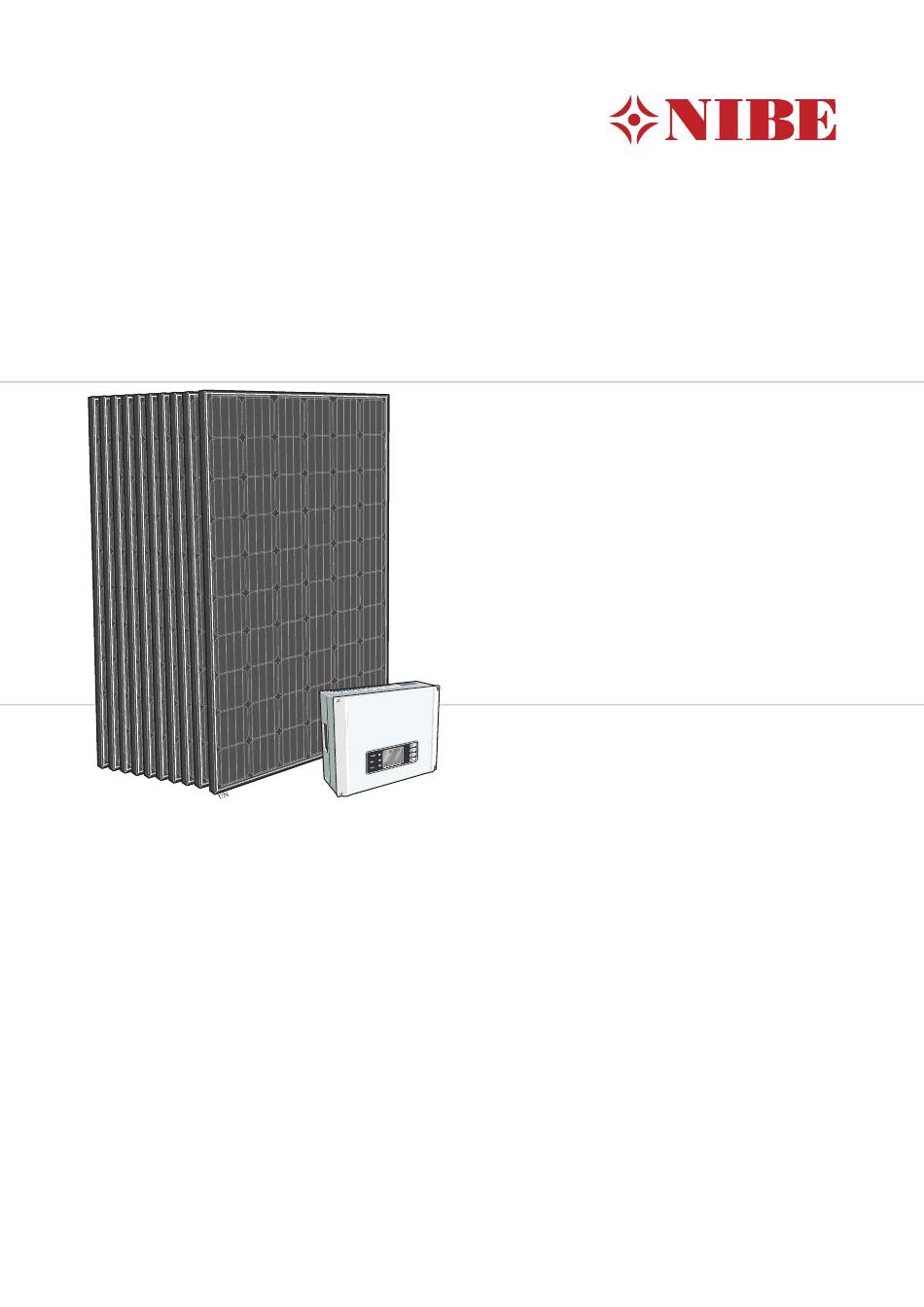

- Page 1 Installer manual PV Solar package IHB GB 1719-2 331825...
-
Page 3: Table Of Contents
Table of Contents 1 Important information Safety information General 2 Delivery and handling Delivery Handling Components included in NIBE PV Solar pack- 3 Installation General Installation and positioning 4 Mounting 5 Electrical connection Outline diagram 6 Commissioning When commissioning Country setting... -
Page 4: Important Information
Rights to make any design or technical notification. modifications are reserved. Country specific information ©NIBE 2017. Installer manual This installer manual must be left with the customer. Symbols NOTE This symbol indicates danger to person or ma- chine . -
Page 5: Delivery And Handling
2 Delivery and handling Delivery Together with the driver, check the delivery immediately for the following: Visible damage (compressed packaging etc.) ■ That the correct number of packages have been de- ■ livered That the solar panels in particular are undamaged. ■... -
Page 6: Components Included In Nibe Pv Solar Package
Components included in NIBE PV Solar package PVK basic kit 10-10 Monocrystalline silicon cell panels 10 pcs Aluminium rails, 2.1 metres 10 pcs Aluminium joints 20 pcs Mountings for solar panels (assembly clamps) 24 pcs Connectors for electrical connection between the panels and inverter, male and... -
Page 7: Installation
(pre- action to the loads that occur. completed form is available on www.nibe.se) Please note that the installation must not be put into use until the Lightning protection power supplier has given its approval. -
Page 8: Installation And Positioning
Installation and positioning The diagram shows insolation as a percentage of global ra- diation in relation to surfaces at various orientations and angle. The map shows lines with the same global radiant flux, i.e. the insolation measured at horizontal surfaces. Source: SMHI. 1000 1000 South... -
Page 9: Mounting
4 Mounting Overview The adjacent image illustrates when PV Solar package is installed on a house roof. NOTE Ensure that the strength and load capacity of the roof structure are sufficient. NOTE If there is not a sufficiently stable substructure such as tongue and groove or trusses to allow a durable installation the roof must be rein- forced. - Page 10 Remove the roof tiles Mark out the positions for the roof brackets using chalk. Remove or slide up the marked roof tiles. NOTE Illustration only, dimensions between roof brackets according to section “Before in- stalling solar panels” on page 9. Installing the roof brackets in the eaves Secure each roof bracket in the trusses with 3 x wood screws.
- Page 11 Adapting roof tiles Use an angle grinder or hammer to make a cut out in the part of the roof tile that covers the roof bracket, so that the roof tile can lie flat against the roof base. It may also be necessary to make a cut out in the roof tile underneath.
- Page 12 Installing the mounting for installing solar x 10 panels on felt roofs x 10 Screw 1. Install the plate on the roof according to the usual rules and practice. Coach bolt M10 2. Install the L profile on the protruding coach bolt with Nut M10 M10 nuts.
- Page 13 Join the mounting rails Slide the joint section with rivets into the mounting rail until it catches firmly on the rivet (A). Slide the next mounting rail in until it also catches on the rivet (B). Leave a space of 2 mm to compensate for linear expan- sion.
- Page 14 Installing solar panels in the first (bottom) NOTE The assembly clamps can be twisted and are adapted for use both at the outer edges and between the solar panels. Position the first solar panel on the mounting rail. Click the assembly clamp into the first (bottom) row 5 mm from the end of the mounting rail.
-
Page 15: Electrical Connection
5 Electrical connection Outline diagram Heat pump NIBE Uplink Internet EME 20 SMO 20 Own use Inverter Electrical distribution unit Solar panels Energy meter Mains network NOTE 2. Strip the cable 15-16.5 mm Electrical installation and service must be carried... - Page 16 F1245/F1255 F370/470/730/750 VVM 225/310/320/325/500 SMO 40 EME 20 Connection to NIBE product AA23 On SMO 20, the cable with pre-installed connectors must be connected to socket X8 on the display unit and on Inverter the terminal block AA23:1-4 on the EME 20 board.
- Page 17 F1145/F1155 F1345 without 2.0 AA3-X6 AA3-X4 AA3:X4 AA3:X6 F1145/F1155 EME 20 F1345 without2.0 AA23 EME 20 Inverter AA23 Electrical connection versions F1345 Inverter F1345 has different electrical connection versions de- pending on when the heat pump was manufactured. To check which electrical connection applies to your F1345, check the designation "2.0"...
- Page 18 This is included if you already have a NIBE machine that can handle NIBE Uplink. If you want to use NIBE Uplink but do not already have a NIBE machine, SMO 20 can be used. Chapter 5 |...
- Page 19 Extra roof brackets are added when expanding. shown in the example, additional mounting materials may be required. To order additional components or in- stallation materials, contact: NIBE AB Sweden Box 14, Hannabadsvägen 5 SE-285 21 Markaryd Tel: (+46)(0)433 73 000 info@nibe.se...
- Page 20 Connecting inverters For installation, connection and operation of inverters, see the manual supplied. Cable routing Cable with pre-installed connectors (2 x 7 m) is supplied and can be used for roof installation. NOTE In order to minimise the risk of induced voltages in the event of lightning, the return cable must be laid together with connection cables for the panels connected in series.
-
Page 21: Commissioning
Program settings use for the relevant inverter. Program setting for EME 20 can be performed via the start guide or directly in the menu system in NIBE heat When commissioning pump/indoor module/control module. A start guide helps you to perform start-up. The follow-... -
Page 22: Maintenance
7 Maintenance Service The solar panels must be regularly inspected. Check that the glass, reverse and aluminium frame are undamaged. Check that all electrical wiring and connections are intact and not coated with anything. Mechanical cleaning is not usually required and is not recommended. -
Page 23: Technical Specifications
8.86 - 9.30 External; dimensions (LxWxH) 1650x991x40 Version with aluminium frame Anodised black Weight Connection cables with pre-installed 2x1000 connectors Basic kit PVK 10-10 Part No. 057 180 Inverter PVI 10-3 PVI 10-6 PVI 10-9 PVI 10-12 PVI 10-21 Outer dimensions (w x h x d) -
Page 24: Accessories
9 Accessories 1 pcs PVK 10-1 Solar panel with assembly kit (4 x assembly clamps, 1 x Aluminium rail, 2 x joints) Part no. 057 205 1 pcs PRM 11-1 Roof bracket, tiled roof Part no. 057 181 1 pcs PRM 21-1 Roof bracket, sheet metal roof Part no. -
Page 25: Item Register
10 Item register Item register Accessories, 24 Electrical connection Earth circuit breaker Accessories, 15 Important information Recovery, 4 Safety information, 4 Lightning protection/potential compensation, 7 Marking, 4 Safety information, 4 Marking, 4 Symbols on PV Solar package, 4 Safety instructions, 7 Static load, 7 Symbols on PV Solar package, 4 PV Solar package... -
Page 27: Contact Information
Tel: +7 831 419 57 06 E-mail: kuzmin@evan.ru www.nibe-evan.ru NIBE AB Sweden, Box 14, Hannabadsvägen 5, SE-285 21 Markaryd Tel: +46 (0)433 73 000 E-mail: info@nibe.se www.nibe.se For countries not mention in this list, please contact Nibe Sweden or check www.nibe.eu for more information. - Page 28 WS name: -Gemensamt WS version: a375 WS release date: 2017-05-16 12:07 Publish date: 2017-05-16 15:49 NIBE AB Sweden Hannabadsvägen 5 Box 14 SE-285 21 Markaryd info@nibe.se www.nibe.eu 331825...
