  • Page 1 Installer manual Solar package NIBE PV Solar cell package IHB EN 2217-7 431707...
  • Page 3: Table Of Contents

    3 Installation General Installation and positioning Functions 4 Mounting Installing solar panels in several groups 5 Electrical connection Outline diagram 6 Technical specifications 7 Accessories Solar package NIBE PV Item register Contact information NIBE PV Solar cell package Table of Contents...
  • Page 4: Important Information

    This is an original manual. It may not be copied with the written permission of the manufacturer. We translated without the approval of NIBE. reserve the right to make changes to the specifications or illustrations in this manual without prior notification.
  • Page 5: Start-Up Protocol For Solar Panel System

    Make: Goodwe Model: Inverter’s serial number: Start-up date: Connected to compatible NIBE product: Inverter’s position: Measurement values ☐ Inverter test-run/started The inverter is powered by the solar panels and will, for this reason, not start under all conditions. Measuring the values below ensures that the installation has been performed correctly.
  • Page 6 Notification of completion submitted to the power supplier. Handover to the property owner completed. Heat pump, where applicable EME 20 is installed between inverter and heat pump. EME 20 activated and communication checked in heat pump. Chapter 1 | Important information NIBE PV Solar cell package...
  • Page 7: Delivery, Handling And Maintenance

    Check that the glass in the panels and the aluminium frames are not damaged. Check that electrical wiring and connections are intact and undamaged. Mechanical cleaning is not usually required and is not recom- mended. NIBE PV Solar cell package Chapter 2 | Delivery, handling and maintenance...
  • Page 8: Supplied Components

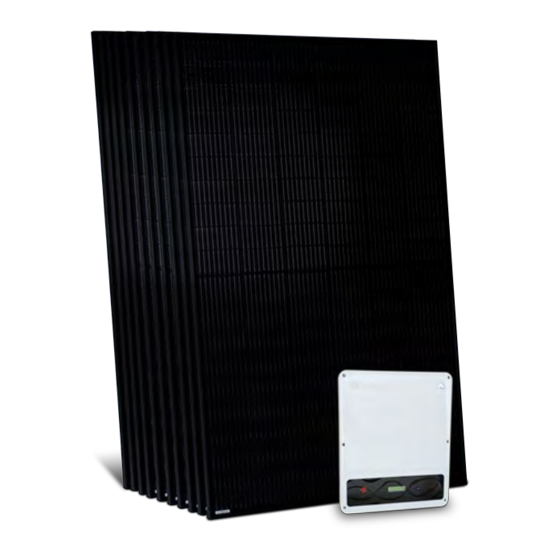

    INVERTER PRM 31-20 Seamed sheet metal roof PRM 51-20 Universal for aluminium rails Lower section for the roof bracket is not supplied by NIBE Inverters 1 pcs Additional fastening for the relevant roof type is required Rating plates for electrical installation 4 pcs EME 20 1 pcs 1 See section Mounting brackets for solar panels on felt roof on page 16 for further information.
  • Page 9: Installation

    The distance from the outer edges of the roof must be at least 0.35 m at the sides of roofs and 0.2 m at ridges and eaves, in order to reduce the risk of the wind ripping the solar panels off. NIBE PV Solar cell package Chapter 3 | Installation...
  • Page 10: Installation And Positioning

    1000 1000 1100 1000 1100 1100 1000 1100 1000 1200 1200 1100 1100 1200 1400 1400 1400 1400 1600 1600 1400 1500 1600 1600 1700 1600 1800 1700 1800 1800 Chapter 3 | Installation NIBE PV Solar cell package...
  • Page 11: Functions

    CMO 11/22 communicates with your home network via wifi. See separate manual for more information and installation. CMO 11 is used for inverter PVI 10 and CMO 22 is used for PVI 20. NIBE PV Solar cell package Chapter 3 | Installation...
  • Page 12: Mounting

    If the panels are installed in a different formation, additional mounting materials may be required. Caution Additional connectors and mounting materials may be required to install solar panels in different groupings. Chapter 4 | Mounting NIBE PV Solar cell package...
  • Page 13 4. Solar panel height 5. Vertical location of the mounting points = panel height x 0.25. 6. Max distance between the last roof bracket and the end of the mounting rail = 200 mm NIBE PV Solar cell package Chapter 4 | Mounting...
  • Page 14 Installing the roof brackets in tongued and grooved boards Secure each roof bracket with 6 x stainless steel construc- tion screws, divided between the two grooves (screws not supplied). Chapter 4 | Mounting NIBE PV Solar cell package...
  • Page 15 It may also be necessary to do this in the roof tile under- 4. Ensure that the screw pin’s entire thread is screwed into neath. the roof truss. NIBE PV Solar cell package Chapter 4 | Mounting...
  • Page 16 Coach bolt M10 2. Install the L profile on the protruding coach bolt with M10 nuts. Mounting rails are secured in the roof brackets with T bolts and locking nuts (8 mm). Chapter 4 | Mounting NIBE PV Solar cell package...
  • Page 17 Position the first solar panel on the mounting rail. Click the assembly clamp into the first (bottom) row 5 mm from the end of the mounting rail. NIBE PV Solar cell package Chapter 4 | Mounting...
  • Page 18 Take the return cable when installing the panels. See section Electrical connec- tion/Cable routing Caution Measure the voltage at the connected panels on the roof before removing any scaffolding. Install the following rows in the same way. Chapter 4 | Mounting NIBE PV Solar cell package...
  • Page 19: Electrical Connection

    (optional) Electrical distribution unit Electricity meter network owner * myUplink for the S-series and NIBE Uplink for the F-series. NOTE NOTE The inverter is powered by the voltage from the Electrical installation and service must be carried solar panels. At night and in poor light, the inverter out under the supervision of a qualified electrician, may therefore be switched off.
  • Page 20 3 - 4 Nm 125 mm 100 mm 120 mm 45 mm 240 mm 265 mm Fitting the wall bracket Caution Check that the polarity is correct when connecting to the inverter. Chapter 5 | Electrical connection NIBE PV Solar cell package...
  • Page 21 PVI 10-3 10 mm Tighten anticlockwise. Inverter PVI 20-XX VACONN series 10mm Inverter WARNING! Check that all of the screws are tightened and that they do not protrude from the connector. NIBE PV Solar cell package Chapter 5 | Electrical connection...
  • Page 22: Technical Specifications

    81x81x28 (LxWxH) Enclosure class IP22 Part No. 057 188 1 Has to be fused according to the max. power output or the max. rec. DC power, if that is lower. Chapter 6 | Technical specifications NIBE PV Solar cell package...
  • Page 23: Accessories

    Accessories Not all accessories are available on all markets. Detailed information about the accessories and complete accessories list available at nibe.eu. Solar package NIBE PV PVK 40-1 (1 x) Solar panel with assembly kit (4 x assembly clamps, 1 x aluminium rail, 2 x joints) Part no.
  • Page 24: Item Register

    Roof bracket in tongue and groove, 14 Roof bracket in truss, 14 Spacer plate, 15 Vertical installation, 17 Installing connectors on DC wiring, 20 Lightning protection/potential compensation, 19 Marking, 4 Mounting, 12 myUplink, 11 NIBE Uplink, 11 Item register NIBE PV Solar cell package...
  • Page 27: Contact Information

    Tel: +46 (0)433-27 3000 info@evan.ru info@nibe.se nibe-evan.ru nibe.se SWITZERLAND NIBE Wärmetechnik c/o ait Schweiz AG Industriepark, CH-6246 Altishofen Tel. +41 (0)58 252 21 00 info@nibe.ch nibe.ch For countries not mentioned in this list, contact NIBE Sweden or check nibe.eu for more information.
  • Page 28 WS version: a989 (working edition) Publish date: 2022-06-10 07:33 This is a publication from NIBE Energy Systems. All product illustrations, facts and data are based on the available information at the time of the publication’s approval. NIBE Energy Systems makes reservations for any factual or printing errors in this publication.
