Microsemi FlashPro Lite Quick Start Card

FlashPro Lite Device Programmer
Quickstart Card
This quickstart card applies only to the FlashPro Lite device programmer.

Kit Contents

Quantity

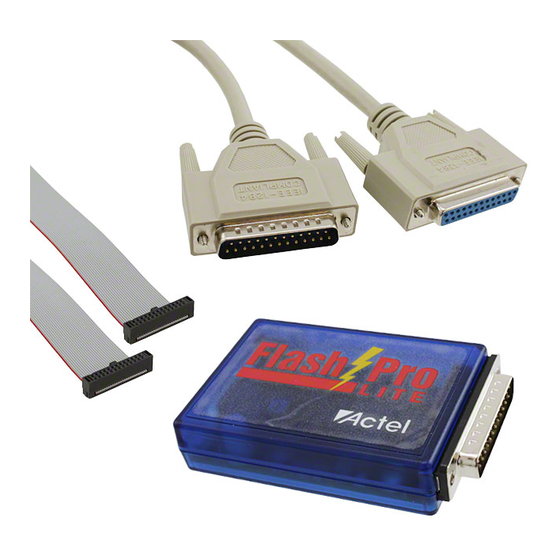

1 FlashPro Lite programmer standalone unit
1 Ribbon cable for FlashPro Lite
1 IEEE 1284 parallel port cable

Software Installation

If you are already using Libero
installed as part of this software. If you are using the FlashPro Lite device programmer for
standalone programming or on a dedicated machine, download and install the latest release of the
FlashPro software from the Microsemi SoC Products Group website. The installation will guide you
through the setup. Complete the software installation before connecting the FlashPro Lite device
programmer to your PC. The installation will ask you "Will you be using FlashPro Lite or FlashPro
programmer via parallel port?", answer "Yes".
Software releases: www.microsemi.com/soc/download/program_debug/flashpro.

Hardware Installation

1. Connect the programmer to a parallel printer port on your PC. Connect one end of the IEEE 1284
cable to the programmer's connector. Plug the other end of the cable into your parallel printer
port and tighten the screws. You should not have any licensing dongles connected between the
parallel port and cable. Your port settings must be EPP or bidirectional. Microsemi also supports
ECP mode with FlashPro v2.1 software and newer.
2. Verify that you are connected to the correct parallel port on your computer. Microsemi
recommends that you dedicate a port to the programmer. Connecting to a serial port or a third-
party card can damage the programmer. This type of damage is not covered by the warranty.
3. Connect the FlashPro Lite ribbon cable to the programming header and turn the target board on.
