- Page 1 User’s Manual BT-UC156 Embedded Printer V1.0 Shandong New Beiyang Information Technology Co., Ltd.
- Page 2 Information in this document is subject to change without notice. Shandong New Beiyang Info-Tech Co., Ltd. (Hereinafter referred to as “SNBC”) reserves the right to improve products as new technology, components, software, and firmware become available. If users need the further data about these products, please feel free to contact our market department or your local distributor.
- Page 3 BT-UC156 User’s Manual Safety Information Before installing and using the printer, please read the following items carefully. 1. Safety instructions The print head and step motor are calorific and their temperatures are high when printing or just after operation, so please don’t touch them and their peripherals for safety purpose.
-
Page 4: Table Of Contents
BT-UC156 User’s Manual CONTENT 1.Overview ..............................- 1 - 1.1Outline..............................- 1 - 1.2 Main features ............................. - 1 - 2.Main specifications ........................... - 2 - 2.1 Technical specifications ........................- 2 - 2.2 Media specifications .......................... - 2 - 2.2.1 Paper roll Spec. - Page 5 BT-UC156 User’s Manual 5.4 Printout adjustment .......................... - 16 - 6.Interface Signal ............................- 18 - 6.1 Serial interface ..........................- 18 - 7. Troubleshooting ............................. - 19 - 7.1 Print doesn’t function ........................- 19 - 7.2 Error LED and Buzzer ........................- 19 - 7.3 Problems during printing ........................
-
Page 6: Overview

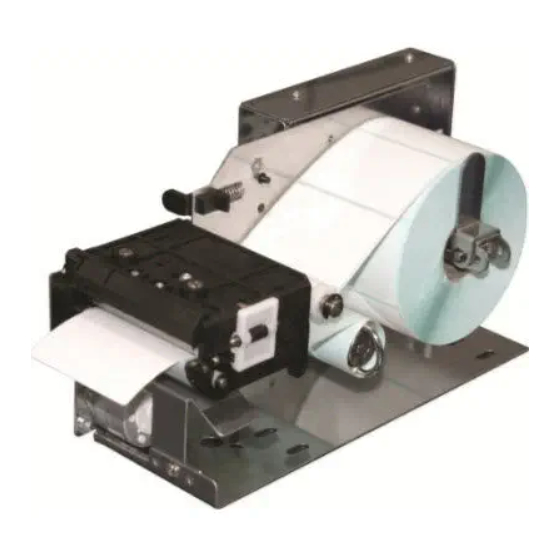

1. Overview 1.1Outline BT-UC156 printer is an embedded printer equipped with an auto-peel off module and a rewinder. It can support thermal label and thermal continuous paper up to 56mm printable width. This product is mainly used in applications where real-time label or receipt printing is necessary, like label scale, electric scale and so on. -
Page 7: Main Specifications
BT-UC156 User’s Manual 2. Main specifications 2.1 Technical specifications Item Spec. Print mode Direct thermal line Print speed Max.75mm/s Print width Max.56mm Type Thermal label and continuous paper Paper Paper width 30mm to 62mm Thickness 0.06 mm to 0.16mm UPC-A, UPC-E, EAN-13, EAN-8, ITF, CODE39,... -
Page 8: Label Specification
BT-UC156 User’s Manual Max. Min. Meanings (mm) (mm) Paper width Paper thickness 0.16 0.06 2.2.3 Label specification Code Meanings Max. (mm) Min. (mm) Paper width Paper thickness 0.16 0.06 Label width Tear-off mode Label height Peel-off mode Mark height Caution: ... -
Page 9: Appearance And Parts
BT-UC156 User’s Manual 3. Appearance and Parts 3.1 Appearance and parts ● The appearance of the printer is shown as figure 3.1.1. Figure 3.1.1 Appearance ● Its structure is shown as figure 3.1.2 and include parts as below: 1. base cover of control board... -
Page 10: Led And Buzzer Explanation
BT-UC156 User’s Manual pressure can be increased when rotating the knob in clockwise, otherwise the Printhead pressure shall be decreased. Notice: In order to increase Printhead lifetime we suggest that users should select lower Printhead pressure in case of satisfied use. -
Page 11: Printer Mount
4. Printer mount 4.1 Unpacking When unpacking, check if parts are short or damaged according to packing list. Once this case happens, please contact with your local distributor or SNBC. 4.2 Fixing the printer This printer has fixing hole and side cover fixing hole. You should select suitable space and fixing position of the printer referred to figure 4.2.1... - Page 12 BT-UC156 User’s Manual Enough space should be reserved around the printer for easy paper load, key operation, daily maintenance, printing pressure adjustment and cable connection/disconnection. Figure 4.2.2 Operating Space—paper loading Figure 4.2.3 Operation Space—TPH Maintenance Figure 4.2.4 Operation Space——pressure adjustment...
- Page 13 BT-UC156 User’s Manual Outlet position and width are shown in Figure 4.2.5. To ensure paper feed smooth, the outlet of printer casing shall be aligned with the printer outlet and reserve suitable space to avoid paper impacting the outlet edge of the casing. Due paper is somewhat curl, dimension A should be set reasonable to avoid paper impacting outlet down edge;...
-
Page 14: Earthing
4.5 Loading media 4.5.1 Check media specification Media type: BT-UC156 printer supports thermal label and continuous paper. Please check the media type used by the printer and select peel-off mode or tear-off mode; Media specification: The roller of BT-UC156 printer is simple structure. Outer bushing diameter of paper roll shaft is 23.5 mm, only paper roll with inner diameter over φ24mm can be used. -
Page 15: Loading Media
BT-UC156 User’s Manual Figure 4.5.1 Media load path 4.5.3 Loading media Thermal label load It has peel-off mode and tear-off mode. Peel-off mode 1) Load the selected thermal label onto paper roll shaft. Notice: Paper roll should drop to the end of paper roll shaft. Paper shall move according to above figure during the print. - Page 16 BT-UC156 User’s Manual 2) Press the latch to open top cover of TPH. 3) Tear off several front labels to make front mount long about 200 mm. Then according to the figure below, put thermal label round paper guide shaft to enter paper path and press the first label head on the platen.
- Page 17 BT-UC156 User’s Manual 5) Let the mount of thermal label round the tear-off bar, the platen and mount shaft according to the figure as below. Then fix the mount on rewinding shaft with the clip and turn the rewinding shaft to tight the mount according to the direction in the figure as below.
- Page 18 BT-UC156 User’s Manual 2. Tear-off mode 1) Load thermal label roll onto paper roll shaft. Notice: Paper roll should drop to the end of paper roll shaft. Paper shall run according to above figure during the print. Pay attention to paper roll direction when loading.
-
Page 19: Printer Self-Test
BT-UC156 User’s Manual Notice: Be sure that the lower edge of label should reach the holding surface and the end of first label shall not exceed the tear-off bar of the platen. 4) Close top cover of the printer. According to thermal label width, adjust the paper guide ring up and down until a suitable position. -
Page 20: Routine Maintenance
BT-UC156 User’s Manual 5. Routine maintenance 5.1 Cleaning Printhead When one or more of the following cases occur, clean the Print head. Printout is not clear. Paper feeds or backs with large noises. Print head sticks with dirt. -
Page 21: Cleaning Platen
BT-UC156 User’s Manual Figure 5.2.1 Cleaning Sensor 5.3 Cleaning platen When one or more of the following cases occur, clean the platen Printout is not clear. Page feeds with large noises. To clean platen, follow steps given below. (See figure 5.3.1) Turn off the power, glide top cover limitation block and open top cover module to be vertical. - Page 22 BT-UC156 User’s Manual Printout is light. Printout is not consistent. The adjusting steps for Print head pressure is given as below: Load media in the printer and print a sample; If the printout is light, turn two pressure-adjusting knobs synchronously in clockwise. For each cycle, review the printing sample and stop the adjustment until the printout is satisfied.
-
Page 23: Interface Signal
BT-UC156 User’s Manual 6. Interface Signal 6.1 Serial interface The interface cable is customerized and the interface connector is double socket with 4PIN 2.54mm between each other. Pin signal is defined as below figure: Interface signal order is as below:... -
Page 24: Troubleshooting
The printer is not powered on Make sure printer is powered on the printer doesn’t work Circuit board is damaged Contact with your local distributor or SNBC 7.2 Error LED and Buzzer Problems Possible causes Solutions Turn off printer power and wait until Print head Print head overheated temperature is normal.
