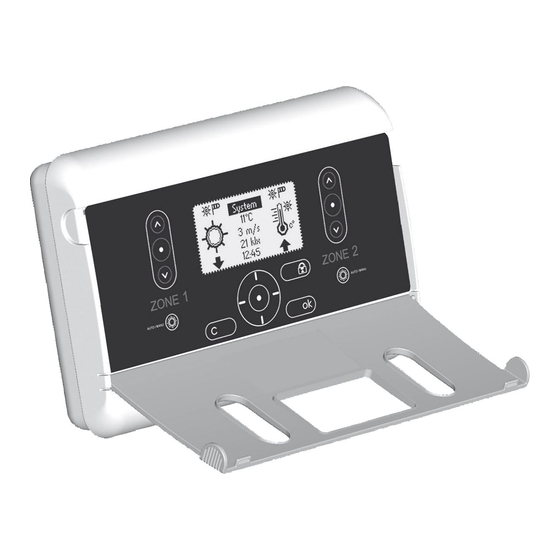

- Page 1 Owners manual ® animeo Solo 1 zone: 1860143 2 zone: 1860144 ©2007, SOMFY SAS. ALL RIGHTS RESERVED. REF. 5053700 – 09/11/07...
-
Page 2: Table Of Contents
TABLE OF CONTENT Welcome ..........3 Settings ..........21 Icons used in this manual ......3 Test and Demo mode ........21 Glossary used in this manual ......3 Test mode ........... 21 Demo mode ........21 Status ............21 Getting started ......... 4 Sensors ..........21 What is an automatic solar protection system? .. -
Page 3: Welcome
Before installation, please read and follow these instructions carefully. An incorrect installation could lead to serious injury. The product must be installed by a qualified electrician. SOMFY’s liability for defects and damages is excluded if they were caused by disregard of the instructions. Keep these instructions for future reference. For further instructions please read the Installation guide (REF 5053517). -
Page 4: Getting Started
For more information about motor relays and other accessories, see www.somfy.com or contact nearest dealer. * H If there is only one AC motor to be connected, it can be connected without a motor relay. -
Page 5: How To Use And Navigate In Animeo Solo
How to use and navigate in animeo Solo The animeo Solo is very easy to use. This chapter explains all possibilities in detail. We recommend you to read this part through at least once to better understand the whole concept in order to explore many of the nice features and possibilities. -
Page 6: Explanation Of Flashing Function Icons
Explanation of flashing function icons Below are some examples of function statuses when the icon is flashing: Info “Nothing” Sun icon Sun on delay is counting. Solar protection will soon be ordered out. Sun icon “Nothing” Sun off delay is counting. Solar protection will soon be ordered in. -
Page 8: Basic Setup (First Start Up)
Basic setup (first start up) The animeo Solo system is prepared to be able to operate automatically from the first start up (after the short start up wizard has been set). The standard functions are already enabled. Default settings are used on parameters such as thresholds and delays. Adapt your system to your needs If you feel that the system is not corresponding to your needs of life then you can make adaptations on the default settings. -
Page 9: System Functions
System functions Introduction In this chapter we go through all functions in detail. But first some information that is good to know to better understand the system in general. H In the system menu you can not access the functions Lock (both via unit and via external switch) or the Manual commands (both via unit and via external switch). -
Page 10: Lock Zone- Via Control Unit
Lock zone- via control unit About: When this function is active the selected zone’s solar protection will be blocked in up position. This function is often used during e.g. window cleaning. When this functions is active the icon on the left side is shown on the main menu. / Lock zone Zone 1 Lock zone screen view... -
Page 11: Error
Check the cable between the system and the sensor so that it is not damaged or broken. Check that the sensor is not damage and that it can rotate. If the errors still remains please contact your nearest Somfy dealer. H This function is active in both manual and automatic mode. This function is always enabled and can not be disabled. -
Page 12: Precipitation
Sensor allocation: Wind sensor allocation is used to set which wind sensor the function should listen to. The system can have two wind sensors connected and therefore the function can use either one of them or both at the same time. You can allocate differently for each zone. In “Wind unit”... -
Page 13: Manual Command - Via Control Unit
Adapt the function: If you feel that the system reacts too slow during precipitation then decrease the On delay. If you feel that the solar protection goes up and down too often during a rainy day then increase the Off delay. / Precipitation Use function. -
Page 14: Manual Command - Via External Switch
H If a manual up command is given in Automatic mode and the sun appears, then the solar protection will be ordered down. The same scenario in Manual mode will not order the solar protection down since the sun function can not get active. H As long as no other higher prioritized security functions is active you can manually control the solar protection. -
Page 15: Get Heat
Timer parameters Function Range (Step) Per Zone Default Advanced Used Yes/No On Time 00:00-23:59 00:00 Off Time 00:00-23:59 00:00 Action Up or Down Get heat About: The Get heat function is used to gain heat from the sun. The function acts as a complement to the heating systems in the building. -
Page 16: Preserve Heat
Sensor allocation: Sun sensor allocation is used to set which sun sensor the function should listen to. The system can have two sun sensors connected and therefore the function can use either one of them or both at the same time. You can allocate differently for each zone. Remember that on and off delay is not only connected to the suns behaviour, they are also connected to temperature changes, but normally temperature is changing less rapidly compared to the sun. -
Page 17: Sun
On delay and vice versa. If you find that the function is still active even though there have been sun for a while then decrease the Off delay and vice versa. / Preserve heat Use function... Set Timer... Delay... Temperature threshold... the Preserve heat function menu H This function requires an outside temperature sensor. - Page 18 Adapt the function: If you feel that the solar protection doesn’t go down even though the sun is bright then decrease the On threshold and vice versa. If you notice that solar protection go up even though it is quite bright outside then decrease the Off threshold and vice versa. If the system reacts too slow when the sun appears then decrease On Delay and vice versa.
-
Page 19: Motor - Running And Tilt Times
Motor - Running and Tilt times Here you set the desired down position of the solar protection (Running time) and slat angle if you are controlling a blind (Tilting time) for each zone. The easiest way to find out the required running and tilting times is to measure the time from the solar protections fully up/in position to the desired down/out position, and then enter the time values into the system. -
Page 20: Set Tilt Time
H If the solar protection doesn’t go down as far as you want when measuring the time then you have to increase the down time in the system. Default down time is 180s. For folding arms awning over patios you may not want them to go automatically fully out during sun. -
Page 21: Settings
Settings This chapter explains features that are not directly related to any function. Test and Demo mode When Test or Demo mode is activated it is shown at the bottom of the main menu. Test mode This feature is very efficient when testing an installation. When this mode is active all delay times (e.g. -
Page 22: Error List
Error list In the Error list you can see the errors that the system has. The error messages can be good to start from in order to solve the problem. The following errors (see table on the next page) are automatically detected by animeo Solo. -
Page 23: External Inputs And Outputs
Stop is generated by a simultaneous up and down signal. This function is equal to the manual push buttons on the control unit (see page 13). The inputs are IB compatible meaning e.g. a Somfy Centralis switch can be used. Error output If an error would occur this potential free output will be activated (Low = Error). -
Page 24: Faq
- Check if there is an error indicated on the LCD screen or in the error list (see page 11). - Read the Installation manual (REF. 5053517) for other important information. - Contact your supplier or www.somfy.com Tip when testing If you want to test a function, e.g. -
Page 25: Compatible Sensors & Switches
9 011 235 Rain Rain sensor aquatic * = additional power supply needed Warranty Somfy leaves 5 years warranty on all products. Please check www.somfy.com for detailed information. Support Please contact your supplier or search for nearest support at www.somfy.com... - Page 26 SOMFY SAS Capital 20 000 000 euros RCS Bonneville 303.970.230 - 12 -2006...
