OPERATION

Concrete Finishing Techniques
The following steps are intended as a basic guide to machine
operation, and are not to be considered a complete guide to
concrete finishing. We suggest that all operators (experienced
and novice) read "Slabs on Grade" published by the
American Concrete Institute, Detroit, Michigan. Read the
"Training" section of this manual for more information.
Pitching the Blades (Standard Handle)
To pitch the blades upwards using the "Standard" handle,
(Figure 11) simply turn the star-wheel clockwise. Turning the
star wheel counter clockwise will cause the blades to lay flat.
BLADE PITCH
STAR WHEEL
INCREASE DECREASE
BLADE PITCH BLADE PITCH
(CW)
(CCW)

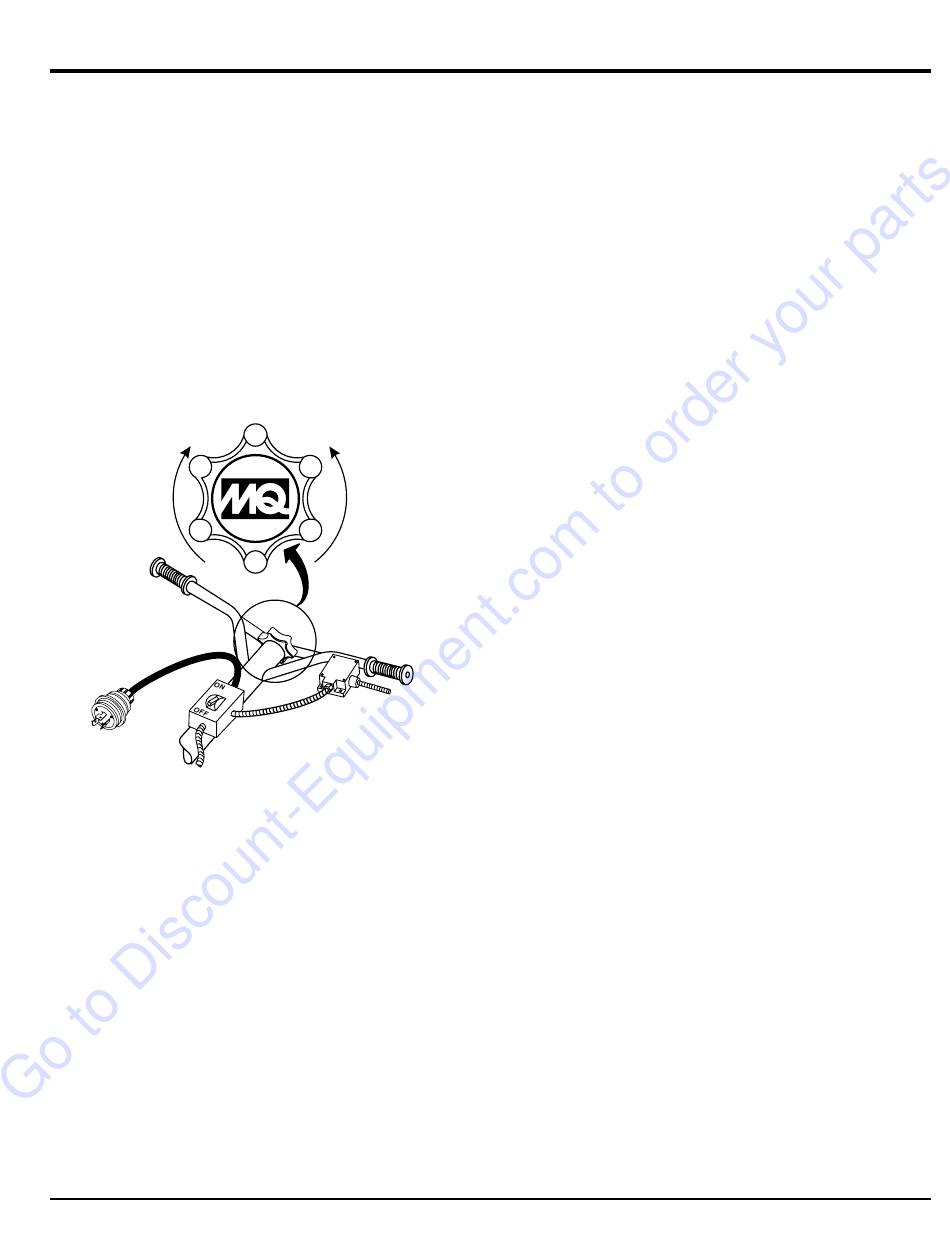

Figure 11. Blade Pitch Star Wheel
Shutdown
1. Release the operator presence ON/OFF switch lever,
wait for blades to stop rotating.
2. Place the main ON/OFF switch in the OFF position.
3. Remove extension cord from trowel power plug.
J36E2 ELECTRIC WALK-BEHIND TROWEL • OPERATION AND PARTS MANUAL — REV. #1 (8/27/15) — PAGE 21
