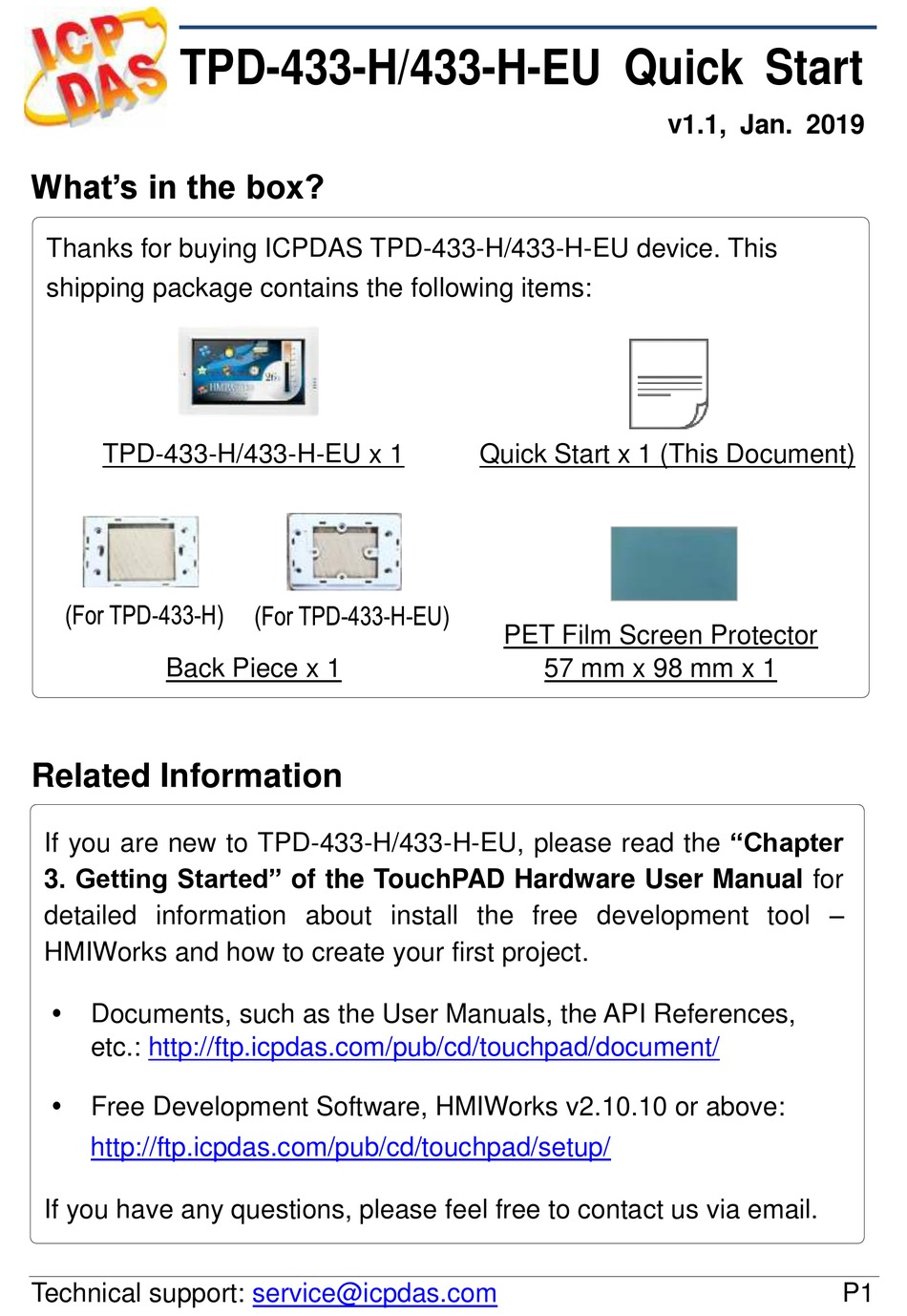

TPD-433-H/433-H-EU Quick Start
What's in the box?
Thanks for buying ICPDAS TPD-433-H/433-H-EU device. This
shipping package contains the following items:
TPD-433-H/433-H-EU x 1
Back Piece x 1
Related Information
If you are new to TPD-433-H/433-H-EU, please read the "Chapter
3. Getting Started" of the TouchPAD Hardware User Manual for
detailed information about install the free development tool –
HMIWorks and how to create your first project.
Documents, such as the User Manuals, the API References,
etc.:
http://ftp.icpdas.com/pub/cd/touchpad/document/
Free Development Software, HMIWorks v2.10.10 or above:
http://ftp.icpdas.com/pub/cd/touchpad/setup/
If you have any questions, please feel free to contact us via email.
Technical support:
service@icpdas.com
Quick Start x 1 (This Document)
PET Film Screen Protector
57 mm x 98 mm x 1
v1.1, Jan. 2019
P1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ICP DAS USA TPD-433-H
Summary of Contents for ICP DAS USA TPD-433-H
- Page 1 Back Piece x 1 57 mm x 98 mm x 1 Related Information If you are new to TPD-433-H/433-H-EU, please read the “Chapter 3. Getting Started” of the TouchPAD Hardware User Manual for detailed information about install the free development tool –...

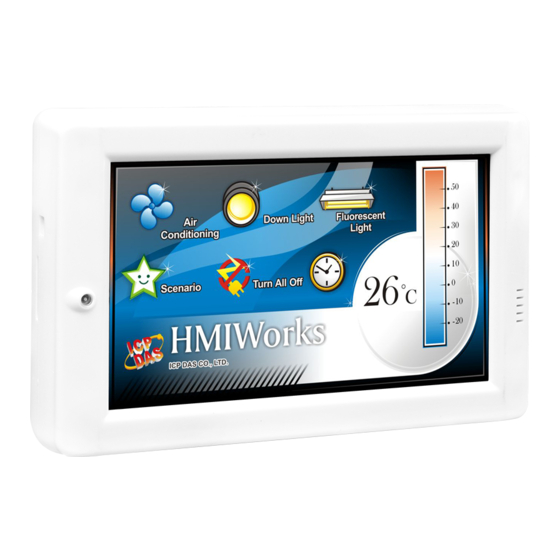

- Page 2 Appearance Front View Rear View 4.3” TFT LCD with Touch Panel Rotary Switch Serial Port Ethernet USB Buzzer LED Indicator Pin Assignments Description F.G. Frame Ground. F.G. is connected to the inside EMI or ESD suppression circuits. Make sure that F.G. is connected to the Earth DC input Voltage (range: +12 V ~ +48 V) Connected to the power supply’s ground pin...
- Page 3 255.255.0.0 Gateway 192.168.0.1 First Use of the TPD-433-H(-EU) 1. Connect wires as the below figure or prepare an Ethernet cable which will be used to supply power through PoE if there’s a RJ-45 Ethernet port on it. And set the rotary switch to 0 (At this point, the power is not yet supplied).
- Page 4 3. Try to touch on the icons on the bottom-right corner of the screen of the TPD-433-H(-EU) and you can find that TPD-433-H(-EU) switches to the setting pages. Hardware Installation...
- Page 5 產品須知 x 1 (本文件) TPD-433-H/433-H-EU x 1 PET 螢幕防刮膜 面板蓋 x 1 57 mm x 98 mm x 1 參考資訊 如果您是第一次使用 TPD-433-H/433-H-EU，請參閱 TouchPAD 硬 體使用手冊的 “第 3 章 啟動 TouchPAD” 來了解如何安裝免費的開 發軟體 HMIWorks 並建立第一個專案以及更多詳細的相關資訊。 相關文件，如使用手冊、應用程式介面指南(API Reference) 等: http://ftp.icpdas.com/pub/cd/touchpad/document/ 免費開發軟體，HMIWorks 版本 2.10.10 或以上版本: ...
- Page 6 外觀 前配置圖 後配置圖 4.3 吋觸控液晶螢幕 旋轉開關 序列埠 Ethernet USB LED 指示燈 蜂鳴器 腳位定義 說明 機架接地，F.G. (連接到內部的 EMI 或 ESD 保護電路)， F.G. 請接到大地 直流電壓輸入 (範圍：+12 V ~ +48 V) 連到電源的接地端 RS-485 網路的正訊號線 DATA+ RS-485 網路的負訊號線 DATA- Technical support: service@icpdas.com...
- Page 7 Force Update 毀損時可用此模式透過 Ethernet 更新。 執行程式。 Run Only USB Force 透過 USB 更新程式。 Update 網路設定出廠預設如下表: IP Address 192.168.255.1 Subnet Mask 255.255.0.0 Gateway 192.168.0.1 第一次使用 TPD-433-H (-EU) 1. 如下圖所示，將電源和接地線連接完成。或是有 RJ-45 的乙太網路接 孔，可以準備一條網路線，透過乙太網路供電 (PoE)。然後將旋轉開關 (Rotary Switch) 轉到 0 (此時尚未供電)。 Technical support: service@icpdas.com...
- Page 8 乙太網路供電 VDC (+12-+48 V) 使用一字起子來配置旋轉開關 外部供電器 2. 開始供電給 TPD-433-H(-EU) ， 等待約數 秒的開機時間，接著可以看到 TPD-433-H/433-H-EU 執行出貨預附的程 式如左圖所示。 3. 試著按一下 TPD-433-H(-EU) 螢幕上面的圖示，TPD-433-H(-EU) 會 切到其他的頁面。 硬體安裝 TPD-433-H-EU 安裝於歐 TPD-433-H 安裝於暗盒 TPD-433-H 安裝於專用 規 86 mm x 86mm 插座 明盒 EWB-T43(選購) OB120 (選購) Technical support:...
