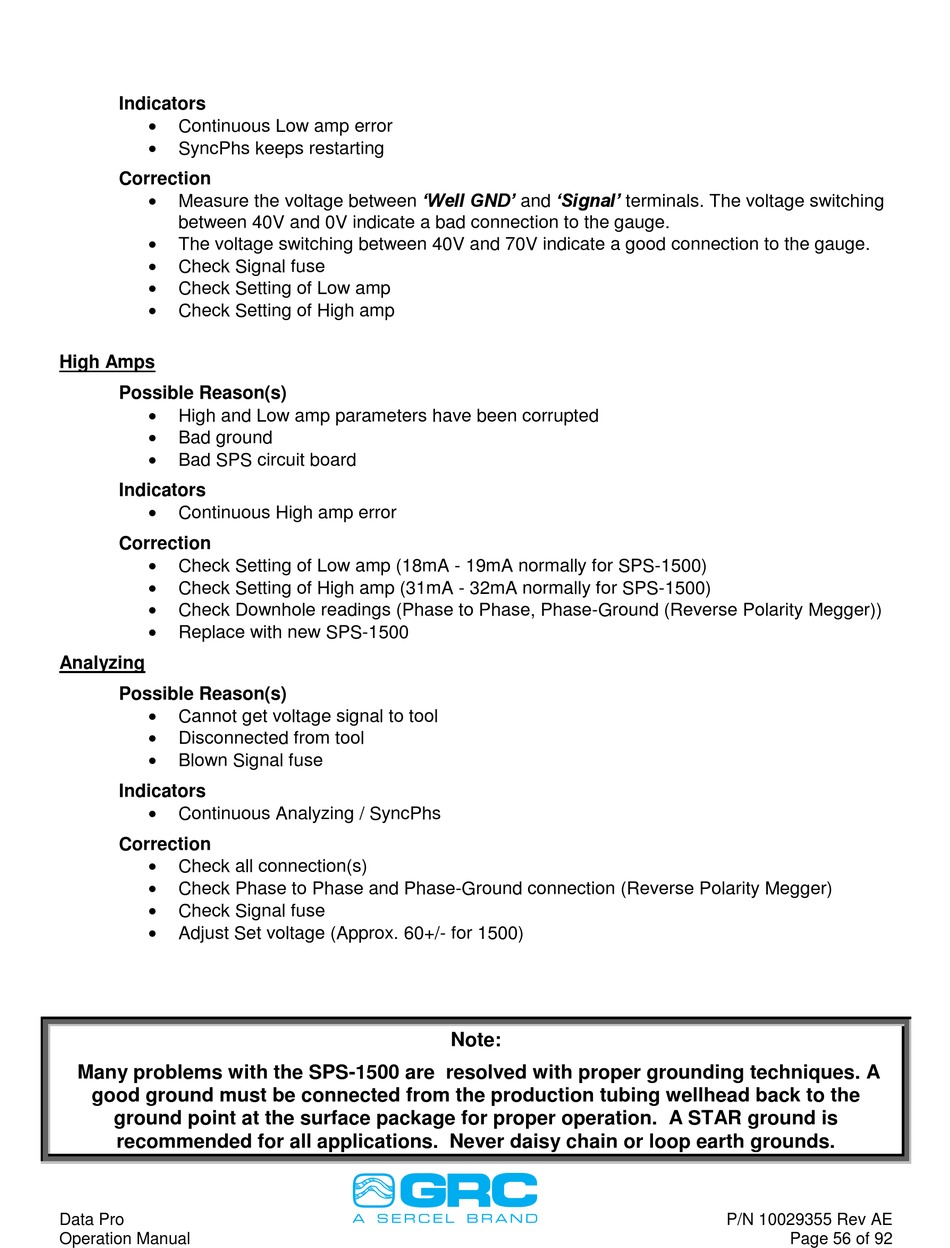

Indicators
Continuous Low amp error
SyncPhs keeps restarting
Correction
Measure the voltage between 'Well GND' and 'Signal' terminals. The voltage switching
between 40V and 0V indicate a bad connection to the gauge.
The voltage switching between 40V and 70V indicate a good connection to the gauge.
Check Signal fuse
Check Setting of Low amp
Check Setting of High amp
High Amps
Possible Reason(s)
High and Low amp parameters have been corrupted
Bad ground
Bad SPS circuit board
Indicators
Continuous High amp error
Correction
Check Setting of Low amp (18mA - 19mA normally for SPS-1500)
Check Setting of High amp (31mA - 32mA normally for SPS-1500)
Check Downhole readings (Phase to Phase, Phase-Ground (Reverse Polarity Megger))
Replace with new SPS-1500
Analyzing
Possible Reason(s)
Cannot get voltage signal to tool
Disconnected from tool
Blown Signal fuse
Indicators
Continuous Analyzing / SyncPhs
Correction
Check all connection(s)
Check Phase to Phase and Phase-Ground connection (Reverse Polarity Megger)
Check Signal fuse
Adjust Set voltage (Approx. 60+/- for 1500)
Many problems with the SPS-1500 are resolved with proper grounding techniques. A
good ground must be connected from the production tubing wellhead back to the
ground point at the surface package for proper operation. A STAR ground is
recommended for all applications. Never daisy chain or loop earth grounds.
Data Pro
Operation Manual
Note:
P/N 10029355 Rev AE
Page 56 of 92
