Panel PC Jumper Placement on 'SD Boot'
5.0

Power Up


If the Data Pro is AC powered, set the panel "On/Off" switch to "On".

If the Data Pro is DC powered, turn on the DC power supply.

On the Data Pro, set the panel "On/Off" button to "On".

On power up, the system takes approximately 45 seconds to perform the boot-up process
and start the software application.

If the Data Pro is acting as a Modbus master with no gauge control, you should start seeing
data tabs for all connected devices within a few seconds.

If the Data Pro is using an FIC gauge interface, it will take approximately 1.5 minutes to
complete the power up process during which time a tab for each FIC will appear showing
the boot up status.

If the Data Pro is using an SPS gauge interface, it will take approximately 3 minutes to
complete the power up process during which time a tab for the SPS will appear showing the
boot up status
Data Pro – Start Up Screen
6.0
The startup screen shown in Figure 7 displays peripheral data in the first tab and gauge data in
subsequent tabs. The software performs the following key operational functions:

Logs gauge and I/O data.

Displays real-time and historical gauge and I/O data.
Data Pro
Operation Manual
Orientation of Ribbon cable
observed by Red Strip

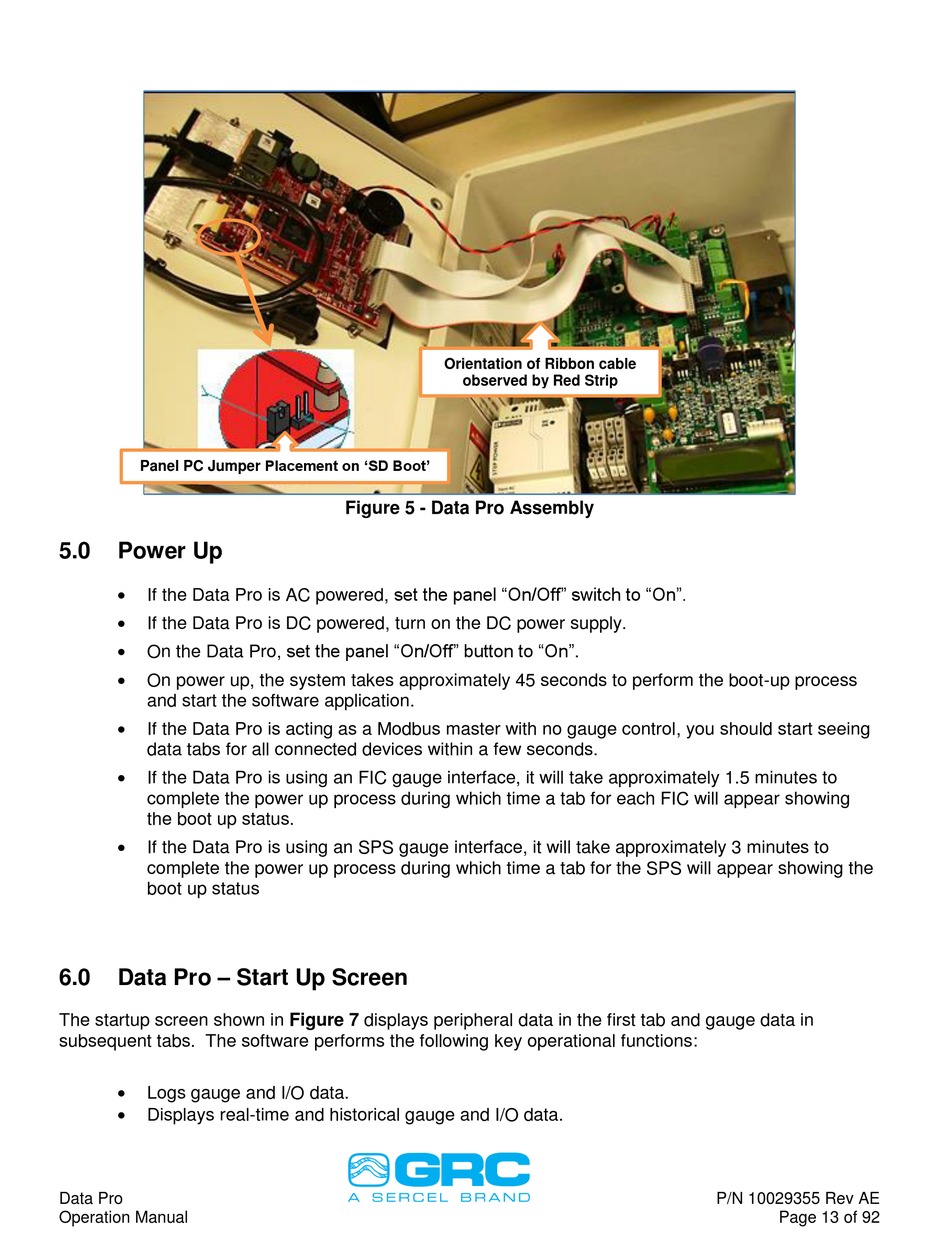

Figure 5 - Data Pro Assembly
P/N 10029355 Rev AE
Page 13 of 92
