8.1.7

Enabled

This field indicates whether the device is active or not.
8.1.8

Import Button

This button loads a saved or imported Modbus configuration file from the USB drive for the Data Pro
and replaces all current configurations and device settings including the maps.

8.2 Modbus Device Tab

This tab allows editing of the current selected device on the "Devices" tab. The "Up" and "Dn" buttons
allow the user to navigate up and down the list of devices from the "Devices" tab without having to
switch between tabs. The "Add" and "Del" buttons will add or remove devices from the "Devices" tab.
See important items to note below:
1. If "COM" type is "TCP", then "Baud" will change to "IP Addr".
2. The load button will install a preconfigured map, or a new map from the front panel USB drive. The
difference between this button and the "Import" button are that the "Devices" tab only affects the
currently selected device.
Data Pro
Operation Manual

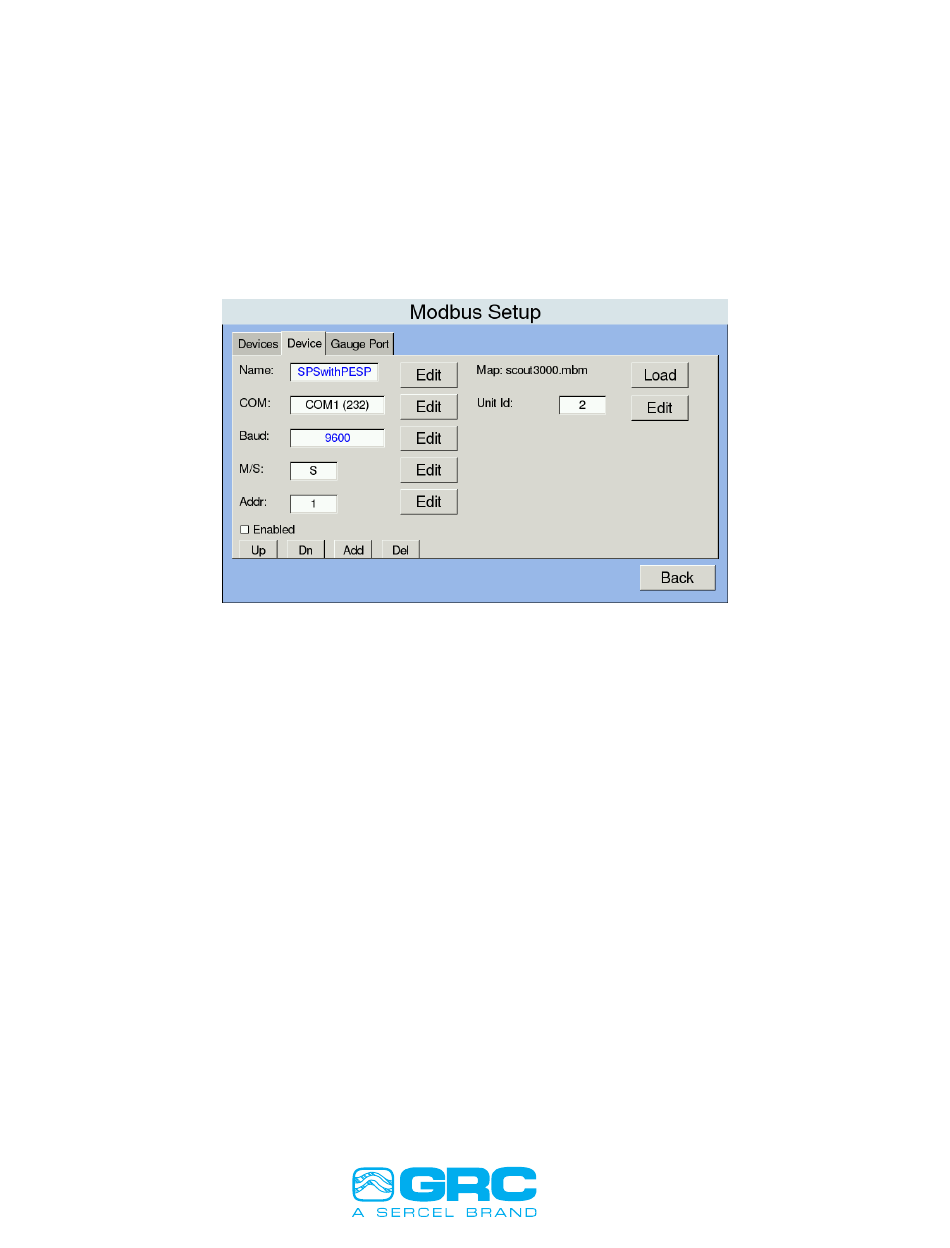

Figure 18 – Modbus Device Tab
