8.6.4

Config (SPS Configuration)

The SPS-1500 handles the communications between the Data Pro and the ESP downhole gauges. The
system does offer several configurable features that are useful during the gauge connection or
communication troubleshooting. Access to configurations via:
Menu  Interface Setup  Interface for Gauges Config
The user can access the long list of configurable features by clicking on 'Up' and 'Dn' buttons (Figure
38)

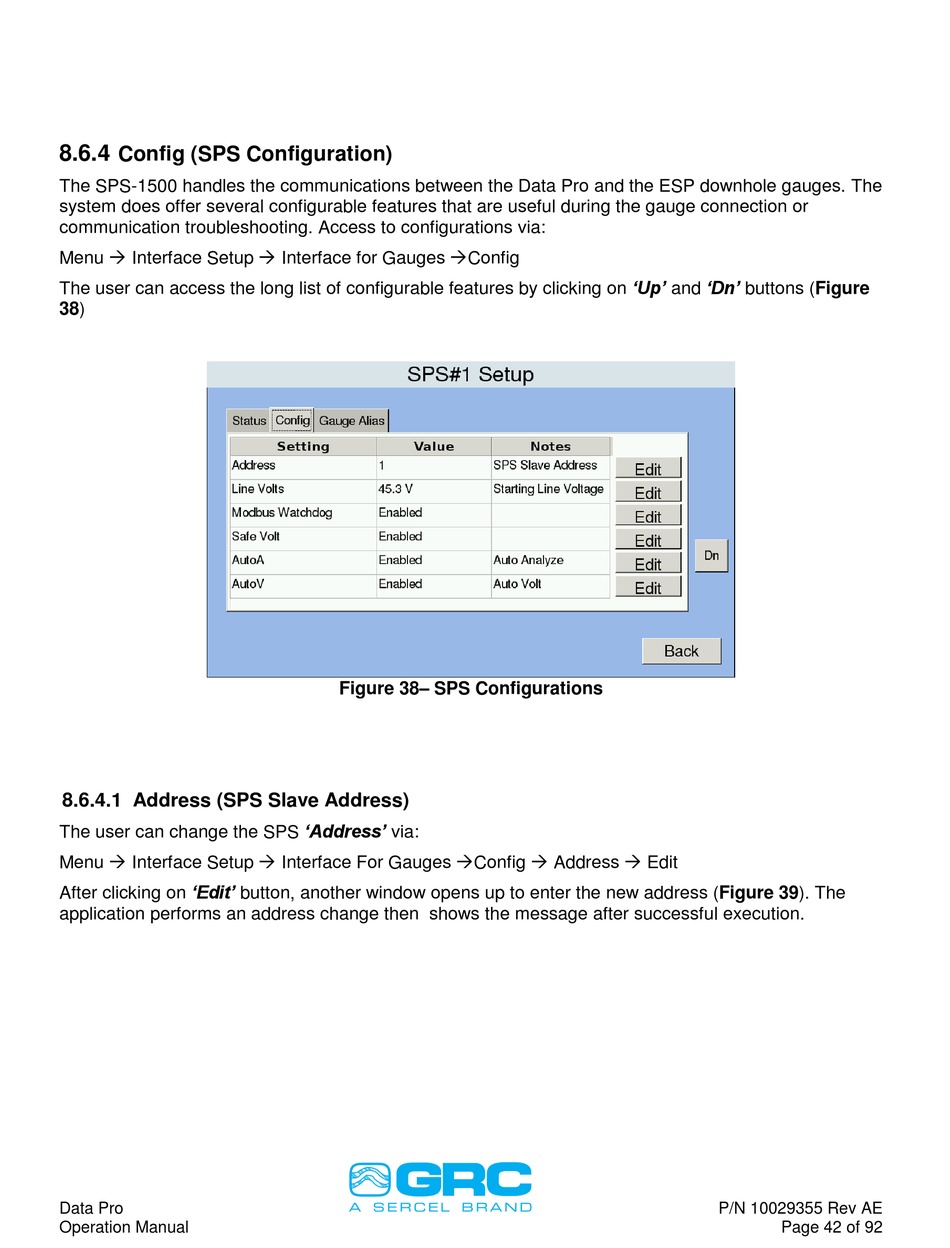

Figure 38– SPS Configurations
8.6.4.1 Address (SPS Slave Address)
The user can change the SPS 'Address' via:
Menu  Interface Setup  Interface For Gauges Config  Address  Edit
After clicking on 'Edit' button, another window opens up to enter the new address (Figure 39). The
application performs an address change then shows the message after successful execution.
