'4mA' and '20mA' selection windows display the selected channel name and channel reading to
assist the user while setting up the limits (Figure 21).
The 4-20mA configurations are saved automatically. The saved configurations are loaded after a
power cycle.. On the initial power up, the '4-20mA Out' readings on the main screen are
displayed '4mA' for the gauge parameters selection only for during FIC-1500/SPS-1500
initialization period. Once the scanning process is complete and gauge readings are available,
then '4-20mA Out' readings on the main screen will be true representation of the set '4mA' and
'20mA' limits.

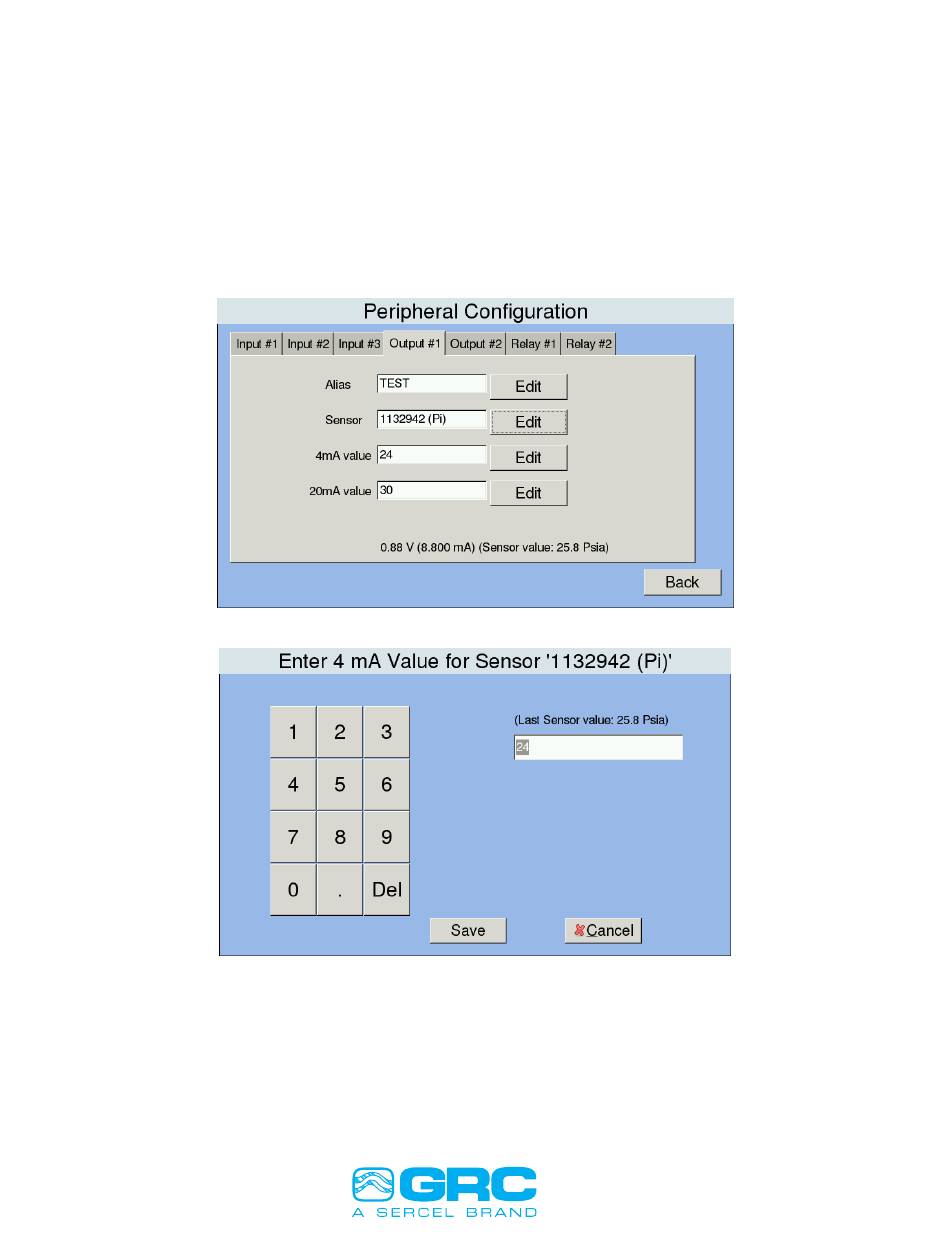

Figure 20 – Output Configuration
Figure 21 – Analog Output (4-20mA) Configuration
8.3.3

Relay #1 (Relay Configuration)

Each relay can have maximum of ten separate threshold conditions and the relay is triggered if anyone
out of ten set conditions become true (Figure 22).
After the relay trips, the main front screen shows the selected channel reading and tripped date and
time in red. Follow the menu steps below to configure the Relays (example is for Relay #1 only):
