Menu Button - Main Menu - Sercel GRC DATA PRO Operation Manual

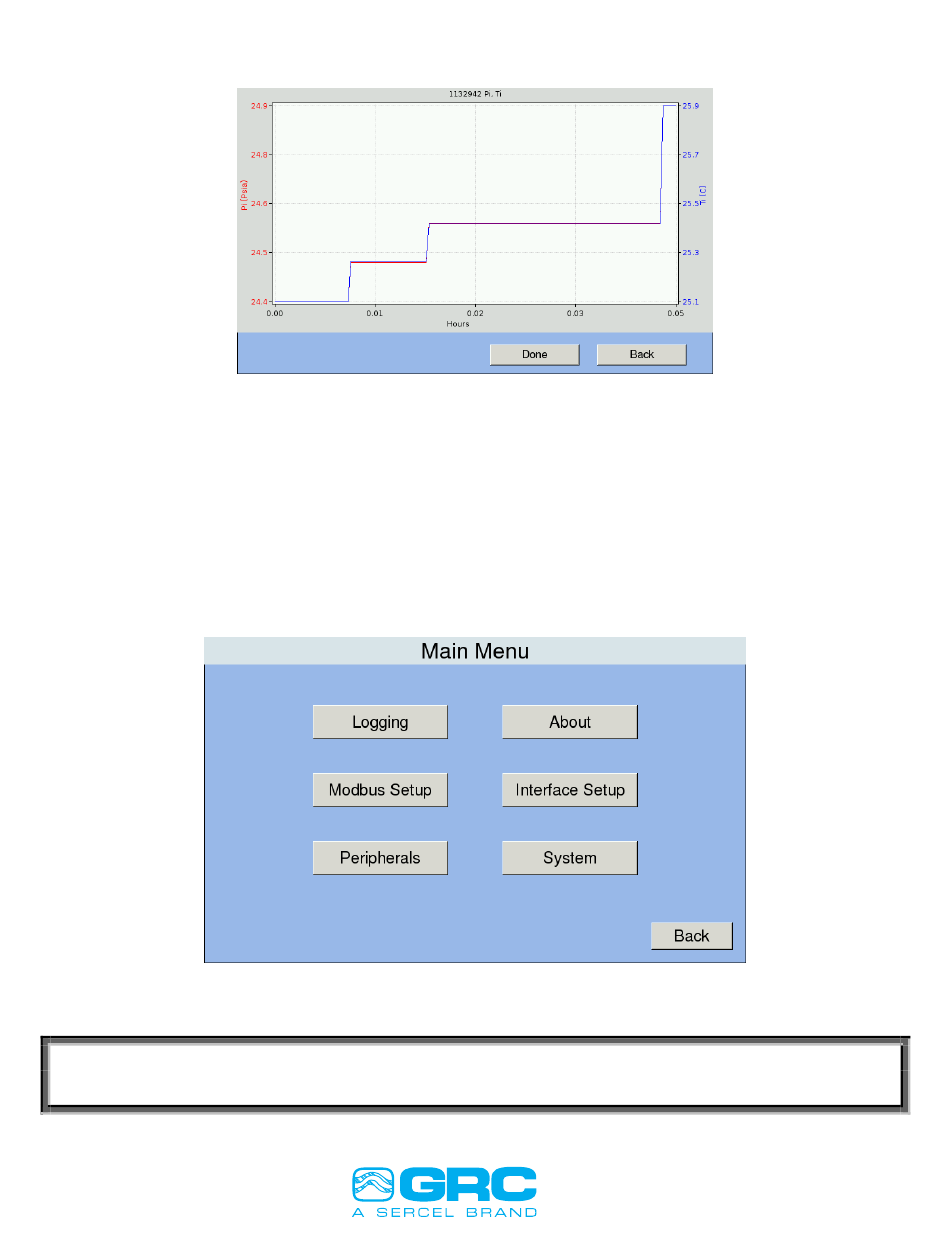

Figure 12 – Plot of Gauge Data
6.5 Menu Button – Main Menu
Clicking on the 'Menu' button from the start up screen in Figure 7 lets the user enter the Main Menu
screen with a password to protect the customer's configuration settings. The factory default password is
'1234'. The user is encouraged to change the password in the 'System' configuration menu. After
entering the password, the 'Main Menu' displays (see Figure 12).
NOTE: It is important not lose the new password as there is
no recovery method for the changed password.
Figure 13 - Main Menu Window
NOTE:
The factory default password to enter the Main Menu is '1234'.
Data Pro P/N 10029355 Rev AE
Operation Manual Page 19 of 92
