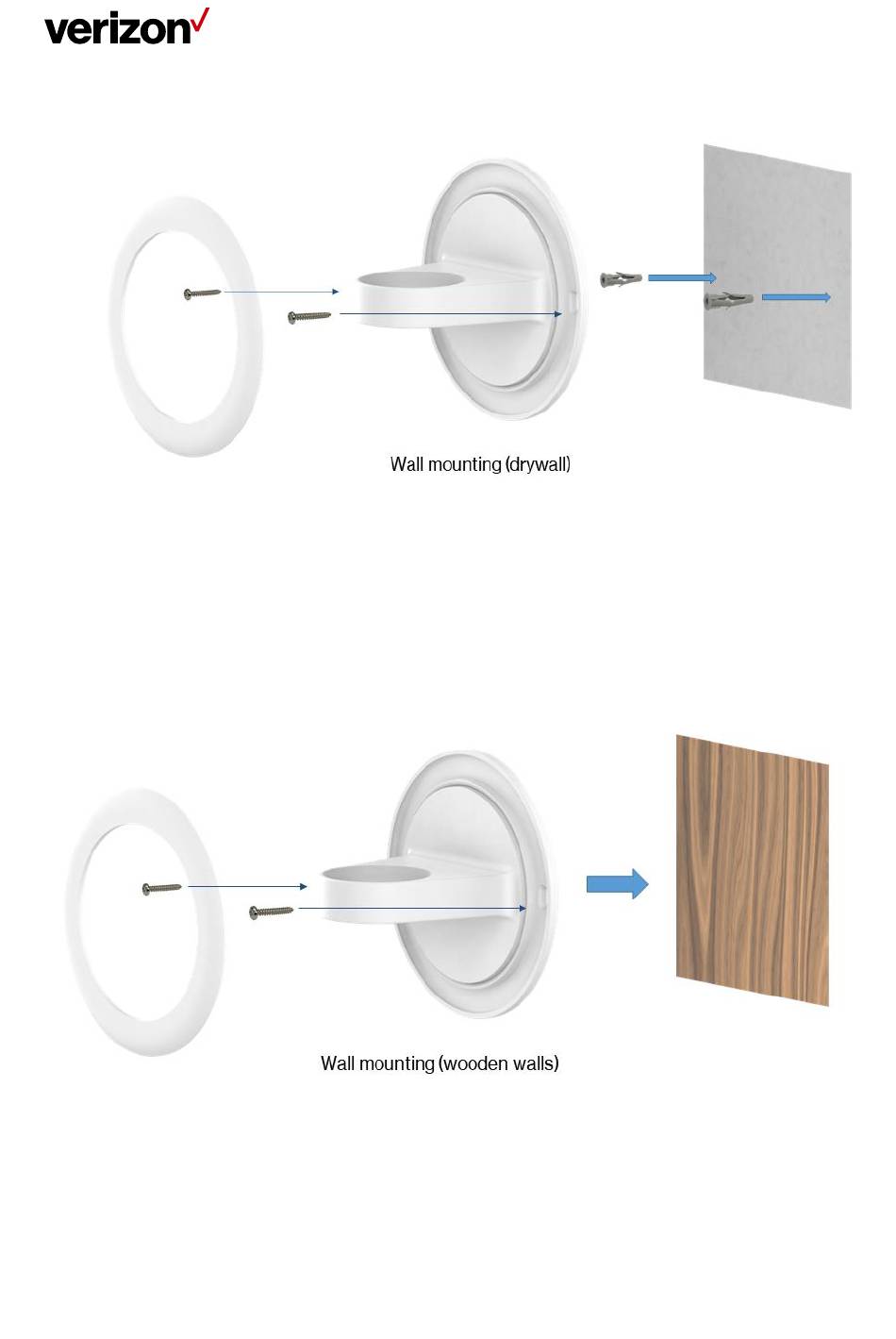

4. For installation on wooden walls, after completing the steps in item 2, use a power tool and slowly
screw the included metal screws into the marked points until the bracket is securely fastened.
Note: Do not install the mounting bracket onto slanted walls.
5. Once the bracket is securely fastened to the wall, align the mounting head on the Extender with
the installation slot on the bracket, then push down on the Extender to insert the mounting head
into the slot. Adjust the alignment of the Extender as required (make sure the raised nubs on the
mounting head fit into the dimple holes on the inside of the slot, and that the hole for the DC jack
is aligned with the hole for the AC adapter on the bottom of the slot).
