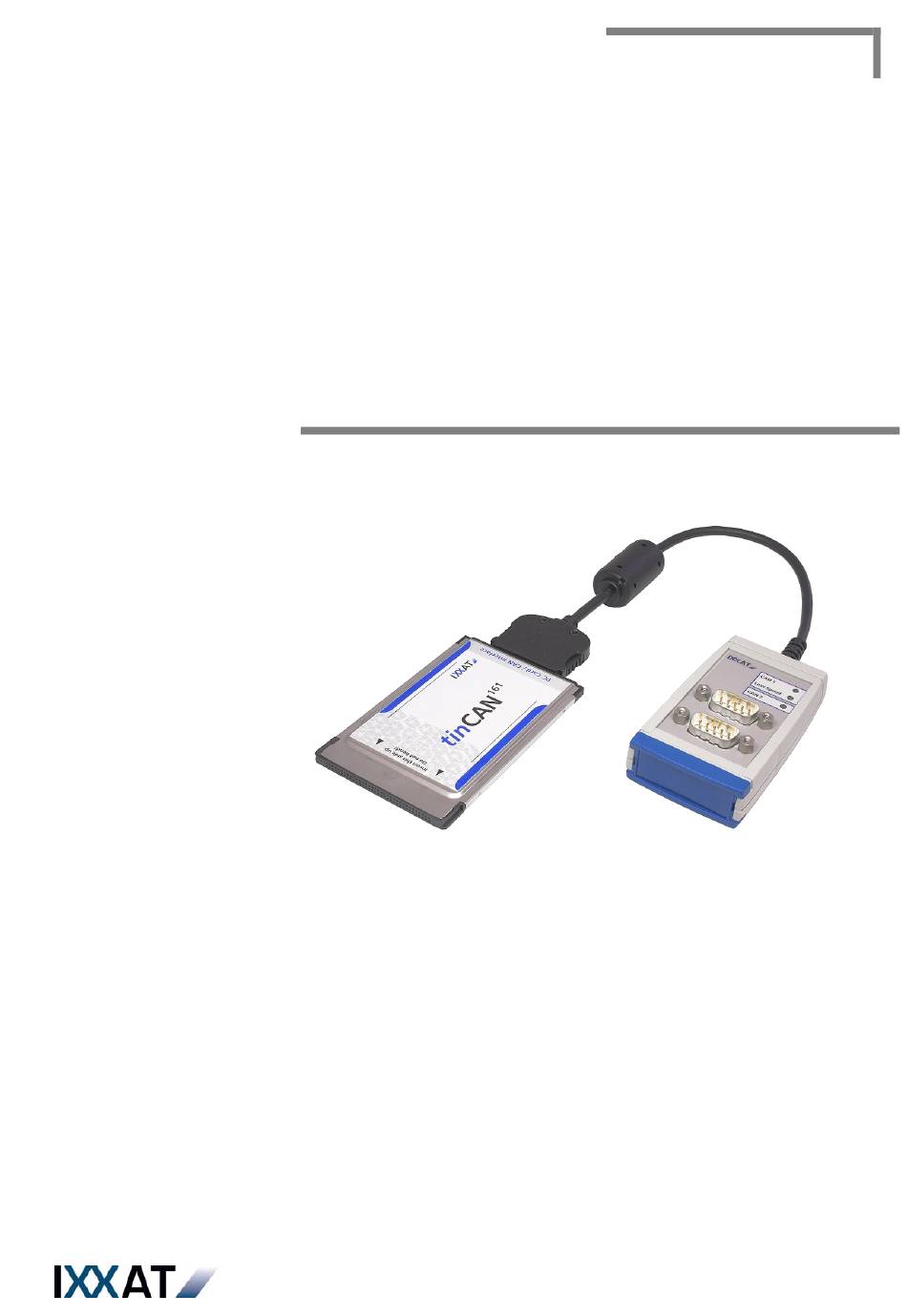

- Page 1 Hardware Manual tinCAN161 Intelligent PC/CAN Interface The expert for industrial and automotive communication...
- Page 2 Internet: www.ixxat.de Internet: www.ixxat.com e-Mail: info@ixxat.de e-Mail: sales@ixxat.com Support In case of unsolvable problems with this product or other IXXAT products please contact IXXAT in written form by: Fax: +49 (0)7 51 / 5 61 46-29 e-Mail: support@ixxat.de Copyright Duplication (copying, printing, microfilm or other forms) and the electronic distribution of this document is only allowed with explicit permission of IXXAT Automation GmbH.
-
Page 3: Table Of Contents
3.1 Memory range/Interrupt ............. 9 3.2 CAN bus interface ............... 9 Status LEDs ................11 4.1 Bootloader ................ 11 4.2 Standard mode (with IXXAT VCI driver) ......11 4.2.1 CAN1 / CAN2 LED ..............11 4.2.2 Low speed LED ...............11 Appendix..................12 Technical specifications............12 EC declaration of conformity .......... -
Page 5: Introduction
This manual is intended to familiarize you with your interface, also referred to in the following as tinCAN161. Please read this manual before beginning with the installation. Performance features •... -
Page 6: Block Diagram
(DPRAM, Flags, CIS) Flash 512KB Microcontroller Infineon C161 1. CAN 2. CAN controller controller SJA1000 SJA1000 RxCAN1 RxCAN2 TxCAN1 TxCAN2 15 pin plug tinCAN161 tinCAN161 bus interface ISO11989-2/-3 Fig. 1-1 Block diagram tinCAN161 Copyright IXXAT Automation GmbH tinCAN161 - Manual, Version 1.4... -
Page 7: Support
Support For more information on our products, FAQ lists and installation tips, please refer to the support section of our website (http://www.ixxat.de), which also contains information on current product versions and available updates. If you have any further questions after studying the information on our website and the manuals, please contact our support department. -
Page 8: Installation
For the installation of the CAN driver VCI under Windows, please refer to the VCI installation manual. Hardware installation Before you plug the tinCAN161 into the PCMCIA slot, install the software driver (see Section 2.1). Connect the tinCAN161 to the bus interface. For this the locking mechanism of the plug of the bus interface must be pressed (see Fig. -
Page 9: Configuration
Configuration 3 Configuration Memory range/Interrupt The tinCAN161 is fully configured by the driver using the data in the Card Infor- mation Structure (CIS). For operation with IXXAT software, no user interventions are necessary. CAN bus interface The bus interface of the tinCAN161 is housed in a separate housing (see also Fig. - Page 10 (high speed) Table 3-1 Pin allocation of high / low speed bus interface (CAN1) Pin no. Signal CAN_L (high speed) CAN_H (high speed) Table 3-2 Pin allocation of high-speed bus interface (CAN2) Copyright IXXAT Automation GmbH tinCAN161 - Manual, Version 1.4...
-
Page 11: Status Leds
LEDs behave as follows. Bootloader After plugging in the PCMCIA card, the bootloader of the tinCAN161 is active. In this case the three LEDs flash green with a frequency of approx. 2 Hz. Standard mode (with IXXAT VCI driver) 4.2.1 CAN1 / CAN2 LED... -
Page 12: Appendix
Notes on EMC In order to comply with the EC directive on electro-magnetic compatibility, the PCMCIA interface tinCAN161 may only be installed in a PC with a CE-symbol and an RF-shielded housing. All leads connected to the interface must have a shielded lead. -
Page 13: Ec Declaration Of Conformity
Appendix Declaration of conformity IXXAT Automation declares that the product: tinCAN161 Model: tinCAN161 with the article number: 1.01.0026.00020 complies with the EC-directive: 89/336/EEC 09.11.06, Dipl.-Ing. Christian Schlegel , Managing Director IXXAT Automation GmbH Leibnizstraße 15 88250 Weingarten Copyright IXXAT Automation GmbH...
