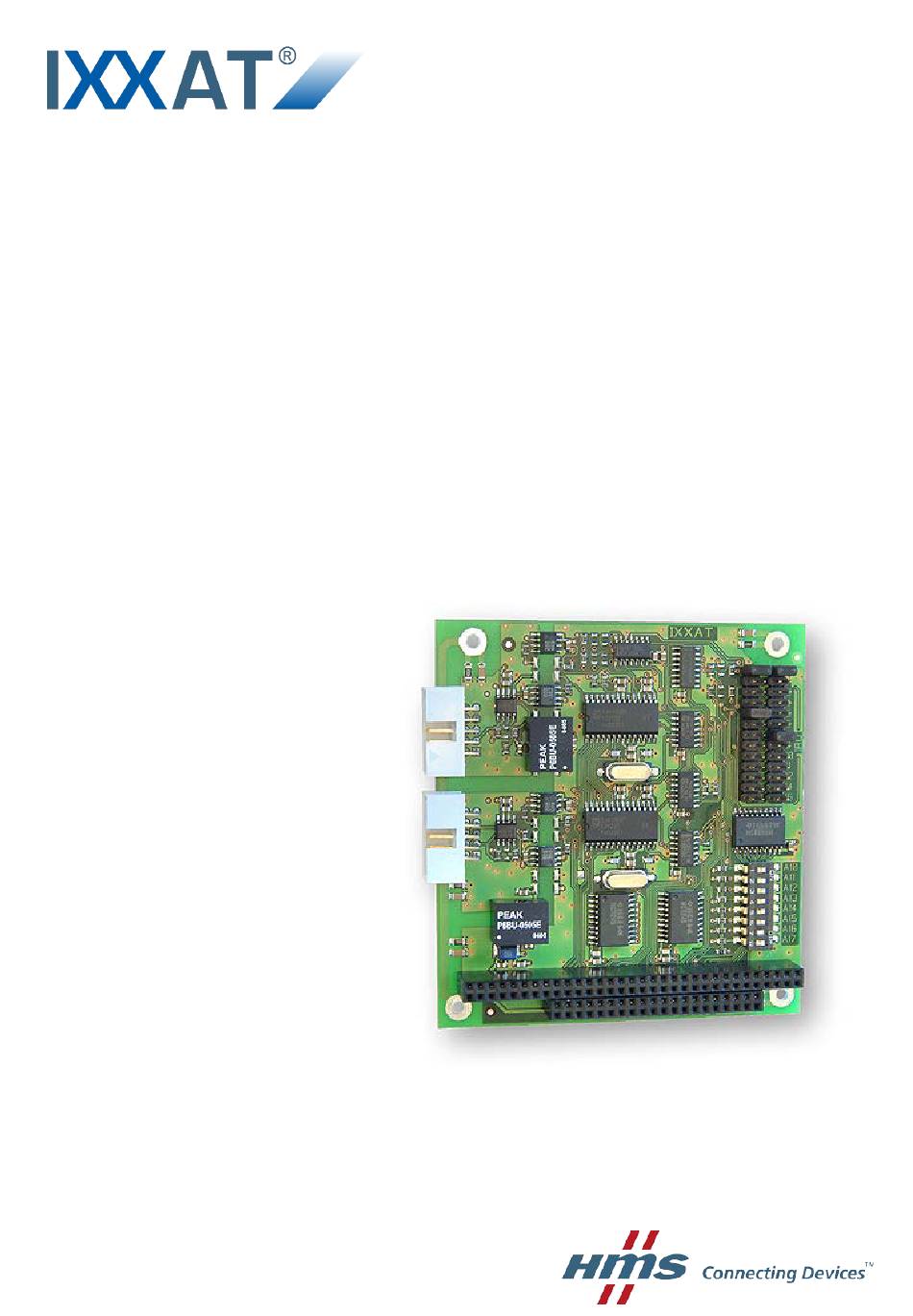

  • Page 1 PC-I 04/104 Passive PC/CAN Interface HARDWARE MANUAL ENGLISH...
  • Page 2 Internet: www.hms-networks.de E-Mail: info-ravensburg@hms-networks.de Support For problems or support with this product or other HMS products please request support at www.ixxat.com/support. Further international support contacts can be found on our webpage www.ixxat.com Copyright Duplication (copying, printing, microfilm or other forms) and the electronic distribution of this document is only allowed with explicit permission of HMS Technology Center Ravensburg GmbH.

  • Page 3: Table Of Contents

    4.2 Triggering an Interrupt on the PC ........13 Appendix ..................... 14 Appendix A – Technical Specifications ........14 Appendix B – Default settings ............ 15 Appendix C – Sources of data sheets ........15 Declaration of conformity ............16 PC-I 04/104 Manual, Version 2.7...

  • Page 5: Introduction

    This manual is intended to familiarize you with your interface, also referred to in the following as PC-I 04/104. Please read this manual before beginning with the installation. 1.2 Features The main technical features are as follows: •...

  • Page 6: Returning Hardware

    Make sure the interface sits tightly in the PC. Close the PC; the hardware installation is now complete. 3 Configuration 3.1 Jumper Settings Figure 3-1 shows the positions of the connectors, DIP switches and jumpers on the interface. PC-I 04/104 Manual, Version 2.7...

  • Page 7: Setting The Basic Address

    Configuration Fig. 3-1: PC-I 04/104 interface; jumpers, DIP switches and connectors, assembly side 3.1.1 Setting the Basic Address The DIP switches A10 to A17 are used to set the basic address. The following table 3-1 shows which addresses are decoded for this with the aid of the example address D8C00h.
  • Page 8 C4000h C5000h C6000h C7000h C8000h C9000h CA000h CB000h CC000h CD000h CE000h CF000h D0000h (def.) D1000h D2000h D3000h D4000h D5000h D6000h D7000h D8000h D8400h D8800h D8C00h D9000h DA000h DB000h DC000h DD000h DE000h DF000h E0000h E1000h E2000h PC-I 04/104 Manual, Version 2.7...
  • Page 9 F8000h F9000h FA000h FB000h FC000h FD000h FE000h FF000h FF400h FF800h FFC00h Caution: The address range of the interface must not overlap with any other system components in the PC! Table 3-2: Setting the basic address PC-I 04/104 Manual, Version 2.7...

  • Page 10: Setting The Pc Interrupt

    (see PC/104 specification Appendix C.3). A 1 k Ohm resistor can be connected via JP14 (CAN1) or JP20 (CAN2). If this trigger type is used with a PC-I 04/104 interface equipped with two CAN controllers, this means that either jumper JP14 or JP20 is to be closed.

  • Page 11: Providing Power Supply Via Can Connector

    With galvanically isolated bus interfaces, GND and VCC are also galvanically isolated from the power supply of the PC. Fig. 3-2: Soldered jumpers of the PC-I 04/104 interface, back 3.2 Design of the CAN Connectors Two separate high-speed bus interfaces according to ISO 11898-2 can be mounted on the interface.

  • Page 12: Connection Of The Bus Interface

    PC. 3.3 Bus Termination Bus termination resistors are assembled on the PC-I 04/104 board for the first and second CAN lines with 120 Ohms each, which can be connected for the first CAN line via the soldered jumper JP5 and for the second CAN line with JP4 (see Fig.

  • Page 13: Architecture

    0100h 1.CAN-Controller 0000h + Basisadresse Fig. 4-1: PC memory allocation of the PC-I 04/104 4.1.1 Access to CAN Controllers Up to two CAN controllers either of type Philips SJA1000 can be assembled on the interface. The first CAN controller is displayed in the range from 0000h to 00FFh, the second CAN controller in the range from 0200h to 02FFh plus basic address of the board.

  • Page 14: Appendix

    Appendix Appendix Appendix A – Technical Specifications The following specifications refer to the version of the PC-I 04/104 with two Philips SJA1000 CAN controllers and separate bus interfaces. Dimensions: 90 x 96 mm (without header), 10 mm overall height (without PC/104...

  • Page 15: Appendix B - Default Settings

    JP12 1-2 & JP15 2-3 (ISA mode) Interrupt mode CAN line 2: JP13 1-2 & JP21 2-3 (ISA mode) Appendix C – Sources of data sheets CAN controller Philips SJA1000: www.semiconductors.philips.com CAN transceiver Texas Instruments SN65HVD251: www.ti.com PC/104 specification: www.pc104.org PC-I 04/104 Manual, Version 2.7...

  • Page 16: Declaration Of Conformity

    EC directives 2004/108/EC. Applied harmonized standards in particular: EN 55022:2006 + A1:2007 EN 55024:1998 + A1:2001 + A2:2003 23.08.2011, Dipl.-Ing. Christian Schlegel, Managing Director IXXAT Automation GmbH Leibnizstrasse 15 88250 Weingarten PC-I 04/104 Manual, Version 2.7...
