Summary of Contents for IXXAT iPC-I XC16/PCI

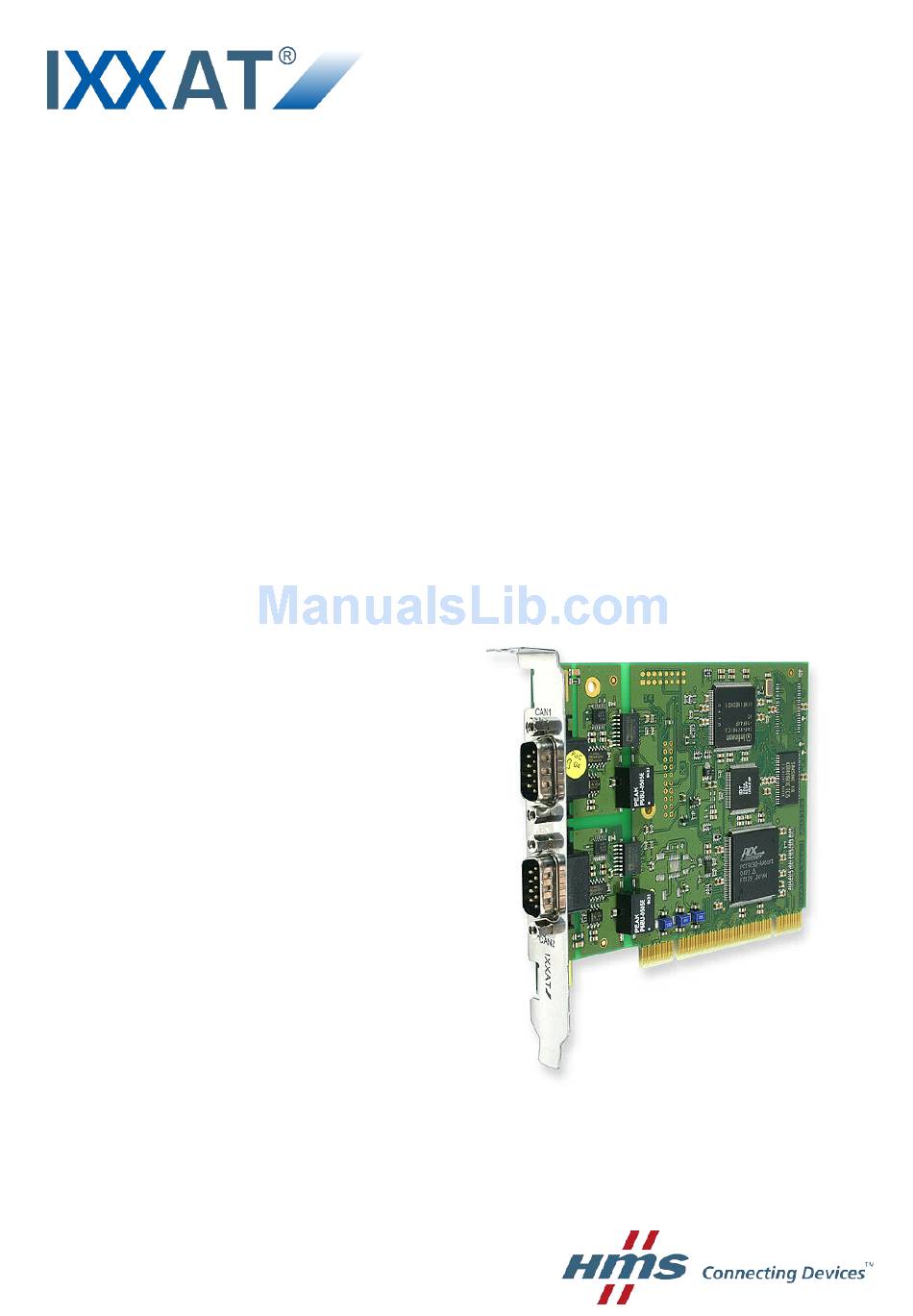

- Page 1 XC16/PCI Intelligent PC/CAN Interface USER MANUAL ENGLISH...
- Page 2 Internet: www.hms-networks.de E-mail: info-ravensburg@hms-networks.de Support For problems or support with this product or other HMS products please request support at www.ixxat.com/support. Further international support contacts can be found on our webpage www.ixxat.com Copyright Duplication (copying, printing, microfilm or other forms) and the electronic distribution of this document is only allowed with explicit permission of HMS Technology Center Ravensburg GmbH.
-
Page 3: Table Of Contents
5.3 Note on Disposal of Used Devices ........10 5.4 Technical Specifications ............12 5.5 Accessories ................13 CAN Bus Termination Resistor ............13 5.6 FCC Compliance ..............13 5.7 EC Declaration of Conformity ..........14 iPC-I XC16/PCI - Manual, V1.5... -
Page 5: Introduction
The PC-CAN interface iPC-I XC16/PCI is a powerful electronic component, developed and manufactured in accordance with the latest technological standards. This manual is intended to familiarize you with your iPC-I XC16/PCI interface. Please read this manual before beginning with installation. -
Page 6: Installation
For installation of the VCI driver under Windows, please refer to the VCI installation manual. 2.2 Hardware Installation Before inserting the iPC-I XC16/PCI in the PCI slot, you should install the software driver (see previous section). For all work on the PC and interface, you must be statically discharged. Work must be carried out on an earthed, anti-static work mat. - Page 7 CAN bus. Pin no. Signal CAN-low (fault tolerant), (only automotive version) CAN-low CAN-high (fault tolerant), (only automotive version) Not connected Not connected CAN-high Not connected Not connected Table 3-1: Pin assignment of the CAN bus connection iPC-I XC16/PCI - Manual, V1.5...
-
Page 8: Pci Bus Connection
The assignment of the PCI connector is designed in accordance with the PCI specification 2.2. The iPC-I XC16/PCI can be operated both in a 3.3 V and in a 5 V PCI signal environment. The maximum PCI bus frequency with which the interface can be operated is 33 MHz. -
Page 9: Firmware Update
The VCI can be operated with this firmware. If you require different firmware (e.g. for the CANopen Master API, BCI etc.) or an update of the UCI firmware becomes necessary, you can download the necessary files and tools in the download section of our website. iPC-I XC16/PCI - Manual, V1.5... -
Page 10: Appendix
5.1 Support For more information on our products, FAQ lists and installation tips, please refer to the support section of our website (http://www.ixxat.de), which also contains information on current product versions and available updates. If you have any further questions after studying the information on our website and the manuals, please contact our support department. - Page 11 The Terms of Sale and their supplements as well as further information on the disposal of used devices can be downloaded from www.ixxat.com. iPC-I XC16/PCI - Manual, V1.5...
-
Page 12: Technical Specifications
123 x 90 mm Weight: approx. 87 g Working temperature range: -20°C to +70°C Storage temperature range: -40°C to +85°C Relative humidity: 10 - 95%, non-condensing Galvanic isolation: 1000 V DC between CAN bus and internal logic iPC-I XC16/PCI - Manual, V1.5... -
Page 13: Accessories
Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. iPC-I XC16/PCI - Manual, V1.5... -
Page 14: Ec Declaration Of Conformity
EC directives 2004/108/EC. Applied harmonized standards in particular: EN 55022:2006 + A1:2007 EN 55024:1998 + A1:2001 + A2:2003 22.08.11, Dipl.-Ing. Christian Schlegel, Managing Director IXXAT Automation GmbH Leibnizstrasse 15 88250 Weingarten iPC-I XC16/PCI - Manual, V1.5...
