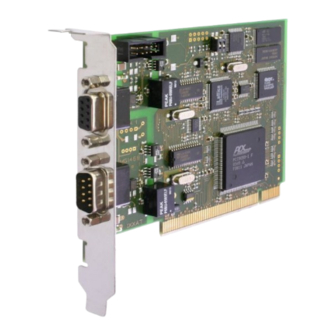

- Page 1 Hardware Manual iPC-I 320/PCI II Intelligent PC/CAN Interface The expert for industrial and automotive communication...
- Page 2 Internet: www.ixxat.de Internet: www.ixxat.com e-Mail: info@ixxat.de e-Mail: sales@ixxat.com Support In case of unsolvable problems with this product or other IXXAT products please contact IXXAT in written form by: Fax: +49 (0)7 51 / 5 61 46-29 e-Mail: support@ixxat.de Copyright Duplication (copying, printing, microfilm or other forms) and the electronic distribution of this document is only allowed with explicit permission of IXXAT Automation GmbH.
-
Page 3: Table Of Contents
3.2 CAN bus terminal .............. 11 Appendix...................12 4.1 Technical Data ..............12 4.2 Accessories ................ 13 4.2.1 CAN bus terminal resistor............13 4.3 FCC Compliance ..............13 4.4 EC Declaration of Conformity........... 14 Copyright IXXAT Automation GmbH iPC-I 320/PCI II - Manual, Version 1.0... -
Page 5: Introduction
The aim of this manual is to help you familiarize yourself with your interface, also referred to in the following as iPC-I 320/PCI II. Please read this manual before be- ginning with the installation. -
Page 6: Support
Support For more information on our products, FAQ lists and installation tips, please refer to the support section of our website (http://www.ixxat.de), which also contains information on current product versions and available updates. If you have any further questions after studying the information on our website and the manuals, please contact our support department. -
Page 7: Block Diagram
S P I T xD R xD C A N H ig h C A N B us C A N L ow Fig. 1-1: Block diagram iPC-I 320/PCI II Copyright IXXAT Automation GmbH iPC-I 320/PCI II - Manual, Version 1.0... -
Page 8: Installation
For installation of the VCI driver under Windows, please refer to the VCI installa- tion manual. Hardware installation Before inserting the iPC-I 320/PCI II in the PCI slot, you should install the software driver (see previous section). For all work on the PC and interface, you must be statically discharged. Work must be carried out on an earthed, anti-static work mat. -
Page 9: Configuration
3.1.1 CAN bus connection One (common) or two high-speed bus transceivers according to ISO/IS 11898-2 may be present on the iPC-I 320/PCI II interface. The signals of the first bus trans- ceiver connect with the 9-pin sub-D pin/bush X501/X502. If two isolated bus transceivers are assembled, the signals for the CAN bus of the second bus trans- ceiver connect with the header X601. - Page 10 CAN line is showed in the following table: Pin no. X601 Signal Not connected Not connected CAN-Low_1 CAN-High_1 GND/GND_2 Not connected Not connected Not connected Not connected Not connected Table 3-2: Pin assignment of X601 Copyright IXXAT Automation GmbH iPC-I 320/PCI II - Manual, Version 1.0...
-
Page 11: Pci Bus Connection
The assignment of the PCI connector is designed in accordance with the PCI specification 2.2. The iPC-I 320/PCI II can be operated in a 5 V PCI signal envi- ronment. The maximum PCI bus frequency with which the interface can be oper- ated is 33 MHz. -
Page 12: Appendix
CAN approx. 128 g Working temperature range: 0 - 70 °C Storage temperature range: -40 °C .. +85 °C Relative humidity: 10 - 95 %, non-condensing Copyright IXXAT Automation GmbH iPC-I 320/PCI II - Manual, Version 1.0... -
Page 13: Accessories
Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are de- signed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, Copyright IXXAT Automation GmbH iPC-I 320/PCI II - Manual, Version 1.0... -
Page 14: Ec Declaration Of Conformity
This declaration applies to all devices bearing the CE symbol and loses its validity if modifications are made to the product. 2006.06.23, Dipl.-Ing. Christian Schlegel Managing Director of IXXAT Automation GmbH Copyright IXXAT Automation GmbH iPC-I 320/PCI II - Manual, Version 1.0...
