Summary of Contents for IXXAT PC-I 03

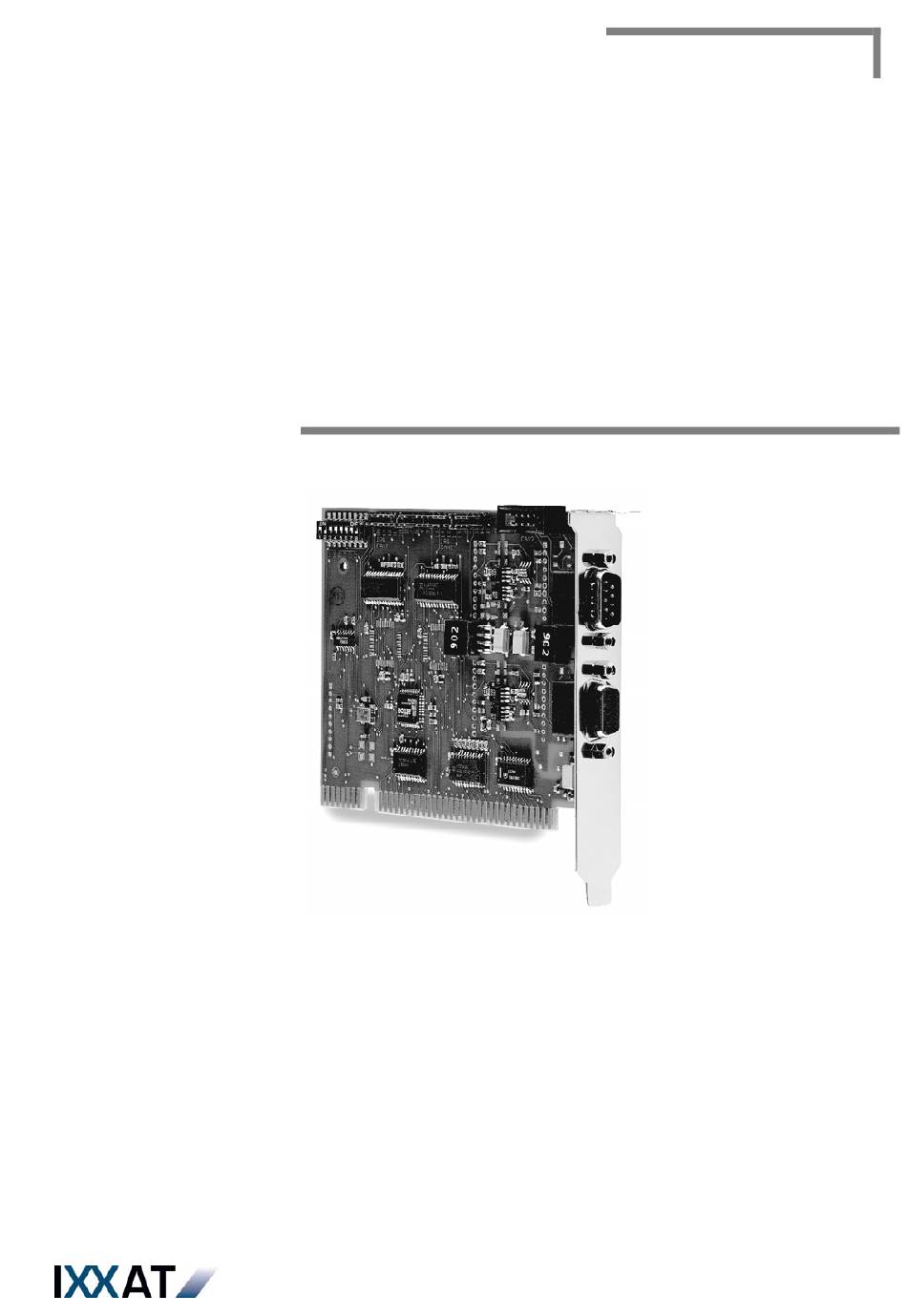

  • Page 1 Hardware Manual PC-I 03 Passive PC/CAN Interface The expert for industrial and automotive communication...
  • Page 2 Internet: www.ixxat.de Internet: www.ixxat.com e-Mail: info@ixxat.de e-Mail: sales@ixxat.com Support In case of unsolvable problems with this product or other IXXAT products please contact IXXAT in written form by: Fax: +49 (0)7 51 / 5 61 46-29 e-Mail: support@ixxat.de Copyright Duplication (copying, printing, microfilm or other forms) and the electronic distribution of this document is only allowed with explicit permission of IXXAT Automation GmbH.
  • Page 3: Table Of Contents

    4.1.2 Resetting the CAN controllers from the PC .........14 4.2 Triggering an interrupt on the PC ........14 5 Notes for programmers..............15 Appendix..................16 Technical specifications ..............16 Factory settings ................16 References for data sheets ............17 Copyright IXXAT Automation GmbH PC-I 03 - Manual, Version 3.2...
  • Page 5: Introduction

    The manual describes, among other things, the hardware architecture of the interface, knowledge of which is required for creating your own drivers. If using the interface with the IXXAT driver VCI or other IXXAT software, you do not need to read sections 4 and 5.
  • Page 6: Installation

    (7) Close the PC; the hardware installation is now complete. 2.2 Software installation A driver is required to operate the interface. For installation of the CAN driver VCI under Windows, please refer to the VCI installation manual. Copyright IXXAT Automation GmbH PC-I 03 - Manual, Version 3.2...
  • Page 7: Configuration

    Configuration 3 Configuration 3.1 Jumper settings Figure 3-1 shows the positions of the connectors and jumpers on the interface. Fig. 3-1: Positions of the connectors and jumpers Copyright IXXAT Automation GmbH PC-I 03 - Manual, Version 3.2...
  • Page 8: Setting The Basic Address

    C300h C400h C500h C600h C700h C800h C900h CA00h CB00h CC00h CD00h CE00h CF00h D000h (def.) D100h D200h D300h D400h D500h D600h D700h D800h D900h DA00h DB00h DC00h DD00h DE00h DF00h Copyright IXXAT Automation GmbH PC-I 03 - Manual, Version 3.2...
  • Page 9 F300h F400h F500h F600h F700h F800h F900h FA00h FB00h FC00h FD00h FE00h FF00h The address range of the interface must not overlap with any other system components in the PC. Copyright IXXAT Automation GmbH PC-I 03 - Manual, Version 3.2...
  • Page 10: Setting The Pc Interrupt

    VCC or GND can be connected to the 9-pin Sub-D connector/socket with the soldered jumpers JP3, JP4, JP5, JP32, JP33 and JP36. For this the jumpers listed in the following table must be closed. The soldered jumpers are located on the back of the PC-I 03. Connector board pin...
  • Page 11: Connection Of The Bus Interface

    The signals of the first bus interface are connected to the 9-pin Sub-D connec- tor/socket. Pin no. Pin no. Signal name JP15 Sub-D-9 n.c. CAN-Low GND (via JP3/JP32) n.c. n.c. GND (via JP5/JP33) CAN-High n.c. VCC (via JP4/JP36) Copyright IXXAT Automation GmbH PC-I 03 - Manual, Version 3.2...
  • Page 12: Connection Between Can Controllers And Bus Interfaces

    The signals of the CAN controllers 1 and 2 are connected to JP14 and JP24 respectively. Pin no. Signal JP14/JP24 n.c. RX 0 RX 1 TX 1 TX 0 n.c. n.c. n.c. Copyright IXXAT Automation GmbH PC-I 03 - Manual, Version 3.2...
  • Page 13 JP25 connects the signals of the second bus interface to the header. Pin no. Signal JP25 n.c. CAN-Low GND (via JP3/JP32) n.c. n.c. GND (via JP5/JP33) CAN-High n.c. VCC (via JP4/JP36) n.c. Copyright IXXAT Automation GmbH PC-I 03 - Manual, Version 3.2...
  • Page 14: Architecture

    0100h 1.CAN-Controller 0000h (Base address) Fig. 4-1: PC-side memory allocation of the PC-I 03 4.1.1 Access to CAN controllers Up to two CAN controllers either of type Philips SJA1000 and/or Intel 82527 can be as- sembled on the interface. The first CAN controller is displayed in the range from 0000h to 00FFh, the second CAN controller in the range from 0200h to 02FFh from the basic address of the board.
  • Page 15: Notes For Programmers

    Notes for programmers 5 Notes for programmers For more details on programming the CAN controller and for example programs, visit the support area of our homepage (www.ixxat.de) or contact us via e-mail (support@ixxat.de). Copyright IXXAT Automation GmbH PC-I 03 - Manual, Version 3.2...
  • Page 16: Appendix

    DIN EN 61000-3-2:03.1996 DIN EN 61000-3-3:03.1996 DIN EN 50082-2:02.96 Factory settings The factory settings of the switches of the PC-I 03 are listed in the following. With spe- cial versions of the interface, individual settings may vary. Basic address: D000h...
  • Page 17: References For Data Sheets

    Appendix References for data sheets CAN-Controller Philips SJA1000: http://www.philips-semiconductors.com CAN-Transceiver Philips PCA82C251: http://www.philips-semiconductors.com CAN-Controller Intel 82527: http://www.intel.com Copyright IXXAT Automation GmbH PC-I 03 - Manual, Version 3.2...
