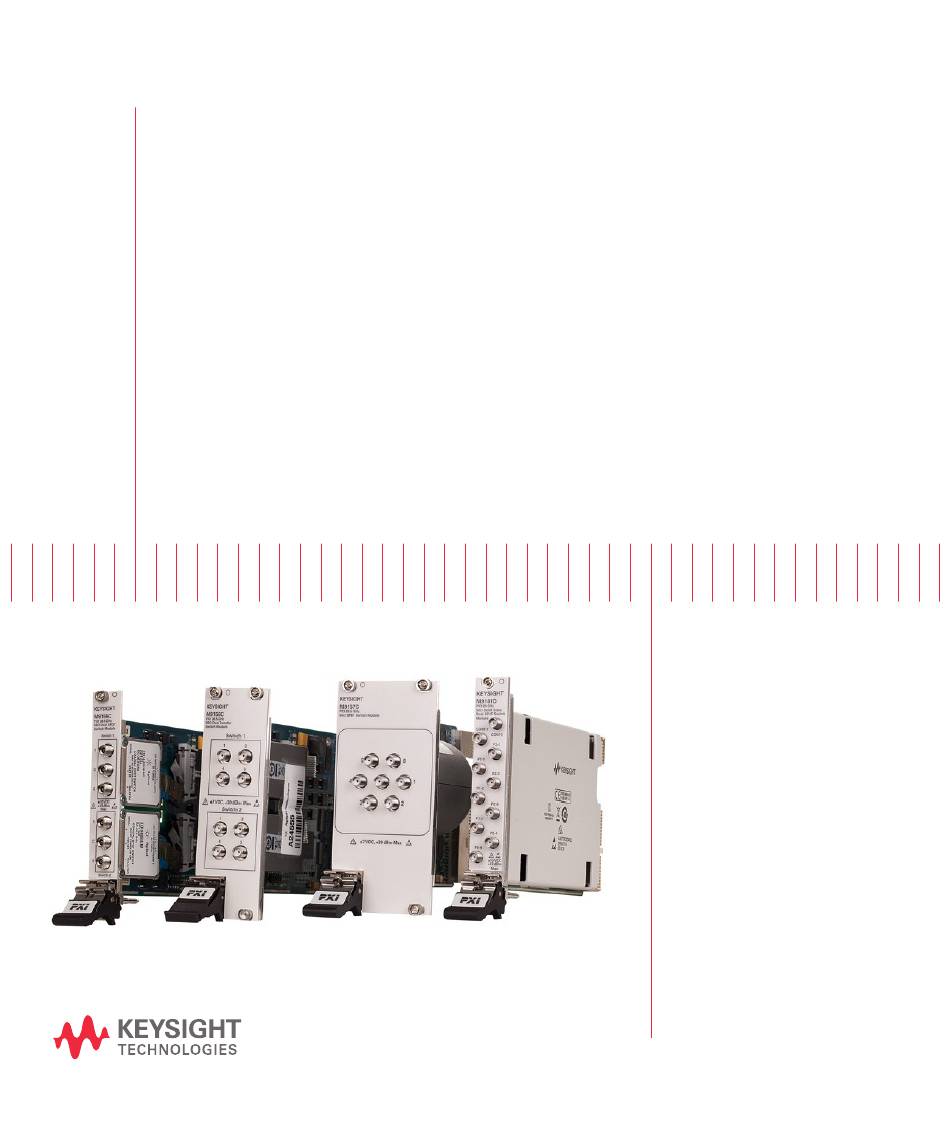

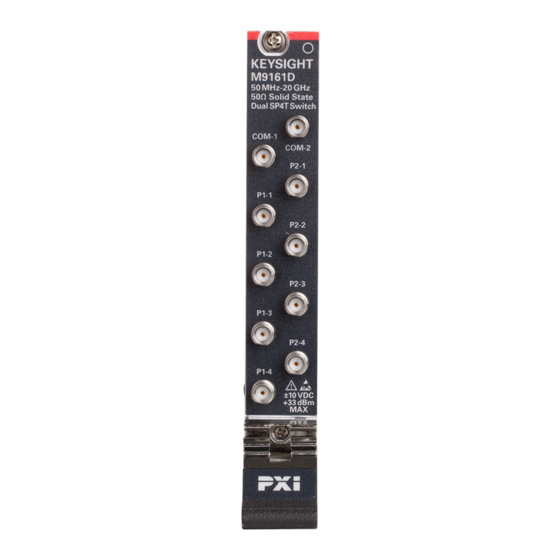

- Page 1 Keysight M9155/6/7C PXI Hybrid Coaxial Switch Module (DC to 26.5 GHz) and M9161D PXI Solid State Switch Module (50 MHz to 20 GHz) Startup and Service Guide...
- Page 2 TERMS IN THE SEPARATE www.keysight.com/find/PXIswitch agreement and written consent from AGREEMENT WILL CONTROL. (product-specific information and Keysight Technologies as governed by support, software and documentation Technology Licenses United States and international updates) copyright laws. The hardware and/or software www.keysight.com/find/assist...
-
Page 3: General Safety Information
General Safety Information The following safety precautions should be observed before using this product and any associated instrumentation. This product is intended for use by qualified personnel who recognize shock hazards and are familiar with the safety precautions required to avoid any possible injury. - Page 4 Most measurement, control, and data I/O signals are rated Measurement Category I and must not be directly connected to mains voltage or to voltage sources with high transient over-voltages. Measurement Category II connections require protection for high transient over-voltages often associated with local AC mains connections.
- Page 5 Do not touch any object that could provide a current path to the common side of the circuit-under-test or power line (earth) ground. Always make measurements with dry hands while standing on a dry, insulated surface capable of withstanding the voltage being measured. The instrument and accessories must be used in accordance with its specifications and operating instructions, or the safety of the equipment may be impaired.
-
Page 6: Front And Rear Panel Symbols
Front and Rear Panel Symbols ICES/NMB-001 indicates that this ISM device complies with the The CE mark is a registered trademark Canadian ICES-001. of the European Community. This CE Cet appareil ISM est conforme a la mark shows that the product complies norme NMB-001 du Canada. -
Page 7: Waste Electrical And Electronic Equipment (Weee) Directive 2002/96/ Ec
Waste Electrical and Electronic Equipment (WEEE) Directive 2002/ 96/EC This instrument complies with the WEEE Directive (2002/96/EC) marking requirement. This affixed product label indicates that you must not discard this electrical or electronic product in domestic household waste. Product category: With reference to the equipment types in the WEEE directive Annex 1, this instrument is classified as a “Monitoring and Control Instrument”... -
Page 8: Cleaning Precautions
Cleaning Precautions To prevent electric shock, disconnect the instrument from mains before WARNING cleaning. Use a dry cloth or one slightly dampened with water to clean the external case parts. Do not attempt to clean internally. To clean the connectors, use alcohol in a well-ventilated area. Allow all residual alcohol moisture to evaporate, and the fumes to dissipate prior to energizing the instrument. -
Page 9: Table Of Contents
Table of Contents General Safety Information ........3 Front and Rear Panel Symbols . - Page 10 THIS PAGE HAS BEEN INTENTIONALLY LEFT BLANK. Keysight M9155/6/7C and M9161D Startup and Service Guide...
- Page 11 List of Figures Figure 1-1 Keysight Connection Expert interface ... . .25 Figure 1-2 Launching the SFP from the Keysight Connection Expert Figure 1-3 M9155C SFP verification ..... . .27 Figure 1-4 M9156C SFP verification .
- Page 12 THIS PAGE HAS BEEN INTENTIONALLY LEFT BLANK. Keysight M9155/6/7C and M9161D Startup and Service Guide...
- Page 13 List of Tables Table 1-1 Product model description ..... .16 Table 1-2 System requirements ......20 Keysight M9155/6/7C and M9161D Startup and Service Guide...
- Page 14 THIS PAGE HAS BEEN INTENTIONALLY LEFT BLANK. Keysight M9155/6/7C and M9161D Startup and Service Guide...
- Page 15 Keysight M9155/6/7C and M9161D PXI switch module Startup and Service Guide Getting Started Introduction Step 1: Unpack and Inspect the M9155/6/7C and M9161D Step 2: Verify M9155/6/7C and M9161D Shipment Contents Step 3: Install the Software Step 4: Install the M9155/6/7C and M9161D Step 5: Verify the M9155/6/7C and M9161D Operation...
-
Page 16: Getting Started
Getting Started Introduction The scope of this Startup and Service Guide is to detail the processes of receiving and installing the M9155/6/7C PXI Hybrid Coaxial Switch Module (DC to 26.5 GHz) and M9161D PXI Solid State Switch Module (50 MHz to 20 GHz), installing the required software, and verifying basic module operations. -
Page 17: Step 1: Unpack And Inspect The M9155/6/7C And M9161D
Getting Started Step 1: Unpack and Inspect the M9155/6/7C and M9161D The M9155/6/7C and M9161D are shipped in materials that prevent static CAUTION damage to the modules. The modules should only be removed from the packaging in an anti-static area ensuring that correct anti-static precautions are taken. -
Page 18: Return For Service
Getting Started Information on preventing damage to your Keysight equipment can be found at NOTE www.keysight.com/find/tips. Return for service Should it become necessary to return the M9155/6/7C and M9161D for repair or service, follow these steps: 1 Review the warranty information shipped with your module. 2 Contact Keysight to obtain a Return Material Authorization (RMA) and return address. -
Page 19: Step 2: Verify M9155/6/7C And M9161D Shipment Contents
Getting Started Step 2: Verify M9155/6/7C and M9161D Shipment Contents The following items are included with your M9155/6/7C and M9161D order: – Keysight M9155/6/7C and M9161D Product Software and Information CD (M9157-10001), which contains software, drivers, and printed product documentation in the PDF format –... -
Page 20: Step 3: Install The Software
Getting Started Step 3: Install the Software System requirements Prior to any installation or configuration, ensure that the following system requirements are met: Table 1-2 System requirements Windows 7 (32-bit and 64-bit) Starter, Home Basic, Home Premium, Operating system Professional, Ultimate, Enterprise 1 GHz 32-bit (x86), Processor speed 1 GHz 64-bit (x64),... -
Page 21: Install The Software
Getting Started Install the software The M9155/6/7C and M9161D software is located on the M9155/6/7C and M9161D Product Software and Information CD (M9157-10001). This software is also available for download at www.keysight.com/find/PXIswitch. The Keysight IO Libraries Suite (which includes the Keysight Connection Expert) is located on the Keysight IO Libraries Suite CD (E2094-60003). -
Page 22: Step 4: Install The M9155/6/7C And M9161D
Getting Started Step 4: Install the M9155/6/7C and M9161D The M9155/6/7C and M9161D can be used in a chassis with a cPCI, PXI-1, or NOTE PXIh chassis peripheral slot. The M9155/6/7C and M9161D can be installed in any standard PXI slot marked with a peripheral slot compatibility image (a circle containing the slot number). - Page 23 Getting Started 4 Holding the M9155/6/7C or M9161D by the injector/ejector handle, slide it into an available PXI (or hybrid) slot as shown in the figure below. – Install the M9155/6/7C or M9161D into the PXI slot of the chassis by placing the module card edges into the front module guides (top and bottom).
- Page 24 Getting Started 10 Connect the System Interface Card in the chassis to the host PC. 11 Plug in and power up the PXI chassis. 12 Power up the host PC. Keysight M9155/6/7C and M9161D Startup and Service Guide...
-
Page 25: Step 5: Verify The M9155/6/7C And M9161D Operation
Getting Started Step 5: Verify the M9155/6/7C and M9161D Operation The following procedure guides you to verify that the newly installed M9155/6/7C or M9161D is operating correctly. 1 Run Keysight Connection Expert (from the desktop icon, or from Start > All Programs >... -
Page 26: Figure 1-2 Launching The Sfp From The Keysight Connection Expert
Getting Started Figure 1-2 Launching the SFP from the Keysight Connection Expert To verify that the M9155/6/7C or M9161D is working properly, click the desired port as shown in Figure 1-3, Figure 1-4, Figure 1-5 Figure 1-6. You can further verify the M9155/6/7C operation by using a multimeter to check if a port is connected. -
Page 27: Figure 1-3 M9155C Sfp Verification
Getting Started Figure 1-3 M9155C SFP verification Keysight M9155/6/7C and M9161D Startup and Service Guide... -
Page 28: Figure 1-4 M9156C Sfp Verification
Getting Started Figure 1-4 M9156C SFP verification Keysight M9155/6/7C and M9161D Startup and Service Guide... -
Page 29: Figure 1-5 M9157C Sfp Verification
Getting Started Figure 1-5 M9157C SFP verification Keysight M9155/6/7C and M9161D Startup and Service Guide... -
Page 30: Figure 1-6 M9161D Sfp Verification
Getting Started Figure 1-6 M9161D SFP verification Keysight M9155/6/7C and M9161D Startup and Service Guide... - Page 31 Keysight M9155/6/7C and M9161D PXI switch module Startup and Service Guide Service and Maintenance Service Maintenance...
-
Page 32: Service And Maintenance
Service and Maintenance Service The M9155/6/7C and M9161D do not have internal adjustments and should only be repaired by service-trained personnel. Should it become necessary to return the M9155/6/7C and M9161D for repair or service, contact your nearest Keysight Service Center. Maintenance The connectors of the M9155/6/7C and M9161D must be kept clean. - Page 33 Service and Maintenance Keep isopropyl alcohol away from heat, sparks, and flame. Store it in a tightly WARNING closed container. It is extremely flammable. In case of fire, use alcohol foam, dry chemicals, or carbon dioxide; water may be ineffective. Use isopropyl alcohol with adequate ventilation and avoid contact with eyes, skin, and clothing.
-
Page 34: Make Good Connections
Service and Maintenance Make good connections Good connections require a skilled operator. The most common cause of measurement error is bad connections. The following procedures explain how to make good connections. Make a preliminary connection 1 Ground yourself and all devices. Wear a grounded wrist strap and work on a grounded, conductive table mat. -
Page 35: Figure 2-1 Wrench Positions
Service and Maintenance Make the final connection using a torque wrench 1 Use a torque wrench to make the final connection. The table below provides information about the torque wrench. Using the torque wrench guarantees that the connection is not too tight, preventing possible connector damage. It also ensures that all connections are equally tight each time. -
Page 36: Figure 2-2 Using The Torque Wrench
Service and Maintenance 4 Hold the torque wrench lightly, at the end of the handle only (beyond the groove). Refer to Figure 2-2 below. Torquing direction Stop when handle begins to yield Figure 2-2 Using the torque wrench 5 Apply downward force perpendicular to the wrench handle. Refer to Figure 2-2. - Page 37 Service and Maintenance Separate a connection To avoid lateral (bending) force on the connector mating plane surface, always support the devices and connections. Turn the connector nut, not the device body. Major damage to the center CAUTION conductor can occur if the device is twisted. 1 Use an open-end wrench to prevent the device body from turning.
- Page 38 Service and Maintenance THIS PAGE HAS BEEN INTENTIONALLY LEFT BLANK. Keysight M9155/6/7C and M9161D Startup and Service Guide...
- Page 39 This information is subject to change without notice. Always refer to the English version at the Keysight website for the latest revision. © Keysight Technologies 2010-2016 Edition 4, November 25, 2016 *M9157-90001* M9157-90001 www.keysight.com...
