Assembly Instructions

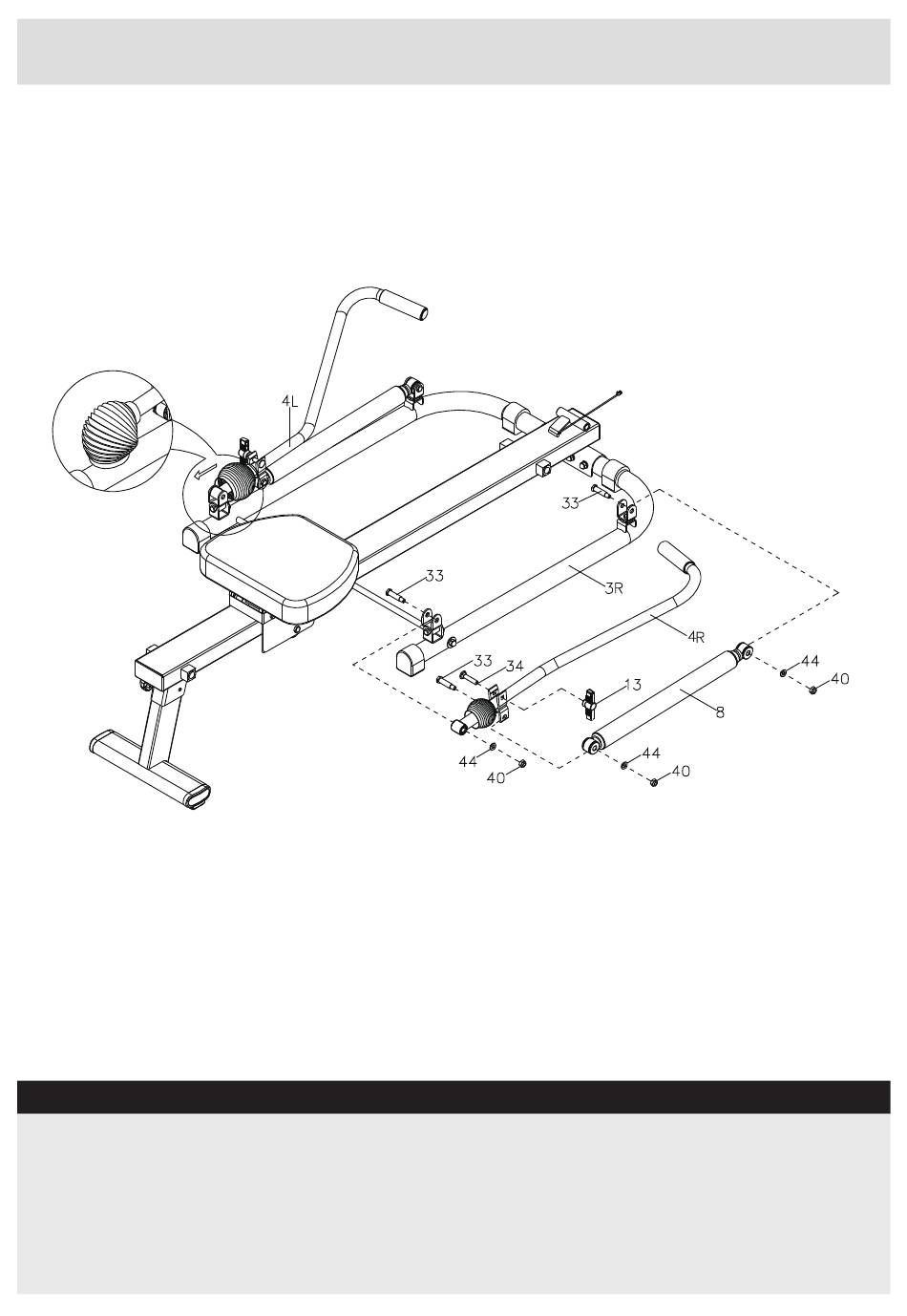

Step 5
Connect the Rowing Arms (4L/R) to the Main Frame Floor Supports (3L/R) with 2 x M8*42 Bolt (33),
2 x Flat Washer (44) and 2 x M8 Nylon Nut (40).
Fix the Hydraulic Cylinders (8) to the Main Frame Floor Supports (3L/R) and Rowing Arms (4L/R) with
4 x M8*42 Bolt (33), 4 x Flat Washer (44) and 4 x M8 Nylon Nut (40).
Connect the 2 x Slot Type Adjust Clamp (13) with 2 x M8*40 Hex Bolt (34).
7
