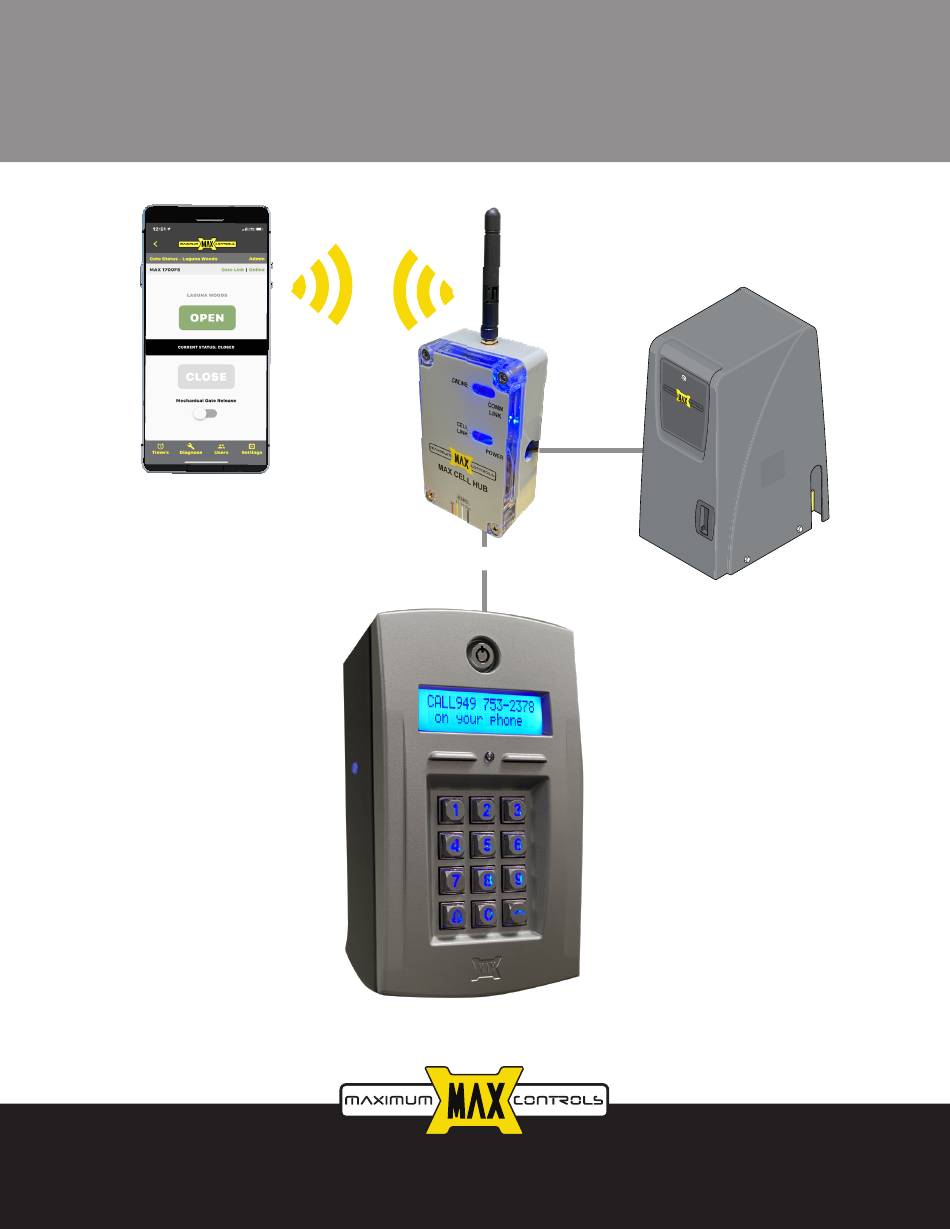

- Page 1 QUICK INSTALLATION GUIDE MAX KEYPAD RESIDENTIAL / COMMERCIAL APPLICATION Max Cloud App Max Cell Hub Max Operator ONLINE COMM LINK CELL LINK Max Keyapd POWER MAX CELL HUB RS485 MAX.US.COM 12-10-20 _Rev 2.7 (-) (+) GND www.max.us.com...
-
Page 2: Table Of Contents

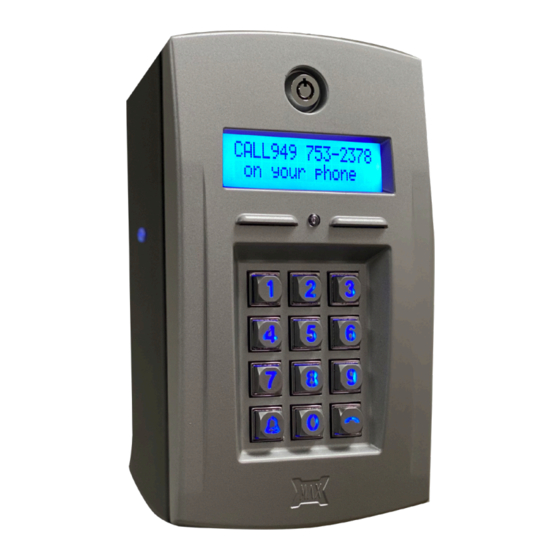

Program Keypad greetings message Program Keypad call button message Program force open keycodes Program keycodes with restrictive times MAX Keypad MAX Keypad Max Cell Hub Max Operator Max Keypad requires a Max Cell Hub. Both work exclusively with Max Gate Operators... -
Page 3: Max Keypad
& RFID transponders • To connect to Max Cell Hub • Program cards/keyfob, radio transmitters & transponder tags via Max Cloud App and assign optional time restrictions • Track wiegand device activity in event log POWER IN: 12 VDC / VAC REQUEST TO EXIT (RTE) PORT •... -
Page 4: Pedestrian Door Application
MAX CELL HUB RS485 (-) (+) GND RS485 (-) (+) GND Wiring Hub to Keypad Connect RS-485 port of Max Cell Hub to RS-485 Wiring Power Input port of Max Keypad ONLINE Connect 12VDC, 1A COMM (+) to (+) LINK... - Page 5 CELL LINK POWER PEDESTRIAN DOOR APPLICATION www.max.us.com Wiring Solenoid Lock www.max.us.com ONLINE MAX CELL HUB COMM Install Solenoid Lock LINK SOLENOID LOCK as shown below CELL LINK POWER RS485 (-) (+) GND MAX CELL HUB RS485 (-) (+) GND EXIT PUSH BUTTON...
-
Page 6: Entry Gate Application
MAX CELL HUB (-) (+) GND Install wiegand device RS485 as shown Wiring Hub to Keypad (-) (+) GND Connect RS-485 port of Max Cell Transponder Hub to RS-485 port Wiegand of Max Keypad Receiver (+) to (+) (-) to (-) -
Page 7: Program Keypad Greetings Message
PROGRAM KEYPAD GREETING MESSAGE www.max.us.com www.max.us.com Press Settings icon in the main menu Setup greeting message Go to the GREETING area and type the message you want to display for your visitors. Limited to 32 characters. Welcome to Dana Golf Courses... -
Page 8: Program Keypad Call Button Message
PROGRAM KEYPAD CALL BUTTON MESSAGE www.max.us.com www.max.us.com Press Settings icon in the main menu Setup Call Button Go to the Call Button area and type the message that may instruct the visitor to call a specific phone number (i.e. facility manager or home owner) using their personal cell phone. -
Page 9: Program Force Open Keycodes
Force open a problematic gate using this special keycode on Max keypad. This will Jog the gate open by overriding the UL sensors of Max operator Setup Force Open Keycode Go to the Force Open Keycode... -
Page 10: Program Keycodes With Restrictive Times
PROGRAM KEYCODES WITH RESTRICTIVE TIME ZONES www.max.us.com www.max.us.com Press Users icon in the main menu Then Press Add a User in the following menu User Name Enter Name of your visitor, Rose then assign a 5 digit keycode Keycode 26709... - Page 11 Wiegand keycode If you choose No Timer Keycode has no time restriction Watch video tutorials from Max Applying restrictive time period to Cloud App, just go keycodes improves the security to to the home screen your gate site Press the back button [<] on the top left of the screen to confirm...
- Page 12 Access Point # 3 Access Point # 2 Access Point # 1 MAX CELL HUB Max Hub can support up to 16 access points RS485 using Max Keypads and/or Max Wiegand Converter Units (-) (+) GND • Wiegand Keycodes with optional time zone restrictions •...
