Adjust Chair To Maximum Seat Height; Turn Chair Upside Down And Set On Stand Or Table; Slide Plastic Telescopic Cover All The Way Down The Column; Remove The Base Assembly From Chair Control - Steelcase TS380 Springboard Manual

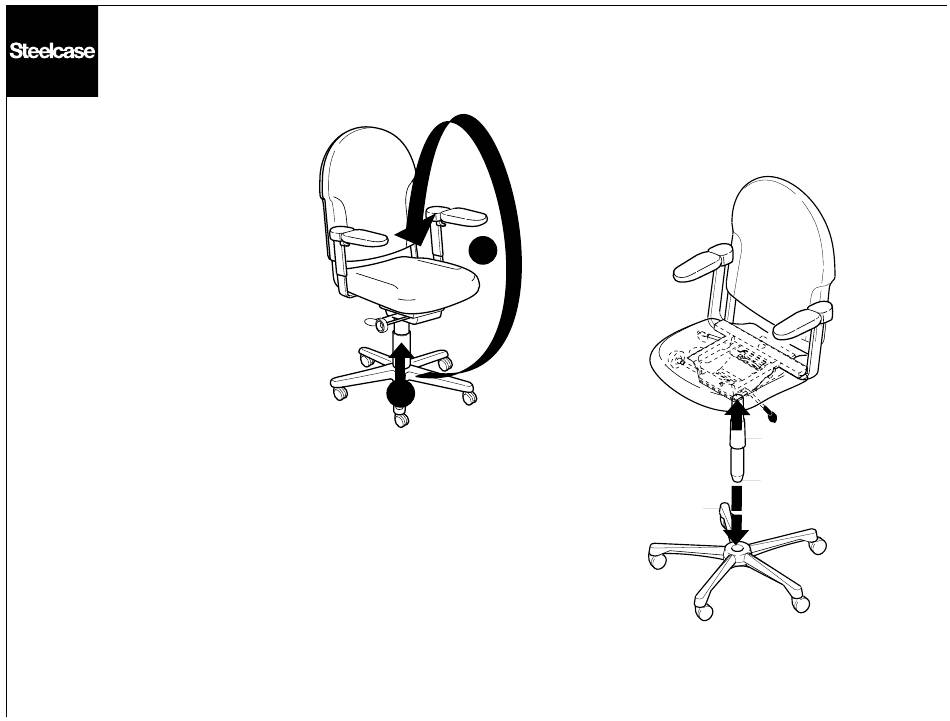

1.
Adjust chair to maximum seat
height.
2.
Turn chair upside down and
set on stand or table.
3.
Slide plastic telescopic cover
all the way down the column.
4.
Remove the base assembly
from chair control by using the
disassembly tool for taper fit joint,
or twisting and pulling using a
pipe wrench. For removal with tool
see Assembly Direction
939504598.
Task Seating Shown
2
1
Plastic Telescopic Cover
Tapered Standpipe
Base
939504743 Rev B
Page 2 of 3
