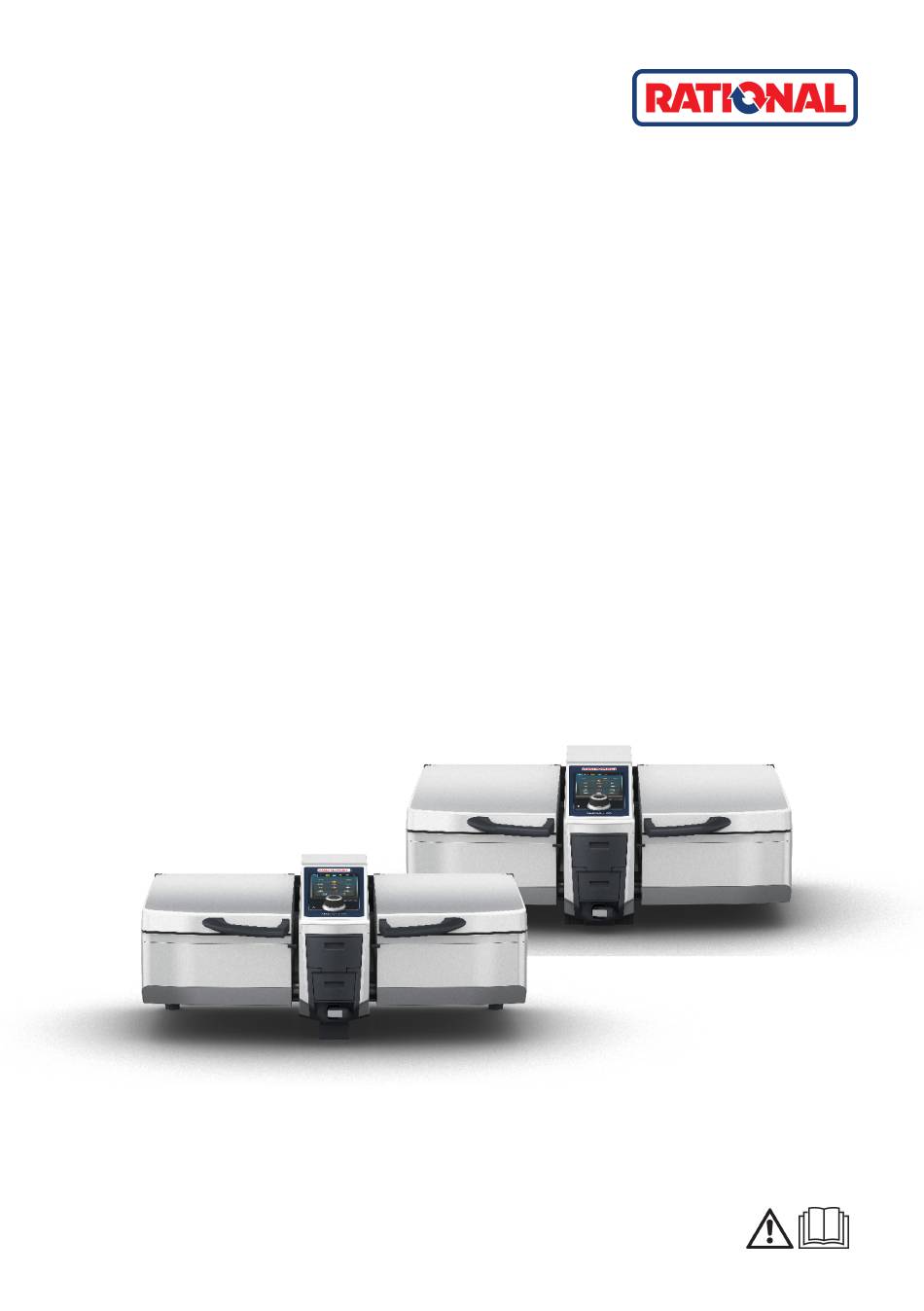

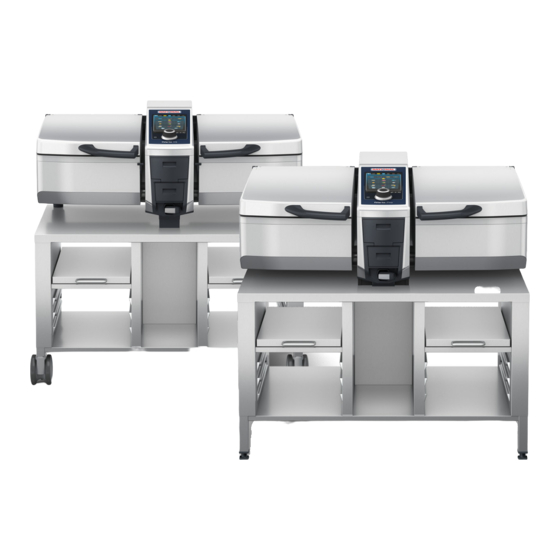

  • Page 1 ® iVario 2-XS ® iVario Pro 2-S Original installation manual...
  • Page 2 Unit handover Dealer: Installer: Specify for all queries: Unit type: Unit no.: Your unit was checked by (name): 2 / 56 80.06.562_IM_2-XS_ 2-S_en-INT...

  • Page 3: Table Of Contents

    Table of contents 1 Introduction .........................  5 Information on this manual ...................... 5 Target group .......................... 5 Copyrights ............................. 6 Conformity ............................ 6 Liability and warranty provisions.................... 6 Identification of the unit ...................... 7 2 Safety........................... 10 Warning symbols........................ 10 General safety instructions .................... 10 Intended use.......................... 11 3 Product description .................... 12 Unit description ........................
  • Page 4 Set up the unit on the base .................... 28 Fixing the unit in place ...................... 29 6 Electrical connection .................... 30 Regulations for electrical connection .................  30 Open the electrical compartment.................. 31 Connecting the equipotential bonding ................ 34 Connect the unit to the mains.................... 34 Connect the unit to the mains for Demo mode...............

  • Page 5: Introduction

    The illustrations in this manual are examples only and may differ from the unit. This manual applies to the following devices: iVario 2-XS iVario Pro 2-S Storage Keep the installation manual and operating instructions close to the unit.

  • Page 6: Copyrights

    1 | Introduction The unit may not be used, cleaned, or maintained by children. The unit may not be used for play. This is prohibited even under supervision. The unit may not be used, cleaned, or maintained by people with limited physical, sensory, or mental capacity or those without the necessary ex- perience or knowledge, unless such people are supervised by a person who is responsible for their safety and who has been informed of the haz-...

  • Page 7: Identification Of The Unit

    1 | Introduction Damage resulting from improper use, installation, maintenance or repair Use of the unit for purposes other than those for which it is intended Modifications or technical alterations to the unit not authorised by the man- ufacturer Use of non manufacturer-original service components Identification of the unit Type plate The type plate is located behind the left-hand pan on the installation box.
  • Page 8 1 | Introduction The type plate contains the following information: Marketing name Model number Connection voltage Frequency Connected load approved flow pressure range Serial number Unit type and model number Take the classification from the table below. The name of the unit type and the model number are different on the type plate.
  • Page 9 1 | Introduction Unit dimensions type plate Unit size LMX.100AE … iVario 2-XS LMX.100BE … iVario Pro 2-S LMX.200BE … iVario Pro 2-S with print option 80.06.562_IM_2-XS_ 2-S_en-INT 9 / 56...

  • Page 10: Safety

    2 | Safety Safety Warning symbols DANGER Type and source of danger Non-compliance will lead to very serious injury or death. Preventative measures WARNING Type and source of danger Non-compliance can lead to serious injury or death. Preventative measures CAUTION Type and source of danger Non-compliance can lead to minor or moderate injuries.

  • Page 11: Intended Use

    2 | Safety Wear appropriate protective clothing, such as protective gloves and safety gloves, when transporting and installing the unit. The appliance must be installed in a frost-resistant, non- windy and protected environment. Do not expose the unit to weather conditions such as rain. Only connect the unit in accordance with the installation manual and the information on the type plate.

  • Page 12: Product Description

    3 | Product description Product description Unit description NOTICE Never close or cover the safety overflow Do not reduce the safety overflow in the cross section. The safety overflow must always be accessible and free. This is used for ventilation and drainage as a drain. The connections for the installation are located on the rear of the unit, behind the middle cover: Waste water connection...

  • Page 13: Unit Weight

    The noise emissions value is below 70 dB. 3.2.1 Unit weight Unit size Weight without packaging kg Weight with packaging kg [lbs] [lbs] iVario 2-XS 110 [243] 145 [320] iVario Pro 2-S 132 [291] 167 [368] iVario Pro 2-S with...

  • Page 14: Pan Measurements

    1250 [49 2/8] 1100 [43 2/8] 662 [26 1/8] 3.2.3 Pan measurements Effective volume Unit size Effective volume l [gal] iVario 2-XS 17 [4,5] iVario Pro 2-S 25 [6,5] Pan internal dimensions Unit size Width mm [inches] Depth mm [inches]...

  • Page 15: Thermal Load

    3 | Product description 3.2.4 Thermal load Unit size Thermal load latent (kJ/h) Thermal load sensitive (kJ/h) iVario 2-XS 14364 2873 iVario Pro 2-S 20866 4309 We reserve the right to make technical developments/modifications. 80.06.562_IM_2-XS_ 2-S_en-INT 15 / 56...

  • Page 16: Transport

    4 | Transport Transport CAUTION Risk of crushing due to the weight of the unit Hands, fingers and feet can be crushed. Use appropriate protective clothing during transport. Use carrying aids, e.g. a carrying strap. CAUTION Risk of tipping during transport Risk of crushing if the unit tips onto persons.

  • Page 17: Lifting Points On The Unit

    Ensure an even weight distribution of the unit. Note the centre of mass of the unit. Width mm [inches] Depth mm [inches] Height mm [inches] iVario 2-XS 544 [21 7/16] 176 [6 31/32] 155 [6-1/8] iVario Pro 2-S 544 [21 7/16]...

  • Page 18: Transport With Pallet

    4 | Transport Lifting points on the unit 1. Lift the unit by the base frame marked in the image and the marked pan covering. Transport with pallet The packaging material is removed. The unit is on the shipping pallet. 1.

  • Page 19: Transporting Without A Pallet With A Pallet Truck

    4 | Transport 2. Lift the unit at the lifting points from the transport pallet and place it on its intended installation surface. >> The unit is standing on its intended installation surface and is ready for as- sembly and installation. Transporting without a pallet with a pallet truck NOTICE Transporting with a transport aid without protection...

  • Page 20: Vertical Transport Without Pallet With Pallet Truck

    4 | Transport 2. Lift the unit off the pallet at the lifting points and place it on the pallet truck. >> The unit is standing on its intended installation surface and is ready for as- sembly and installation. Vertical transport without pallet with pallet truck To transport the unit through a bottleneck, you can temporarily transport it in a vertical position on its back.
  • Page 21 4 | Transport 2. Slowly transport the unit to the site with the pallet truck. Hold on to the unit during transport. 3. Lift the unit at the lifting points and place it on its intended installation sur- face. 4. Remove the straps. >>...

  • Page 22: Placement

    5 | Placement Placement CAUTION Risk of crushing when positioning the unit Fingers, hands and feet could be crushed beneath the unit. Wear appropriate protective clothing when positioning the unit. Only lift the unit at the intended lifting points. Pre-requisites When placing the unit on a base frame, be sure to only use the original base frame of the unit manufacturer.

  • Page 23: Distance To Heat Sources

    5 | Placement Manufacturer's recommendation 1. Place the unit on the left and right sides with a minimum distance of 50 mm [2 inches]to the wall to allow ideal cleaning of the unit. 50 mm 50 mm [2 Inch] [2 Inch] 5.1.2 Distance to heat sources 1.

  • Page 24: Distance To Water Sources

    5 | Placement NOTICE Open flame near the unit If the unit is placed at a distance of less than 500 mm [19 3/8 inches] from an open flame, always install a heat shield. 500 mm [19 5/8 Inch] 500 mm 500 mm [19 5/8 Inch] [19 5/8 Inch]...
  • Page 25 5 | Placement 1. Position the unit with a minimum clearance of 900 mm [35 3/8 inches] to open water sources on all sides. 900 mm 900 mm [35 3/8 Inch] [35 3/8 Inch] 1. If you cannot adhere to the clearance, mount a non-flammable 350 mm [13 6/8 inches] high separator between the unit and the water source.

  • Page 26: Stand The Unit Up

    5 | Placement Stand the unit up CAUTION Risk of tipping when installed on installation surface Risk of crushing if the unit tips onto persons. Note the centre of mass of the unit. Make sure that the unit does not tip over during lifting. NOTICE Hygiene requirements not met Where the adjustable foot is 45 mm high, a sealing base must be placed...
  • Page 27 5 | Placement 1. Place the spirit level on the right pan and level the unit horizontally using the unit base (1). 2. Place the spirit level on the right pan and level the unit using both unit feet. 80.06.562_IM_2-XS_ 2-S_en-INT 27 / 56...

  • Page 28: Set Up The Unit On The Base

    5 | Placement 3. Place the spirit level on the left pan and level the unit using both unit feet. 4. Check both pans to ensure they are level. >> The unit is level. Set up the unit on the base This description refers to a standard base with height-adjustable plastic feet.

  • Page 29: Fixing The Unit In Place

    5 | Placement 1. Position the feet of the unit and on the bolts of the base frame. >> The unit stands on the base and is secured to prevent shifting. Fixing the unit in place The manufacturer recommends that the unit be fixed to the installation surface. The kit for fixing the unit in place, including special glue, screws and dowels, is not included in the scope of delivery of the unit and can be ordered separately from the manufacturer under article number 60.72.905 .

  • Page 30: Electrical Connection

    6 | Electrical connection Electrical connection DANGER High voltages when connecting to the mains power Danger to life due to high voltage. Disconnect from the power supply. Make sure the unit is disconnected from the power. DANGER Electric shock from incorrect connection There is a danger to life if the wires are incorrectly connected.

  • Page 31: Open The Electrical Compartment

    6 | Electrical connection Adhere to the regulations of IEC 60364 or those of the local version of IEC 60364. Notes The cross-sections of the connection lines depend on current consumption and local regulations. Colour coding of wires: Note the colour coding of wires and local deviations. Wire colour Wire function Yellow/green...
  • Page 32 6 | Electrical connection NOTICE Damage to the drill holes for covering the electrical compartment Failure to follow the proper order of first removing and tightening the electrical compartment cover bolts may damage the holes due to the pre- load in the cover. The electrical compartment is behind the right cover on the rear of the unit.
  • Page 33 6 | Electrical connection 2. Lightly press on the cover in the area of the respective screw and loosen the screws (1) and (2). 3. Loosen the screws (3), (4), (5) and (6) one after the other. 4. Remove the cover of the electrical compartment. >>...

  • Page 34: Connecting The Equipotential Bonding

    The flexible power cable is at least a type H07RN-F. The rigid power cable is at least a type U-1000R02V. Maximum cross-section of the connecting conductor on the main fuse: iVario 2-XS: 6 mm² iVario Pro 2-S : 35 mm² Establish the connecction A residual current device type A or B is provided.

  • Page 35: Connect The Unit To The Mains For Demo Mode

    6 | Electrical connection 5. Connect the protective conductor to the yellow-green terminal. 6. Connect the neutral conductor to the blue terminal. 7. Connect the grey cable directly to contactor K1. 8. Check that the wires are properly plugged in. 9.

  • Page 36: Close The Electrical Compartment

    6 | Electrical connection Close the electrical compartment The power cable is connected to the unit. 1. Place the cover on the electrical compartment. 2. Insert the screws. 3. Successively tighten screws (1), (2), (3) and (4). 36 / 56 80.06.562_IM_2-XS_ 2-S_en-INT...

  • Page 37: Power Ratings Of Different Voltage Types

    2 m [78 Inch]. Calculate the conductor cross section according to the length and quality of the power cable used. 3N AC 400 V Power kW Amp draw A Fuse A Conductor cross-sec- tion mm² iVario 2-XS iVario Pro 2-S 80.06.562_IM_2-XS_ 2-S_en-INT 37 / 56...
  • Page 38 6 | Electrical connection 3N AC 415 V Power kW Amp draw A Fuse A Conductor cross-sec- tion mm² iVario 2-XS iVario Pro 2-S 3 AC 200 V Power kW Amp draw A Fuse A Conductor cross-sec- tion mm² iVario 2-XS...

  • Page 39: Check The Function Of The Socket In The Unit

    Power kW Amp draw A Fuse A Conductor cross-sec- tion mm² iVario 2-XS iVario Pro 2-S Check the function of the socket in the unit Power ratings for socket in the unit Standard version without residual current circuit breaker: By default, the socket in the unit is equipped with a 10 A fuse. The maximum available power is 2,3 kW.
  • Page 40 6 | Electrical connection Optionally, the socket in the unit is equipped with an integrated residual cur- rent circuit breaker that shuts off the socket in the event of fault current. Check the socket in the unit before first use. Check the function When the unit is switched on, the socket is inactive.

  • Page 41: Network Connection

    7 | Network connection Network connection Notes on network connection The network connection allows you to connect the unit to your network, in or- der to connect the unit to ConnectedCooking. Ethernet connection (Local Area Network) Optionally, the unit can be ordered or retrofitted with an Ethernet connec- tion.

  • Page 42: Water Connection

    8 | Water connection Water connection Regulations for water connection NOTICE Connection to soft water Make sure the residual hardness of the water is at least 4°dH if you connect the unit to soft water. A soft water connection is not necessary. Water hose Supply and use a separate water tap for each unit.
  • Page 43 8 | Water connection 1. Connect the water hose to the water inlet of the unit. 2. Open the water tap. >> The water inlet is connected. 80.06.562_IM_2-XS_ 2-S_en-INT 43 / 56...

  • Page 44: Waste Water Connection

    9 | Waste water connection Waste water connection Regulations for waste water connection NOTICE The drain pipe does not meet requirements Use a drain pipe with a high temperature resistance which corresponds at least to a type PP pipe. Do not use a hose. NOTICE Dirty and greasy waste water Make sure that a grease trap is installed by the owner to clarify the waste...

  • Page 45: Connect Waste Water Drain

    9 | Waste water connection If you install a base with height-adjustable feet, a flexible unit drain is re- quired. The kit with the flexible unit drain DN 40 is not enclosed with the unit. The kit is available separately from the manufacturer under article number 87.00.749.
  • Page 46 9 | Waste water connection 3. If installing the unit on an original base, insert the drain pipe through the recess in the base. 5% / 3° 4. Keep a minimum clearance of at least 20 mm [3/4 inches] between the drain channel and the waste water drain.
  • Page 47 9 | Waste water connection 5. Put the cover back on and screw in the 2 screws. >> The drain pipe is connected to the unit drain water-tight. >> The drain pipe is connected with a constant fall of at least 5% or 3°. >>...
  • Page 48 9 | Waste water connection 1. Put the mounting clamps in the recesses of the adjustable foot. 2. Connect the drain pipe DN 40 mm with a constant fall of at least 5% or 3° and pass it through the mounting clamp to the front of the unit. 3.
  • Page 49 9 | Waste water connection 4. If the unit is installed on an original base, the drain pipe can be fixed to the base with a bracket. >> The drain pipe is installed with a fall of at least 5% or 3° with the outlet to- wards the front.

  • Page 50: Decomissioning

    10 | Decomissioning Decomissioning 10.1 Notes on decommissioning Note the following information on decommissioning the unit: Make sure that the unit is disconnected from the power supply. Remove all water and waste water connections from the unit. If the unit is to be transported, remove the unit from the foot locks and from any wall brackets (fastening chain).

  • Page 51: Options

    11 | Options Options 11.1 Positioning options The unit can be set up and ordered from the manufacturer under the following article number: Unit size iVario 2-XS iVario Pro 2-S Base frame with plastic 60.31.221 60.31.319 feet Support table with castors 60.31.317...
  • Page 52 11 | Options 1. Lift the unit slightly (1) and remove the 2 M5 screws in the adjustable foot (2). > The adjustable foot height is removed. 2. Remove the plastic covers of the unit feet one after the other. 3.
  • Page 53 11 | Options 5. Make sure that the feet are placed on the positioning pins. >> The plastic covers are twisted and the sealing base is glued. >> The unit is level. 80.06.562_IM_2-XS_ 2-S_en-INT 53 / 56...
  • Page 56 RATIONAL AG Siegfried-Meister-Straße 1 86899 Landsberg am Lech, Germany Tel. +49 (0)8191 3270 Fax +49 (0)8191 21735 info@rational-online.com rational-online.com...
