Summary of Contents for CHIEF PSBO-2085

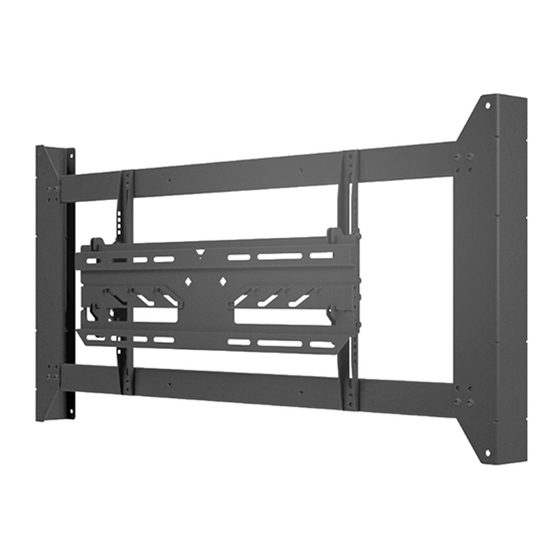

- Page 1 I N S T A L L A T I O N I N S T R U C T I O N S Outdoor Large Flat Panel Interface Bracket Spanish Product Description German Product Description Portuguese Product Description Italian Product Description Dutch Product Description French Product Description PSBO-2085/2086...
- Page 2 --SAVE THESE INSTRUCTIONS-- ACCESSORY: AN ACCESSORY is the secondary Chief product which is attached to a primary Chief product, and may have a component attached or setting on it. COMPONENT: A COMPONENT is an audiovisual item designed to be attached or resting on an accessory or mounting system such as a video camera, CPU, screen, display, projector, etc.
- Page 3 Installation Instructions PSBO-2085/2086 DIMENSIONS PSBO-2085 3.60 91.3 ADDED DEPTH 48.19 1224.1 0.37 4.02 THREAD ENGAGEMENT 102.2 23.50 596.9 MOUNTING BUTTONS FIT INTO FACEPLATE ON MOUNT DIMENSIONS: INCHES [MILLIMETERS] PSBO-2086 3.60 91.3 ADDED DEPTH 40.67 1033.1 0.37 THREAD ENGAGEMENT 2.84 72.2 21.00...
- Page 4 PSBO-2085/2086 Installation Instructions TOOLS REQUIRED FOR INSTALLATION (included) PARTS B (2) [PSBO2085 cross bar] Hardware Bag A (2) PSBO2085 [PSBO2085 side plate] C (12) M8 x 12mm PSBO2086 B (2) D (1) [PSBO2086 cross bar] A (2) [PSBO2086 side plate]...
- Page 5 Installation Instructions PSBO-2085/2086 ASSEMBLY AND INSTALLATION Attach the cross bars (B) to the vertical side plates (A) using eight M8x12mm button head cap screws (C) and the M8 hex key (D). (See Figure 1) (A) x 2 (B) x 2...
- Page 6 PSBO-2085/2086 Installation Instructions...
- Page 7 Installation Instructions PSBO-2085/2086...
- Page 8 Europe A Franklinstraat 14, 6003 DK Weert, Netherlands P +31 (0) 495 580 852 F +31 (0) 495 580 845 Chief, a products division of Asia Pacific A Office No. 918 on 9/F, Shatin Galleria Milestone AV Technologies 18-24 Shan Mei Street...
