CHIEF PSB-2244 Installation Instructions

I N S T A L L A T I O N I N S T R U C T I O N S
DISPLAY MOUNTING BRACKET

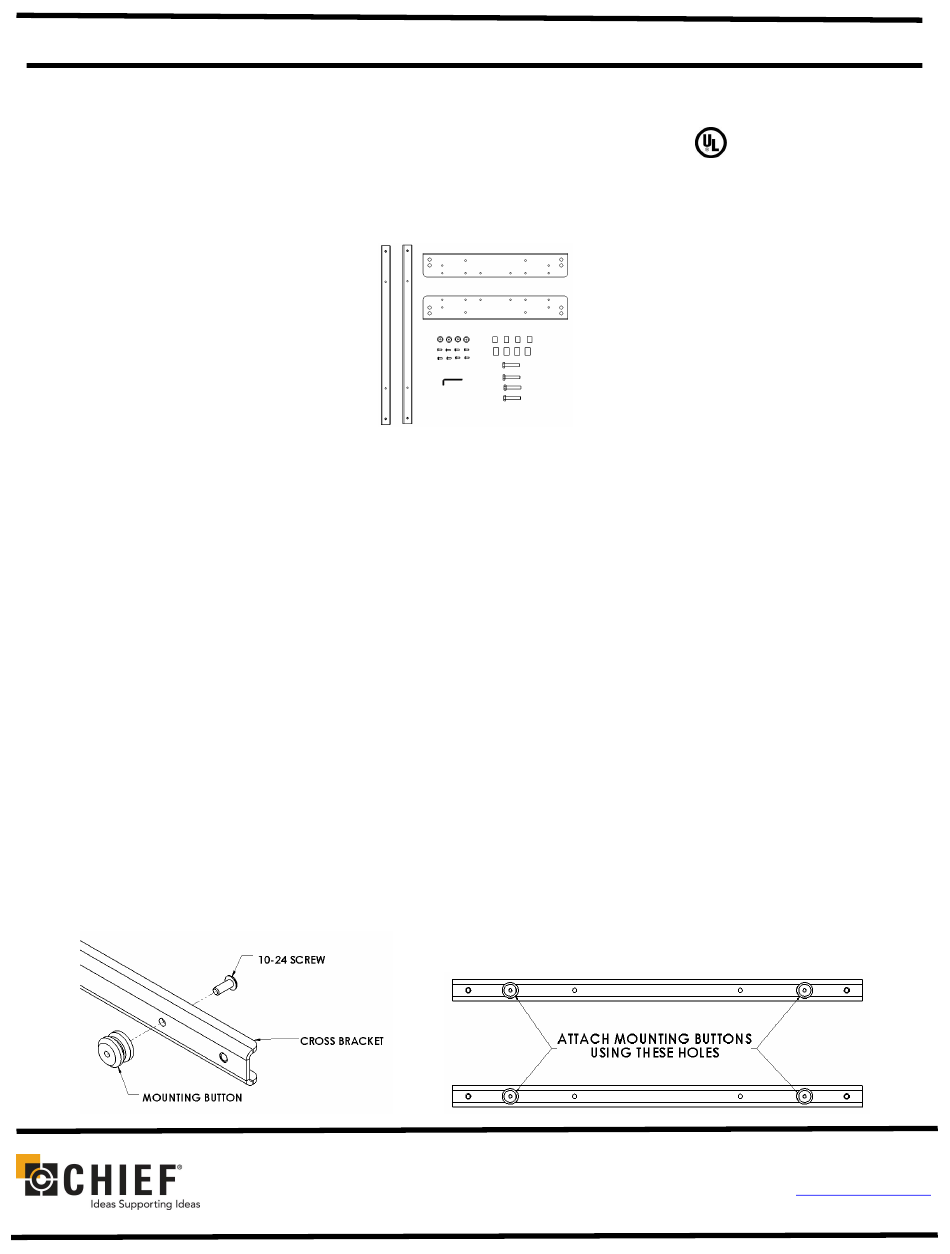

Prior to assembly, unpack carton completely and verify contents.
If you are missing any of the following components, please contact Customer Service at 1-800/582-6480
(2) Plasma Upright Brackets
(4) Mounting Button - Tapped
(4) M10 x 50mm Hex Head Cap Screw
(4) .750 x .390 x 1.00 Nylon Spacer
(1) 1/8 Allen Key
BEFORE PROCEEDING, READ INSTALLATION INSTRUCTIONS COMPLETELY
CAUTION!
WARNING!
1. Using a 10-24 button head cap screw inserted from back side of bracket, secure mounting button, with
chamfered hole of mounting button (larger surface) facing bracket, to upright brackets (four places) (see
Figure 2 & Figure 3).
Figure 2
CHIEF MANUFACTURING INC.
1-800-582-6480 952-894-6280 FAX 952-894-6918
8401 EAGLE CREEK PKWY, STE. 700
SAVAGE, MINNESOTA 55378 USA
PSB-2244
Figure 1
DISPLAYS ARE EXTREMELY FRAGILE.
ALL COMPONENTS MUST BE SECURELY FASTENED TO A
STRUCTURAL MEMBER CAPABLE OF SUPPORTING 4
TIMES THE COMBINED WEIGHT OF ALL COMPONENTS
PLUS THE EQUIPMENT BEING MOUNTED. IF IT CANNOT
SUPPORT THIS WEIGHT, THE STRUCTURE MUST BE
REINFORCED.
THE MAXIMUM WEIGHT TO BE INSTALLED ON THE
MOUNT IS 175 POUNDS (79.38 KG).
(2) Plasma Top/Bottom Bracket
(8) 10-24 x .5 Button Head Cap Screw
(4) M15 x M10.4 x M20 Nylon Spacer
(1) Wrench, Hex, 17mm
Figure 3
2008 Chief Manufacturing
8804-000302 REV. E
www.chiefmfg.com
2/08
