CHIEF PSB-2064 Installation Instructions

I N S T A L L A T I O N I N S T R U C T I O N S
DISPLAY MOUNTING BRACKET
Prior to assembly, unpack carton completely and verify contents.
If you are missing any of the following components, please contact Customer Service at 1-800/582-6480
(2) Side Interface Bracket
(4) Mounting Buttons-10-24 Tapped
(4) M5 x 30 mm Phillips Head Cap Screw
(8) .68 x .39 x .625 Nylon Spacer
(1) T25 Torx Key
BEFORE PROCEEDING, READ INSTALLATION INSTRUCTIONS COMPLETELY
CAUTION!
WARNING!
1. If applicable, remove existing mounting buttons on back of display using the T25 Torx key.
2. Using a 10-24 button head cap screw inserted from back side of bracket, secure mounting button,
with chamfered hole of mounting button (larger surface) facing bracket, to top and bottom brackets
(four places) (see Figure 2 & Figure 3).
CHIEF MANUFACTURING INC.
1-800-582-6480 952-894-6280 FAX 952-894-6918
8401 EAGLE CREEK PKWY, STE. 700
SAVAGE, MINNESOTA 55378 USA
PSB-2064-2065-2066-2067
DISPLAYS ARE EXTREMELY FRAGILE.
ALL COMPONENTS MUST BE SECURELY FASTENED TO A
STRUCTURAL MEMBER CAPABLE OF SUPPORTING 4
TIMES THE COMBINED WEIGHT OF ALL COMPONENTS
PLUS THE EQUIPMENT BEING MOUNTED. IF IT CANNOT
SUPPORT THIS WEIGHT, THE STRUCTURE MUST BE
REINFORCED.
THE MAXIMUM WEIGHT TO BE INSTALLED ON THE
MOUNT IS 175 POUNDS (79.38 KG).

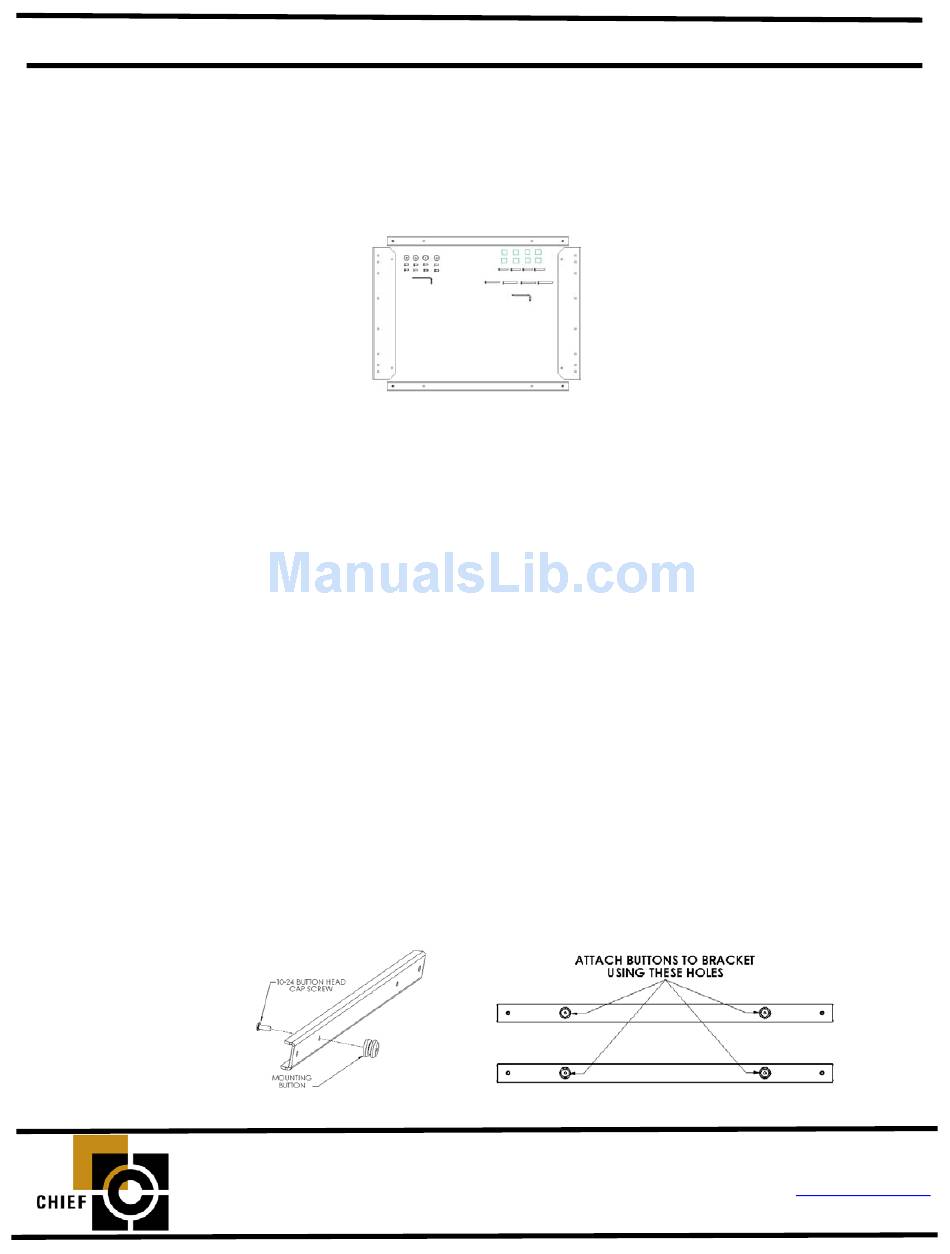

Figure 2
Figure 1
(2) Top/Bottom Bracket
(8) 10-24 Button Head Cap Screws
(4) M5 x 45mm Phillips Head Cap Screw
(1) 1/8" Allen Key
Figure 3
8804-000238 RevC
2005 Chief Manufacturing
www.chiefmfg.com
10/05
