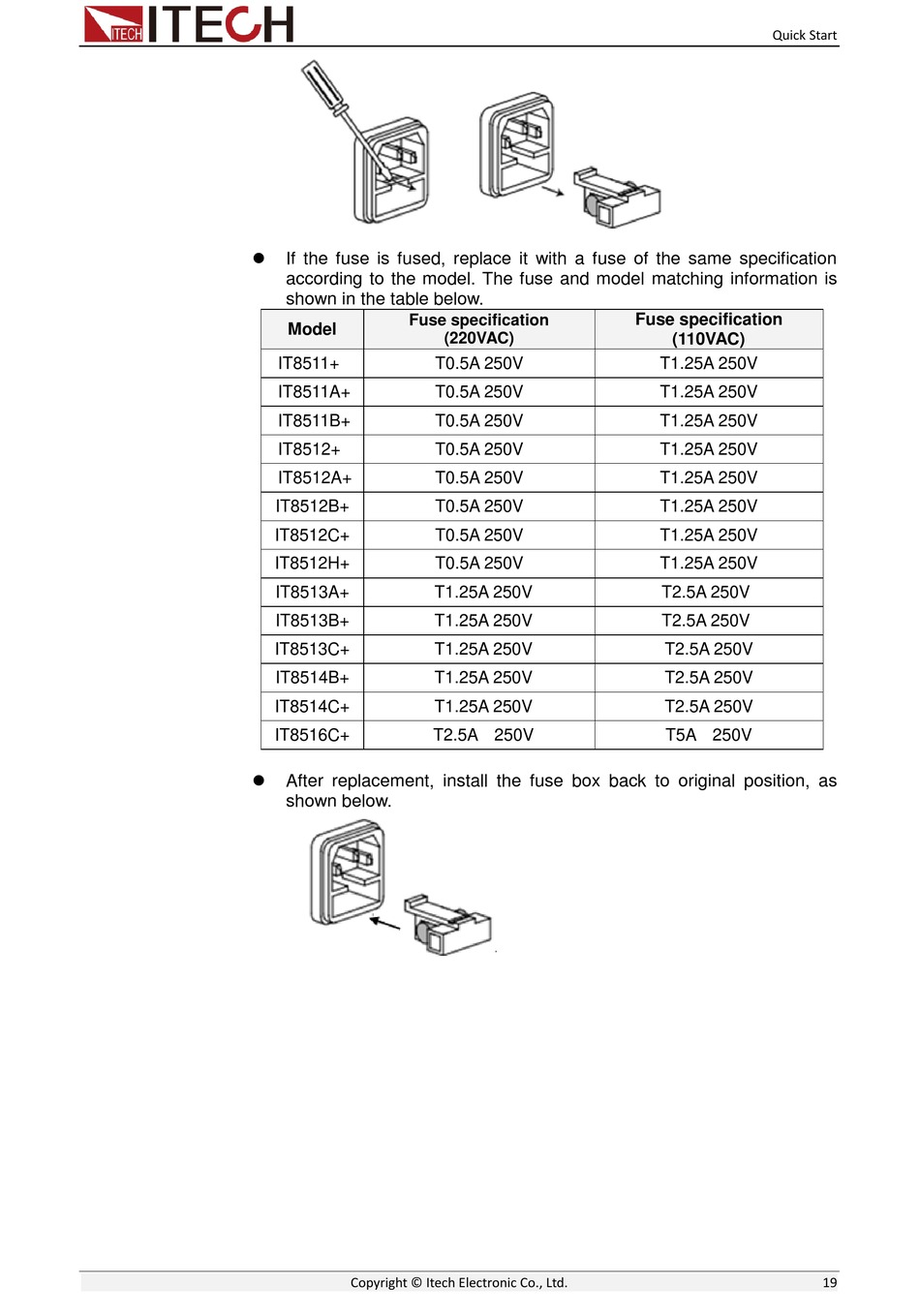

If the fuse is fused, replace it with a fuse of the same specification
according to the model. The fuse and model matching information is
shown in the table below.
Fuse specification
Model
IT8511+
IT8511A+
IT8511B+
IT8512+
IT8512A+
IT8512B+
IT8512C+
IT8512H+
IT8513A+
IT8513B+
IT8513C+
IT8514B+
IT8514C+
IT8516C+
After replacement, install the fuse box back to original position, as
shown below.
Copyright © Itech Electronic Co., Ltd.
(220VAC)
T0.5A 250V
T0.5A 250V
T0.5A 250V
T0.5A 250V
T0.5A 250V
T0.5A 250V
T0.5A 250V
T0.5A 250V
T1.25A 250V
T1.25A 250V
T1.25A 250V
T1.25A 250V
T1.25A 250V
T2.5A 250V
Quick Start
Fuse specification
(110VAC)
T1.25A 250V
T1.25A 250V
T1.25A 250V
T1.25A 250V
T1.25A 250V
T1.25A 250V
T1.25A 250V
T1.25A 250V
T2.5A 250V
T2.5A 250V
T2.5A 250V
T2.5A 250V
T2.5A 250V
T5A 250V
19
