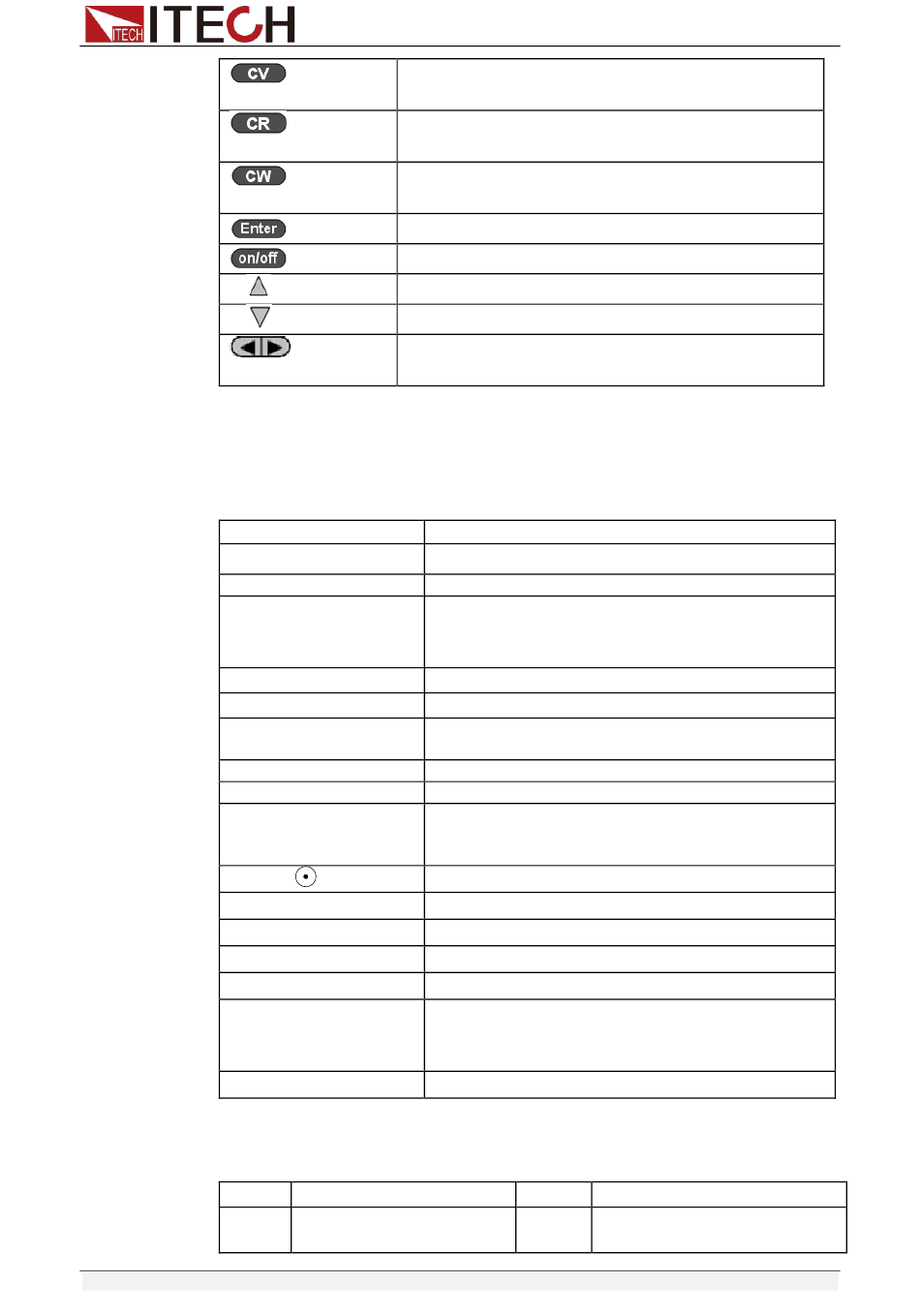

2.5 Combination Keys

Press [Shift] button first and then other keys to achieve all kinds functions in
the following table.
[Shift]+[1] (Short)
[Shift]+[2] (Tran)
[Shift]+[3] (List)
[Shift]+[4] (Save)
[Shift]+[5] (Battery)
[Shift]+[6] (Prog)
[Shift]+[7] (Info)
[Shift]+[8] (System)
[Shift]+[9] (Config)
[Shift]+[0] (Pause)
[Shift]+[
[Shift]+[CC] (OCP)
[Shift]+[CV] (Setup)
[Shift]+[CW] (OPP)
[Shift]+[CR] (CR-LED)
[Shift]+[Enter] (Recall)
[Shift]+[On/Off] (Lock)

2.6 VFD Annunciators

OFF
CC
Select the constant voltage mode and set the input
voltage value.
Select the constant resistance mode and set the
input resistance value.
Select the constant power mode and set the input
power value.
Enter the selected value or setting.
Turn on or turn off the input of the load.
The scroll up key is used to select the menu item.
The scroll down key is used to select the menu item.
Move the left and right keys to adjust the cursor to
the specified position when setting the value.
Start or stop the short circuit test.
Set the transient operation parameters.
Set the LIST operation parameters.
Store the parameter value of the currently load.
Including: voltage, current and power values, and
so on.
Battery test function.
Automatic test function.
Displays the model number, version number, and
serial number of the electronic load.
System menu setting
Configure menu setting
Pressing this button during the running of the
automatic test indicates that the automatic test is
suspended.
Cause an immediate trigger.
] (Trigger)
Enter OCP test function.
Set detailed parameters in CC/CV/CW/CR mode.
Enter OPP test function.
CR-LED function setting
Recall the load parameter values that have been
stored. Includes: voltage, current and power
settings, and so on.
Key lock function
The load input is off.
Constant current mode
Copyright © Itech Electronic Co., Ltd.
Error An error has occurred.
Trig Waiting for the trigger
signal.
